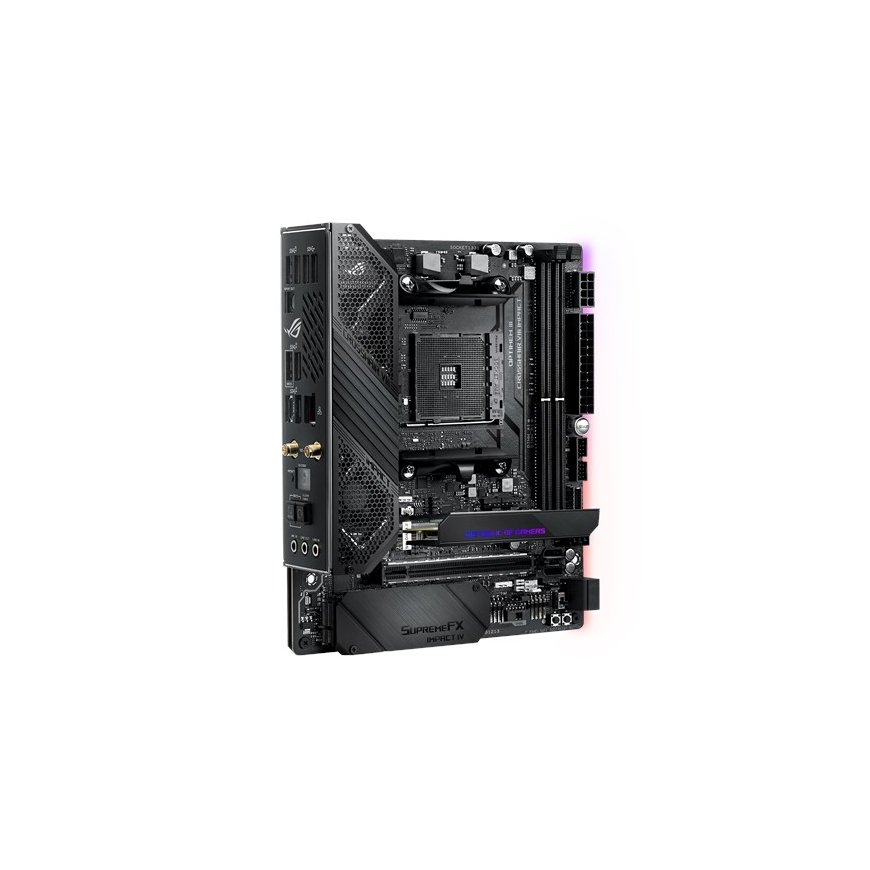

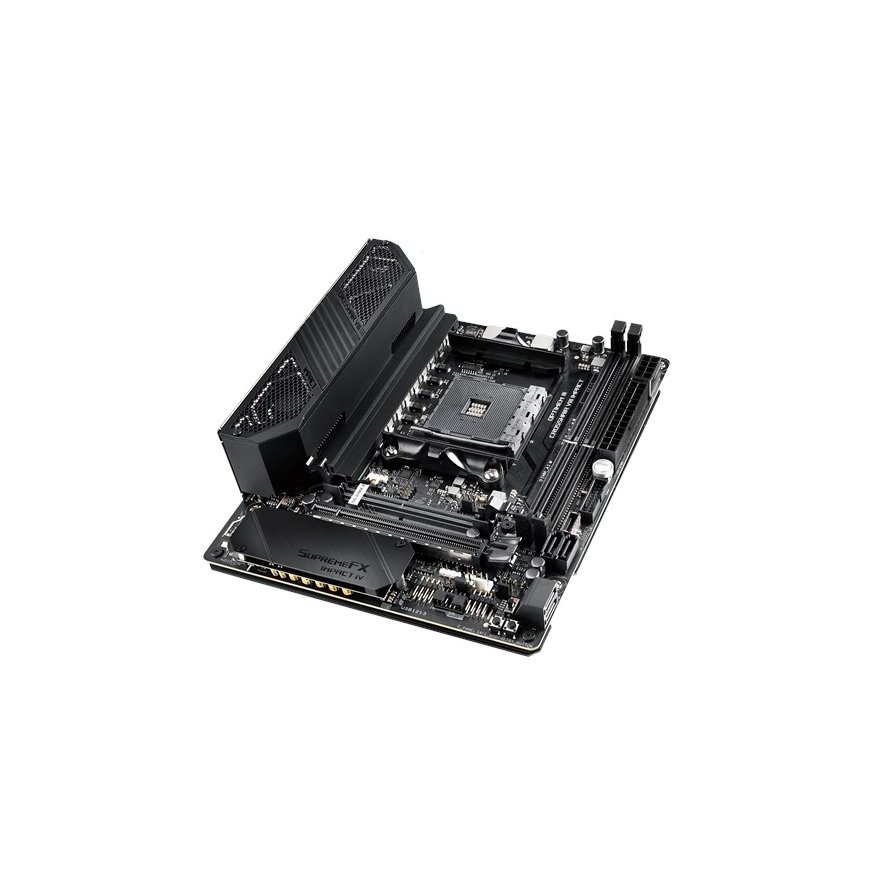

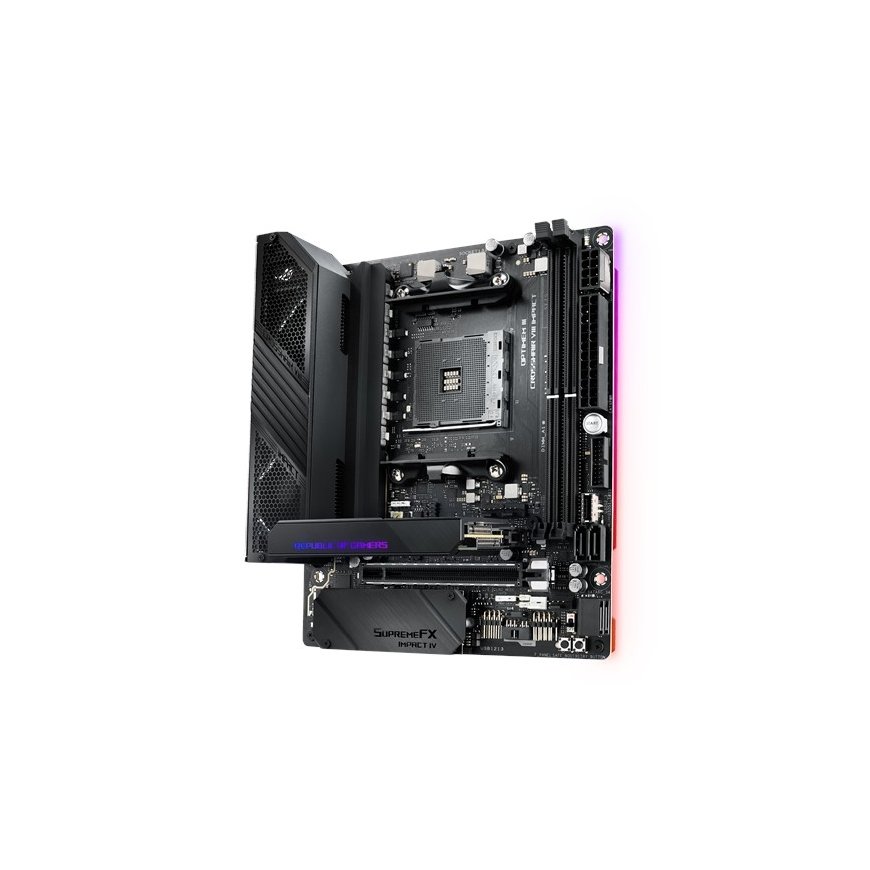

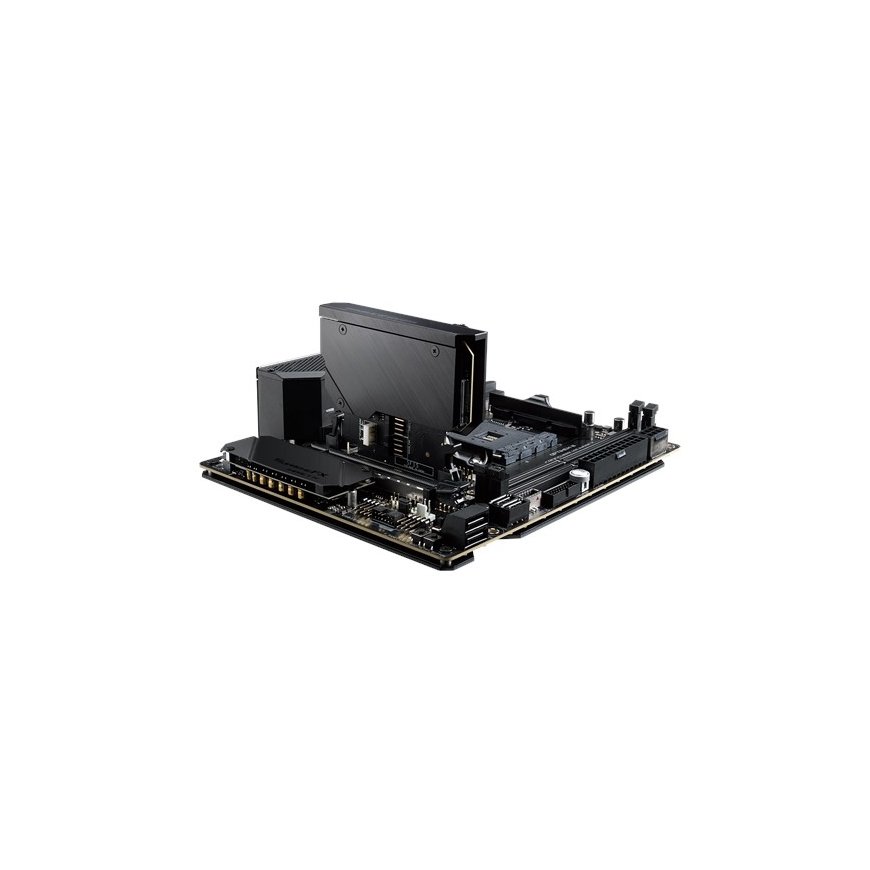

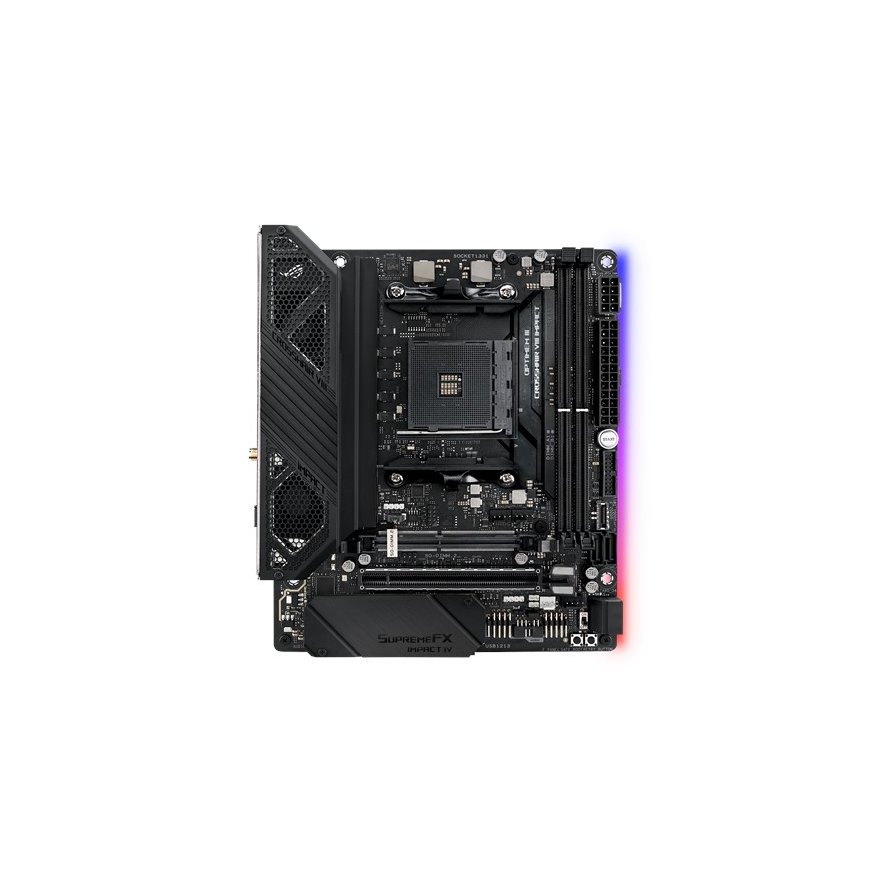

ASUS ROG Crosshair VIII Impact AMD X570 Socket AM4 Mini DTX
684845 90MB11Q0-M0EAY0
4718017372558
Shipping 7-11 b.d.
All about the product
AMD X570 chipset
The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI® and AMD CrossFireX™. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.
AMD AM4 Socket for 3rd and 2nd Gen AMD Ryzen™ / 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
The high-performance 3rd Gen AMD Ryzen™ processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express® 4.0/3.0 lanes for superb performance.
Processor | |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 2000 Series |
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
| Processor manufacturer | AMD |
Memory | |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3466, 3600, 3866, 4000, 4133, 4400, 4600, 4800, 3400, 3733, 4266 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Number of memory slots | 2 |
Storage controllers | |
| RAID levels | 0, 1, 10 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA III |
Internal I/O | |
| USB 2.0 connectors | 1 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| Power fan connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA II connectors | 0 |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Audio connector | Yes |
Rear panel I/O ports | |
| PS/2 ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| eSATA ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
Network | |
| LAN controller | Intel® I211-AT |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
Features | |
| Motherboard form factor | Mini DTX |
| Motherboard chipset | AMD X570 |
| Audio output channels | 8.0 channels |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Component for | Mini PC |
| Windows operating systems supported | Windows 10 |
| Power source type | ATX |
| Number of mounting holes | 4 |
| Audio chip | SupremeFX S1220A |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.2 |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 3.2 |
Weight & dimensions | |
| Width | 203 mm |
| Depth | 170 mm |
| Height | 82 mm |
Other features | |
| Weight | 850 g |
| Quick installation guide | Yes |
| BIOS switch button | Yes |
| HDD size | 2.5/3.5" |
Packaging content | |
| Drivers included | Yes |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
