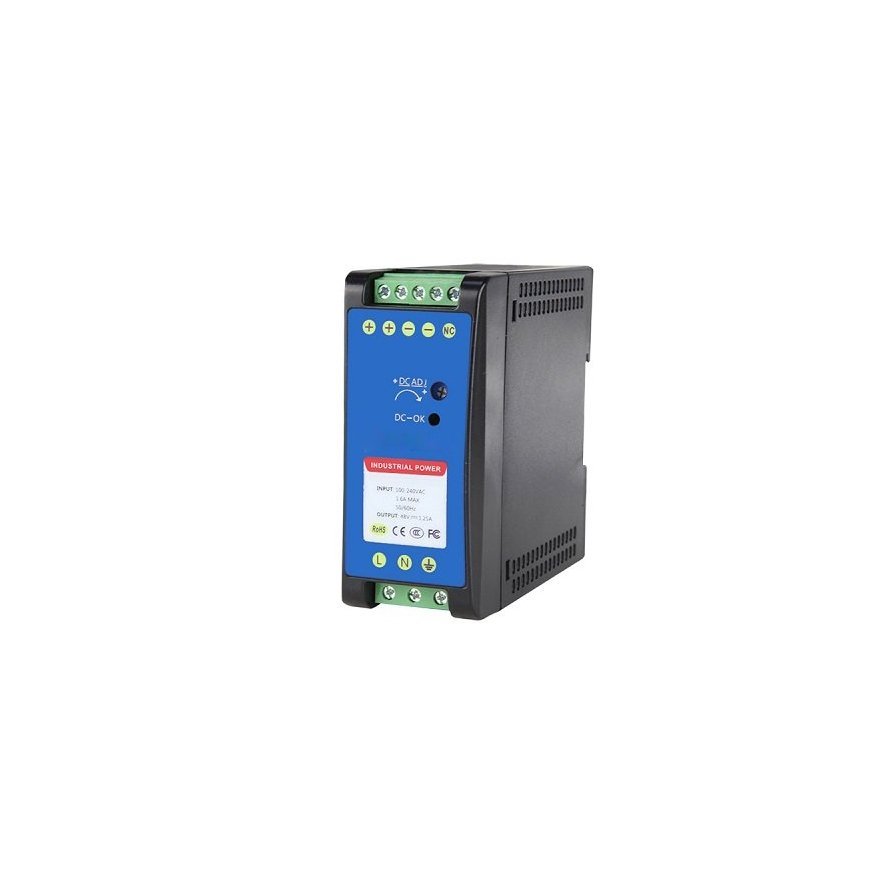

Power Adapter DR-60-48 48V / 60W
4047810 DR-60-48
9990000700547
Shipping 2-4 days
Power supply 48V, 1.25A, 60W, DIN.
Features
Economical slim 60W DIN Rail industrial power supply. Can be installed on DIN rails: TS-35/7.5 or TS-35/15.
Cooling by free air convection. Operation at the ambient temperature between -40°C to 70°C.
Protections: short circuit / overload / over voltage.
High efficiency, durability, reliability, narrow profile.
Meets the EU standards EMC for harmonic current emissions EN61000-3-2.
Specifications
Input range AC: 90-264V. Frequency 47-63Hz.
Output voltage DC: 48V.
DC voltage adjustable range: 47 ~ 56V.
Rated current: 1.25A.
Rated power: 60W.
AC current: 1.4A / 115V, 0.8A / 230V.
Ripple and noise: 100mV p-p.
Efficiency: >89%.
Leakage current: <0.25mA / 264V AC.
Operating temperature: from -40°C to + 70°C.
Operating humidity: 20% -95% RH.
Dimension: 93x102.5x41mm.
Certificates: RoHS, CE.
