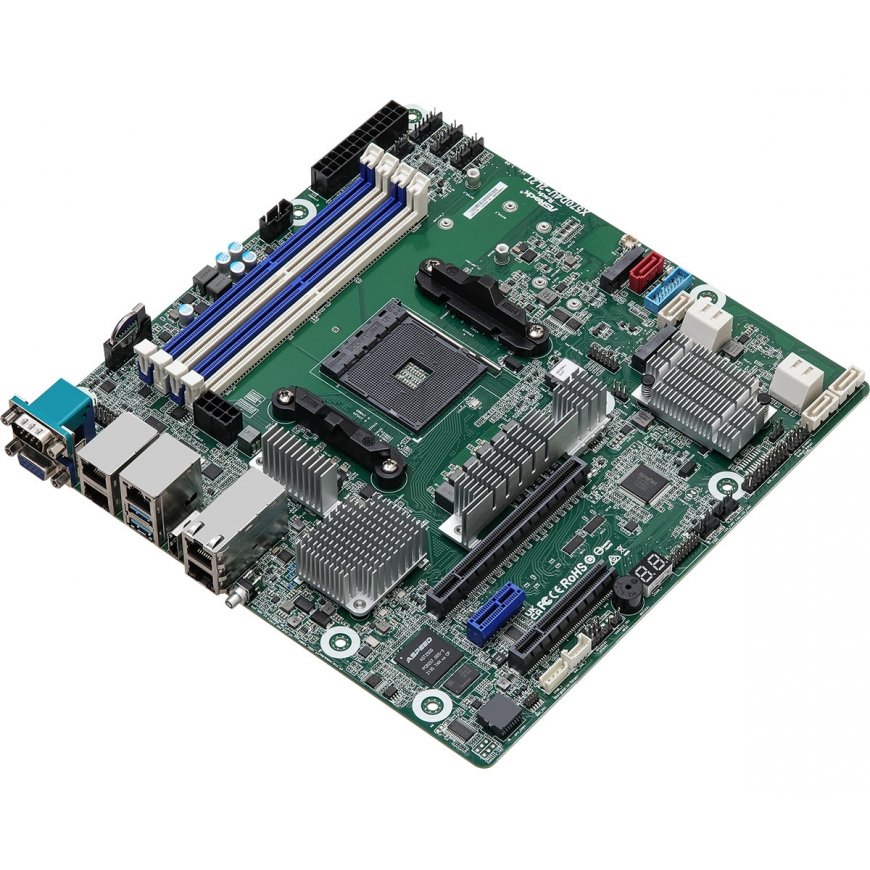

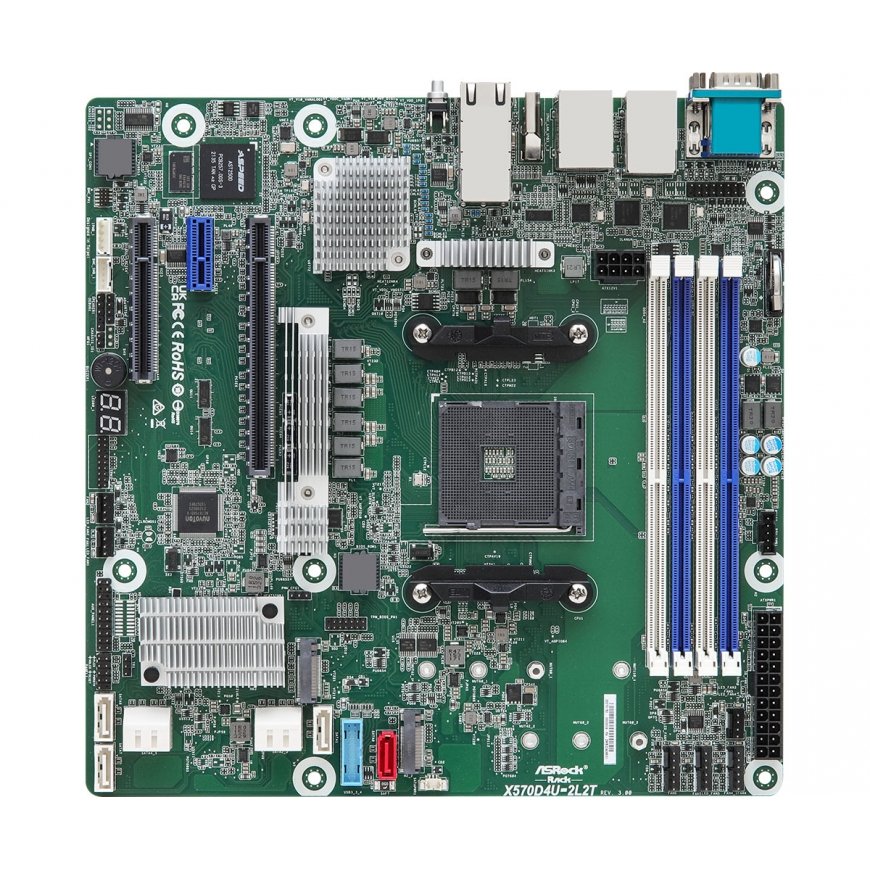

Asrock X570D4U-2L2T/BCM motherboard AMD X570 Socket AM4 micro ATX
649.07 €
Monthly payment from 17,61 €
3905153 X570D4U-2L2T/BCM
4710483940828, 4711430522982
Shipping 12-13 b.d.
You are interested in this product?
All about the product
Asrock X570D4U-2L2T/BCM. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5. Supported memory types: DDR4-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA. Graphics card family: ASPEED, Graphics card: AST2500. Ethernet interface type: 10 Gigabit Ethernet, Gigabit EthernetProcessor | |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5 |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
Memory | |
| Maximum internal memory | 32 GB |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2666, 3200 |
| Supported memory types | DDR4-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 3200 MHz |
| ECC сompatibility | ECC & Non-ECC |
Storage controllers | |
| Supported storage drive interfaces | Serial ATA |
Graphics | |
| Graphics card | AST2500 |
| Graphics card family | ASPEED |
Internal I/O | |
| USB 2.0 connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| RGB LED pin header | Yes |

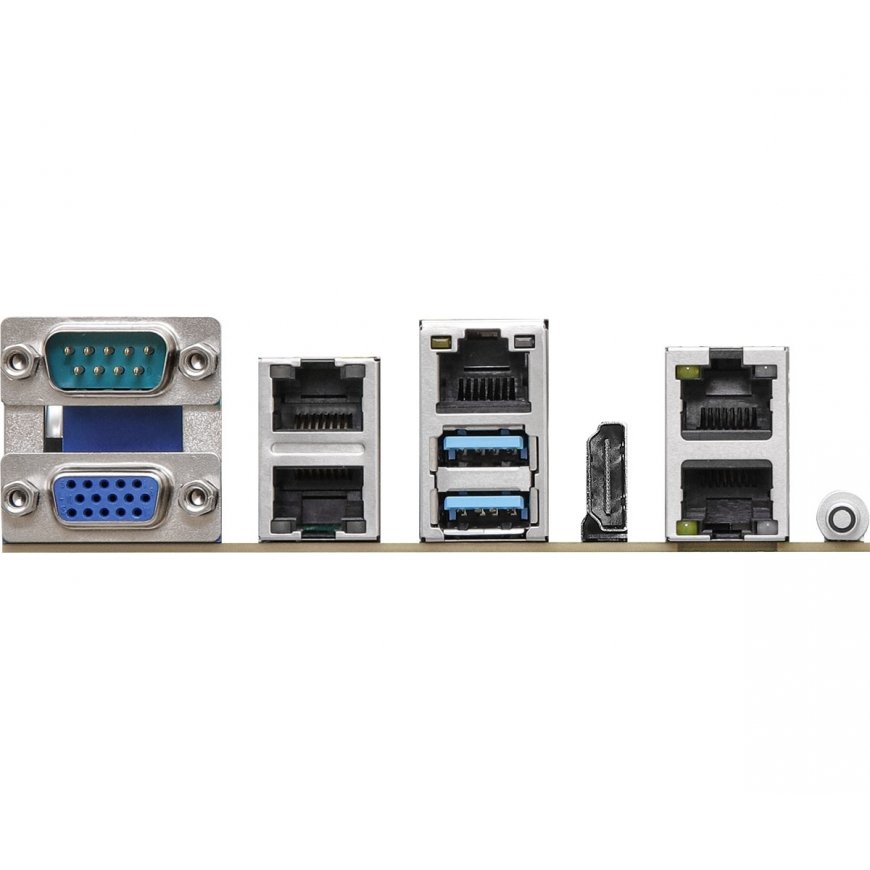

Rear panel I/O ports | |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| IPMI LAN (RJ-45) port | Yes |
Network | |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD X570 |
| Motherboard chipset family | AMD |
| Component for | PC |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 6.2 |
| System Management BIOS (SMBIOS) version | 3.3.0 |
Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions | |
| Width | 243.8 mm |
| Depth | 243.8 mm |
