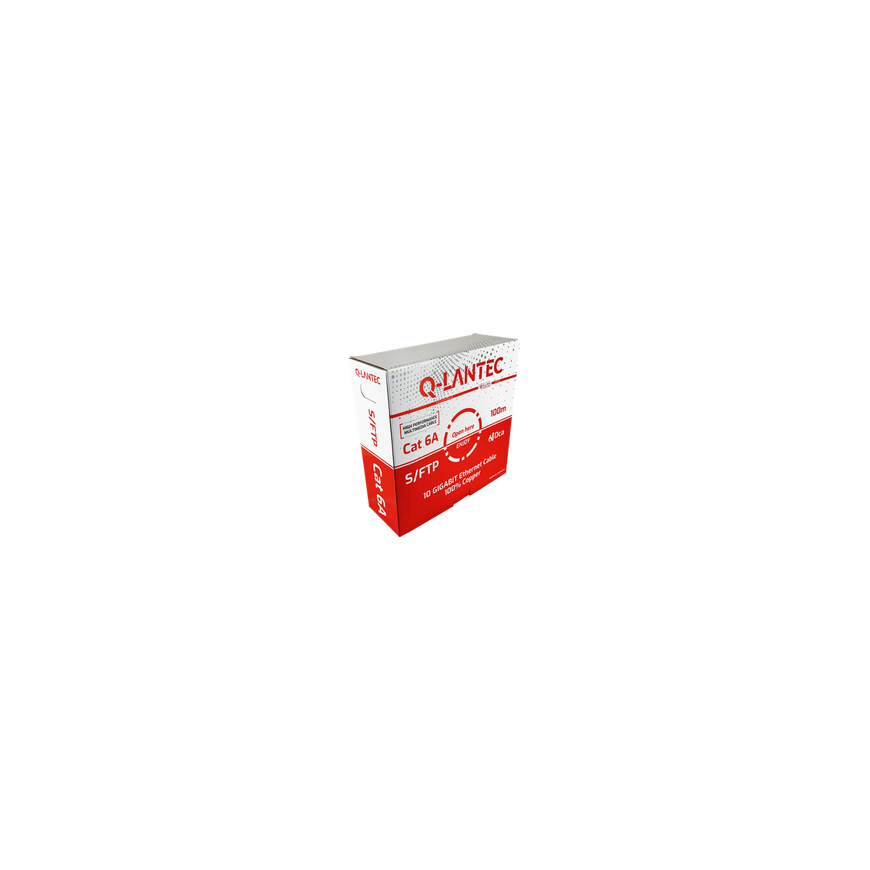

S/FTP cat.6A network cable, twisted pair, LSOH, Dca 4x2x23 AWG, 10Gb/s, 10-year warranty, gray, 100m - Q-LANTEC
S/FTP cat.6A network cable, twisted pair, LSOH, Dca 4x2x23 AWG, 10Gb/s, 10-year warranty, gray, 100m - Q-LANTEC – 2
S/FTP cat.6A network cable, twisted pair, LSOH, Dca 4x2x23 AWG, 10Gb/s, 10-year warranty, gray, 100m - Q-LANTEC
S/FTP cat.6A network cable, twisted pair, LSOH, Dca 4x2x23 AWG, 10Gb/s, 10-year warranty, gray, 100m - Q-LANTEC
S/FTP cat.6A network cable, twisted pair, LSOH, Dca 4x2x23 AWG, 10Gb/s, 10-year warranty, gray, 100m - Q-LANTEC
S/FTP cat.6A network cable, twisted pair, LSOH, Dca 4x2x23 AWG, 10Gb/s, 10-year warranty, gray, 100m - Q-LANTEC
S/FTP cat.6A network cable, twisted pair, LSOH, Dca 4x2x23 AWG, 10Gb/s, 10-year warranty, gray, 100m - Q-LANTEC
S/FTP cat.6A network cable, twisted pair, LSOH, Dca 4x2x23 AWG, 10Gb/s, 10-year warranty, gray, 100m - Q-LANTEC

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

S/FTP cat.6A network cable, twisted pair, LSOH, Dca 4x2x23 AWG, 10Gb/s, 10-year warranty, gray, 100m - Q-LANTEC

99.00 €
Monthly payment from 3,45 €
3699422

KIS6ALSOH100DQ

5904204406307

4-6 b.d.

You are interested in this product?
(Read terms of service)

All about the product

High-quality, designed for professional use, double-screened Q-LANTEC S/FTP category 6A data cable, with a transmission efficiency of not less than 10 Gbit/s (EA class).

Fully copper cores, foil screened pairs and the entire core additionally screened with a mesh. The cable is designed for use in environments with electromagnetic interference.

This type of telecommunications cables is intended for internal horizontal and vertical installations in telecommunications and video surveillance networks. All Q-LANTEC cables comply with the CPR directive regarding the classification of construction products according to their fire resistance and defining testing methods for cables installed in buildings.

Products come with a 10-year system warranty.



CONSTRUCTION AND ELECTRICAL PARAMETERS
Category 6A
Class EA (500 MHz standard)
AWG gauge 4x2x23AWG
Conductor single wire copper conductor with a diameter of 0.55 mm
Insulation polyethylene
CPR fire classification (Euroclass) Dca s2, d2, a1

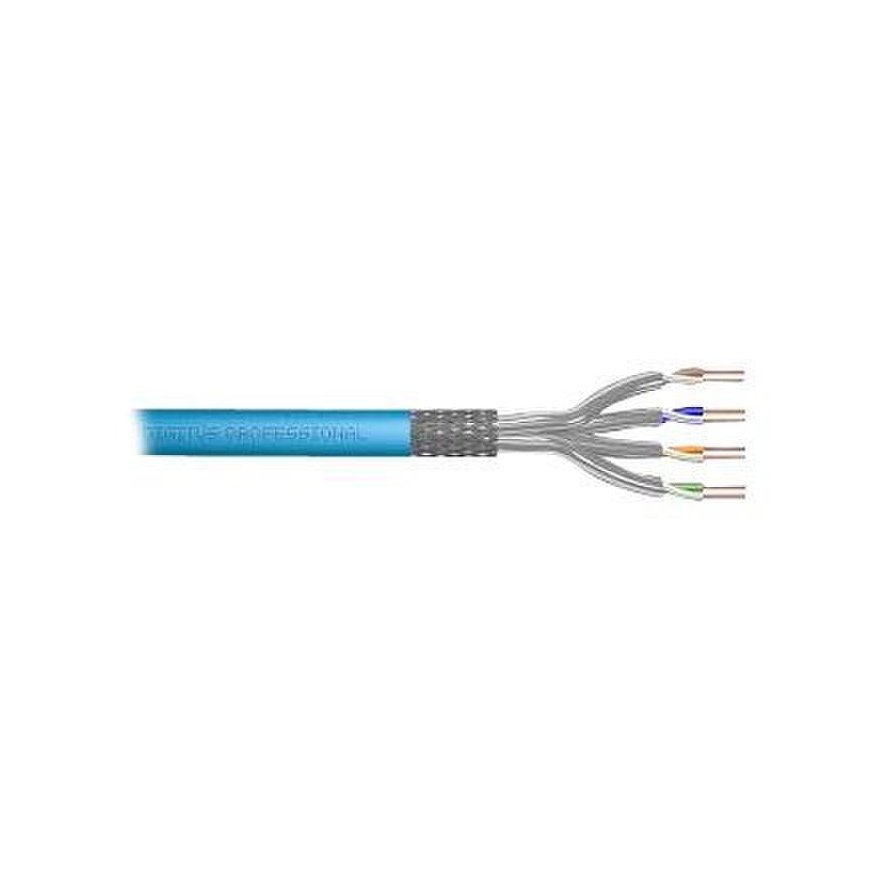

Center 4 twisted pairs, each pair wrapped in polyester foil, additionally fully screened with copper braid
Screen pairs, screened with polyester foil, covered with an aluminum layer, under the screen – grounding wire made of tinned copper wire with a diameter of min. 0.4 mm + mesh braid
Jacket Halogen-free material, flame-retardant, emitting a limited amount of smoke and corrosive gases (LSOH/FRNC)
PoE IEEE 802.3bt
Color light gray
ELECTRICAL PROPERTIES at 20 °C
DC resistance loop ≤ 93.8 Ω/km
AC resistance ≤ 2 %
Insulation resistance (500 V) ≥ 5000 MΩ *km
Capacitance resistance at 800 Hz nom. 48 nF/km
Variable passive capacitive resistance ≤ 1500 pF/km
Characteristic impedance (1–1000 MHz) (100 ± 15) ohms
Nominal propagation speed (NVP) 69%
Delay spread Nominal current ≤ 535 ns/100 m
Delay angle Nominally ≤ 20 ns/100 m
DC installation tester, 1 min. (core) 1000 V
Maximum operating voltage 80 V
MECHANICAL PROPERTIES
Bending radius 4 x ø outside
Max. pulling force 80 north
Temperature range during use From -30 °C to +75 °C
Temperature range during installation From -10 °C to +70 °C
Outer diameter 7.5 mm +/- 0.5 mm
Weight kg/km 20
Packaging cardboard (100 m)
