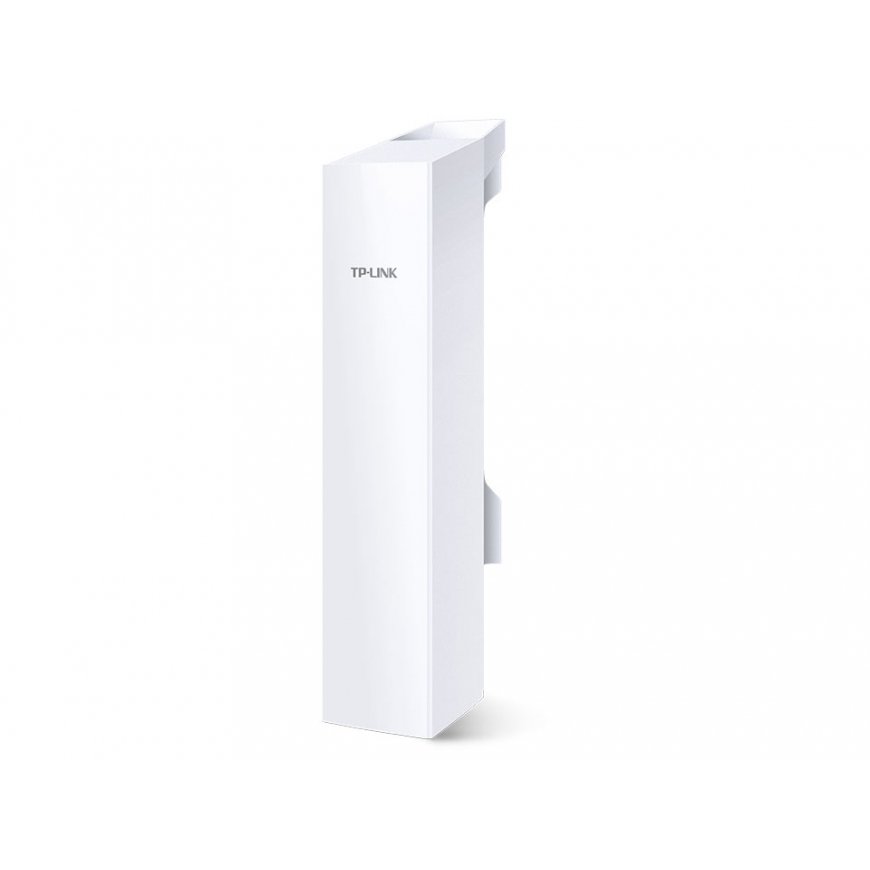

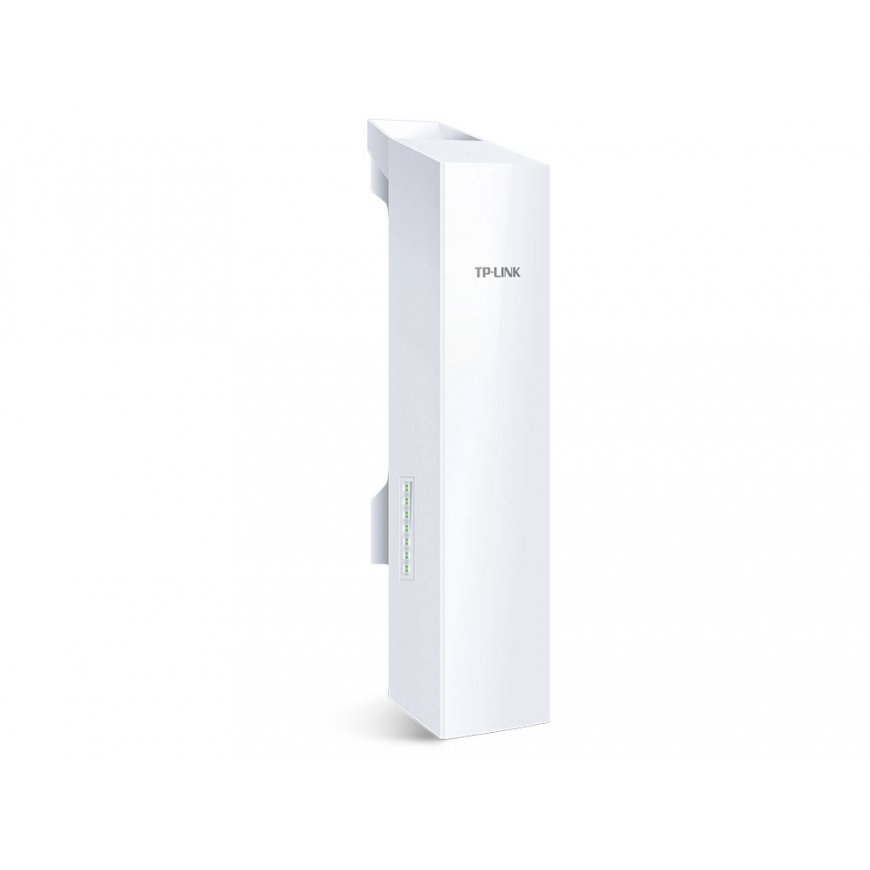

TP-Link CPE220 wireless access point 300 Mbit/s White Power over Ethernet (PoE)
88.99 €
Monthly payment from 3,19 €
3557870 CPE220
6935364091583, 0845973091583
Shipping 11-12 b.d.
You are interested in this product?
All about the product
TP-LINK’s 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
13km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 13km+, tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE220 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
Features
| Product colour | White |
| USB 2.0 ports quantity | 0 |
| International Protection (IP) code | IPX5 |
| Width | 110 mm |
| Depth | 57 mm |
| Height | 33.5 mm |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Certification | - RoHS, IPX5; - CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Networking standards | IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
| LED indicators | Power |
| AC input voltage | 100 - 240 V |
| Input current | 0.8 A |
| Output voltage | 24 V |
| Output current | 1 A |
| Maximum data transfer rate | 300 Mbit/s |
| AC input frequency | 50 - 60 Hz |
| Frequency band | 2.4 - 2.483 GHz |
| Power consumption (max) | 10.8 W |
| Antenna type | Internal |
| Security algorithms | WPA; WPA-PSK; WPA2; WPA2-PSK; SSH; 64-bit WEP; 128-bit WEP; HTTPS; SNMP; AES; TKIP; SSID; 152-bit WEP |
| Storage relative humidity (H-H) | 5 - 95% |
| Power over Ethernet (PoE) | Yes |
| Mounting kit | Yes |
| Flash memory | 8 MB |
| IP address filtering | Yes |
| Channels quantity | 5 channels |
| Internal | No |
| Built-in processor | Yes |
| Reset button | Yes |
| Web-based management | Yes |
| VLAN support | Yes |
| IGMP snooping | Yes |
| Management protocols | TDMA |
| Internal memory | 64 MB |
| DHCP client | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Antenna gain level (max) | 12 dBi |
| Antennas quantity | 2 |
| Wi-Fi data rate (max) | 300 Mbit/s |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Bandwidth | 2.4 GHz |
| MAC address filtering | Yes |
| Automatic channel selection | Yes |
| Number of SSID supported | 1 |
| Auto Wireless Distribution System (WDS) | Yes |
| Antenna features | Integrated antenna |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Internal RJ-45 ports quantity | 1 |
| Channel bandwidth | 40 MHz |
| Management platform | Pharos Control |
| RTS/CTS threshold | Yes |
