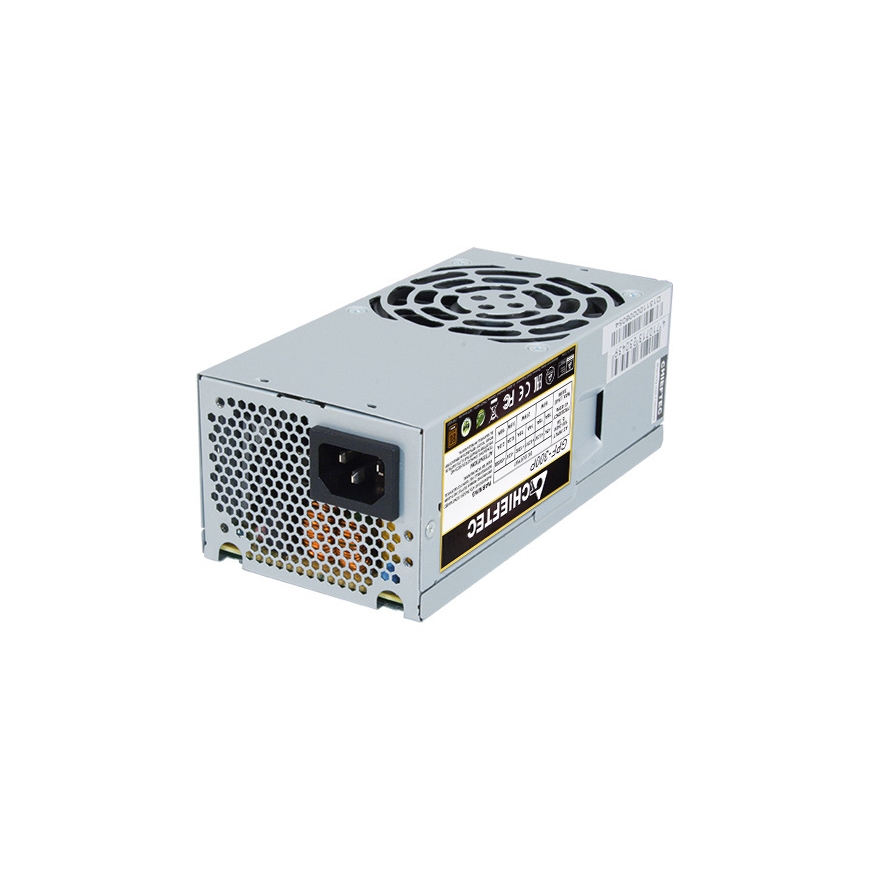

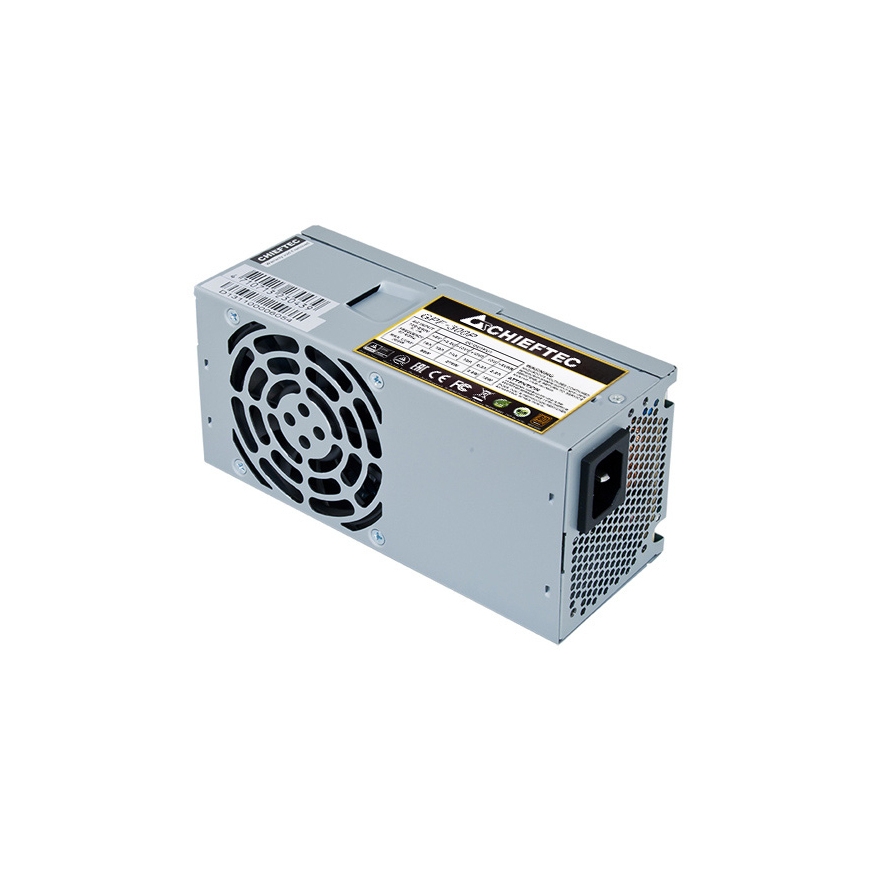

Chieftec Smart GPF-400P power supply unit 400 W 20+4 pin ATX TFX Grey
49,00 €
Monthly payment from 2.16 €
3444649 GPF-400P
0753263076809
2026-09-22
You are interested in this product?
Power | |
| Efficiency | 85% |
| Input current | 6.3 A |
| Power protection features | Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 336 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+5V) | 18 A |
| Max output current (+5Vsb) | 2 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Max output current (+12V1) | 17 A |
| Max output current (+12V2) | 17 A |
| Total power | 400 W |
Performance | |
| ATX version | 2.3 |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | TFX |
Design | |
| Product colour | Grey |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| Cooling type | Active |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Motherboard power cable length | 30 cm |
| SATA power cable length | 150, 350 |
| Peripheral (Molex) power cable length | 150, 350 |
| CPU power cable length | 35 cm |
| Floppy disk drive cable length | 15 cm |
| EPS power connector (4+4 pin) | Yes |
Weight & dimensions | |
| Weight | 1.07 kg |
| Width | 85 mm |
| Depth | 175 mm |
| Height | 65 mm |
Packaging data | |
| Package weight | 1.13 kg |
Certificates | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC), EAC |
