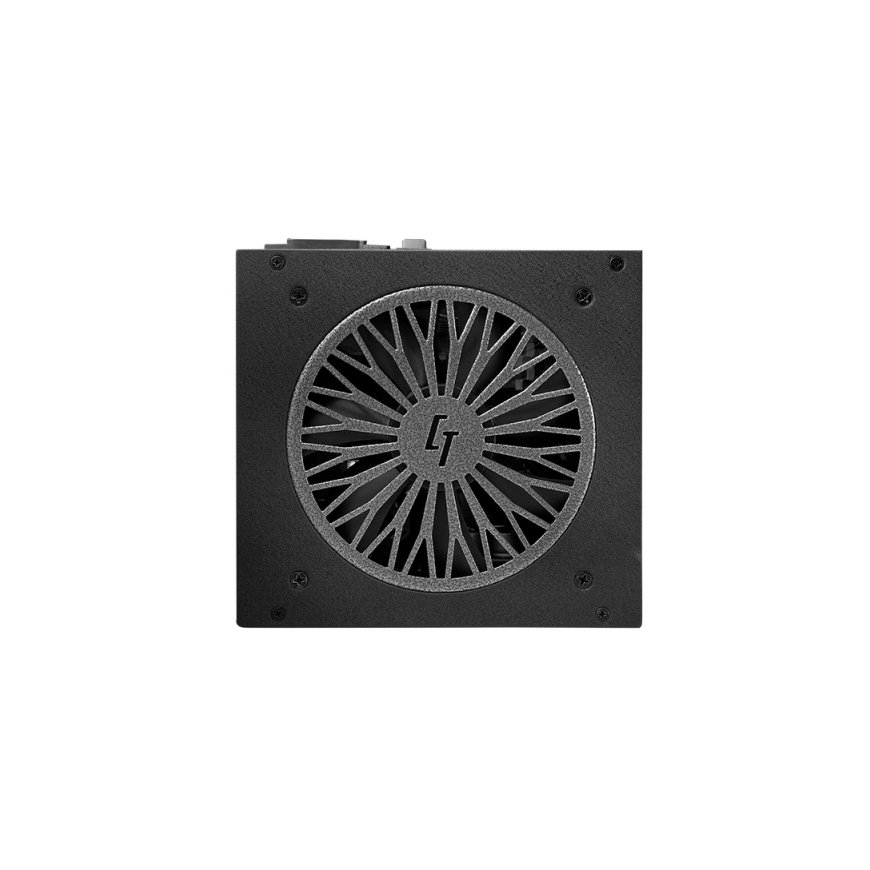

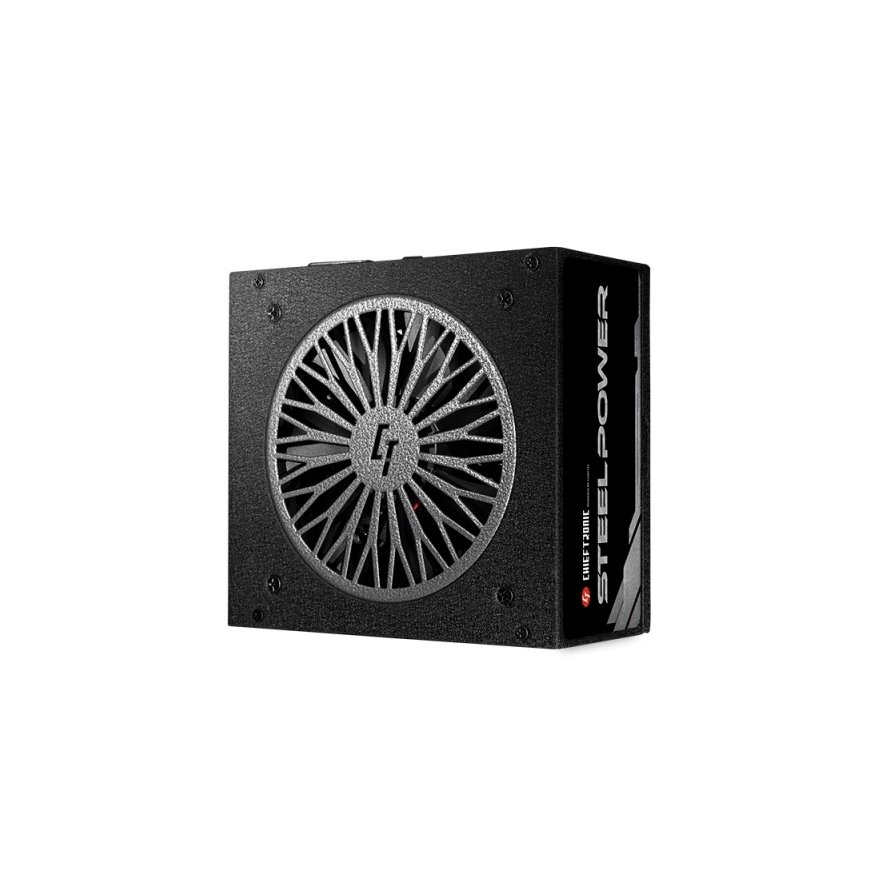

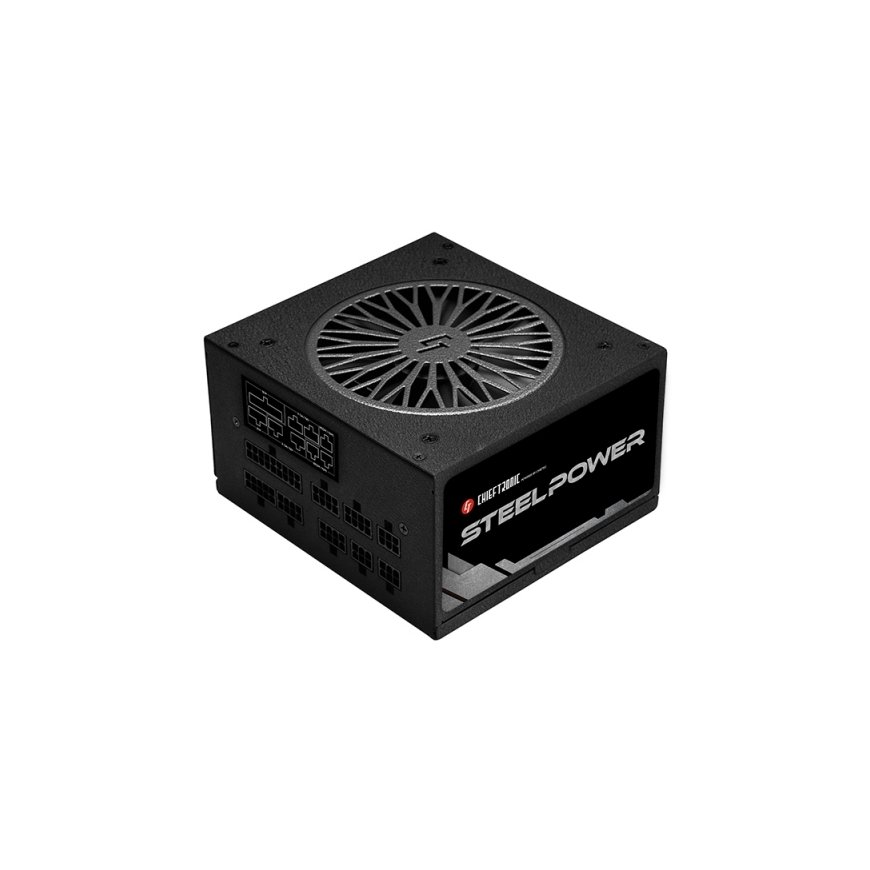

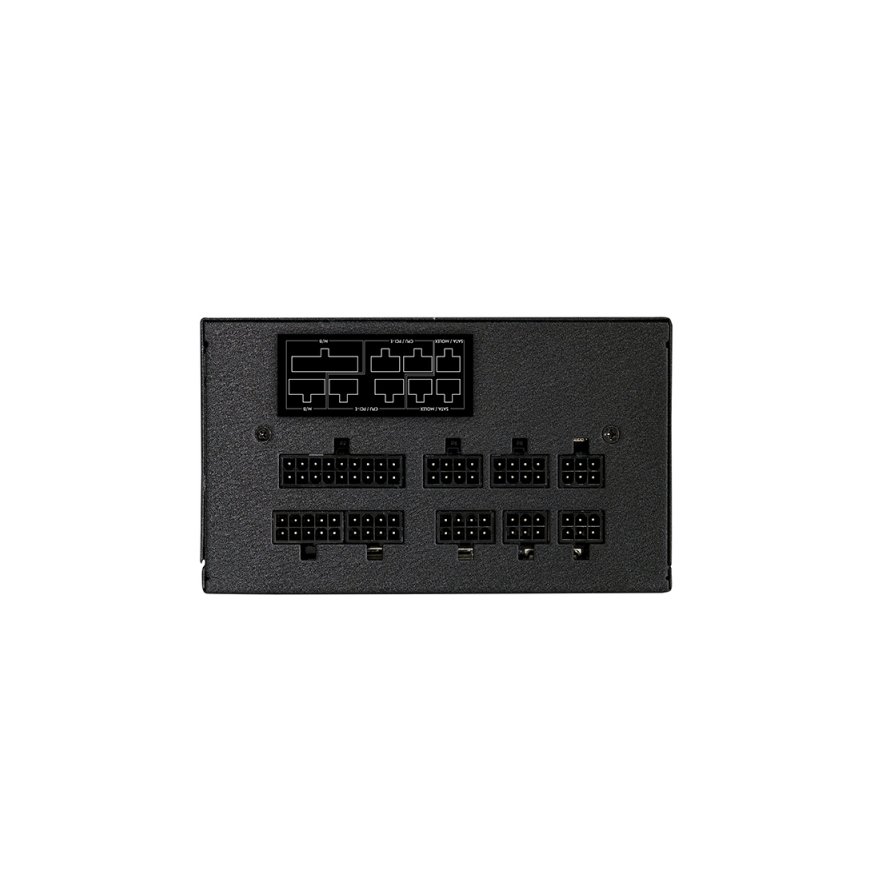

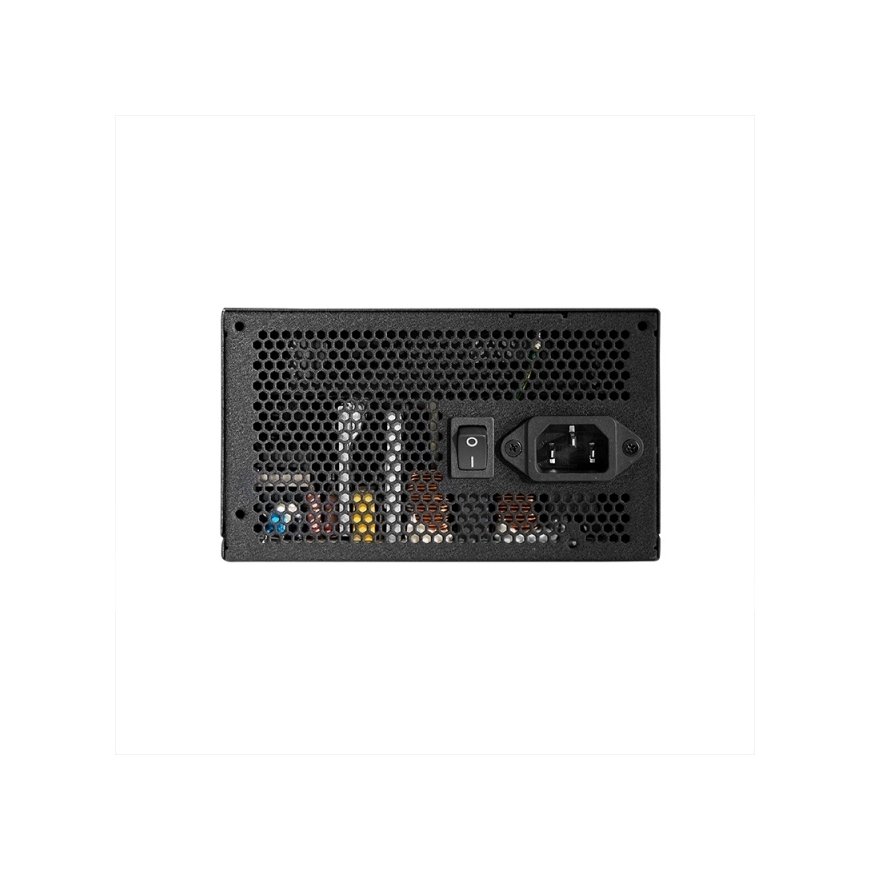

Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
82.17 €
Monthly payment from 3,02 €
2580844 BDK-550FC
0753263077417
Shipping 5-8 b.d.
You are interested in this product?
All about the product
The SteelPower Series from Chieftronic brings many of the well-received and proven upmarket features and components from the PowerPlay series into the mainstream gamer’s market. Gamers can now benefit from the tight voltage regulation and low ripple thanks to the use of half-bridge LLC converters with DC-DC technology as well as premium Japanese capacitors in combination with 80PLUS Bronze efficiency and fully modular cable management. Offered in wattages of 550W, 650W and 750W, the SteelPower series benefits from a high power-density design allowing all the above mentioned to be packed into a compact 14cm long housing with a 120mm FDB silent fan. The design of the PSU comes in a rugged understated look.Power | |
| Input current | 8 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 546 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Total power | 550 W |
Performance | |
| ATX version | 2.3 |
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 65 cm |
| SATA power cable length | 500, 150 |
| Peripheral (Molex) power cable length | 150, 500 |
| EPS power connector (4+4 pin) | Yes |
Weight & dimensions | |
| Weight | 1.62 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
Packaging data | |
| Package weight | 2.17 kg |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Certificates | |
| Certification | FCC, CB, EAC |
| Compliance certificates | CE, RoHS |
