The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.
Montech TITAN GOLD 850W power supply unit 20+4 pin ATX ATX Black
175.16 €
Monthly payment from 5,41 €
2507946 TIS0124
4710562744552
Shipping 9-14 b.d.
You are interested in this product?
All about the product
Silent Power for Every Gamer:The MONTECH TITAN GOLD Series
Introducing the MONTECH TITAN GOLD series, delivering premium components and ultra-quiet high performance tailored for gamers at every level. With ATX 3.0 and PCIe Gen 5.0 compatibility, the TITAN GOLD is a must-have for those eyeing the NVIDIA GeForce RTX 40 series GPUs.
Compliant with The Highest Standards
The TITAN GOLD is ATX 3.0 and PCIe Gen 5.0 ready, it has an output port that is compliant with PCIe 5.0, includes native 12+4 pin 12VHPWR connector, which is designed to better communicate with the newer GPUs and delivers up to 600W.
Also, the TITAN GOLD series are fully compliant with Intel PSDG ATX 3.0, the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
80 PLUS Gold & Cybenetics Gold Certified
TITAN GOLD is extremely efficient and quiet with dual authentic certifications, and a maximum efficiency above 92%.
Elevate Your System with TITAN GOLD's Premium Components
Elevate your setup with TITAN GOLD's premium Japanese capacitors, rated at 105°C and bolstered by dual bulk capacitors. These high-quality components ensure unmatched durability and stability for your system.
Power Perfected, Unleash Optimal Performance with TITAN GOLD
TITAN GOLD's advanced technology, featuring half-bridge, LLC, and Synchronous Rectifier (SR) tech, ensures exceptional signal stability and power efficiency. With DC-to-DC conversion for precise voltage regulation and minimal ripple noise, TITAN GOLD guarantees optimal performance
Whisper-Quiet Performance with TITAN GOLD Smart Zero Fan Function
Experience whisper-quiet operation with the TITAN GOLD's 135mm fluid dynamic bearing (FDB) fan. With zero RPM mode until 40% loading, it maintains silence during light usage. At maximum load, the noise level peaks at just 27 dBA at 1400 RPM.
Cybenetics Ultra Quiet Certified
TITAN GOLD earns the prestigious Cybenetics LAMBDA A Certification, verifying its superior noise reduction and efficiency levels through independent testing.
Compatible with all generations of GPU
The TITAN GOLD series provide various I/O interfaces, leading to the satisfaction of the power supply not only for the new generation 40 series GPU, but all generations from AMD and NVIDIA.
Reliable & Safe
Equipped with industrial level of power protection, including all six protections mechanisms to ensure stable and safe system operation. Plus 10 year-warranty to guarantee long-term reliable use.
Power | |
| Efficiency | 90% |
| Input current | 12 A |
| Power protection features | Over current, Overload, Over voltage, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Total power | 850 W |
Performance | |
| ATX version | 3.0 |
| Purpose | All-in-One PC |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | ATX |
Design | |
| Product colour | Black |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
| On/off switch | Yes |

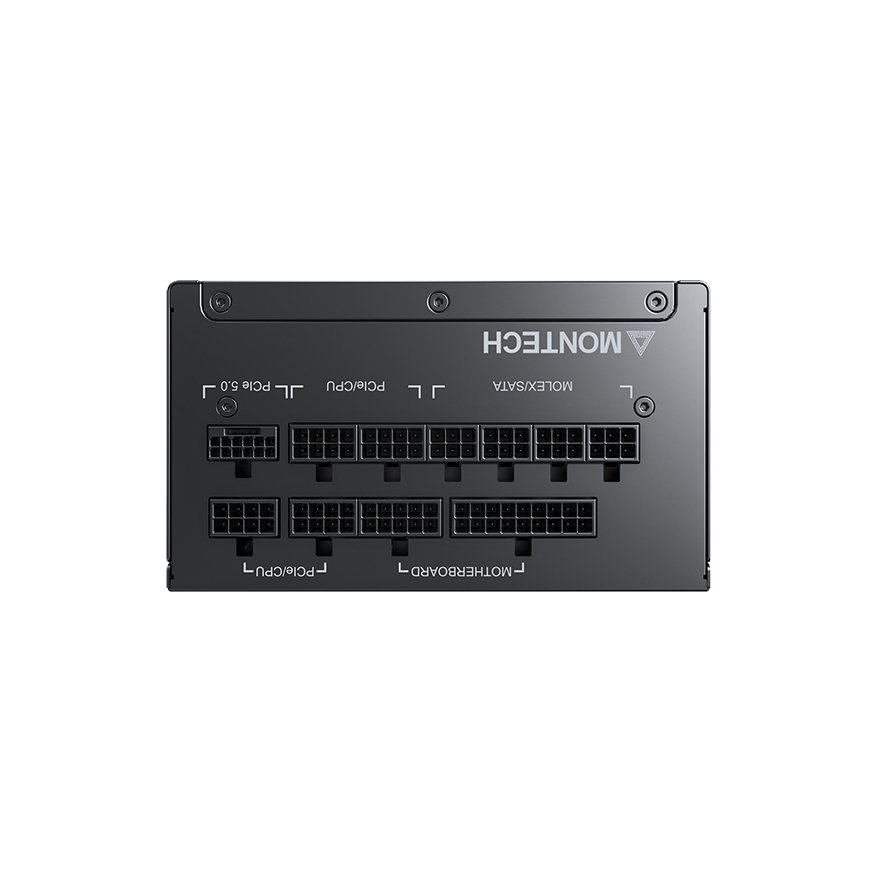

Ports & interfaces | |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions | |
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
Logistics data | |
| Warranty period | 10 year(s) |
Packaging content | |
| Cables included | AC, SATA, CPU |
