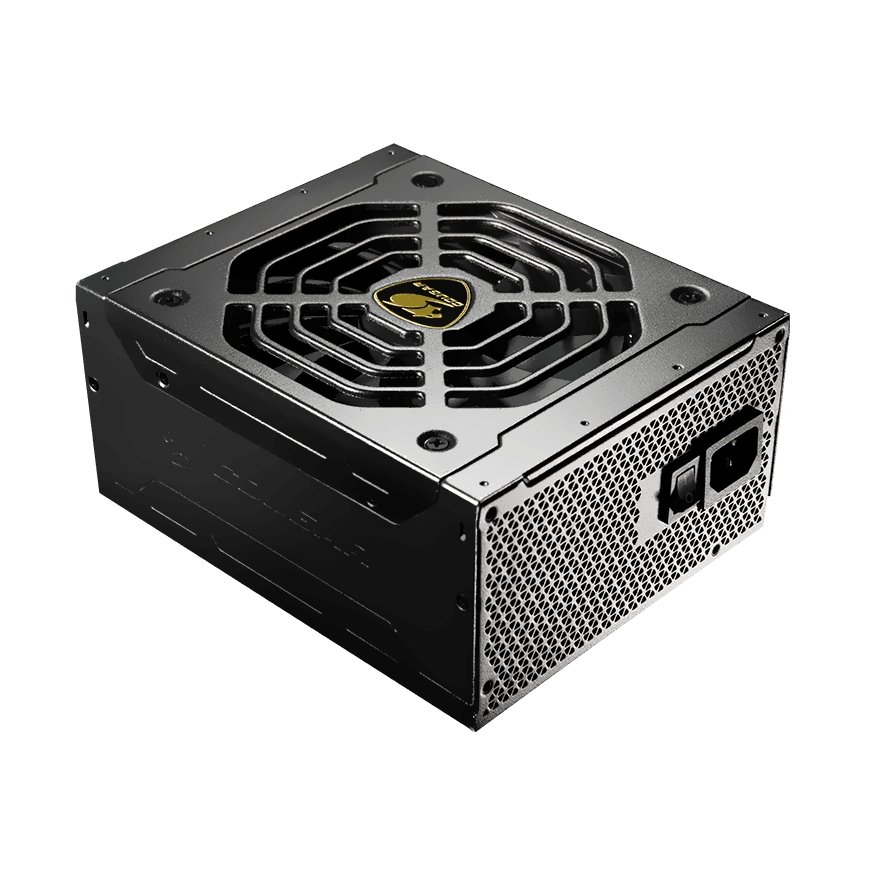

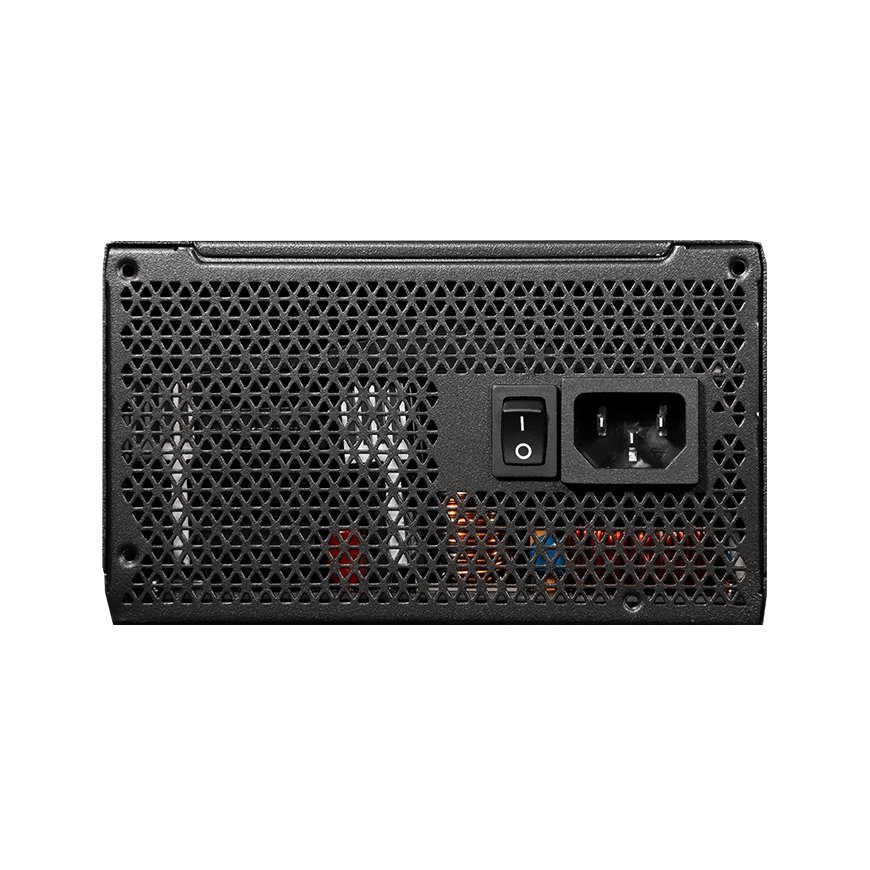

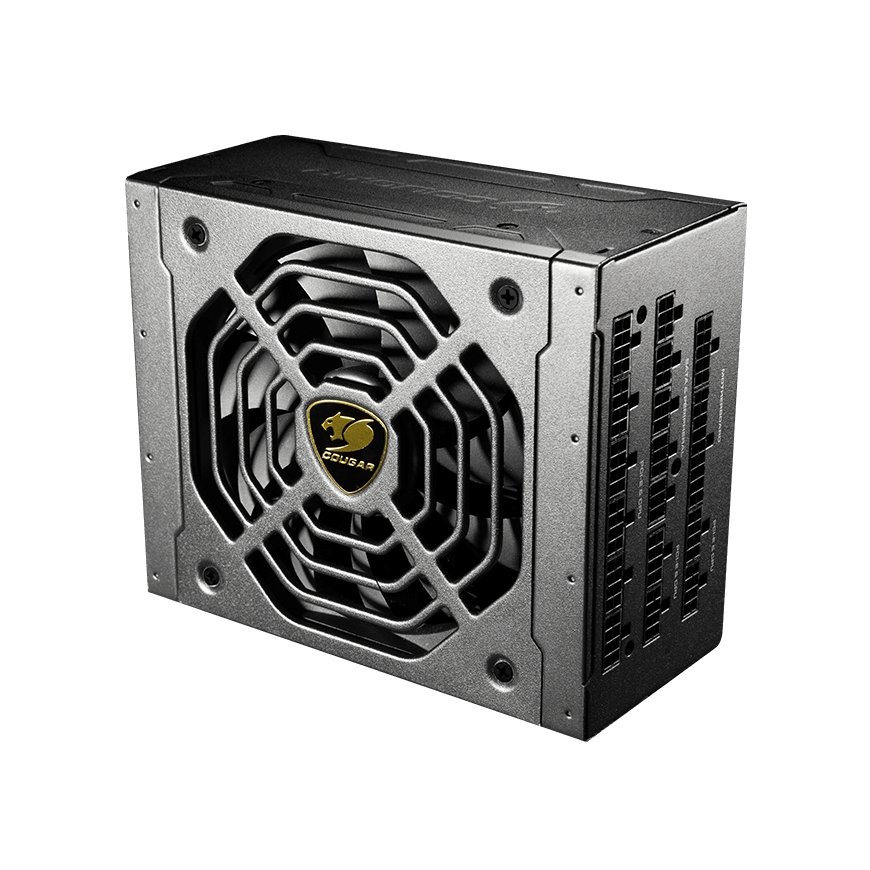

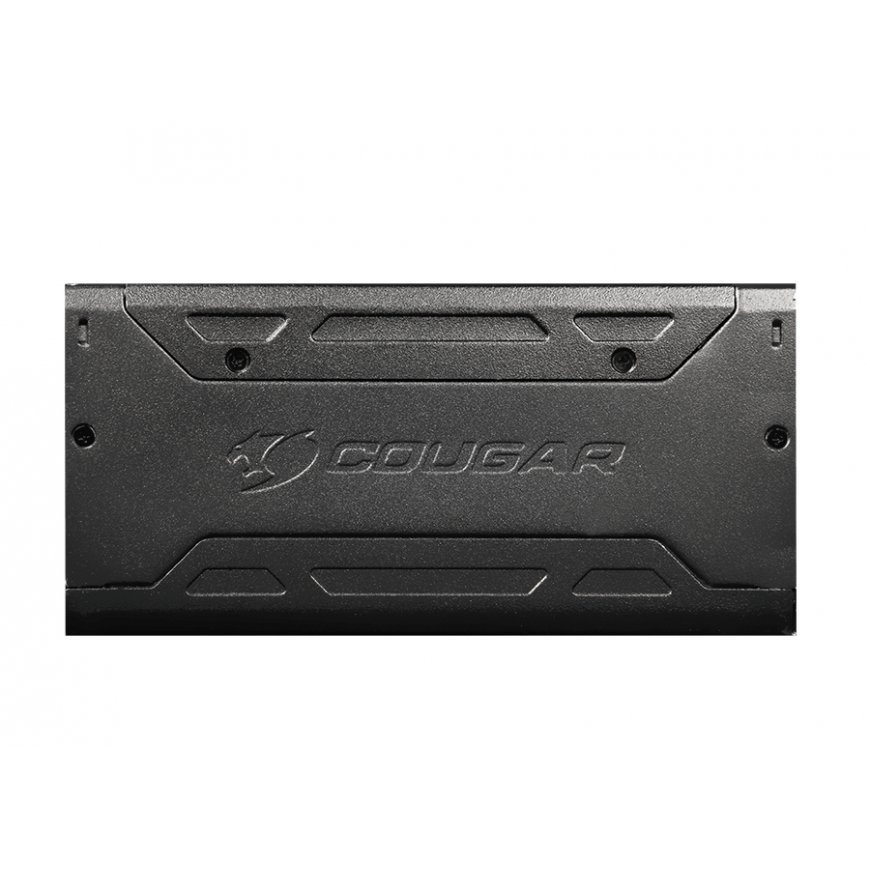

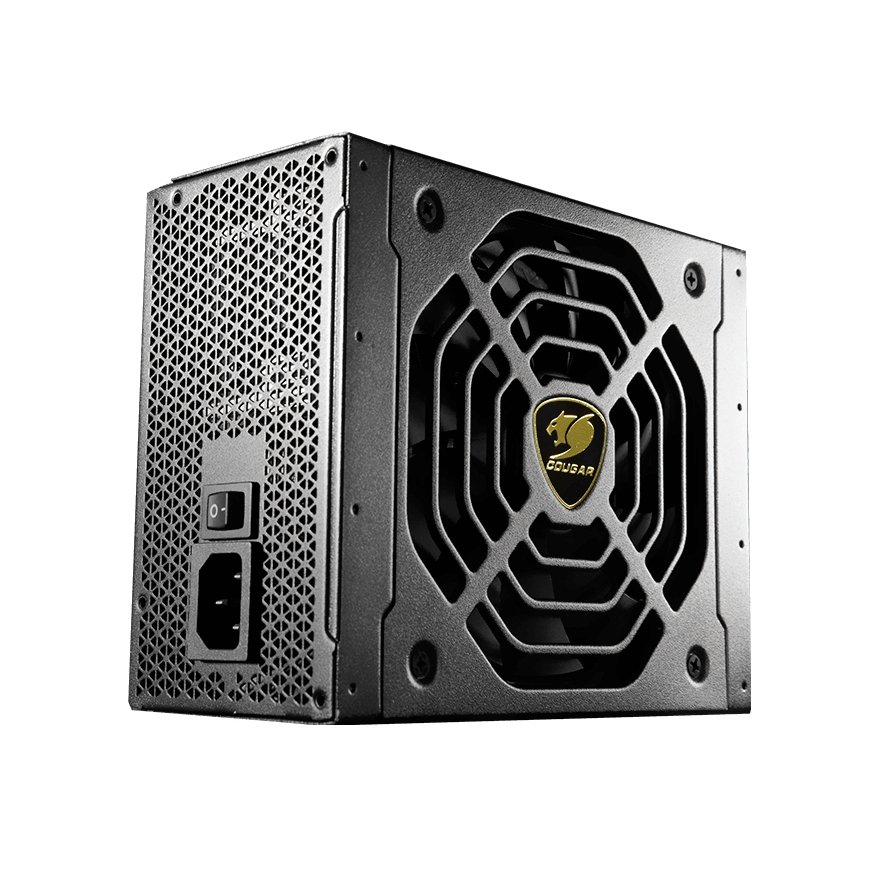

COUGAR GEX 1050 power supply unit 1050 W 20+4 pin ATX ATX Black
199.00 €
Monthly payment from 6,02 €
2298731 31GE105003P01
4710483772207
Shipping 14-15 b.d.
You are interested in this product?
All about the product
COUGAR GEX1050 is a high-quality 80Plus Gold certified PSU with flawless power delivery at 40°C environments. Efficient, silent and durable, GEX1050 is the best answer for those looking for the best value in PSU.High Efficiency for Power Saving
GEX1050 features a highly efficient design that surpasses the 80Plus Gold standard, to help you save money on your electricity bill.
Perfect Cooling System with 0dB mode & HDB Fan
Using COUGAR’s exclusive 135mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads.
Solid Durability with Japanese Electrolytic Capacitors
Firstly, GEX1050 has been designed and thoroughly tested to perform optimally in 40ºC working temperature environments.
Second, it includes 105°C Japanese capacitors for main and standby power to ensure keep providing computer with stable electrical supply.
Advanced Structure for Impeccable Stability
GEX1050’s LLC, DC-DC and Tri-Sense(3.3V, 5V, and 12V) design has been created to provide high-quality outputs, with an extremely tight 2% voltage regulation to deliver a stabler operation.
Perfectly Support GeForce RTX 30 Series GPU
The GEX1050 was designed for high end gamers and complicated media workers which can perfectly supporting RTX 30 series GPU and provide stable performance.
Power | |
| Efficiency | 92% |
| Input current | 13 - 6 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1050 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 87.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Total power | 1050 W |
Performance | |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | HDB |
| Silent mode | Yes |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Number of PATA power connectors | 1 |
| Motherboard power cable length | 65 cm |
| SATA power cable length | 500, 120 |
| Peripheral (Molex) power cable length | 500, 120 |
| PCI Express power cable length | 65 cm |
| CPU power cable length | 65 cm |
Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Weight | 2.09 kg |
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
Technical details | |
| Sustainability compliance | Yes |
Packaging data | |
| Package weight | 3.59 kg |
| Package height | 107 mm |
| Package width | 229 mm |
| Package depth | 331 mm |
Logistics data | |
| Warranty period | 5 year(s) |
Packaging content | |
| Cables included | CPU, PCIe, PATA |
Certificates | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC), EAC, TÜV mark, CCC |
