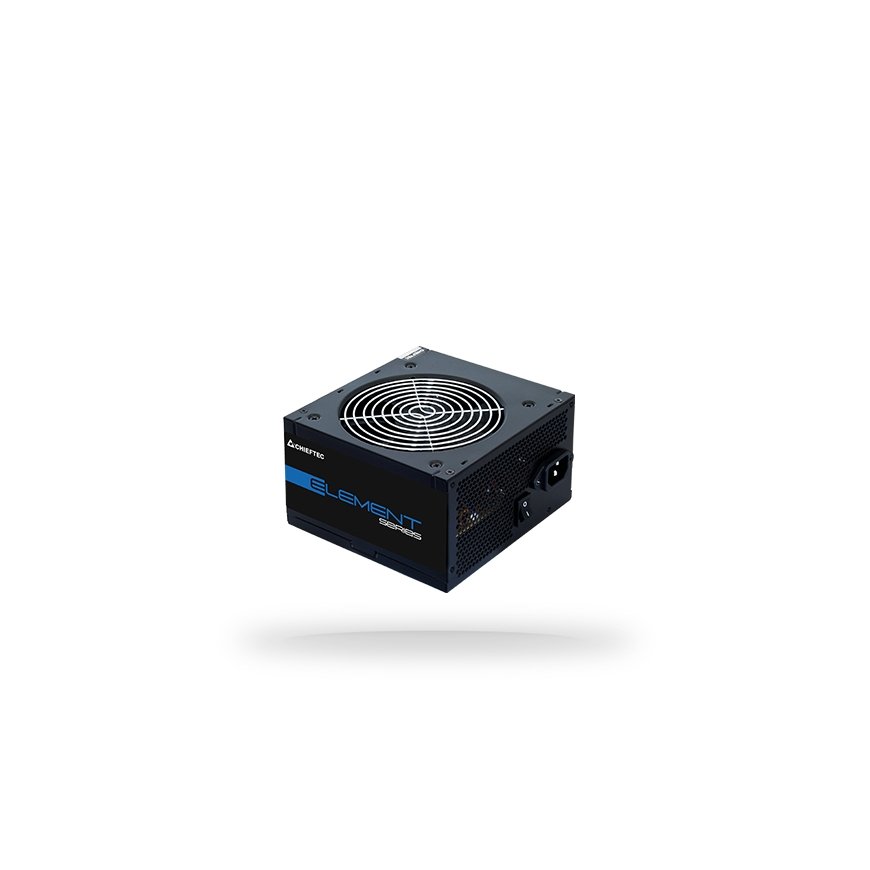

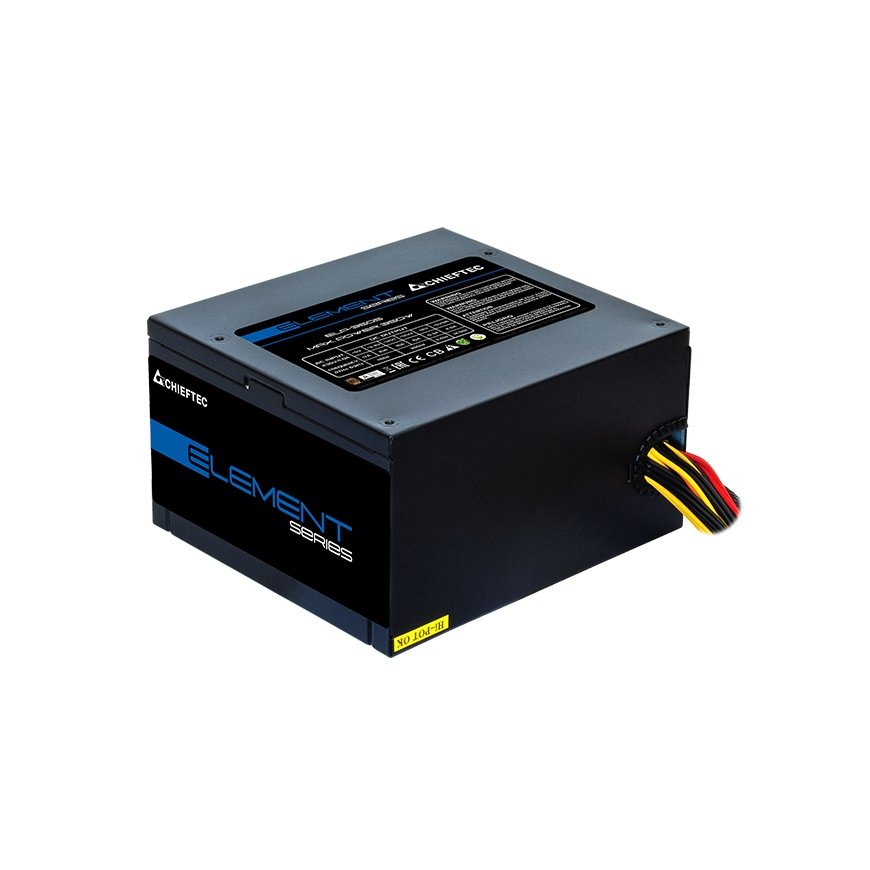

Chieftec ELP-600S power supply unit 600 W 20+4 pin ATX PS/2 Black
50.22 €
Monthly payment from 2,19 €
2182469 ELP-600S
4710713230965, 4710713231061
Shipping 2-3 b.d.
You are interested in this product?
All about the product
The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.Power | |
| Efficiency | 85% |
| Input current | 4.5 A |
| Power protection features | Overload, Over voltage, Short circuit, Under voltage |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 552 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 46 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Total power | 600 W |
Performance | |
| ATX version | 2.3 |
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | PS/2 |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Floppy disk drive connector | Yes |
| Number of PATA power connectors | 1 |
Weight & dimensions | |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 87 mm |
