The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

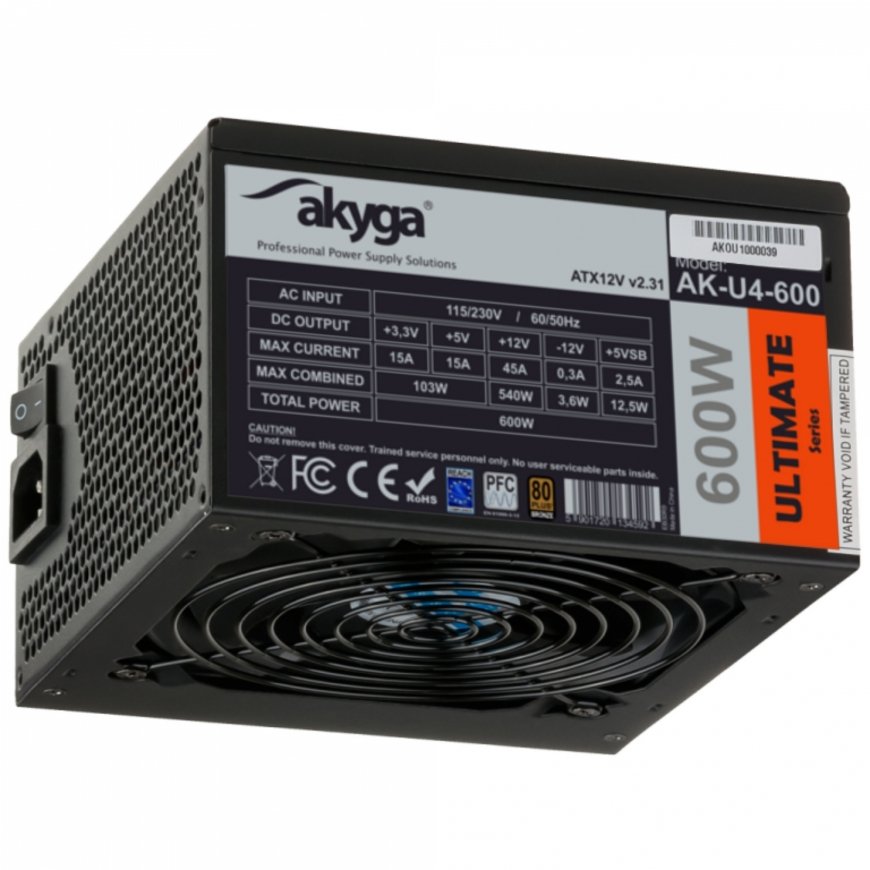

Akyga AK-U4-600 power supply unit 600 W 20+4 pin ATX ATX Black
48.26 €
Monthly payment from 2,14 €
2154942 AK-U4-600
5901720134592
Shipping 3-5 b.d.
You are interested in this product?
All about the product
Akyga® AK-U4-600 ATX power supply Ultimate series 600W, compatible with ATX 2.31 standard.Advanced parameters allow for use in complex configurations. The power supply has 6 SATA connectors, 2 MOLEX connectors, mini-MOLEX connector, PCI-E 6+2-pin connector, PCI-E 6-pin connector, EPS12V 4+4-pin connector and a universal 24-pin motherboard connector. Silent 12 cm fan with chromed grill provide efficient cooling. Manual on/off switch allows for safe power cut off without the need of disconnecting the network cord. High efficiency and stable operation of the power supply affects the reliability of all computer components.
Several important protectors (OVP, OCP, OPP, OTP, SCP, UVP) and active PFC filter protect and prevent main computer parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference. 1 m power cord included.
The guarantee of high efficiency is the 80 PLUS® certificate, which ensures that at least 80% of the energy transferred by the power supply is received by the supplied components.
Power | |
| Efficiency | 80% |
| Input current | 5 A |
| Power protection features | Over voltage, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 103 W |
| Combined power (+12V) | 540 W |
| Combined power (+5V) | 103 W |
| Max output current (+5V) | 15 A |
| AC input voltage | 230 V |
| Total power | 600 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.31 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
Ports & interfaces | |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
Operational conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
Weight & dimensions | |
| Weight | 1.47 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
Technical details | |
| Sustainability certificates | RoHS |
Packaging data | |
| Package weight | 1.55 kg |
| Package type | Box |
| Package height | 95 mm |
| Package width | 155 mm |
| Package depth | 222 mm |
Certificates | |
| Certification | CE, RoHS, REACH |
| Compliance certificates | RoHS |
