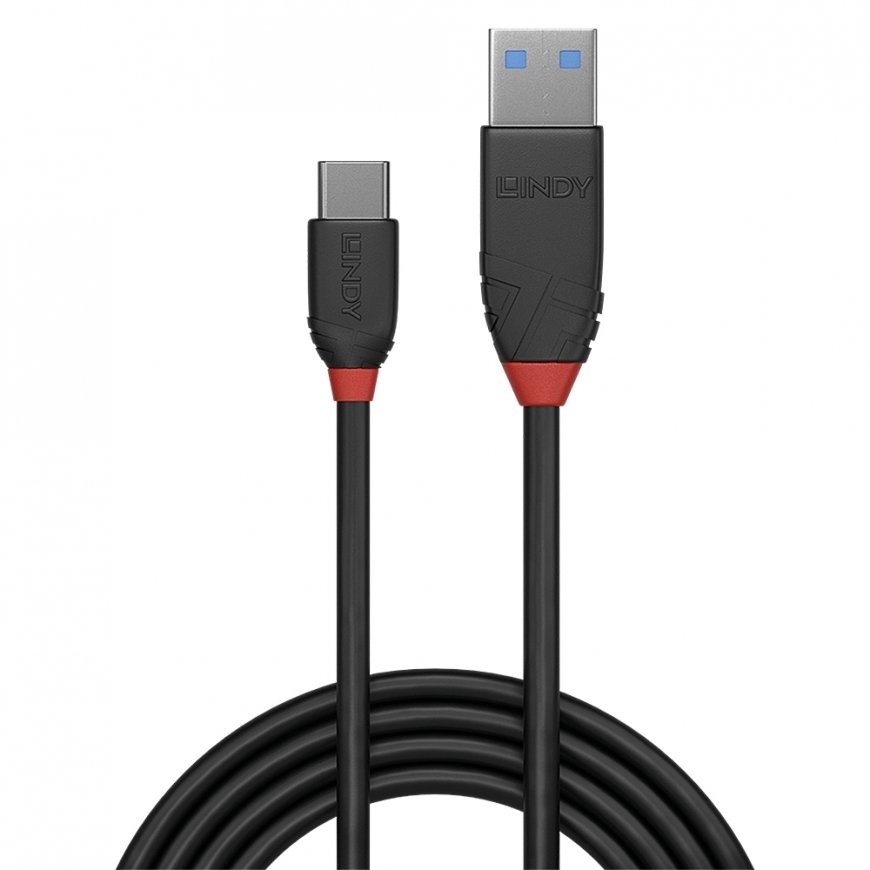

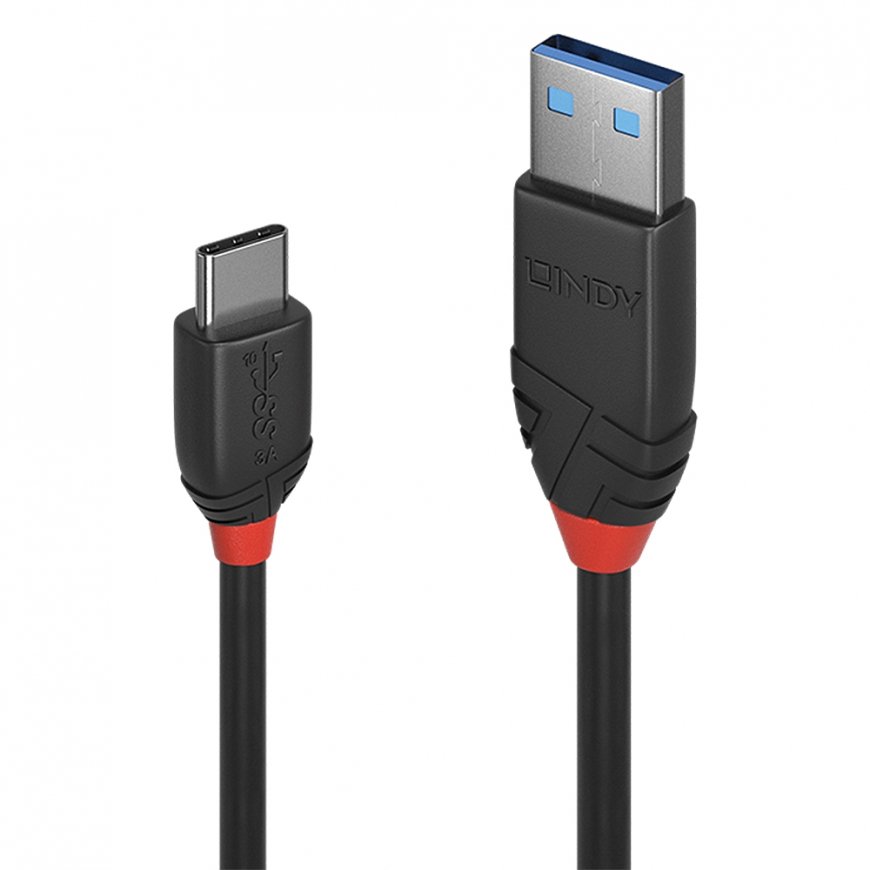

Lindy 1m USB 3.2 Type A to C Cable, 10Gbps, Black Line
13,94 €
1739146 36916
4002888369169
Shipping 2-3 b.d.
You are interested in this product?
Black Line USB 3.2 Type A to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Black Line USB 3.2 Type A to C cables are available in the following lengths: 0.5m, 1m and 1.5m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Features | |
| Cable type | Round cable |
| Cable length | 1 m |
| Connector 1 | USB A |
| Connector 2 | USB C |
| Connector contacts plating | Gold |
| Plug and Play | Yes |
| AWG wire size | 26/30/30 |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Tinned copper |
| Product colour | Black |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Nominal attenuation | 0.5Mhz €“ 15Ghz 40db |
| Connector housing material | Polyvinyl chloride (PVC) |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Maximum data transfer rate | 10000 Mbit/s |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Contact material | Phosphor bronze |
| Connector material | Nickel |
| Maximum data transfer rate | 10 Gbit/s |
Weight & dimensions | |
| Bend radius (min) | 4.5 cm |
| Connector 1 dimensions (WxDxH) | 15.5 x 35.1 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 11 x 25.5 x 7.3 mm |
| Cable diameter | 4.5 mm |
Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
Certificates | |
| Certification | RoHS, REACH, UL |
