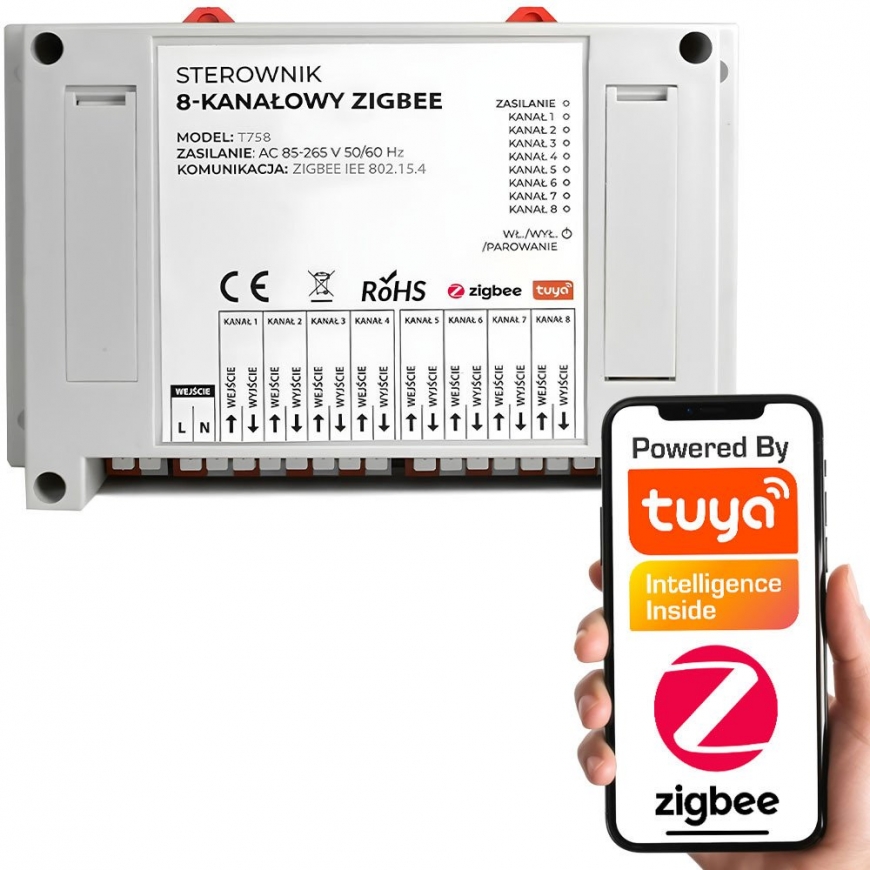

Smart Voltage-Free Controller

8-Channel | 8 x 10A | ZigBee 3.0 | Yours

▶️ Allows connection of up to8 devicespowered from0 to 230 V(e.g., thermal actuators) and control of each channel individually.

▶️ Each channel can be linked with other devices in theYOURSapp via automation.

▶️ Ideal for controlling:

• ☑️ Lighting
• ☑️ Gates
• ☑️ Actuators
• ☑️ Doors
• ☑️ Button signaling
• ☑️ Computers
• ☑️ Access control
• ☑️ Heating furnaces
• ☑️ Other 230V devices

▶️ Control & App

• ✅Easy device control:Using TUYA/Smart Life app
• ✅Free app:Available on Google Play and App Store
• ✅Voice control:Compatible with Amazon Alexa and Google Assistant

▶️ Automation & Schedules

• ✅Channel schedules:Create separate plans for each channel
• ✅Advanced automation:Extensive scene and rule settings
• ✅Device grouping:Combine and control multiple devices simultaneously

▶️ Safety & Memory

• ✅Settings memory:Keeps configuration after power restoration
• ✅Relay state configuration:Set default state on power on

▶️ ZigBee Features

• ✅Signal router function:Extends ZigBee device range
• ✅ZigBee gateway required:Requires TUYA ZigBee 3.0 gateway (available in our offer)

▶️ Operating Modes

• ✅Countdown:Delayed channel activation
• ✅Weekly schedule:Plan for 7 days a week
• ✅Circulation:On/off in defined intervals
• ✅Random:Random channel on/off
• ✅Inching:Momentary mode from 1 s to 60 min

ℹ️ How ZigBee works?

ZigBee operates at2.4 GHzand uses a MESH network, so each fully powered L+N device strengthens the signal for other devices. If a sensor cannot connect directly to the gateway, it can connect via another ZigBee device.

ZigBee responds instantly –0.2 s, while WiFi takes around 5 s. WiFi networks may struggle with 25 devices, while ZigBee allows up to 50 devices without performance loss.

ZigBee consumes very little energy, and event history (door openings, temperature, motion) can be stored for months.

ℹ️ Specifications:

▶️ Communication & Control:

• ZigBee3.0
• Number of relays:8

▶️ Power & Load:

• 90 – 240 V AC (50/60 Hz)
• Max load per channel:10 A / 2300 W
• Total max load:3650 W

▶️ Mounting & Dimensions:

• DIN rail
• 145 × 90 × 40 mm

▶️ Operating Conditions:

• Humidity:5% – 95%

ℹ️ In the Package:

• 8-channel ZigBee relay controller
• User manual
• Packaging

ℹ️ Product Code: T758
