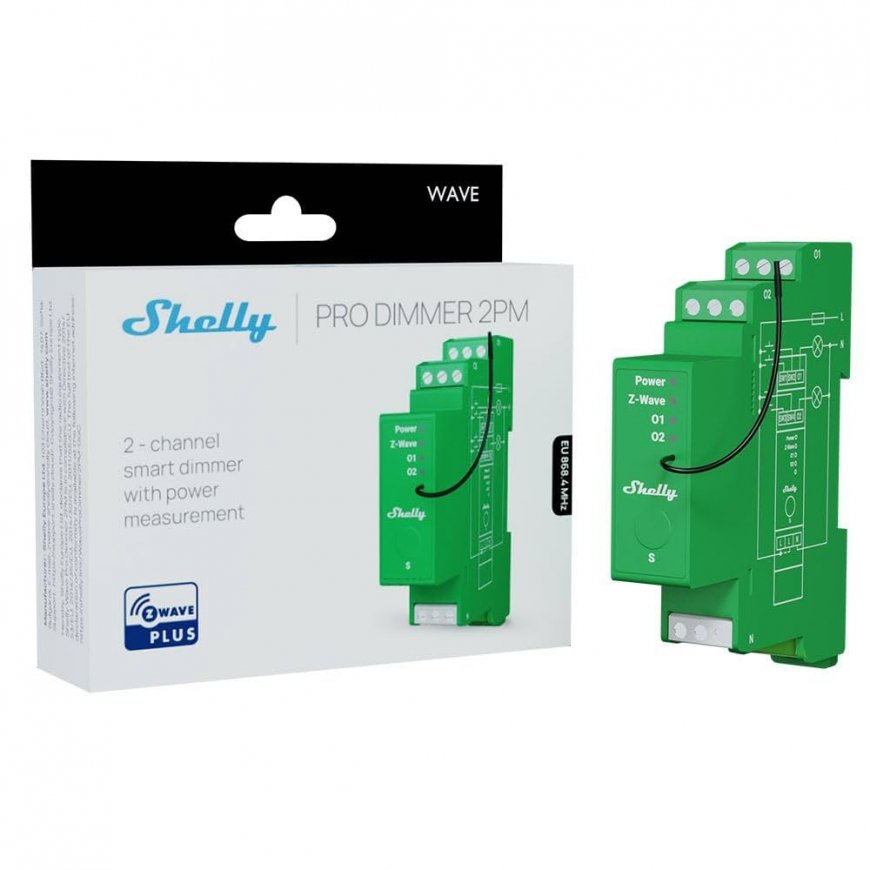

Shelly Wave Pro Dimmer 2PM – Z-Wave-älyhimmentimen, 2 kanavaa, langaton LED- ja halogeenivaloille, DIN-kiskoon asennettavaksi.

About Z-Wave:

Z-Wave is a smart home protocol specifically designed for communication between smart devices. Thanks to its sub-gigahertz frequency, Z-Wave ensures reliable signal propagation, and its MESH network topology enables devices located further from the hub to maintain stable communication (devices with continuous power supply act as repeaters). Z-Wave devices require a Z-Wave Hub or USB coordinator (such as one connected to a mini PC) to operate. The Z-Wave protocol uses standardized communication command classes (Command Class), ensuring compatibility between hundreds of brands and thousands of devices within a Z-Wave system. A Z-Wave network can include up to 232 devices. An additional benefit of the Z-Wave protocol is its support for association groups, which enable direct connections between specific devices within the network. Moreover, Z-Wave devices offer extensive parameter settings at the protocol level, allowing highly customized configurations to meet even the most sophisticated requirements. The Shelly Wave Pro Dimmer 2PM is a DIN rail-mounted, two-channel smart dimmer designed for precise lighting brightness control. As a DIN rail-mounted device, it requires a star wiring structure. It can operate independently with a switch or push button, or be integrated into Z-Wave-based smart home systems, enabling remote access and control via a smart home hub and an internet connection.

Key Features

• Two-channel dimming control:Enables brightness adjustment for two separate lighting circuits with a single device.
• Compatibility with switches and push buttons:Can be used with standard wall switches or push buttons.
• Remote access and control:Connects to a Z-Wave hub for monitoring and control from anywhere via an internet connection.
• Safety features:Includes built-in overheating, overcurrent, and overvoltage protection to ensure safe operation.

Inputs

• 4 switch/push button inputs via terminal blocks
• Power supply terminal blocks: N, L

Outputs

• 2 output channels

Connectivity

• Z-Wave (Unsecure, S0 Security, S2 Unauthenticated Security, S2 Authenticated Security)

Technical Specifications

• Supported light sources:
  LED lights:Up to 200 W per channel
  Incandescent bulbs:Up to 200 W per channel
  Halogen bulbs:Up to 200 W per channel
  Iron core transformers with low-voltage incandescent bulbs:Up to 200 VA per channel
  Dimmable electronic transformers:Up to 200 W per channel
• Power supply:110 - 240 V AC, 50/60 Hz
• Power consumption:< 0.3 W
• Dimming type:Trailing edge
• Power measurement [W]:Yes
• Maximum output power:200 W per channel
• Overheating protection:Yes
• Overcurrent protection:Yes
• Overvoltage protection:Yes
• Range:Up to 40 m indoors (depending on local conditions)
• Z-Wave repeater:Yes
• CPU:Z-Wave S800
• Dimensions (H x W x D):94 x 19 x 69 ± 0.5 mm / 3.70 x 0.75 x 2.71 ± 0.02 in
• Mounting:DIN rail
• Enclosure material:Plastic
• Color:Lime
• Ambient temperature:-20°C to 40°C / -5°F to 105°F
• Humidity:30% - 70% RH
• Maximum altitude:2000 m / 6562 ft

Integration and Compatibility

Shelly Wave devices are built on Z-Wave communication technology, one of the leading smart home protocols. This ensures compatibility with any gateway that supports the Z-Wave communication protocol. Shelly regularly conducts compatibility tests with various Z-Wave gateways to ensure seamless operation. The Shelly Wave Pro Dimmer 2PM is an ideal choice for smart control and automation of home, office, or industrial lighting systems.
