UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT
UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT

Оттенок товара и его реальный цвет могут отличаться от того, что показано на фотографии, так как изображения носят иллюстративный характер. Описание товара является общим и может не включать все его характеристики.

UTP/2 CABLE REPLACEMENT KIT LAN+POE TRANSMISSION ETH-2WIRE-A-SET2 2 ATTE KIT

119,00 €
Мес. плата от 3.96 €
3693787

ETH-2WIRE-A-SET2

5902143691709

Доставка 1-14 р.д.

Количество

Notify you about this product?
(Read the Terms of Service)
Connectors :
  • 1 pc. RJ45
  • 1 pc. terminal block (screw terminals) - 0.32  ... 3.3 mm² ( 22  ... 12 AWG )
    • LAN ports : 1 pc. RJ45 10 / 100 Mbps
    Terminal block : ETH-2WIRE-A-TX :
  • PoE IN - Passive PoE ≤ 30 W, PoE (802.3at) ≤ 30 W, PoE (802.3af) ≤ 15 W
    ("+/-": pin codes 1, 2; "+/-": pin codes 3, 6) or ("+/-": pin codes 4, 5; "+/-": pin codes 7, 8)
  • Power
  • DATA - 2-wire
    • ETH-2WIRE-A-RX2 :
  • PoE OUT - Hi-PoE (802.3af/at/bt)
    ("+": pin codes 3, 6 / 4, 5; "-": pin codes 1, 2 / 7, 8)
  • DATA - 2-wire
    • Transmission speed : 10 / 100 Mbps

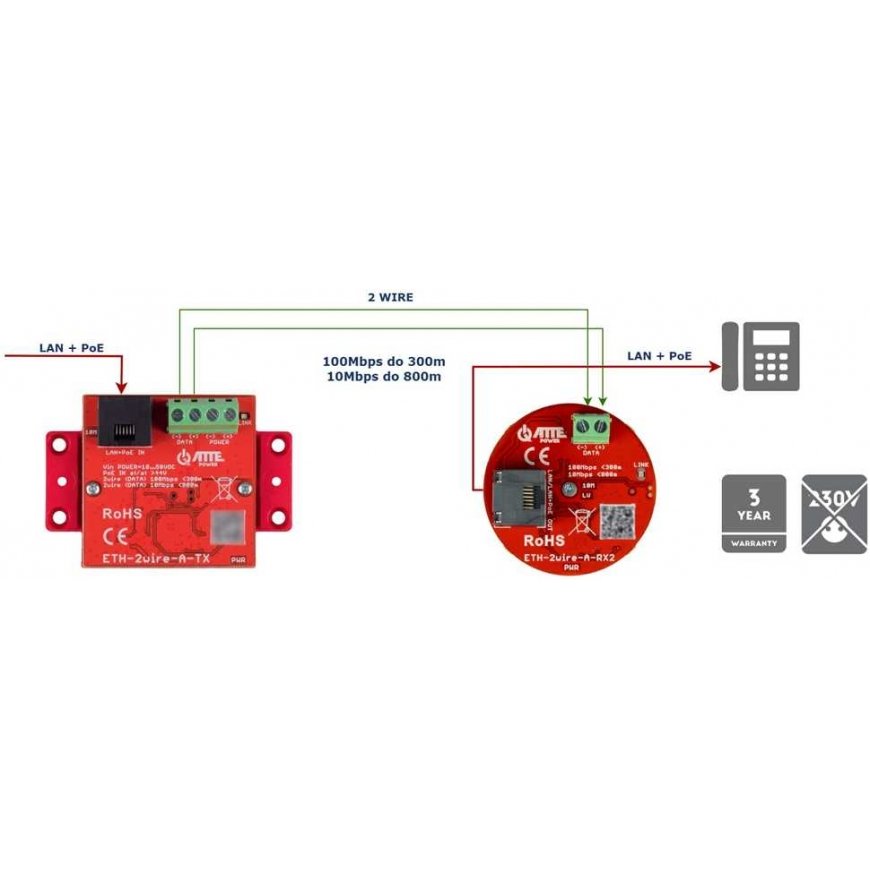

    Transmission distance :
  • 300 m @ 100 Mbps : 2-wire,
  • 800 m @ 10 Mbps : 2-wire
  • 100 m @ UTP : Switch POE - ETH-2WIRE-A-TX
  • 100 m @ UTP : ETH-2WIRE-A-RX2 - IP CAMERA
    • Indicator LEDs :
  • Power
  • LAN (RJ-45)
  • PoE (RJ-45)
  • 2-wire
  • 2-wire 10 Mbps
  • LV - low voltage < 44 V
    • Protection features :
  • Overvoltage protection - LAN, DATA
  • Reverse polarity protection - Power
  • Overload protection 0.6 A - PoE IN ETH-2WIRE-A-TX
    • Main features :
  • Plug & Play
  • Support for IP video cameras and network devices
  • Complete network transparency
  • Ethernet data transmission over any 2 cable pairs
  • Small device size and shape allows installation in small spaces, e.g., installation box - ETH-2WIRE-A-RX2
    • Power : ETH-2WIRE-A-TX :
  • 24  ... 56 V DC - PoE
  • 12  ... 56 V DC - Power
  • PoE output voltage equals input voltage
    • ETH-2WIRE-A-RX2 :
  • 12  ... 56 V DC
  • PoE output voltage equals input voltage
    • Power consumption : 1.35 W (total)
    Housing : Plastic (polycarbonate)
    Ingress protection class : IP20
    Operating temperature : -25 °C ... 65 °C
    Weight :
  • 0.029 kg - ETH-2WIRE-A-TX
  • 0.019 kg - ETH-2WIRE-A-RX2

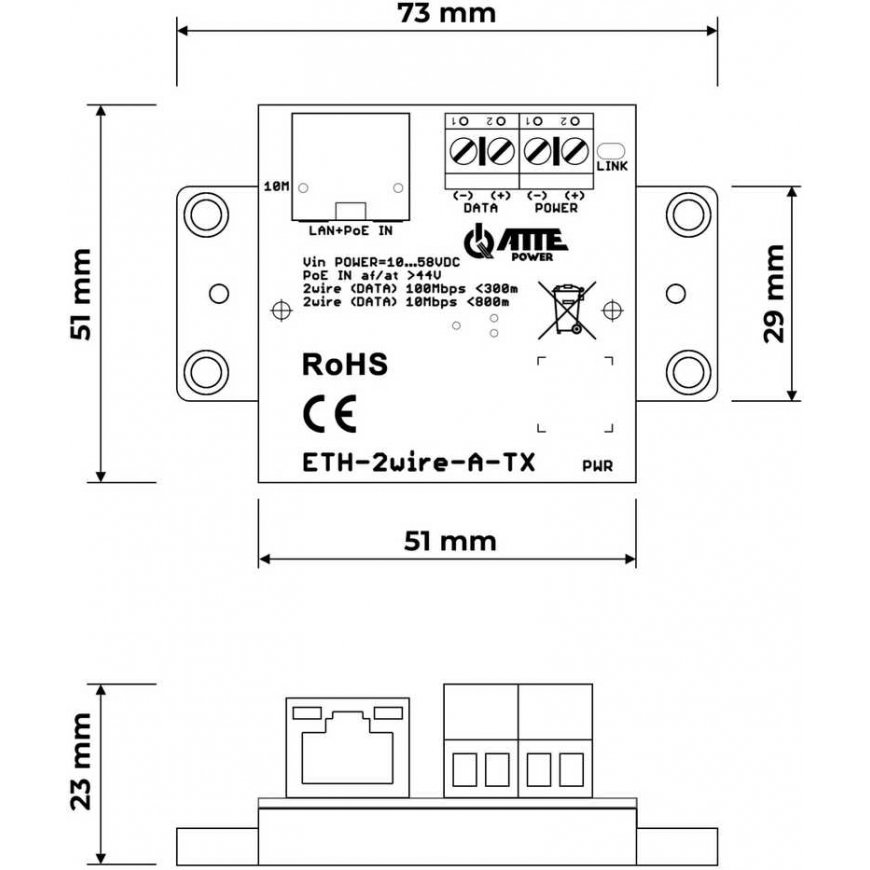

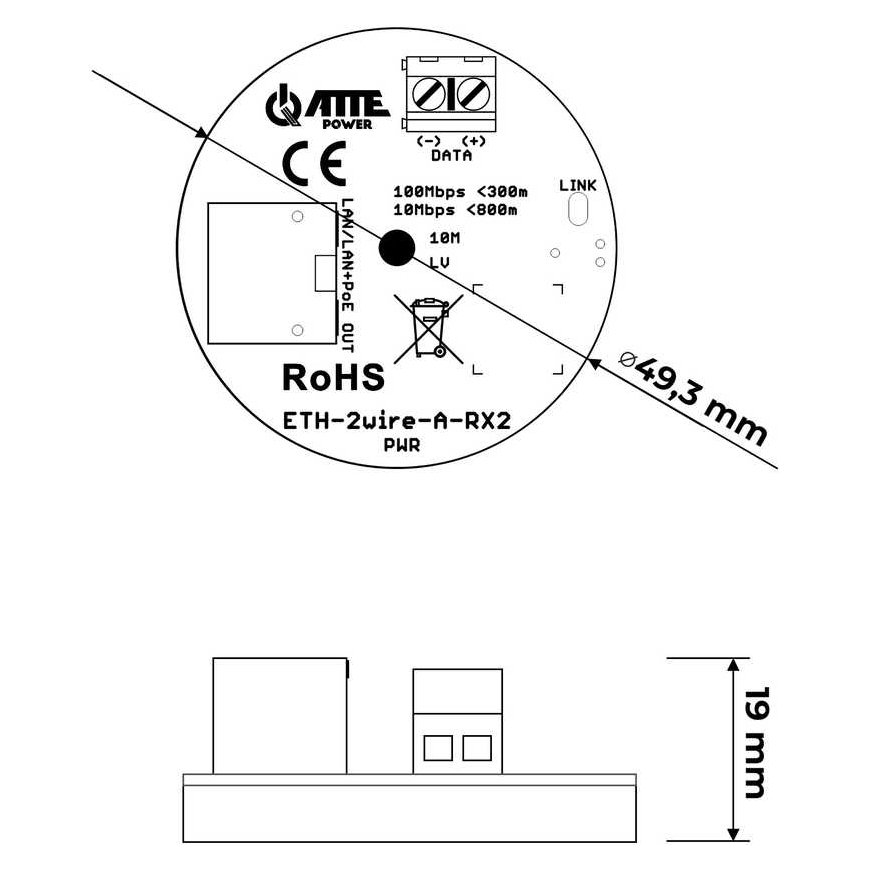

    • Dimensions :
  • 73  x 51  x 23 mm - ETH-2WIRE-A-TX
  • Ø 49  x 19 mm - ETH-2WIRE-A-RX2
    • Manufacturer / Brand : ATTE
    Warranty : 3 years
