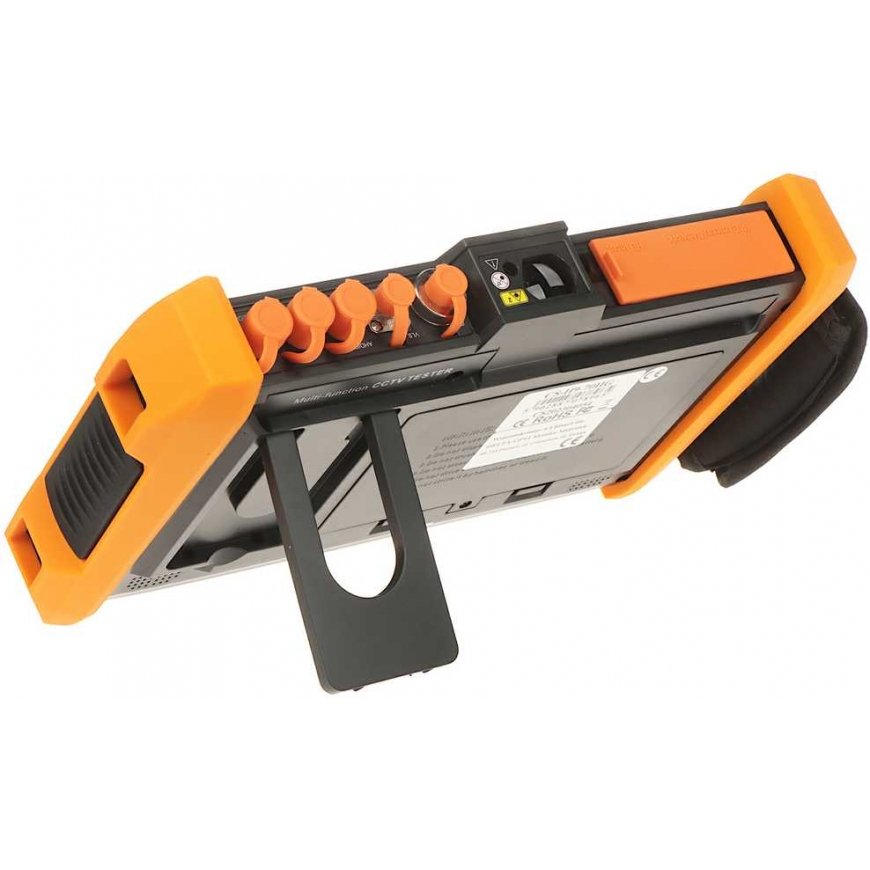

TST CCTV MULTIFUNCTION TESTER CS-H9-70HG
729,00 €
719,00 €
Мес. плата от 19.41 €
3583495 CS-H9-70HG
5902887078965
2026-07-23
Notify you about this product?
Multifunctional AHD, HD-CVI, HD-TVI, IP cameras, analog cameras, Speed Dome (PTZ) tester with many additional functions necessary during CCTV installation.
| Video standard : | AHD - 8 Mpx , HD-CVI - 8 Mpx , HD-TVI - 8 Mpx , HD-SDI - 8 Mpx , TCP/IP - 8K @ H.265 / 4K @ H.264 , CVBS - PAL / NTSC |
| Display : | 7 " Retina - capacitive touchscreen, 1280 x 800 px |

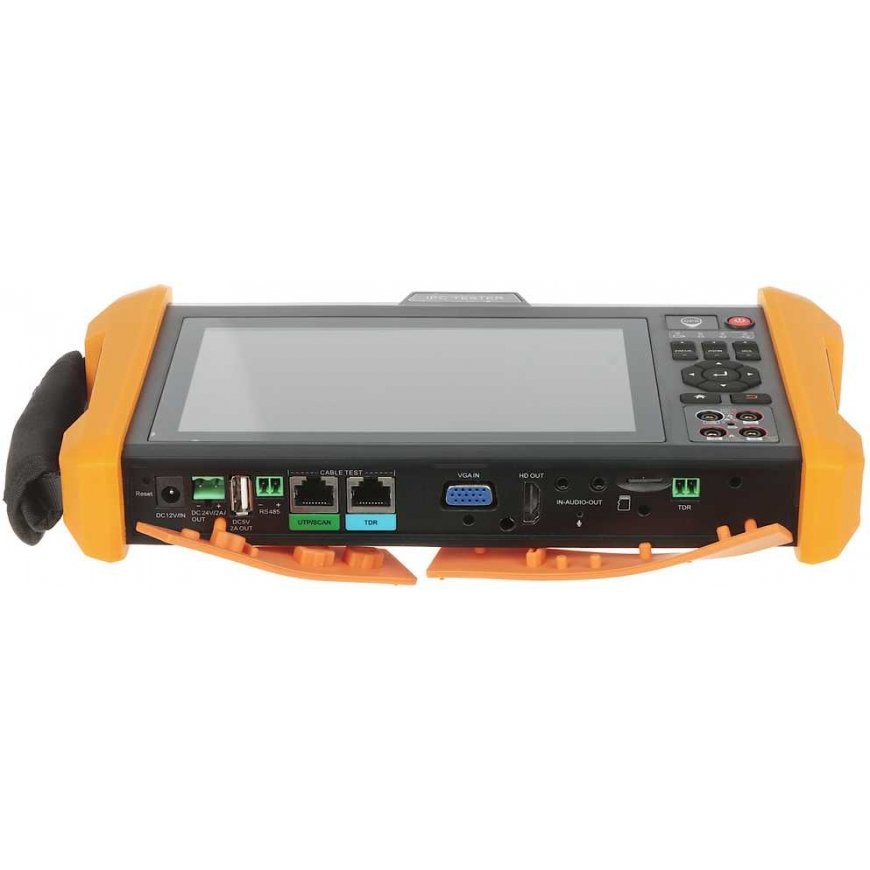

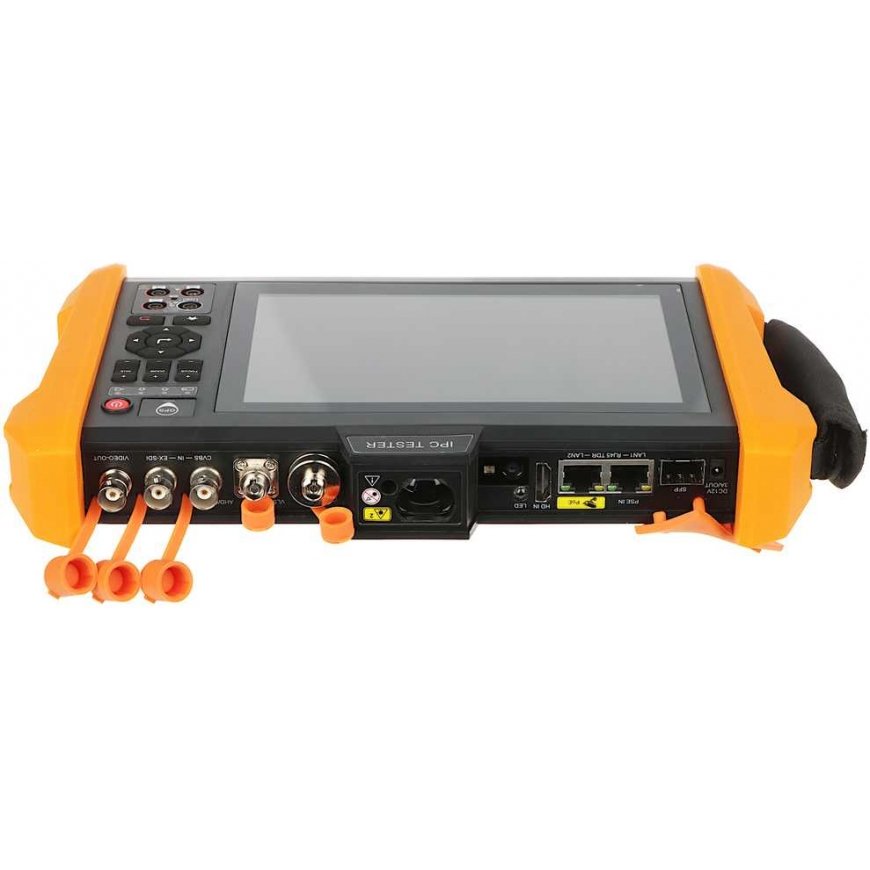

| Video input : | 1 pc. AHD / HD-CVI / HD-TVI / CVBS - BNC socket 1 pc. HD-SDI - BNC socket 1 pc VGA 1 pc HDMI |
| Video output : | 1 pc. CVBS - BNC socket 1 pc VGA 1 pc HDMI |
| LAN port : | 2 pcs. - Cooperation with cameras and switches PoE |
| Audio input : | 1 pc. Mini Jack |
| Audio output : | 1 pc. Mini Jack |
| Video signal level meter : | AHD , HD-CVI , HD-TVI , CVBS : Peak level, Sync level, Burst |
| Video signal generator : | - |
| Serial ports : | RS-485 |
| Protocols : | Over 30 protocols RS485 service : Pelco-D , Pelco-P , YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(MB), SAMSUNG SPD, Siemens, Cohu, MINKING B01, ALEC |
| Transmission speed : | 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s |
| Twisted pair or telephone line test : | Connection test of UTP or telephone cables terminated with RJ-45 plug |
| RS-485, RS-232 line test : | Testing data from the master device (commands are displayed in hexadecimal) |
| Wi-Fi module : | ✔ |

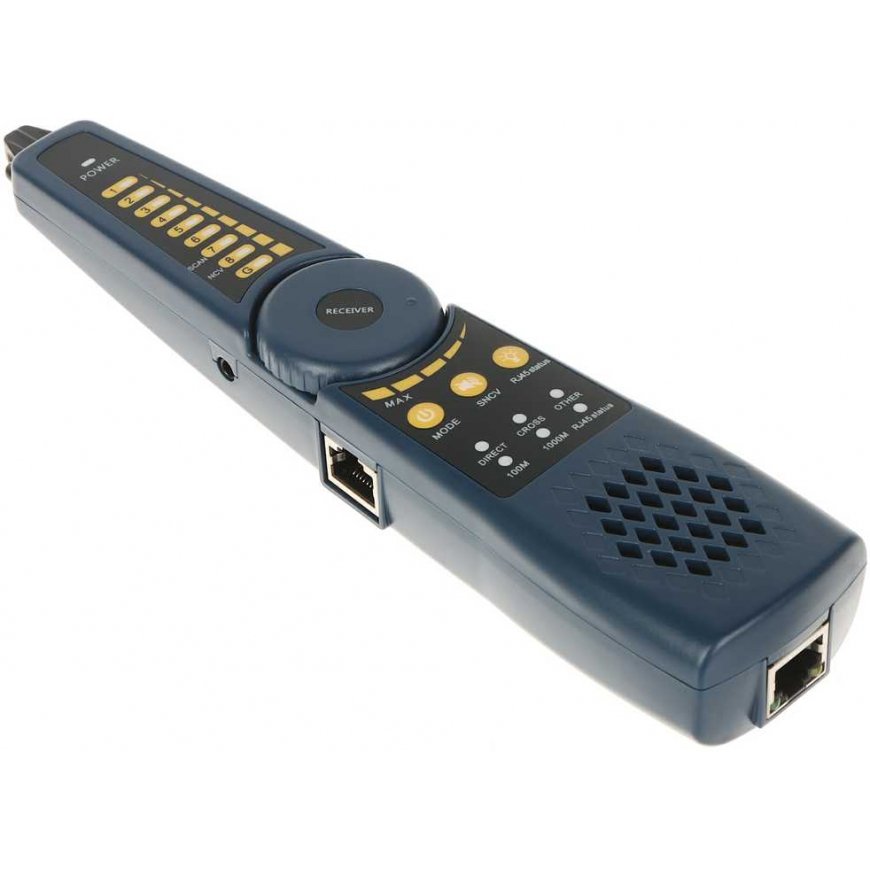

| Identifying a wire in a wiring harness : | ✔ |
| Audio test : | ✔ |
| Digital multimeter : | Measurement: voltage, current, resistance, continuity test, diode test, capacitance |
| Optical power measurement : | Optical power measurement in fiber optic networks (ST and SC adapters) Optical wavelength : 850, 1300, 1310, 1490, 1550, 1625 nm Range: -70 ... +10 dBm |
| VLS (VFL) - visual fiber optic fault catalog : | Laser LD, 650 nm, 10 mW |
| TDR reflectometer : | Cable break detection and location (UTP only) |
| Working in the role of a power source : | 5 V DC / 2 A USB port 12V DC / 3A 24V DC / 2A 48V (PoE, LAN), 30W |

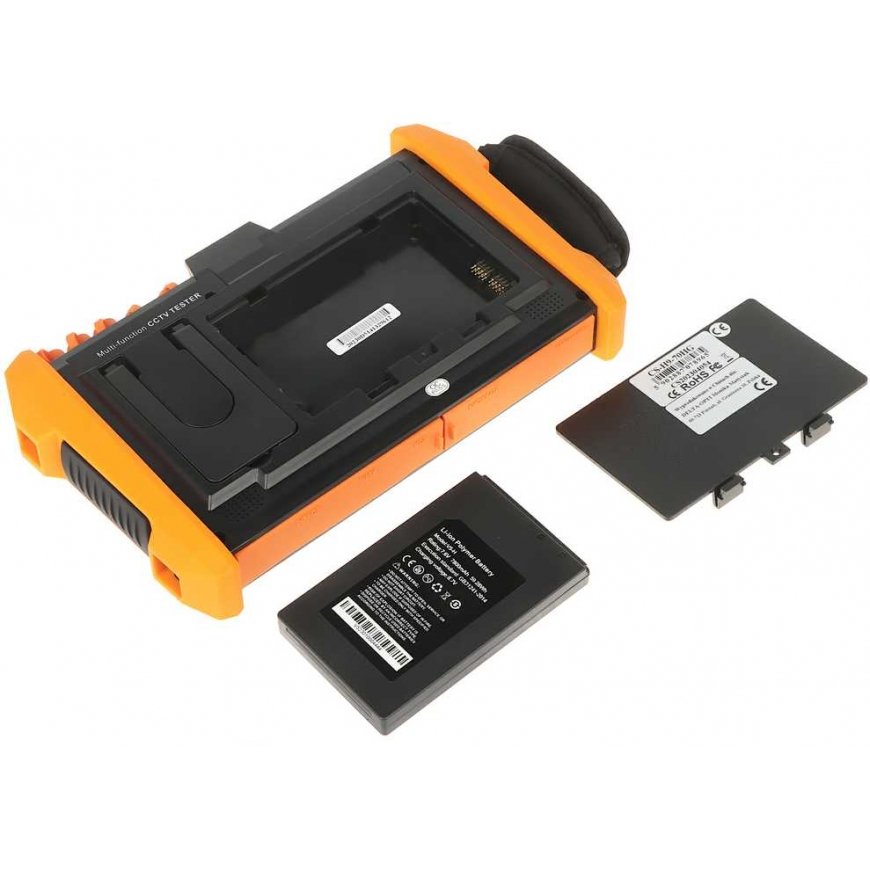

| Battery powered : | Li-Ion battery: 7.6 V / 7800 mAh 12 V DC / 2 A (power supply included) |
| Estimated battery life : | max. 16 hours |
| Service : | Graphical menu – touch control and buttons |
| Selected features : | AHD camera tester HD-CVI camera tester HD-TVI camera tester PAL/NTSC camera tester HD-SDI camera tester IP camera tester - Video compression methods used: H.265 , H.264 , MJPEG Finding and monitoring IP cameras that comply with Onvif Control of rotators and PTZ (speed dome) cameras Viewing IP camera images with the help of built-in programs - Hik test tool, DH test tool, HW tool, UNV test tool, JOVISION tool, TOPSEE tool, JCO test tool, TVT tool, Tiandy tool Built-in web browser - Google Chrome Control signal generator Connection maintenance LAN IP address scanner PING - connection testing with the help of ICMP packets Finding the built-in switch port Twisted pair cable tester Cooperation with cameras and switches PoE PoE power meter DC 5V/12V/48V power supply Wire identification in a wire harness TDR reflectometer Optical power meter VLS (VFL) - visual fiber optic fault catalog Digital Multimeter RS-485 serial port data analysis Cable tracer app - easy to locate a cable in a messy package Audio test Hotspot - Wi-Fi Video recording on micro SD card with playback capability - 8 GB included Playing back recordings VLC Media Player is installed - the ability to play multimedia files in many popular formats (.mp3, .mp4, .avi, .mpeg, etc.) Calculator Quickoffice package installed - creation and editing of text documents .docx, spreadsheets .xlsx and multimedia (multimedia) .pptx Integrated flashlight The displayed motif and background can be changed Illuminated buttons Built-in video camera (capable of taking photos and recording videos) Laser rangefinder: 100 m ± 3 mm Lens Simulator - a program that allows you to select the appropriate parameters for a video camera to be installed in a specific location SFP slot GPS module |
| Working temperature : | -10°C ... 50°C |
| Permissible relative ambient humidity : | 30% ... 90% |
| Weight : | 1.17 kg |
| Dimensions : | 276 x 163 x 44 mm |
| Languages supported : | Polish, English, Czech, French, Greek, Spanish, German, Portuguese, Russian, Serbian, Turkish, Italian |
| Warranty : | 2 years |
