TST SWITCHING POWER SUPPLY 12V/8A/PA9
3570677 12V/8A/PA9
5902887021633
Доставка 1-14 р.д.

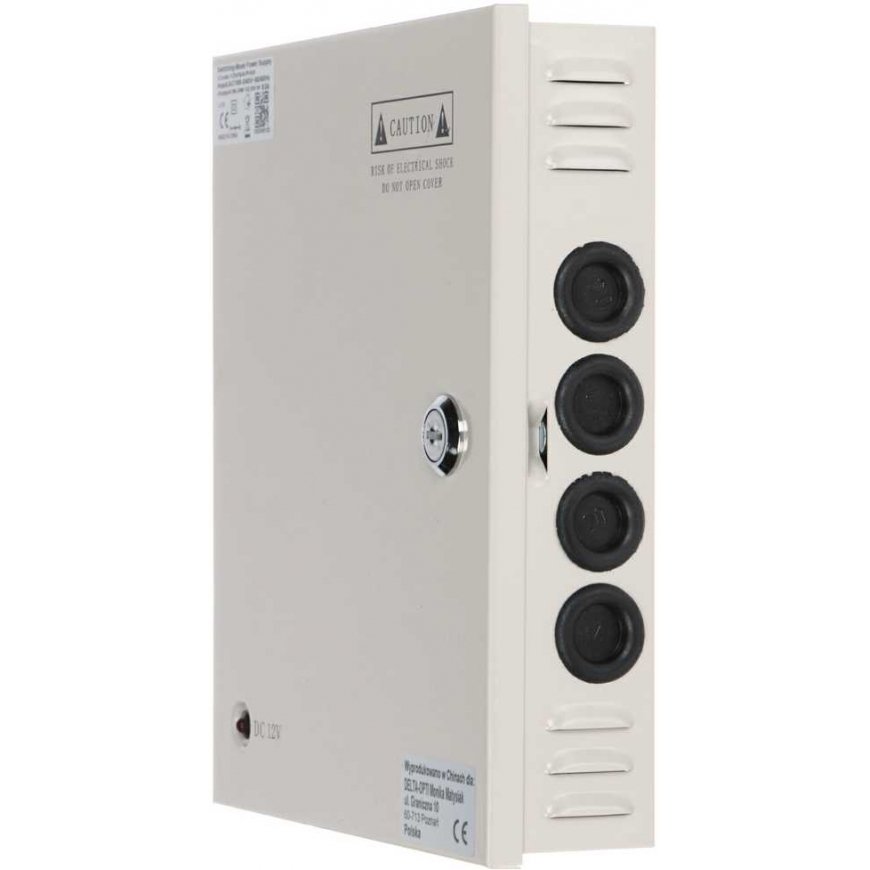

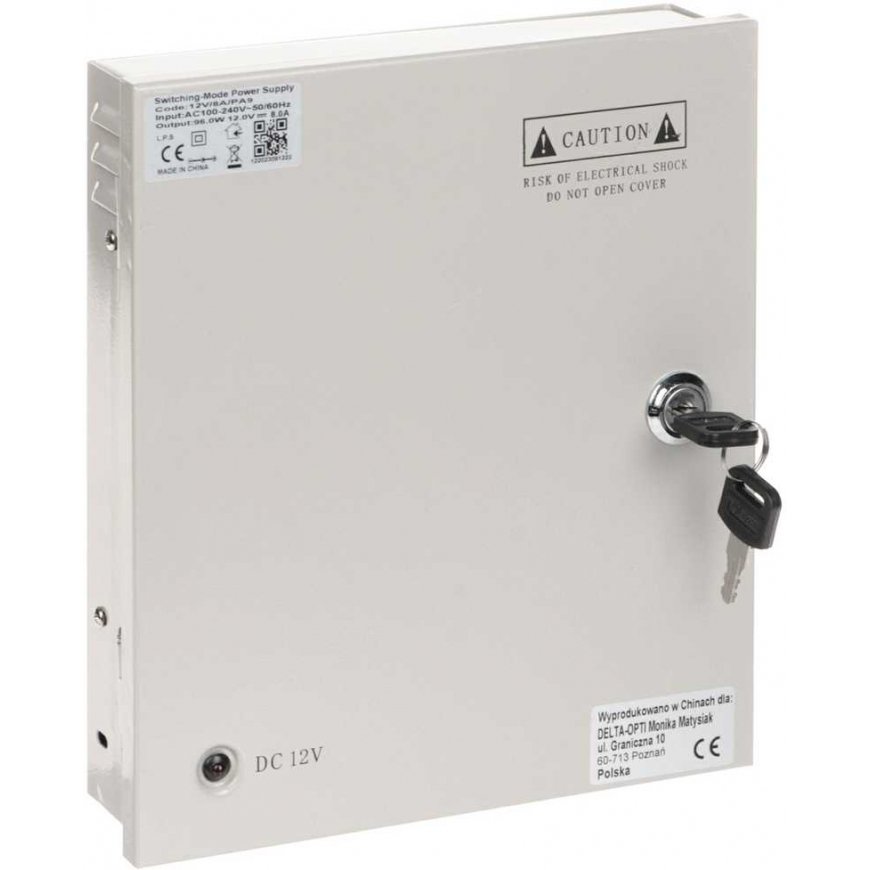

The adapter is housed in an aesthetic, solid-looking metal housing.
The power supply is indicated by an LED on the housing.
The adapter output voltage is stabilized.
The adapter has 9 independent power lines (serves up to 9 devices).
The maximum load of a single output is 1.5A, and the total load must not exceed 8A.
When all 9 outputs are used equally, the maximum load on a single output is 880mA.

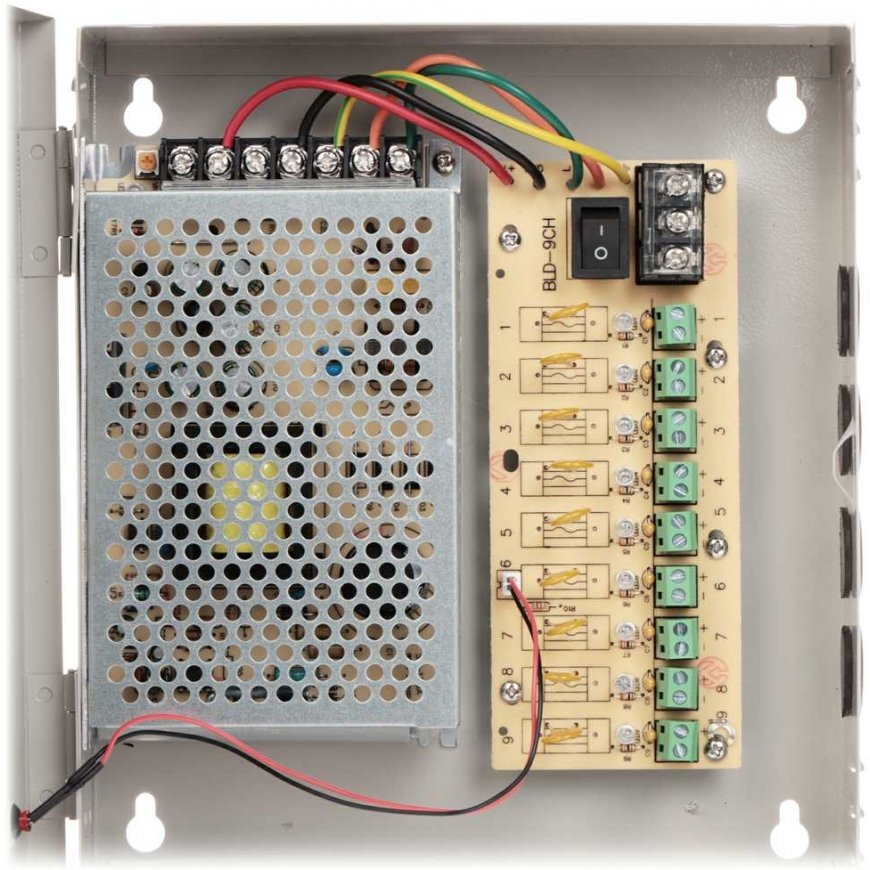

Each current line is protected by a polymer fuse and has an LED diode that informs about the voltage at a specific output.
Attention! If the power supply is designed for continuous operation (24H), its nominal current must not exceed 80% of the maximum current.
It is necessary to pay special attention to proper cooling of the power supply during operation!
| Power supply type : | Impulse |
| Output voltage : | 12V DC |
| Output voltage regulation : | 11 ... 12.7V |
| Maximum output current (total) : | 8 A |
| Single output max. output current : | 1.5A |
| LED indication : | ✔ |
| Protective measures : | From overloads From short circuit |
| Input voltage : | 230V AC |
| Power : | 96W |
| Number of outputs : | 9 |
| Connector type : | Cable clamps |
| Fitting type : | Metal, wall-mounted |
| Lockable with key : | ✔ |
| Weight : | 1.47 kg |
| Dimensions : | 236 x 207 x 52 mm |
| Warranty : | 2 years |
