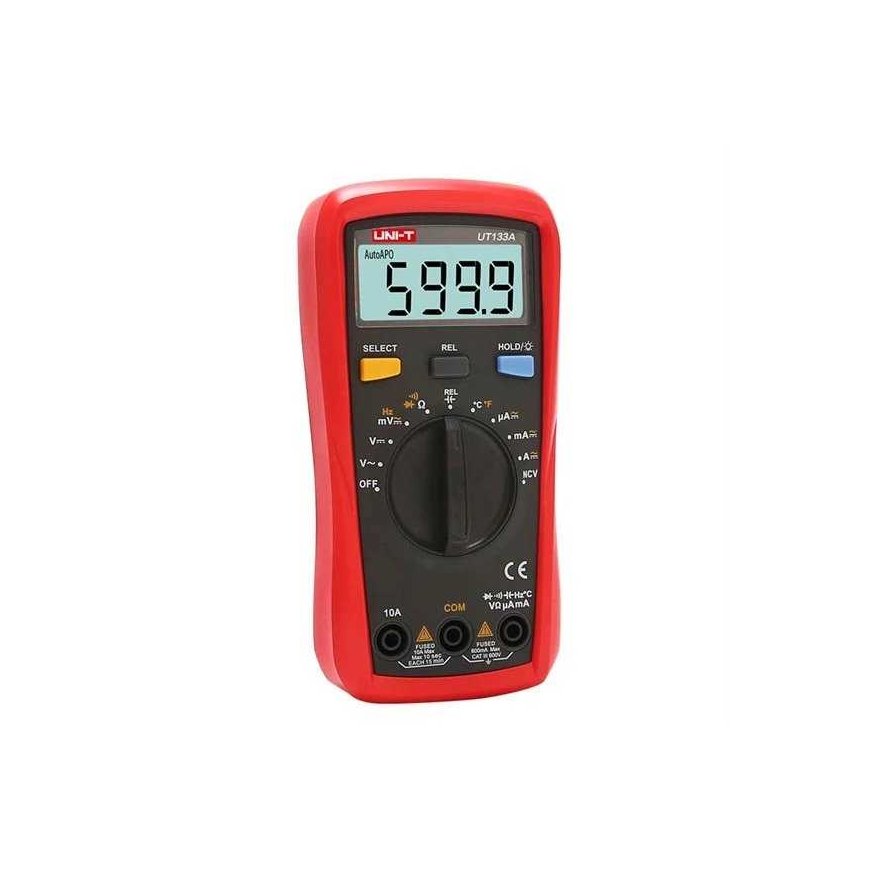

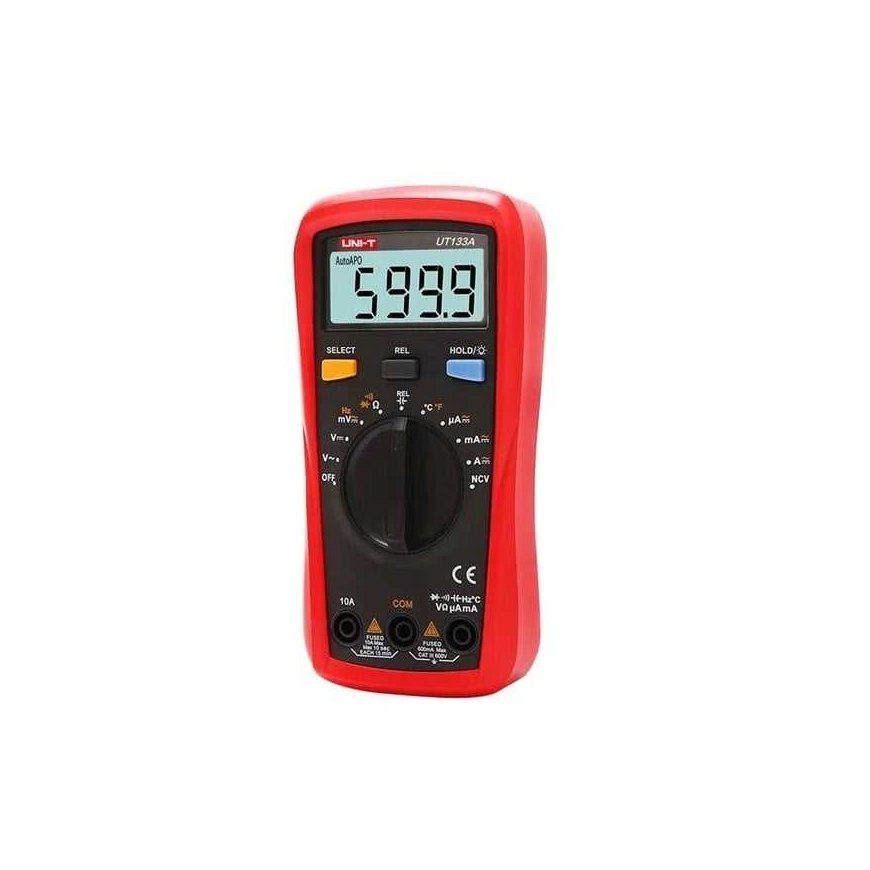

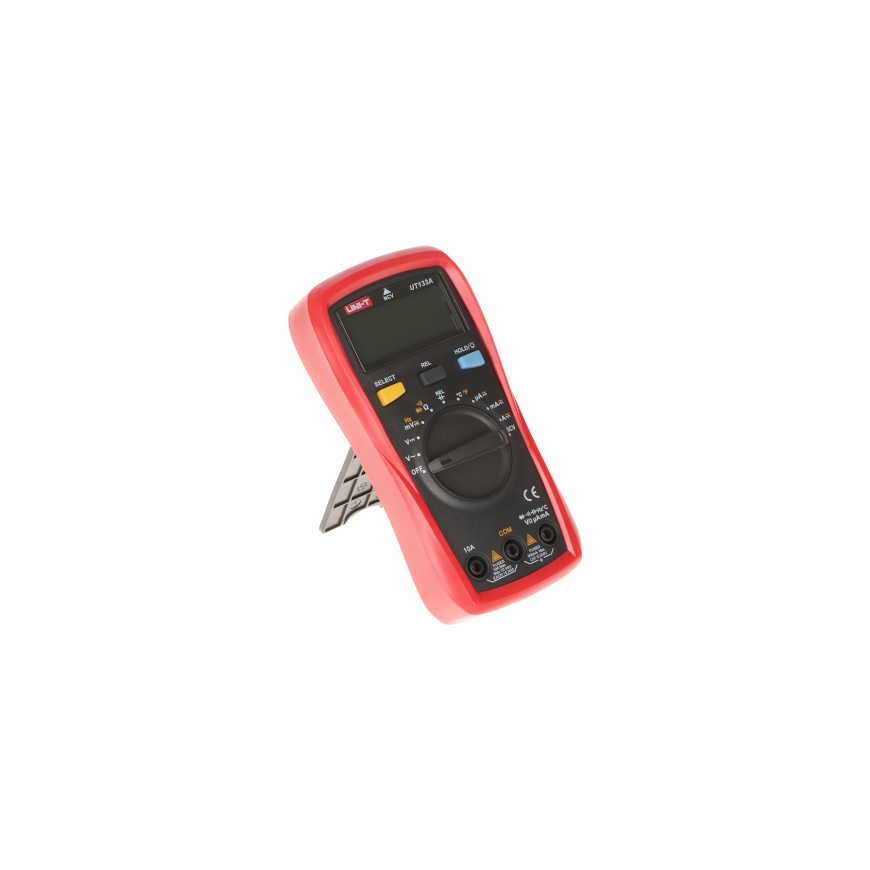

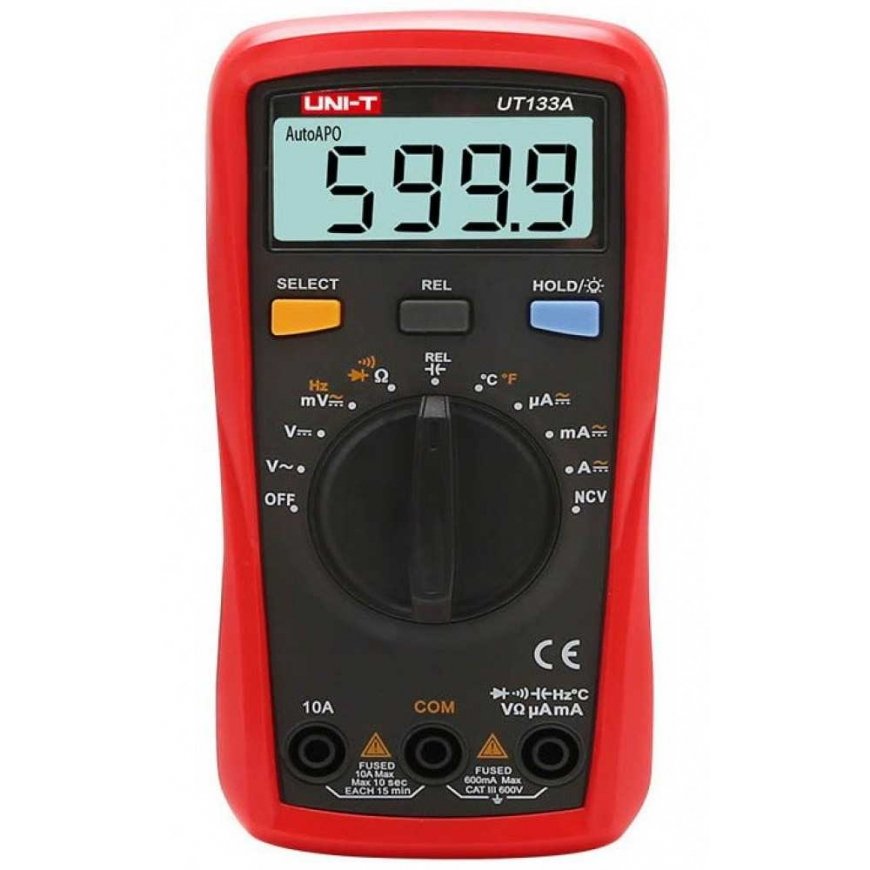

UT-133A is a universal digital meter designed to measure: voltage, current, resistance, capacitance, frequency, temperature and check if diodes are working properly.
The measuring device has an automatic measurement change function, as well as a relative measurement mode (for voltage, current, resistance measurements).
In addition, the UT-133A has an electric field detection function (NCV).
| DC voltage measurement : | 600 mV ± (0.7% + 3) @ 0.1 mV , 6V ± (0.7% + 3) @ 0.001V, 60V ± (0.7% + 3) @ 0.01V, 600V ± (0.7% + 3) @ 0.1V |
| AC voltage measurement : | 600 mV ± (1.0% + 2) @ 0.1 mV , 6V ± (0.7% + 3) @ 0.001V, 60V ± (1.0% + 2) @ 0.01V, 600V ± (1.2% + 3) @ 0.1V |
| DC current measurement : | 600 µA ± (1.0% + 3) @ 0.1 µA , 6000 µA ± (1.0% + 3) @ 1 µA , 60 mA ± (1.0% + 3) @ 0.01 mA , 600 mA ± (1.0% + 3) @ 0.1 mA , 6A ± (1.2% + 5) @ 0.001A, 10A ± (1.2% + 5) @ 0.01A |
| AC current measurement : | 600 µA ± (1.0% + 3) @ 0.1 µA , 6000 µA ± (1.0% + 3) @ 1 µA , 60 mA ± (1.0% + 3) @ 0.01 mA , 600 mA ± (1.0% + 3) @ 0.1 mA , 6A ± (1.5% + 5) @ 0.001A, 10A ± (1.5% + 5) @ 0.01A |
| Resistance measurement : | 600 Ω ± (1.0% + 2) @ 0.1 Ω , 6 kΩ ± (0.8% + 2) @ 0.001 kΩ , 60 kΩ ± (1.0% + 2) @ 0.01 kΩ , 600 kΩ ± (1.0% + 2) @ 0.1 kΩ , 60 MΩ ± (2.0% + 5) @ 0.01 MΩ |
| Capacity measurement : | 9.999 nF ± (4% + 10) @ 0.001 nF , 99.99 nF ± (4% + 5) @ 0.01 nF , 999.9 nF ± (4% + 5) @ 0.1 nF , 9.999 µF ± (4% + 5) @ 0.001 µF , 99.99 µF ± (4% + 5) @ 0.01 µF , 999.9 µF ± (4% + 5) @ 0.1 µF , 9.999 mF ± (10%) @ 0.001 mF |
| Inductance measurement : | - |
| Frequency measurement : | 60 Hz ... 1 MHz ± (0.1% + 5) @ 0.01 Hz ... 0.001 MHz |
| Measuring the duty cycle of a rectangular signal : | - |
| Temperature measurement : | °C : -40 ... 40 °C ± 4 @ 1 °C, >40 ... 500 °C ± (1.0% + 4) @ 1 °C , >500 ... 1000 °C ± (2.0% + 4) @ 1 °C , °F : -40 ... 104 °F ± 5 @ 1 °F , >104 ... 932 °F ± (1.5% + 5) @ 1 °F , >932 ... 1832 °F ± (2.5% + 5) @ 1 °F |
| Automatic change of measurement scale : | ✔ |
| hFE : | - |
| Diode test : | ✔ |
| Audible circuit integrity alarm : | ✔ |
| Checking logical TTL states : | - |
| RS-232 : | - |
| Main features : | NCV - electric field detection function, REL - relative measurement mode, Hold - stop the meter reading, Large, legible LCD display with backlight, Aesthetic and solid construction, Low battery signal |
| Power supply : | 2 x 1.5V battery, type AAA/LR03 - included |
| Weight : | 0.25 kg |
| Dimensions : | 155 x 77 x 49 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
