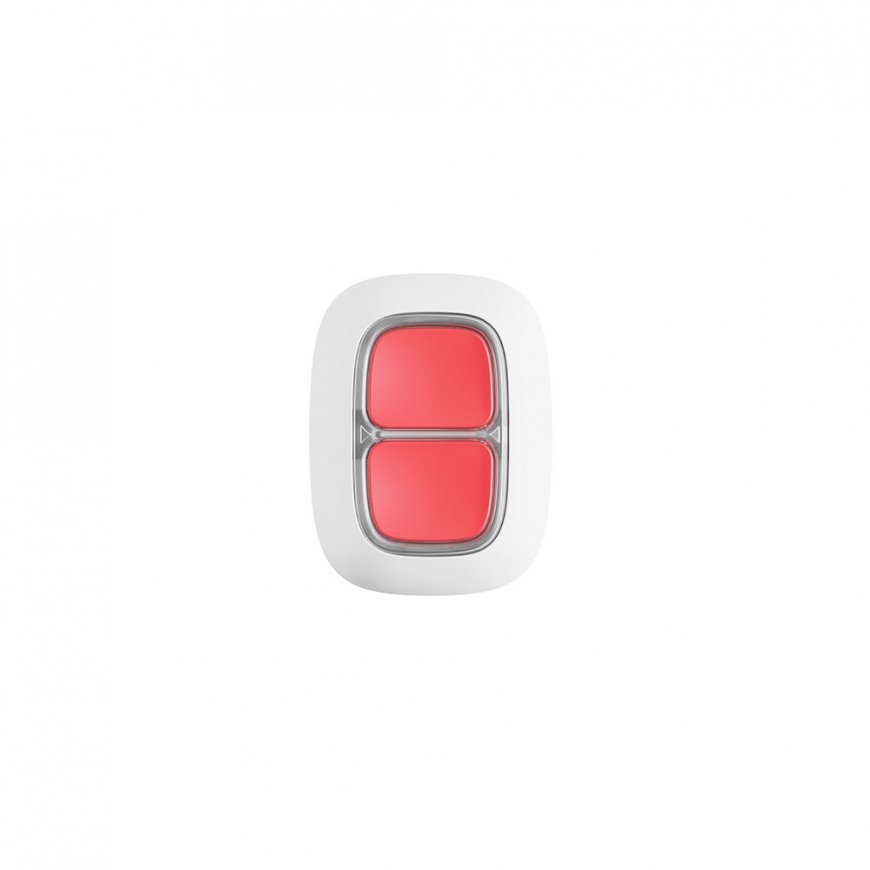

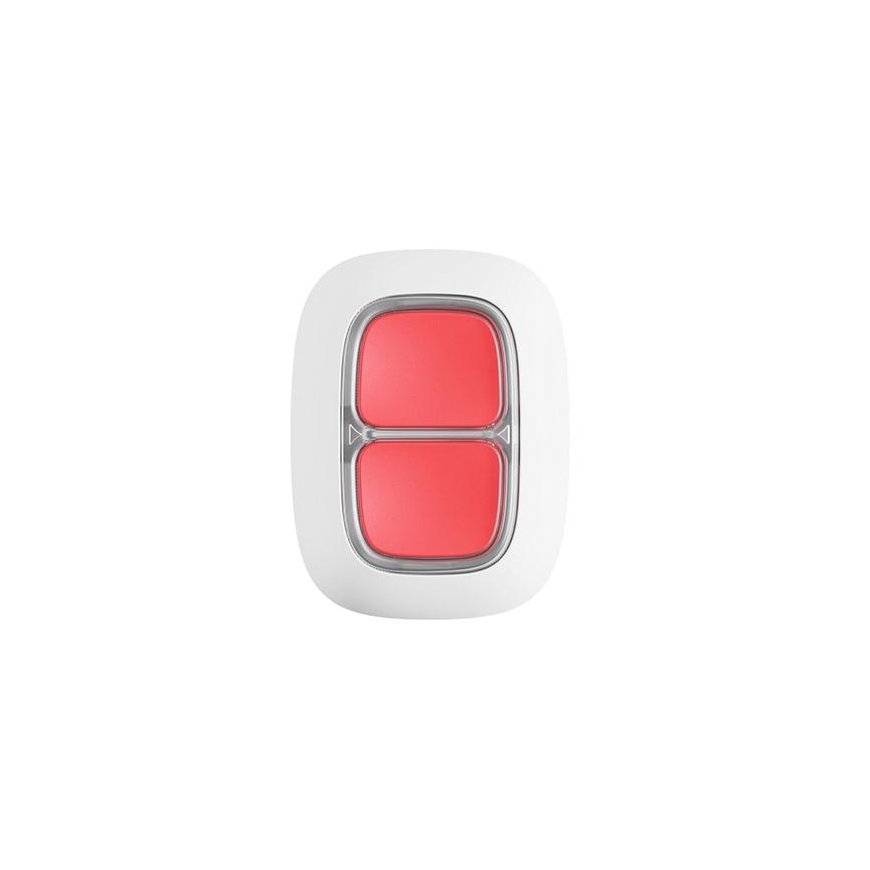

Ajax Double Panic Button (White)

Ajax Double Panic Button (White)

The dual emergency button is a wireless emergency call device. It has two sturdy buttons and a plastic panel. This double button differs from a simple button in that it has protection against accidental pressing.


Operating principle
The alarm is transmitted when both buttons are activated: a single short press of both buttons or a long press (more than 2 seconds). If only one of the buttons is pressed, the alarm is not transmitted. Pressing the short and long press buttons have different icons, but the SMS and "push" codes sent to the security services do not depend on the method of pressing.
Double button works with Ajax Hub devices. Connection to "ocBridge Plus" and "uartBridge" integration modules is not provided. The dual button communication range is up to 1300 meters.


Usage options
The double help button is protected against dust and moisture (IP55). This button is designed for the convenience of pressing both buttons when threatened. The design of the button, the hole in the body, allows the button to be worn by hanging it on the neck, wrist or key ring.


Easy to install
Download the Ajax app and scan the QR code - the device is ready for operation.


Technical data:

• Classification: radio waves.
• Compatibility: Works with Hub, Hub Plus, Hub 2, Hub 2 Plus, ReX, Operating System: Malevich 2.10 and later.
• Number of buttons: 2.
• Operating temperature: from -10C to +40C.
• Permissible humidity: up to 75%.
• Protection class: IP55.
• Size: 47 x 35 x 16mm.
• Weight: 17 g.
• Battery: 1 CR2032.
• Voltage: 3V.
• Battery life: up to 5 years.
• Alarm transmission: active only when both buttons are pressed.

Complete set:

• Panic button.
• 1 CR2032 battery.
• Double-sided sticker.
