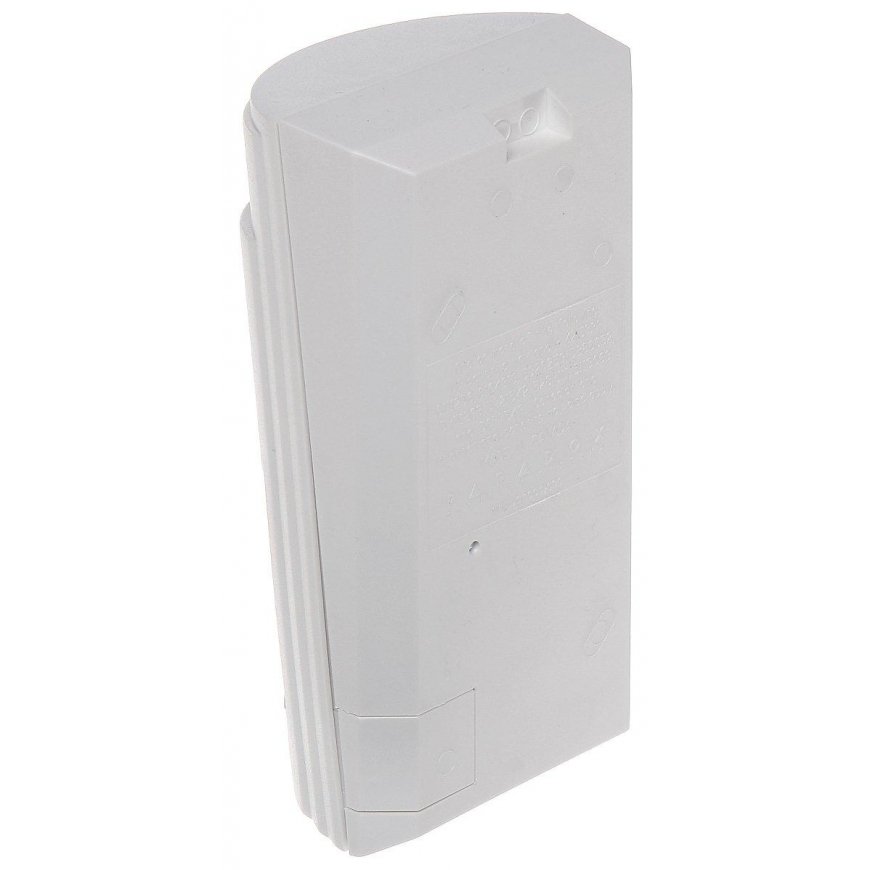

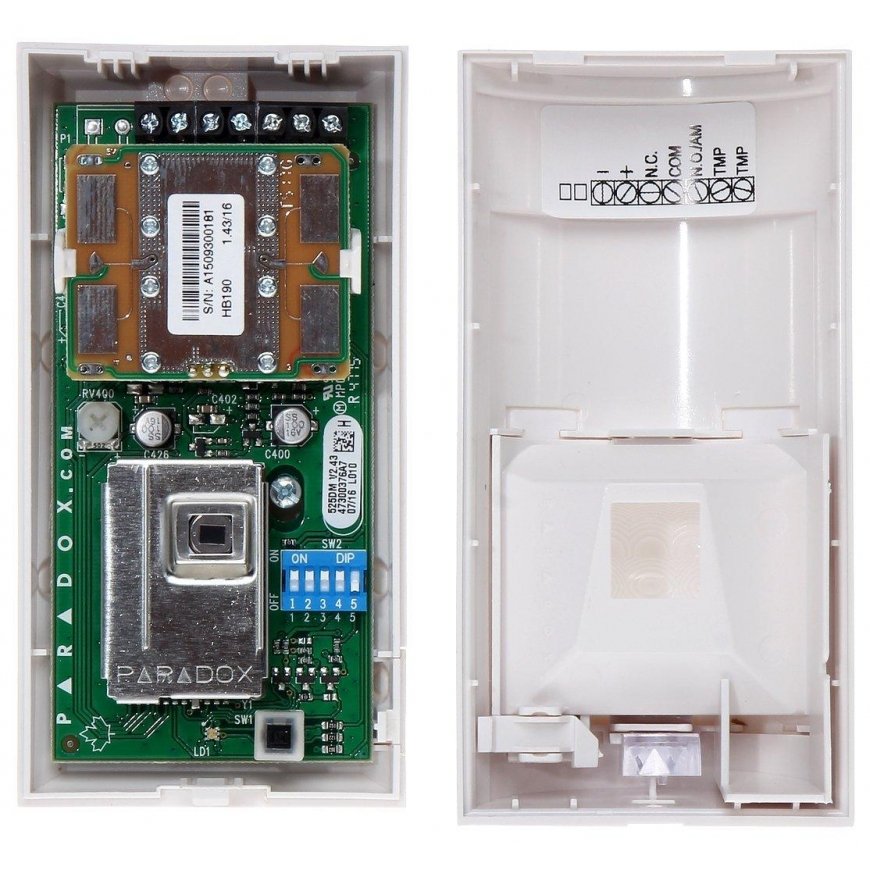

DUAL TECHNOLOGY DETECTOR: MICROWAVE + PIR DM525 PARADOX
65,36 €
51,67 €
Мес. плата от 2.23 €
2269453 DM-525
5902887027833
2026-07-29
Notify you about this product?
Digital dual (PIR + microwave) detector.
Anti-masking can also be enabled in the detector.
| Usage : | For indoor spaces |
| Pyroelement : | Double |
| Sensor type : | Passive IR (PIR) and microwave (MW) |

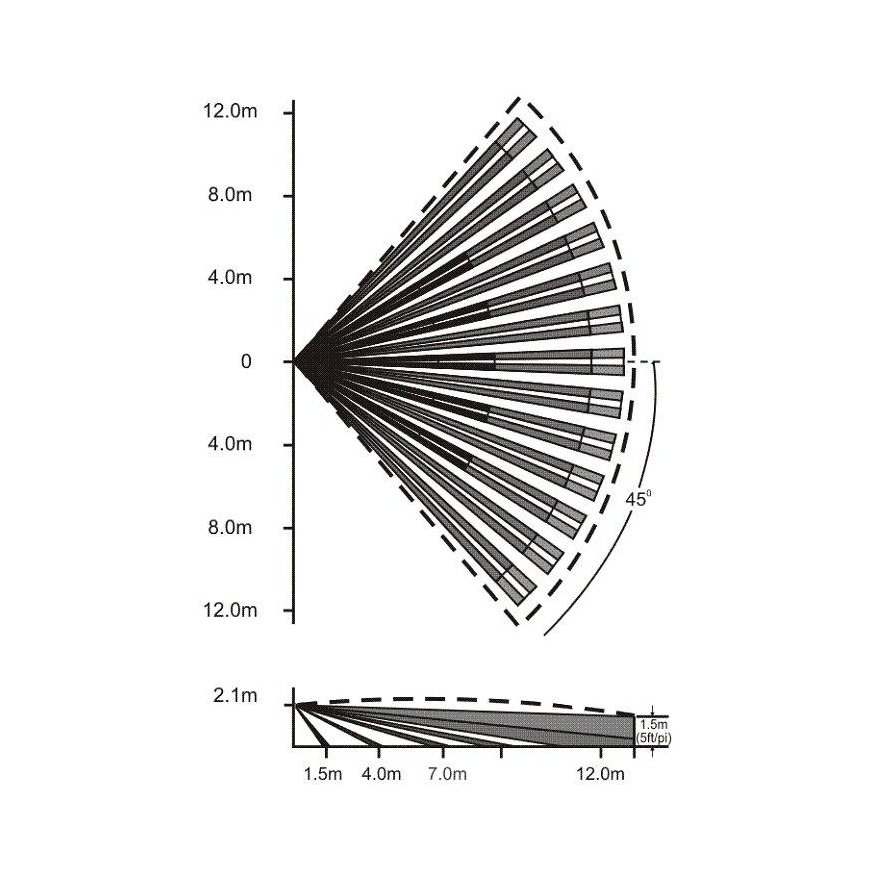

| Distance : | max. 12 x 15 yrs |
| Detection angle : | 90 ° |
| Sensitivity adjustment : | Potentiometer - Microwave (MW) |
| Alarm output : | NO/NC |
| Tamper output : | NC |
| LED indication : | 0.5 s Green - MW sensor 0.5 s Yellow - PIR sensor 4 s Red - Alarm Blue - Lens masking detection |
| Microwave frequency band : | 10.525 GHz |
| Recommended installation height : | 2.1 ... 2.7 years |
| Resistance to animals : | - |
| Anti-masking function : | ✔ |
| Violation alarm time : | 4 s |
| Maximum output load : | 150 mA / 28 V DC |
| Digital temperature compensation : | ✔ |
| Meals : | 10 V ... 16 V DC / 30 mA |
| Detectable movement speed : | 0.2 ... 3.5 m/s |
| Main features : | EN 55022, EN 60950, EN 50130-4 digital detection algorithm with temperature compensation, ensuring high resistance to false alarms and parameter repetition Resistance to changes in environmental conditions Approach zone control Sabotage detection - opening the case, tearing it from the base Interchangeable Fresnel lenses Test mode |
| Working temperature : | -20 °C ... 50 °C |
| Color : | White |
| Weight : | 0.124 kg |
| Dimensions : | 64 x 127 x 53 mm |
| Country of origin : | Canada |
| Manufacturer / Brand : | PARADOX |
| Warranty : | 2 years |
