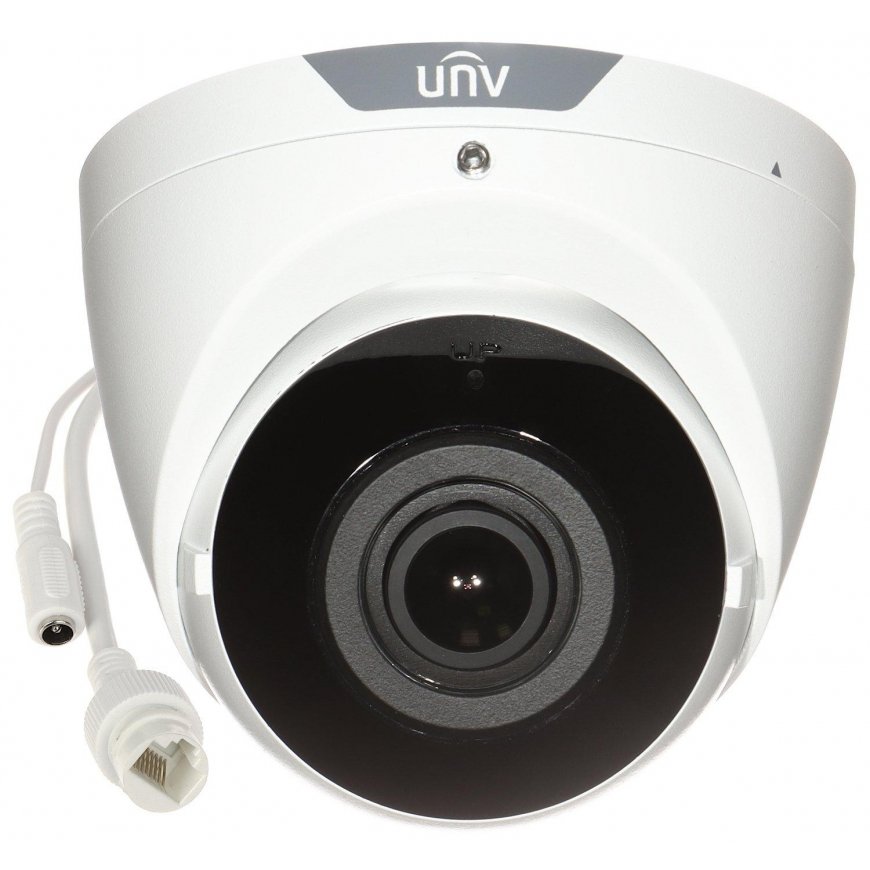

ANTI-VANDAL IP CAMERA IPC3605SB-ADF16KM-I0 - 5 Mpx 1.68 mm UNIVIEW
ANTI-VANDAL IP CAMERA IPC3605SB-ADF16KM-I0 - 5 Mpx 1.68 mm UNIVIEW
ANTI-VANDAL IP CAMERA IPC3605SB-ADF16KM-I0 - 5 Mpx 1.68 mm UNIVIEW
ANTI-VANDAL IP CAMERA IPC3605SB-ADF16KM-I0 - 5 Mpx 1.68 mm UNIVIEW
ANTI-VANDAL IP CAMERA IPC3605SB-ADF16KM-I0 - 5 Mpx 1.68 mm UNIVIEW

Produkta tonis un faktiskā krāsa var atšķirties no attēlā redzamā, jo attēli ir ilustratīvi. Produkta apraksts ir vispārīgs un, iespējams, tajā nav iekļautas visas produkta īpašības.

ANTI-VANDAL IP CAMERA IPC3605SB-ADF16KM-I0 - 5 Mpx 1.68 mm UNIVIEW

488,99 €
Ikm. maksa no 13.49
3641910

IPC3605SB-ADF16KM-I0

6937096308540

Šī prece nav vairs pieejama

Šī prece Jūs ieinteresēja
(Lasīt pakalpojumu sniegšanas noteikumus)

IP camera with efficient Ultra 265 video compression algorithm, ensuring clean and smoother video transmission with a maximum resolution of 5 Mpx.

Thanks to the PoE power supply capability according to the 802.3af standard, the device is even more versatile and easier to install.

The coverage of the illuminator specified by the manufacturer depends on environmental conditions (air transparency, environment, wall color, i.e., the so-called scene reflectance coefficient).

The Uniview series product was designed to maximize cost reduction while maintaining high quality and ease of use.

Standard : TCP/IP
Sensor : 1/2.7 " Progressive Scan CMOS
Matrix size : 5 Mpx
Scanning system : Progressive
Resolution : 2880 x 1620 - 5 Mpx ,
2560 x 1440 - 3.7 Mpx ,
2304 x 1296 - 3 Mpx ,
1920x1080 - 1080p
Lens : 1.68 mm
Viewing angle : 180°
IR illuminator coverage : 20 years
Signal/noise ratio (S/N) : > 56 dB
RS-485 interface : -

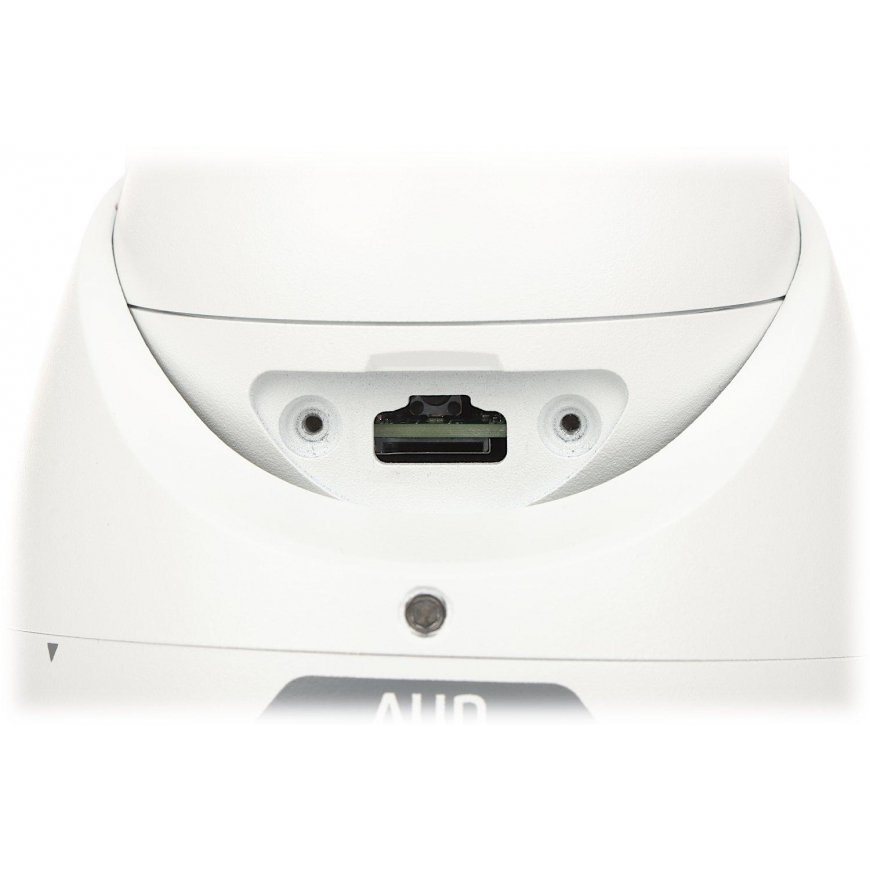

Memory card slot : Support for Micro SD cards up to 256GB (local recording possible)
Image compression method : Ultra 265 / H.265 / H.264 / MJPEG
Alarm inputs/outputs : -
Audio : Built-in microphone
Audio transmission over the network
Sound detection
Main stream transmission speed : 25 fps @ 5 Mpx
Network interface : 10/100 Base-T (RJ-45)
Network protocols : IPv4/IPv6 , IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, IEEE 802.1x, SNMP, QoS
WEB Server : Integrated
Max. number of online users : 32
ONVIF :
Access from mobile phone : Access to the cloud (P2P)
Android: Free app EZView
iOS (iPhone): Free app
Default IP address : DHCP or 192.168.1.13
Default user image/admin password : admin / 123456
Access ports via www : 80, 554
Access port via program to PC : Port: 80 or cloud access - PC: Free program
Access ports via mobile app : 80
ONVIF port : 80
RTSP URL : rtsp://192.168.1.13:554/unicast/c1/s0/live - Main stream
rtsp://192.168.1.13:554/unicast/c1/s1/live - Auxiliary stream
Selected features : WDR - 120 dB - Wide Dynamic Range
2D-DNR, 3D-DNR - Digital image noise reduction
F-DNR (Defog) - Reduction of noise associated with atmospheric precipitation
ROI – improving the quality of selected fragments of the image
ANR - saving video to the card when there is no connection to the player (network crash) and later synchronization
NAS - Network Attached Storage Service
BLC/HLC - Backlight/Highlight Compensation
Ability to change resolution, quality and bandwidth
Mirror - mirror image
Privacy zones - max. 4
Sharpness - sharpening image contours
Advanced video analysis: line crossing , intrusion , area entry/exit detection
Power supply : PoE (802.3af) ,
12V DC / 460mA
Power consumption : ≤ 5.5W
Body : Dome, Metal
Color : White
Tightness class : IP67
Anti-vandal : IK10
Working temperature : -30°C ... 60°C
Weight : 0.49 kg

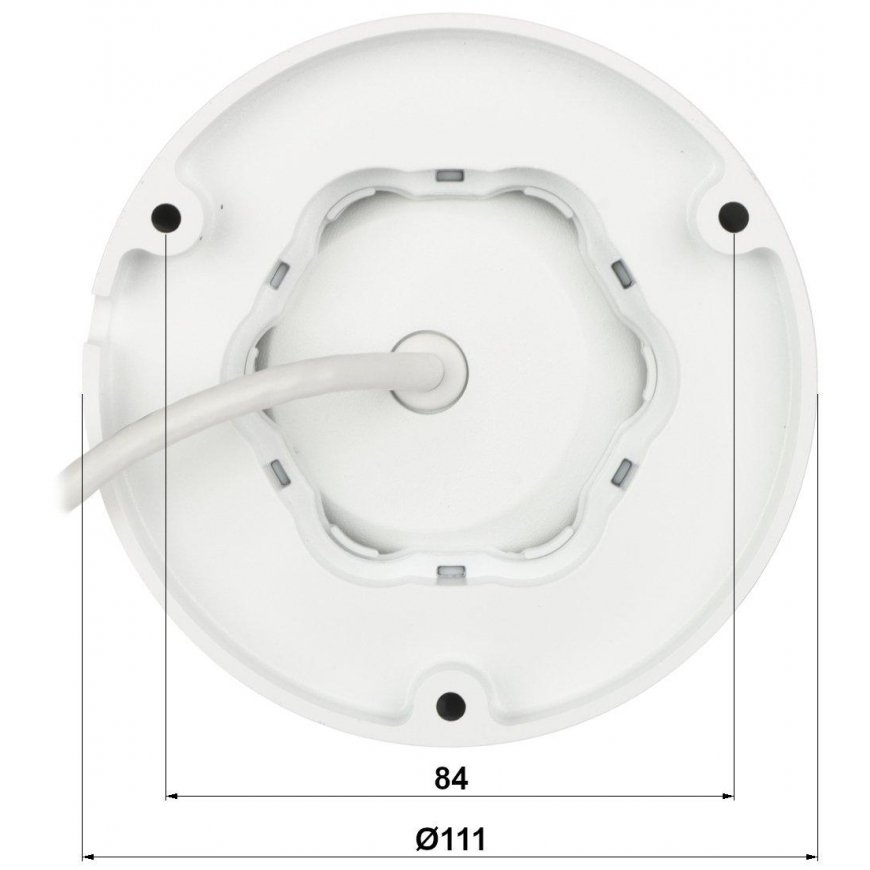

Dimensions : Ø 111 x 93 mm
Languages supported : Polish, English, Czech, Spanish, Dutch, French, German, Portuguese, Slovak, Hungarian, Italian
Manufacturer / Brand : UNIVIEW
Warranty : 3 years

Camera image under artificial lighting (approx. 30 Lux)

anti-vandal-ip-camera-ipc3605sb-adf16km-i0

Camera image at night with integrated IR illuminator

anti-vandal-ip-camera-ipc3605sb-adf16km-i0

Image from the camera with strong light shining directly at it

anti-vandal-ip-camera-ipc3605sb-adf16km-i0

Data sheet EN

Quick Start Guide EN

Instruction EN

Installation instructions EN
