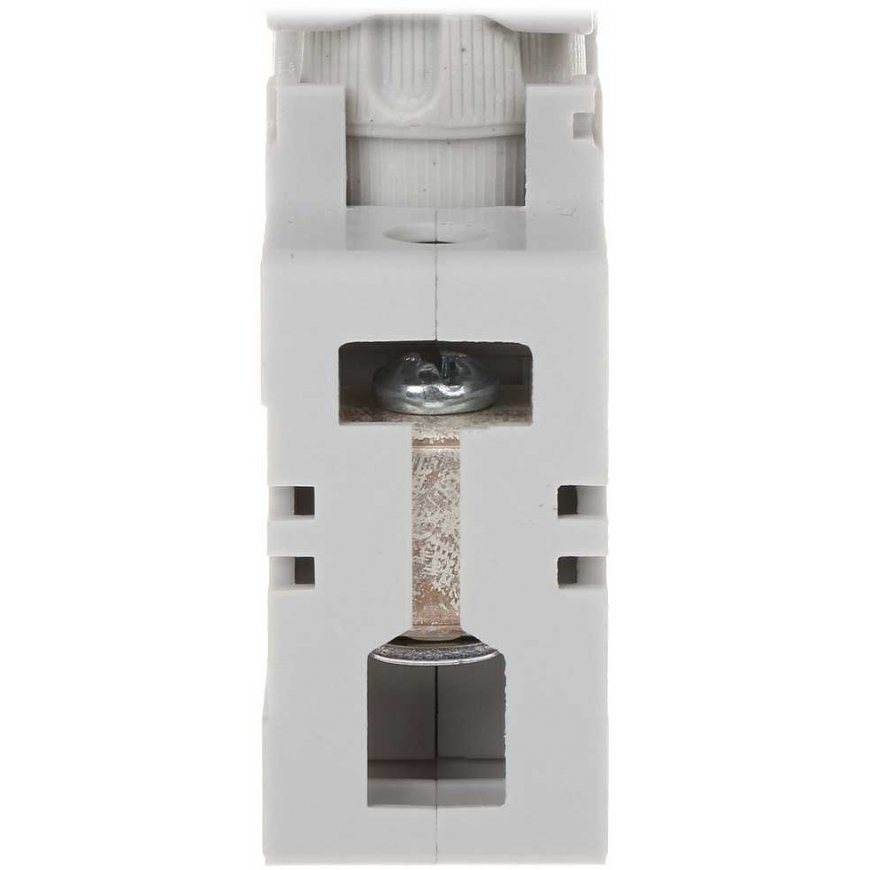

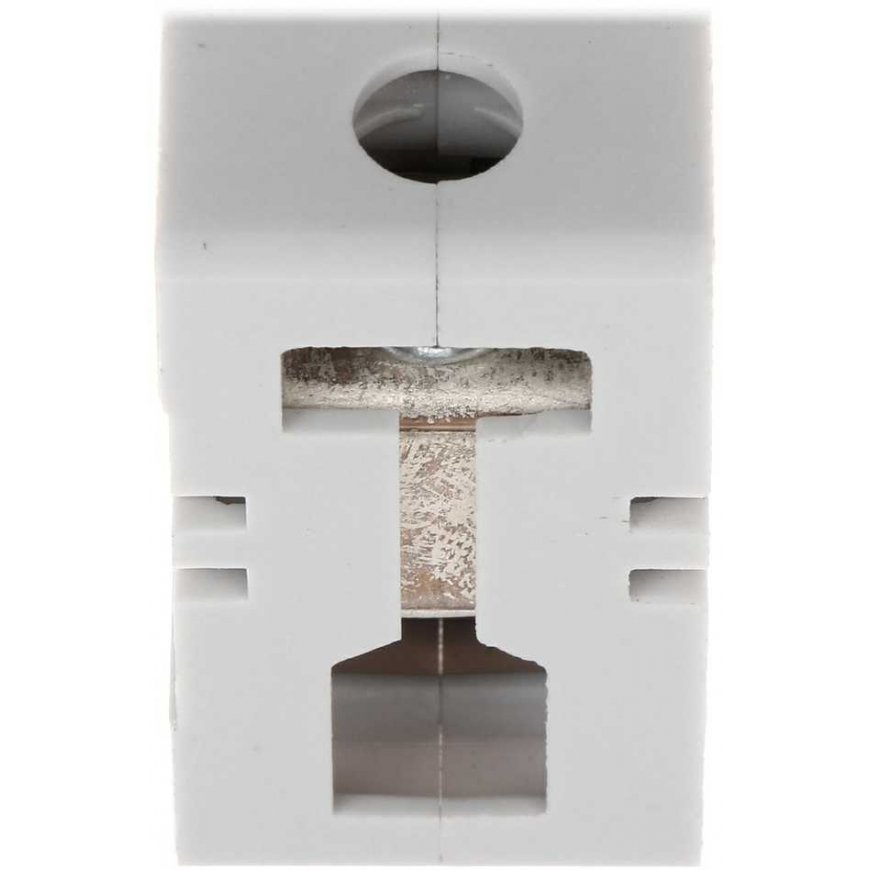

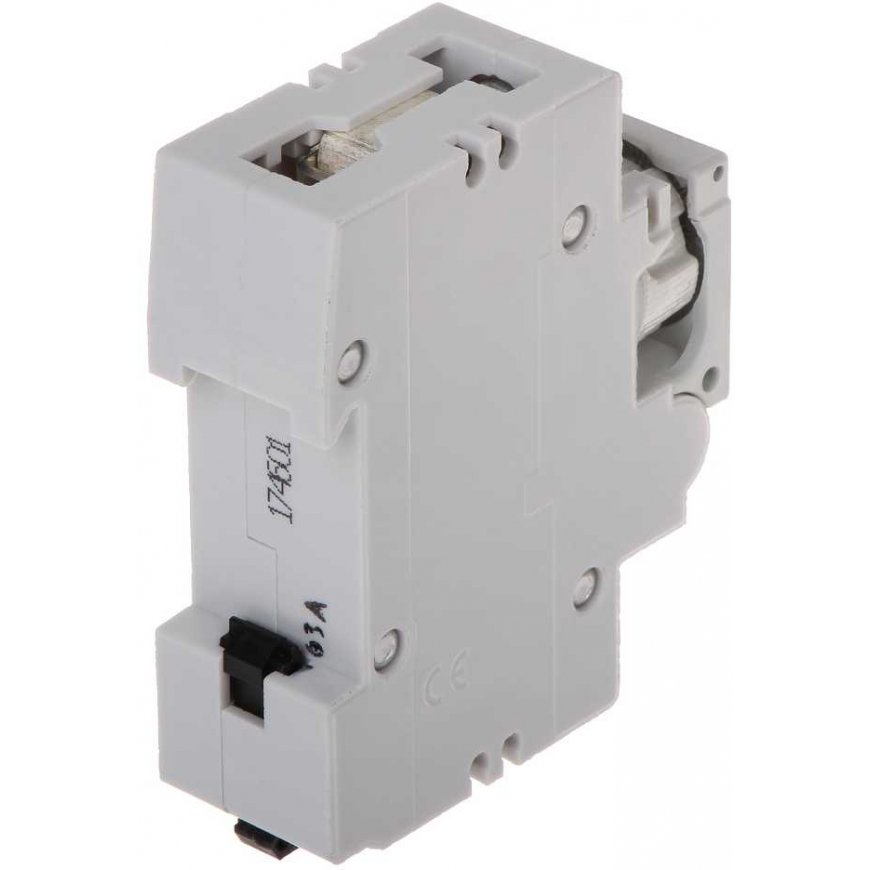

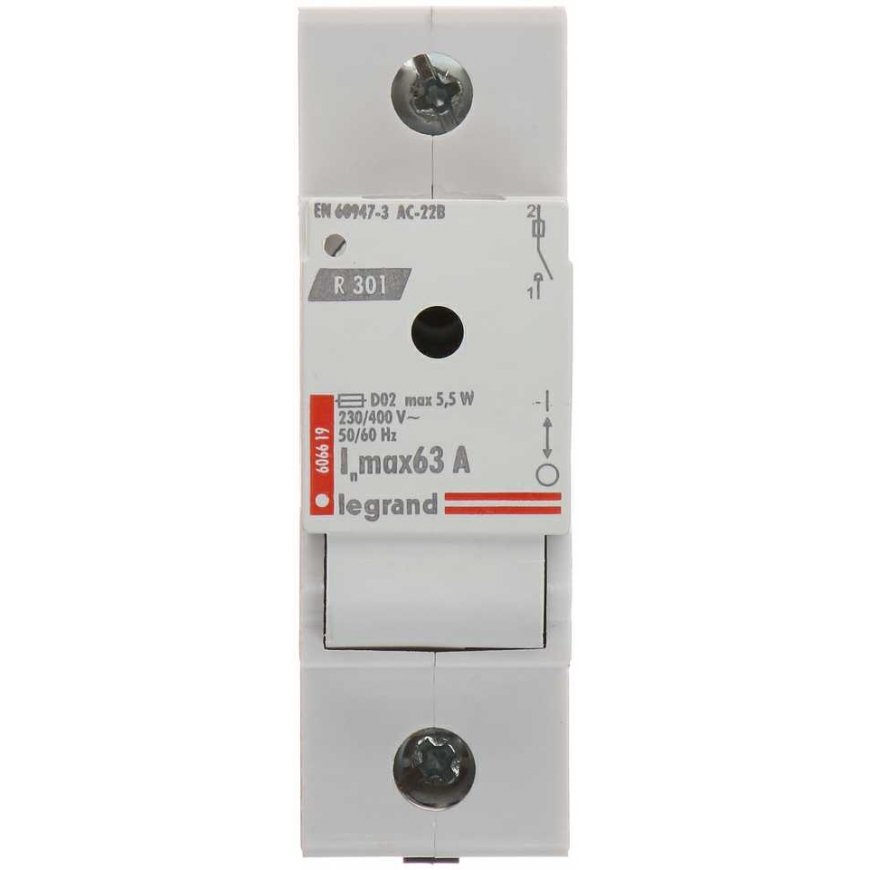

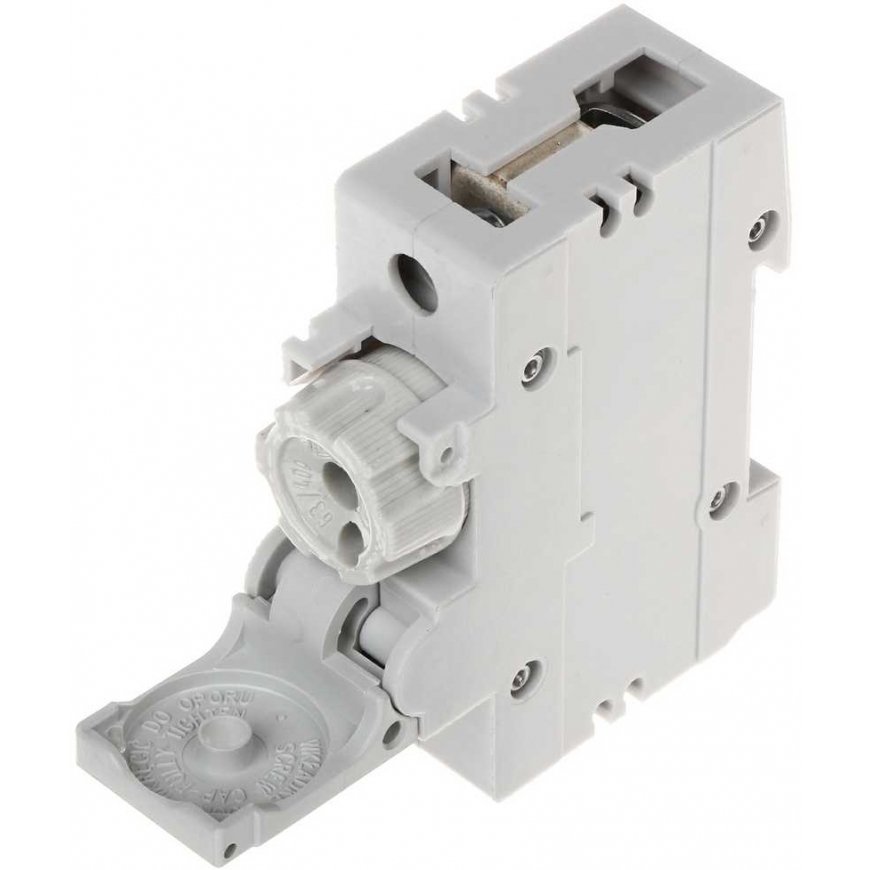

FUSE SWITCHES LE-606619 SINGLE PHASE 63 A D02 LEGRAND
59,00 €
Ikm. maksa no 2.42 €
3609074 606619
3245066066196
Piegāde 1-14 d.d.
Šī prece Jūs ieinteresēja
Insulated circuit breakers without fuse inserts ensure insulation clearance and allow the selection of appropriate fuse inserts depending on needs.
The devices are equipped with devices for AD02 inserts.
The LE-606619 circuit breaker is intended for installation on TH-35 supports.
ATTENTION! The device requires the installation of fuse inserts type D02 (available separately) with a nominal power not exceeding 63A.
| Device type : | Single-phase |
| Rated current : | 63 A |
| Number of piles : | 1 |
| Rated voltage : | 230 / 400 V AC |
| Rated insulation voltage : | 500V |
| Rated impulse withstand voltage : | 6000V |
| Fuse description : | - |
| Type (size) : | D02 |
| Rated short-circuit duration : | 50000 A AC |
| Connector type : | cable clamps |
| Wire cross-section : | 2.5 ... 25 mm² |
| Environmental class : | II |
| Body : | Plastic, mounting on support TH-35 |
| Width in modules 17.5 mm : | 1.5 |
| Working temperature : | -26°C ... 60°C |
| Weight : | 0.162 kg |
| Dimensions : | 83 x 70.3 x 26.5 mm |
| Manufacturer / Brand : | LEGRAND |
| Warranty : | 2 years |
