TST HEATER SEMICONDUCTOR HG-140-150W
3597626 HG-140-150W
5902887007637
Piegāde 1-14 d.d.
The semiconductor heater HG-140-150W operates based on a PTC thermistor.
Heaters and heating fans prevent water vapor condensation and also maintain the proper operating temperature of the equipment.
To achieve optimal air circulation, it is recommended to install convection heaters in the lower resolution cabinet, in a vertical position.
Attention!.
The equipment is designed for operation only in closed resolution cabinets.
For safety reasons, a minimum distance of 50mm must be maintained from cables and other equipment.
PTC thermistors are not suitable for series connection.
To maintain a constant temperature in the cabinet, a thermostat must be connected in series with the heater.
| Heating element : | PTC thermistor - semiconductor, self-regulating |

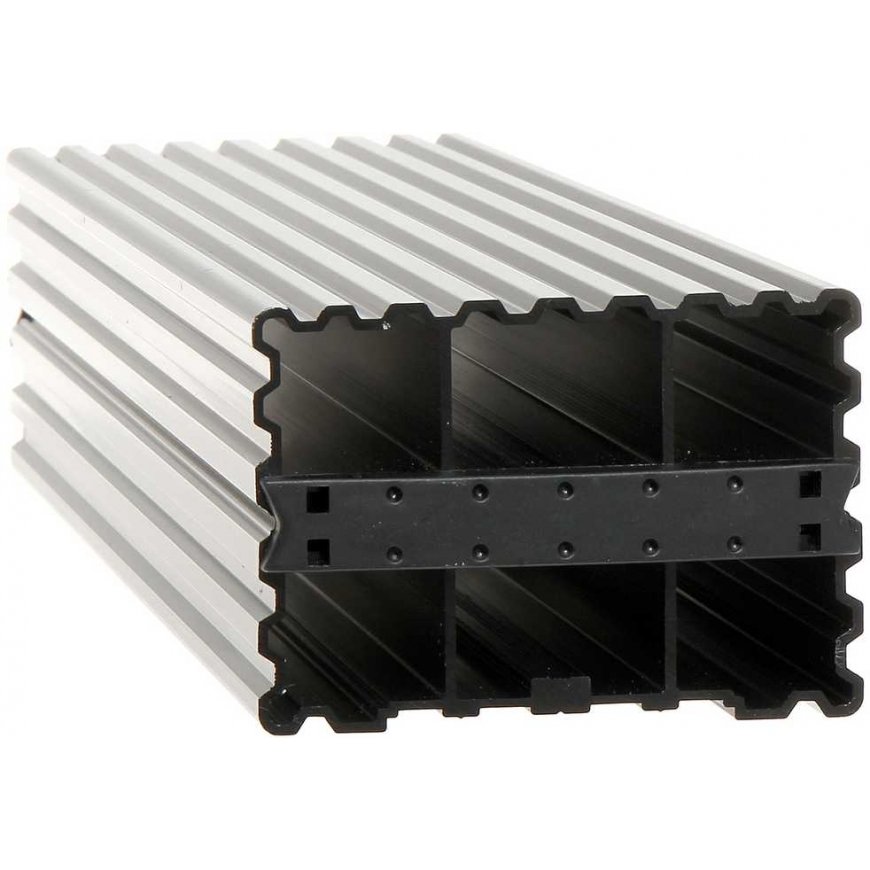

| Radiator : | Aluminum - Stamped profiles, Anodized surface |
| Connectors : | Cable clamps - 3 pcs. |
| Power supply : | 110V ... 250V AC/DC |
| Current consumption : | max. 9.0 A - during power-up |
| Power : | 150W |
| Installation : | DIN TS-35 rail, vertical |
| Added heater temperature : | 120 °C ... 140 °C |
| Working temperature : | -45°C ... 70°C |
| Weight : | 0.47 kg |

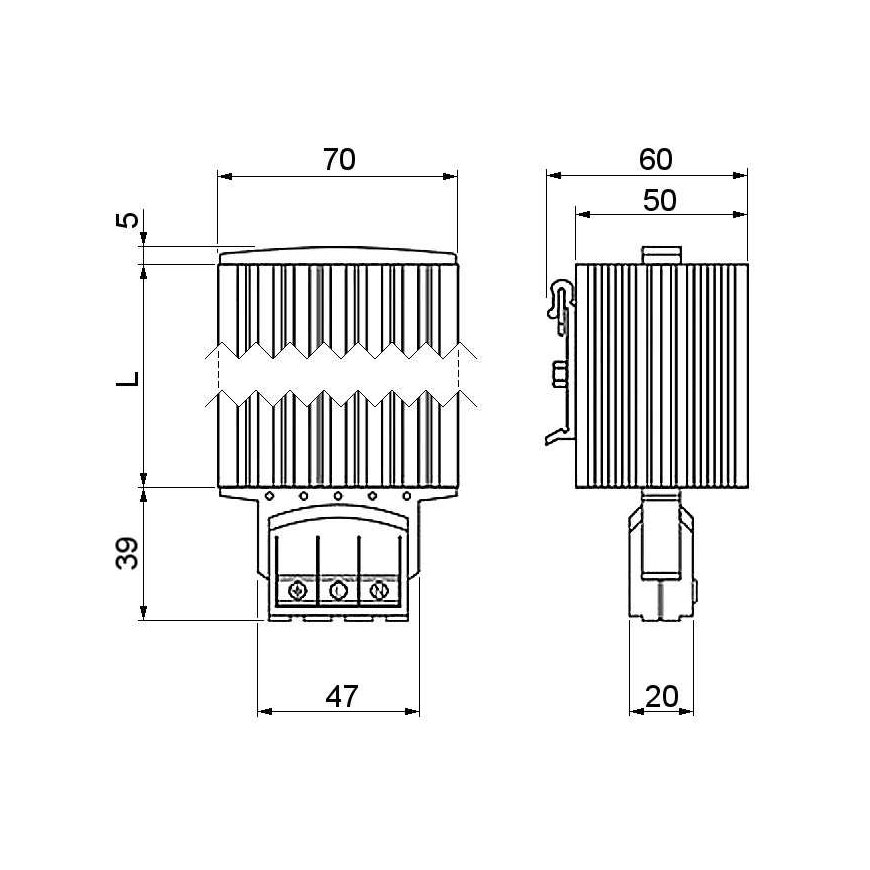

| Dimensions : | 258 x 70 x 58 mm |
| Warranty : | 2 years |
