WIRELESS DUAL MICROWAVE + PIR TECHNOLOGY DETECTOR AOD-210-GY ABAX/ABAX2 SATEL
3591260 AOD-210-GY
5902887052606
Piegāde 1-14 d.d.

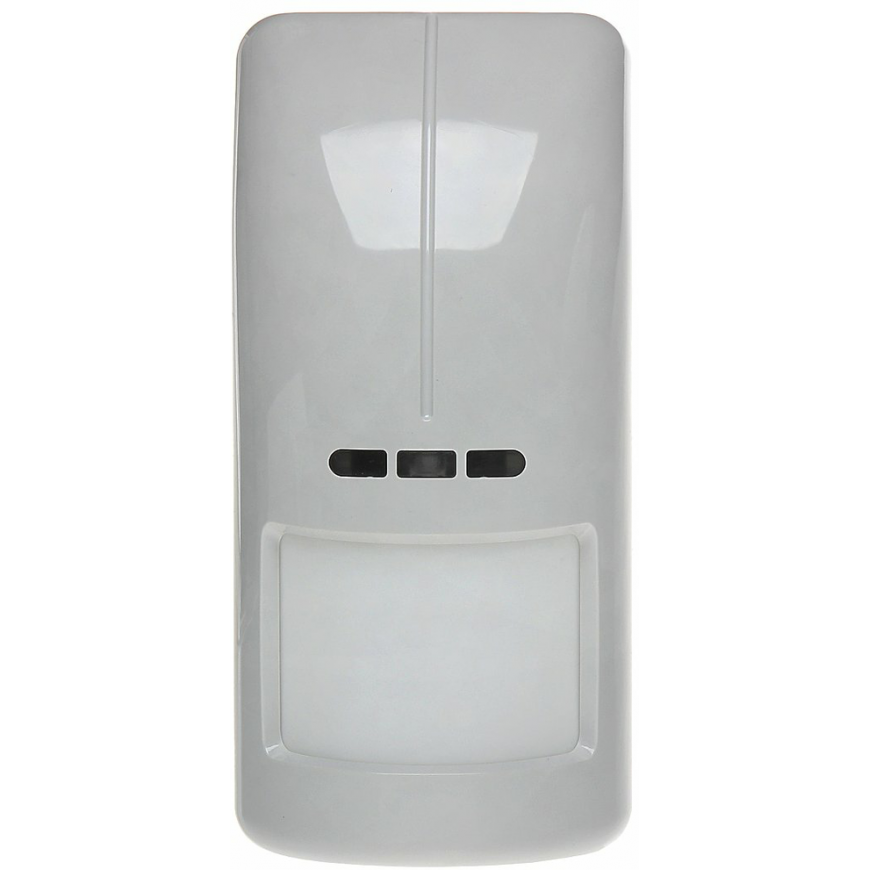

A wireless motion detector whose task is to detect a moving intruder within the system's protected area.
Thanks to the combination of PIR and MW detection methods, high resistance to false alarms is achieved.
Ideal for monitoring small objects such as kiosks, summer houses, shops, single garages and workshops, as well as anywhere where it is difficult or impossible to install a wired installation.
AOD-210-GY works with other devices compatible with the ABAX/ABAX2 wireless system.
The lithium battery that powers the device guarantees long-term operation without replacement, so operating the system from this point of view is just as worry-free as traditional wired solutions.
For outdoor conditions.
| Support : | ABAX/ABAX2 |
| Frequency band : | 868MHz ... 868.6MHz |
| Radio communication range (in open area) : | ≤ 2000 m - ABAX2 @ ACU-220, ≤ 1600 m - ABAX2 @ ACU-280, ≤ 500 m - ABAX |

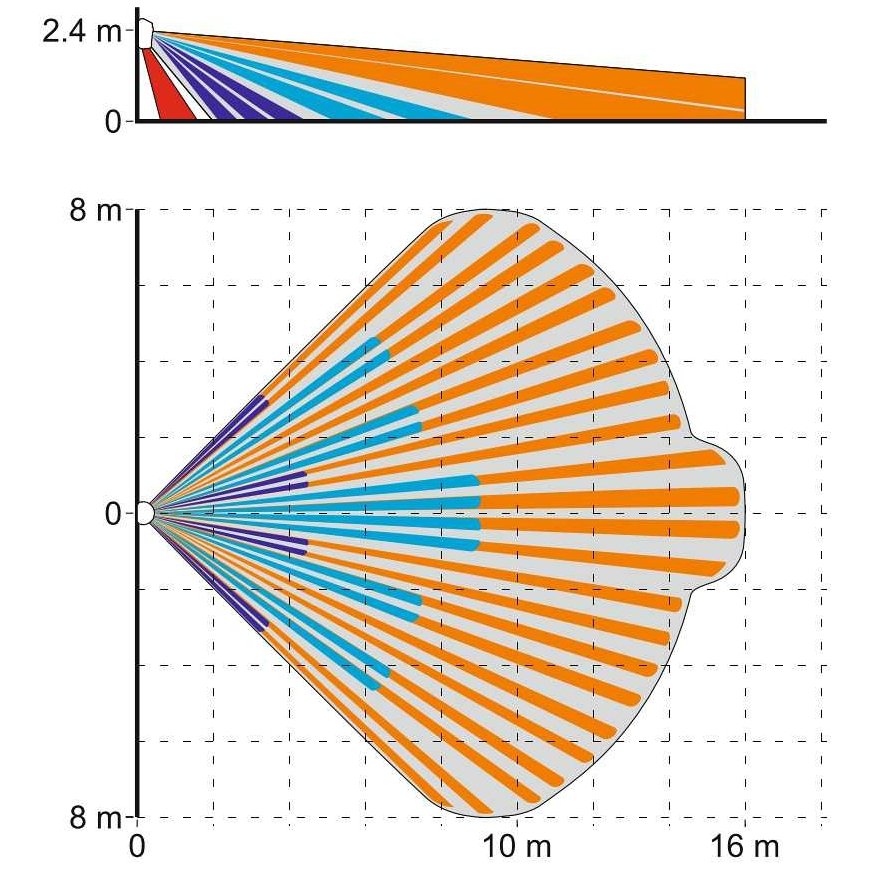

| PIR sensor coverage : | 16m/90° |
| Animal resistance : | ≤ 20kg |

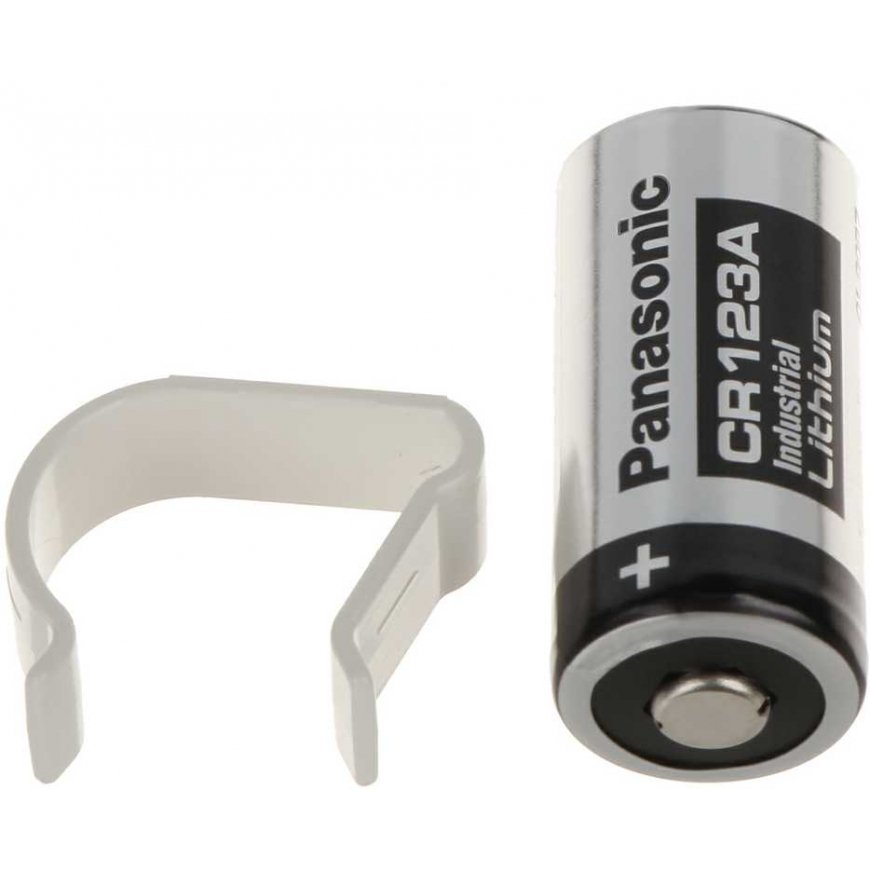

| Power supply : | CR123A 3V (included) |
| Battery life (in power saving mode) : | ≤ 2 years |
| Detected movement speed : | 0.3 ... 3 m/s |
| Recommended installation height : | 2.4 m |
| Protection level (Grade) : | 2 |
| Main features : | Passive IR (PIR) as well as microwave (MW) Built-in twilight sensor, allowing the indicator to be used in automation systems Remote configuration Intelligent energy management Advanced temperature compensation High resistance to false alarms achieved thanks to the combination of PIR and MW detection methods Ability to work in bad weather conditions (rain, snow, fog, wind) Adjustable PIR/MW detection sensitivity Approach area control Tamper detection - opening the case, tearing it off the base |
| Working temperature : | -40°C ... 55°C |
| Permissible relative ambient humidity : | 93 ± 3% |
| Color : | Gray |
| Tightness class : | IP54 |
| Dimensions : | 65 x 138 x 58 mm |
| Weight : | 0.18 kg |
| Manufacturer / Brand : | SATEL |
| Warranty : | 2 years |
