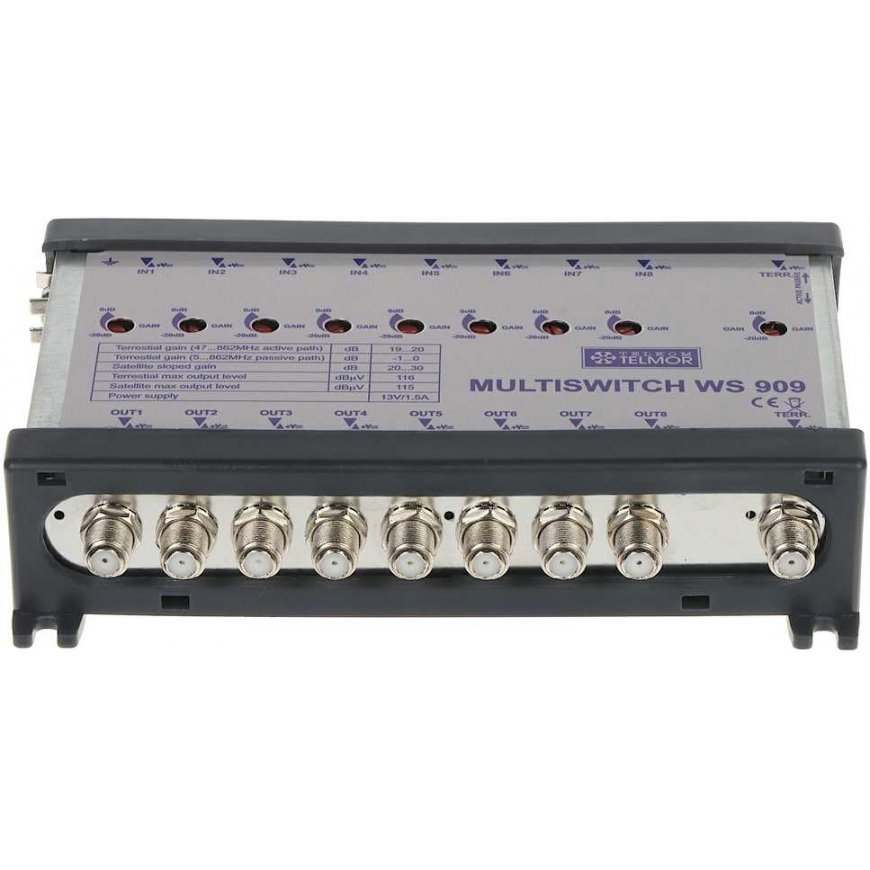

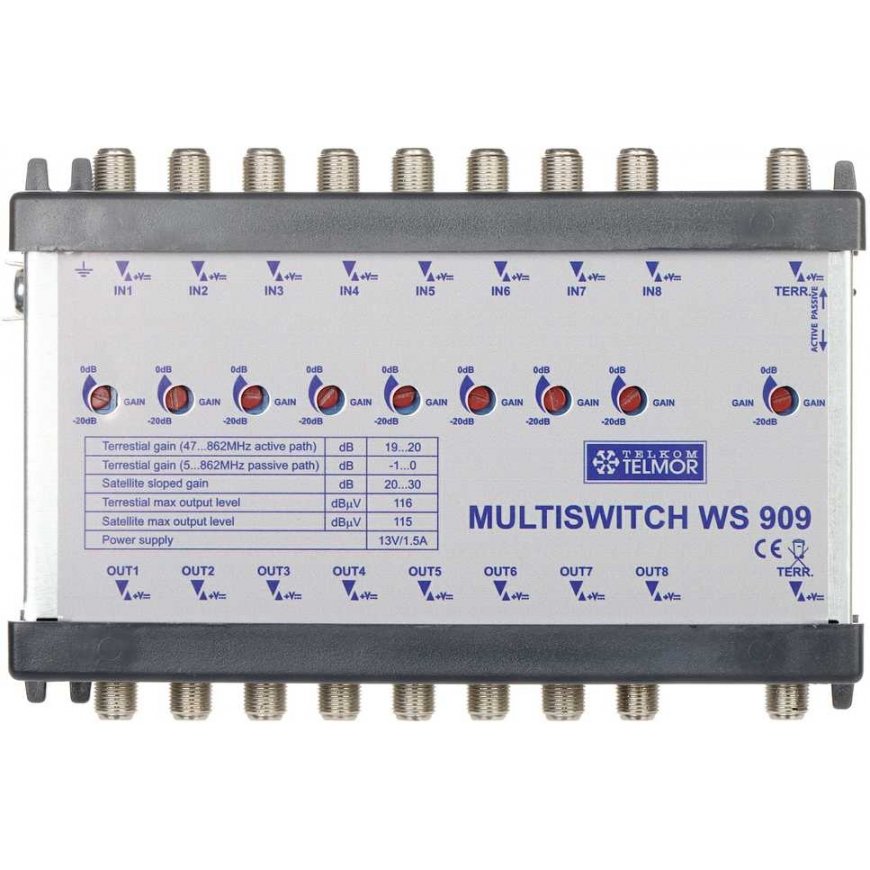

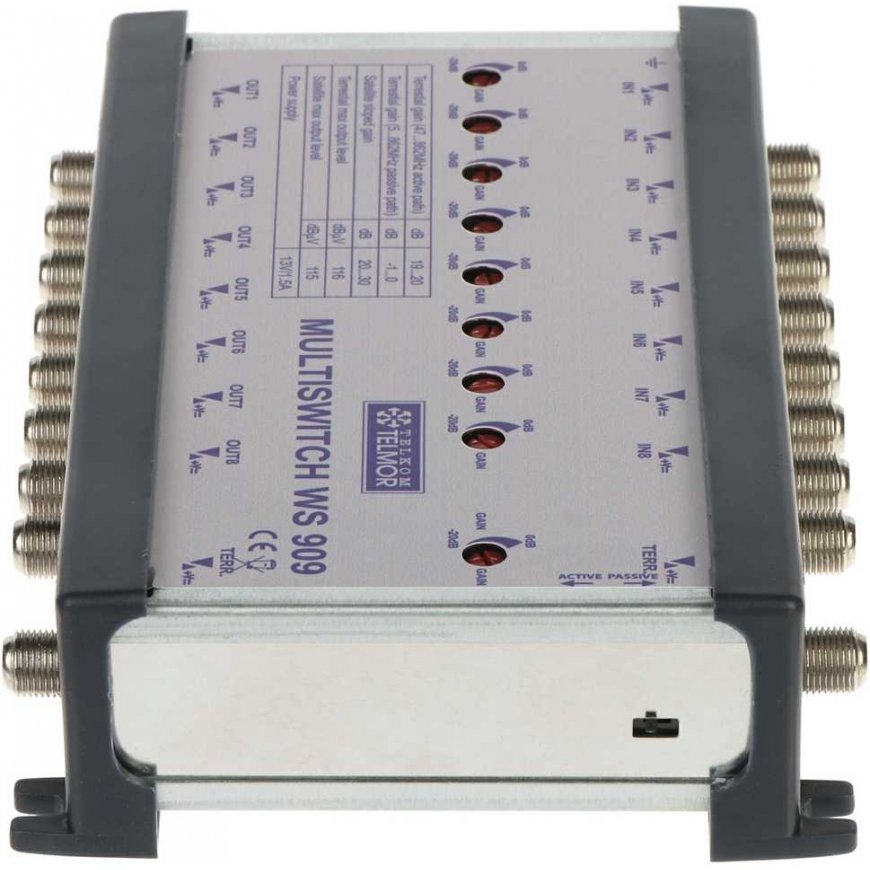

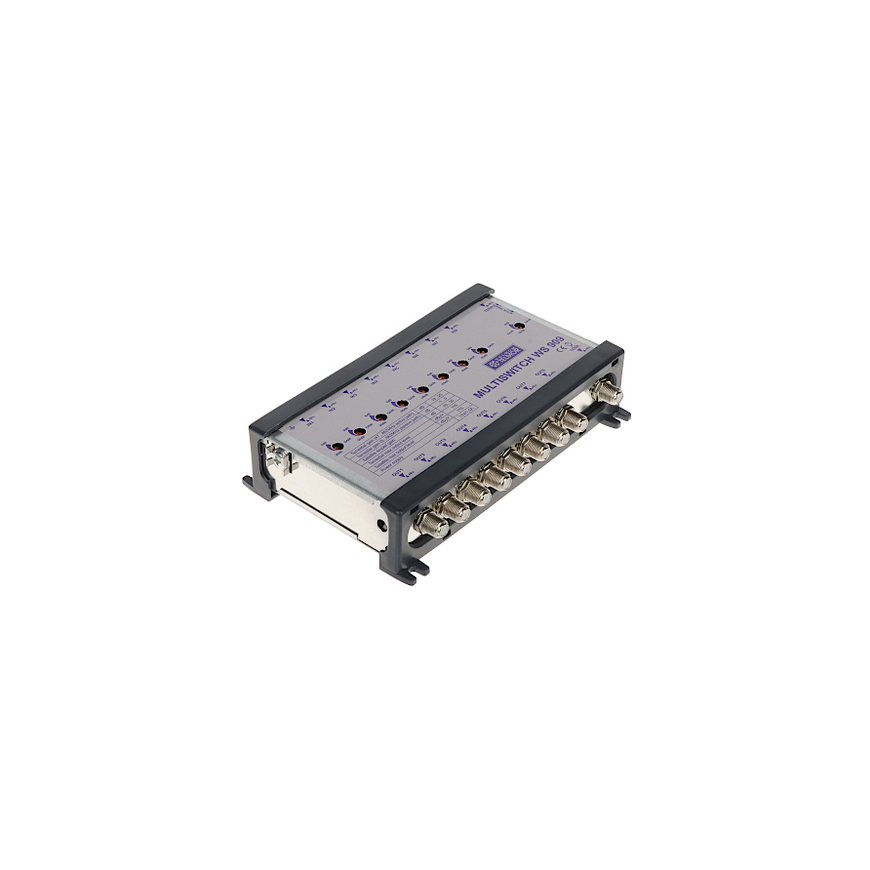

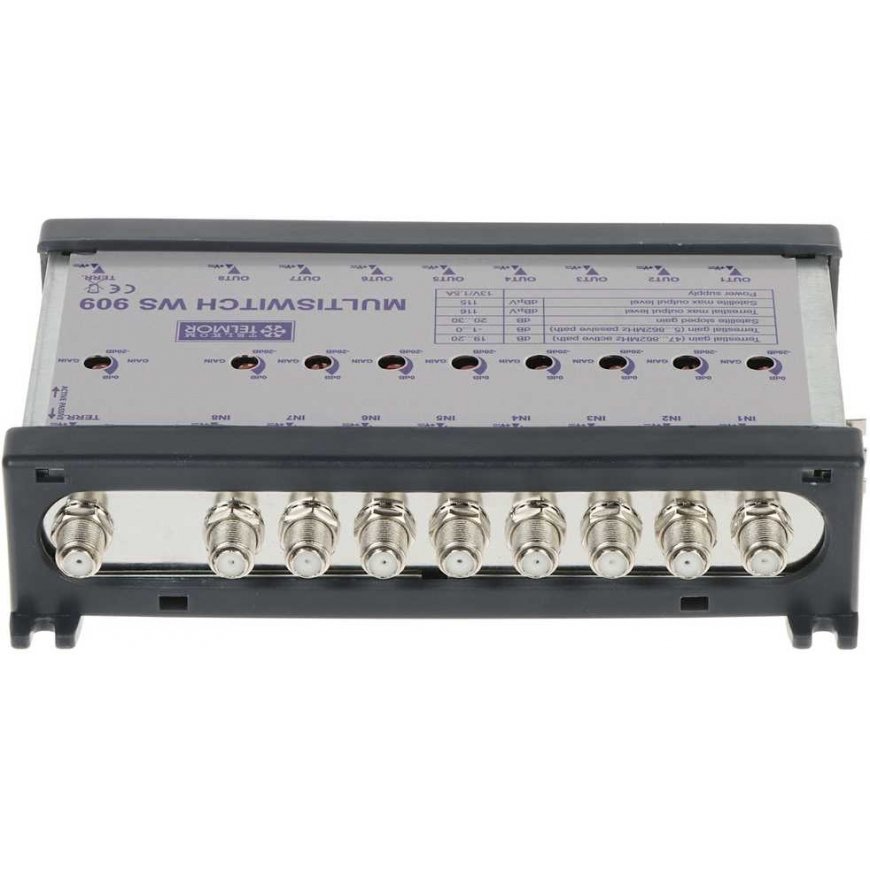

Eaton Multi-switch bus amplifier WS-909 9 INPUTS / 9 OUTPUTS TELMOR

209,00 €
Ikm. maksa no 6.28
3589825

WS-909

5902887085604

Piegāde 2026-07-22 Latvijas teritorijā +1 diena

Skaits
Šī prece Jūs ieinteresēja
(Lasīt pakalpojumu sniegšanas noteikumus)
Inputs :
  • 8x 950MHz ... 2150MHz,
  • 1x 47MHz ... 862MHz,
  • 1x DC 2.1/5.5mm jack (power)
  • Outputs :
  • 8x 950MHz ... 2150MHz,
  • 1x 47MHz ... 862MHz
  • SAT amplification (cable correction) : 20 dBi ... 30 dBi
    TV amplification (cable pre-correction) : 20 dBi
    Gain adjustment SAT : 0dB ... 20dB
    Gain adjustment TV : 0dB ... 20dB
    Maximum output level SAT : 115 dBµV
    Maximum output level TV : 116 dBµV
    Preamplifier power supply :
    Main features :
  • Independent adjustment of SAT/TERR rail reinforcement
  • Very high gain
  • Smooth gain adjustment
  • Possible choice of ACTIVE/PASSIVE operation – rail TERR
  • Power supply voltage transfer (DC-Pass) from outputs to inputs - path SAT
  • Power supply :
  • 13 V DC / 1.5 A (power supply not included)
  • from the exits side
  • Weight : 0.45 kg
    Dimensions : 170 x 115 x 40 mm
    Manufacturer / Brand : TELMOR
    Warranty : 3 years
