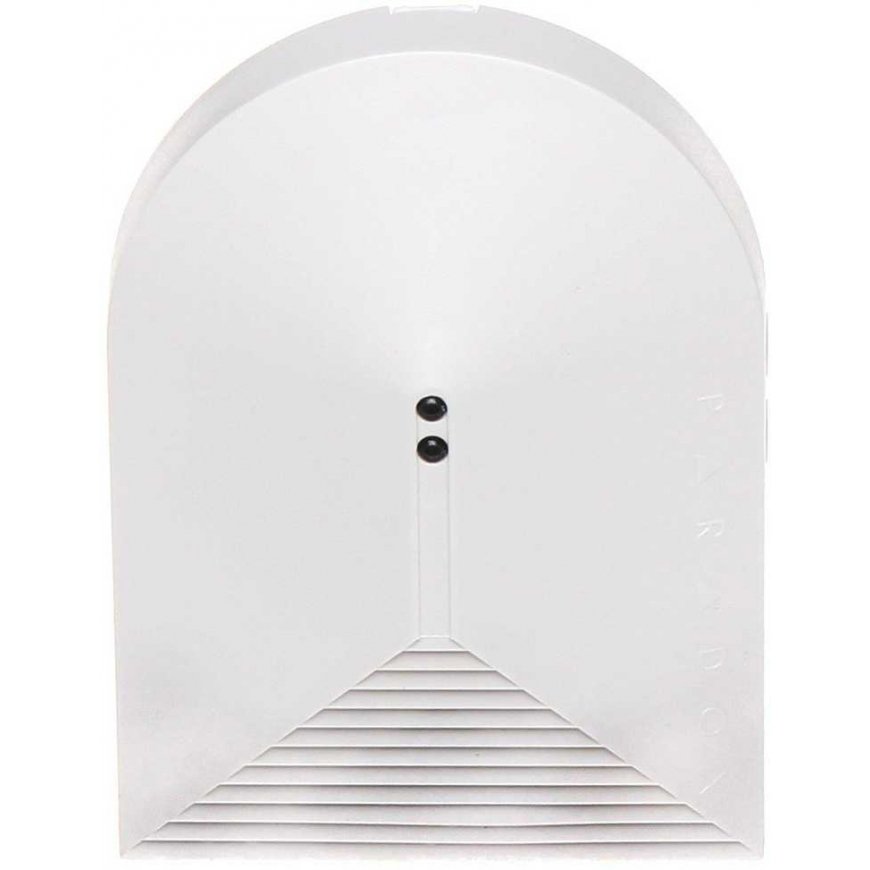

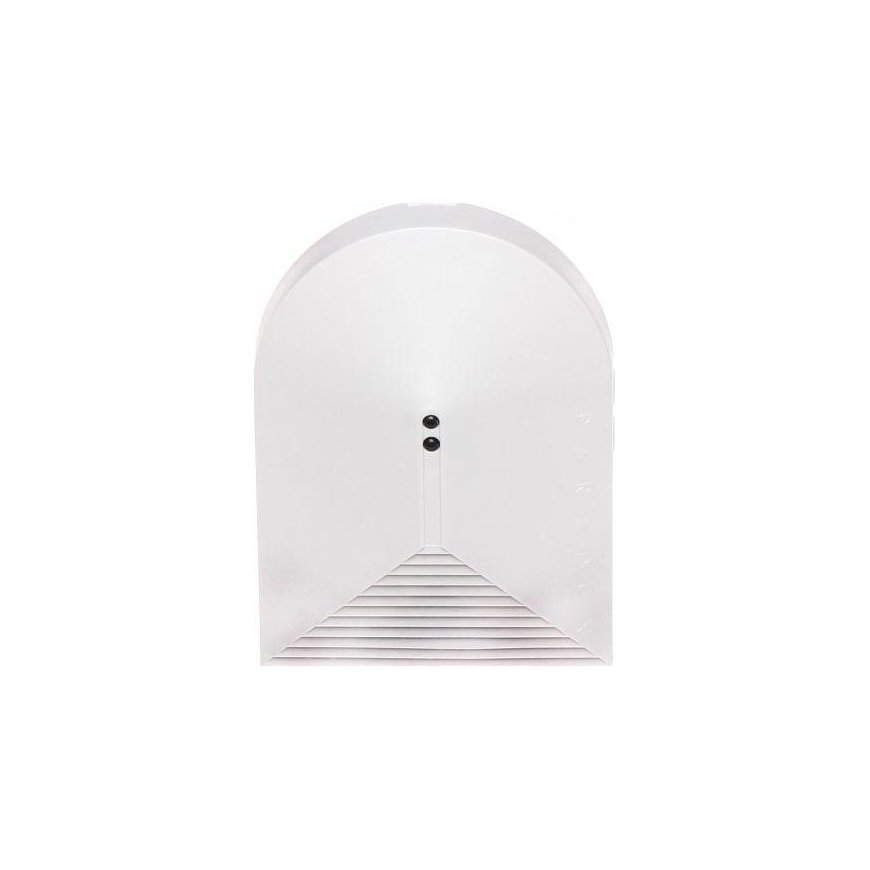

ACOUSTIC BREAKING GLASS DETECTOR DG-457 PARADOX
49,79 €
Ikm. maksa no 2.18 €
2424602 5902887029950
Šī prece nav vairs pieejama
Šī prece Jūs ieinteresēja
The sensor signals danger if it detects a low-frequency signal (impact sound) or a high-frequency signal (the sound of breaking glass).
The low-frequency sound wave caused by the impact triggers the sensor to analyze the high-frequency channel.
A flashing LED indicates that the microphone has captured the impact sound wave.
If a high-frequency tone (the sound of breaking glass) is detected at that time, the sensor generates an alarm.
| Detection : | Broken glass detector |
| Distance : | 9 m - high level, 4.5 m - low level |
| Sensitivity adjustment : | ✔ |
| Alarm : | LED diode, Signal to the signaling center |
| Permissible load (resistive) of relay contacts : | 150 mA / 28 V DC |
| Feed : | 9 ... 16 V DC / 35 mA |
| Main features : | detection of breakage of plain, tempered and laminated glass advanced microprocessor two-way signal analysis self-diagnosis function There will be a highway |
| Color : | White |
| Working temperature : | -20 °C ... 50 °C |
| Weight : | 0.056 kg |
| Dimensions : | 66 x 90 x 25 mm |
| Manufacturer / Brand : | PARADOX |
| Warranty : | 2 years |
