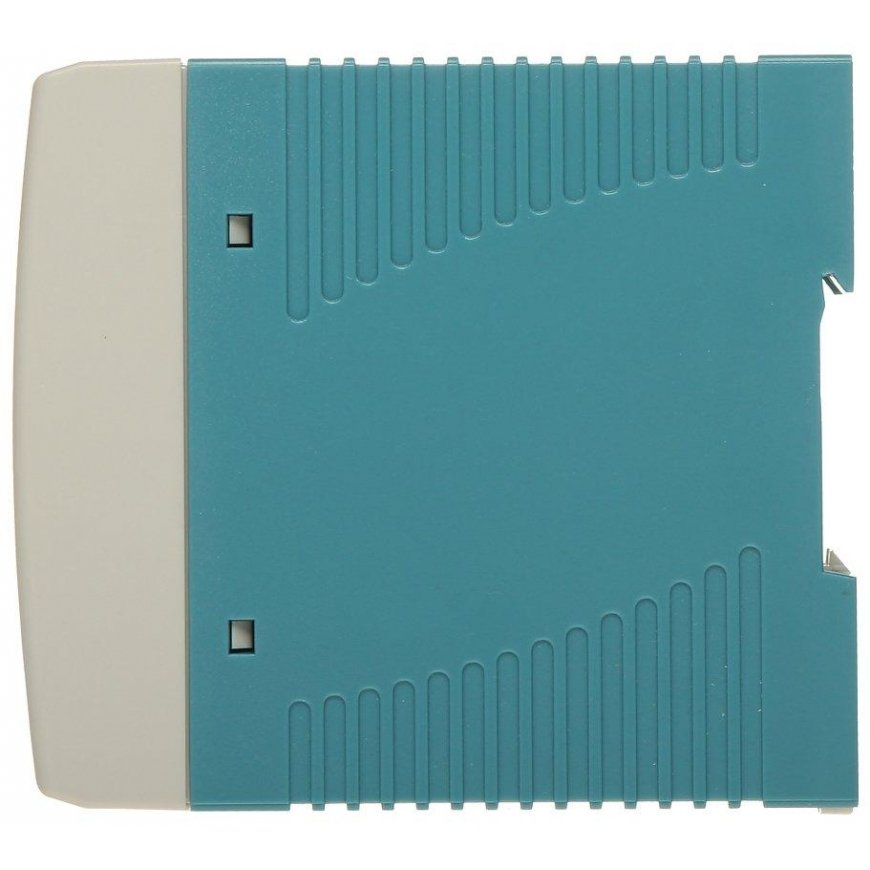

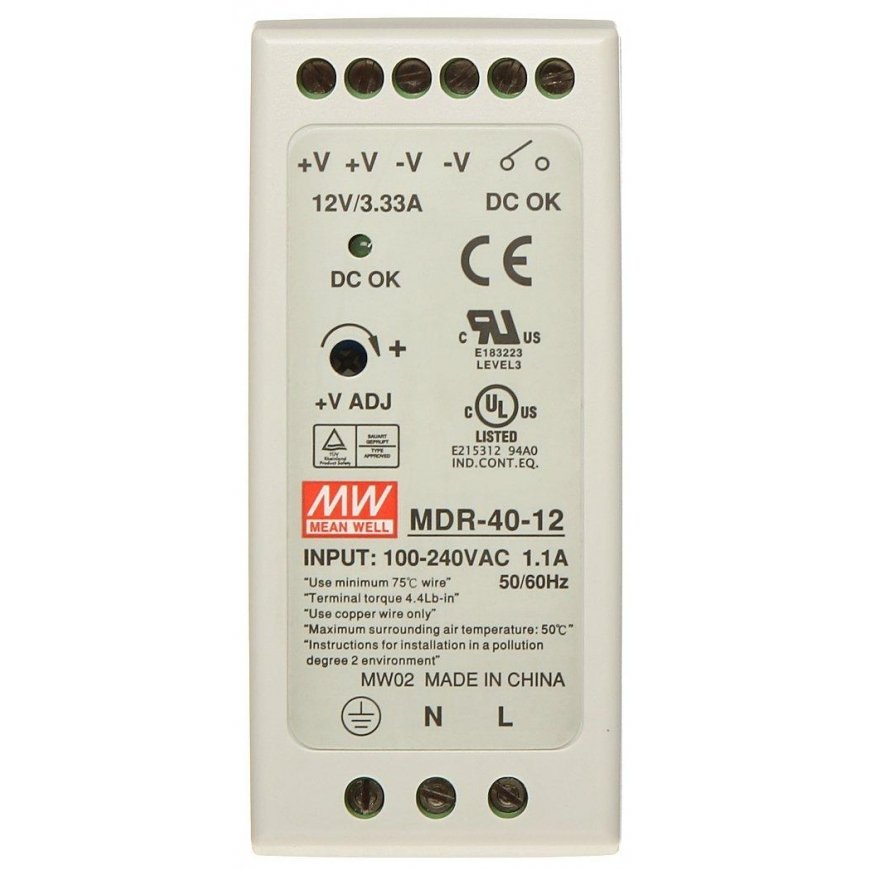

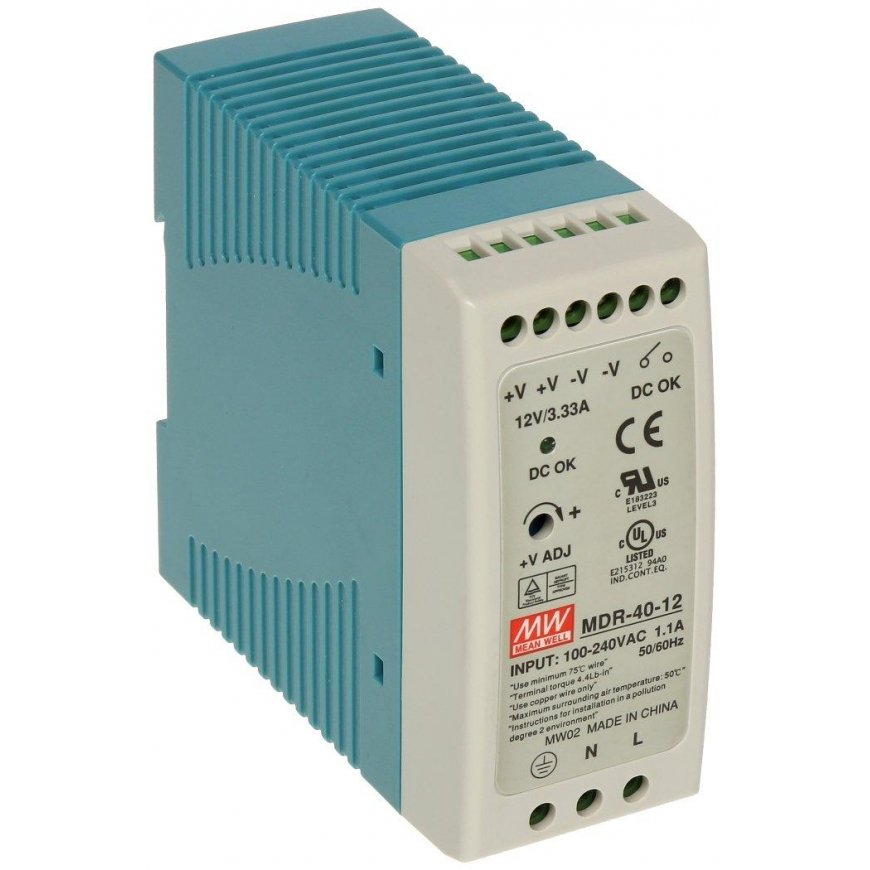

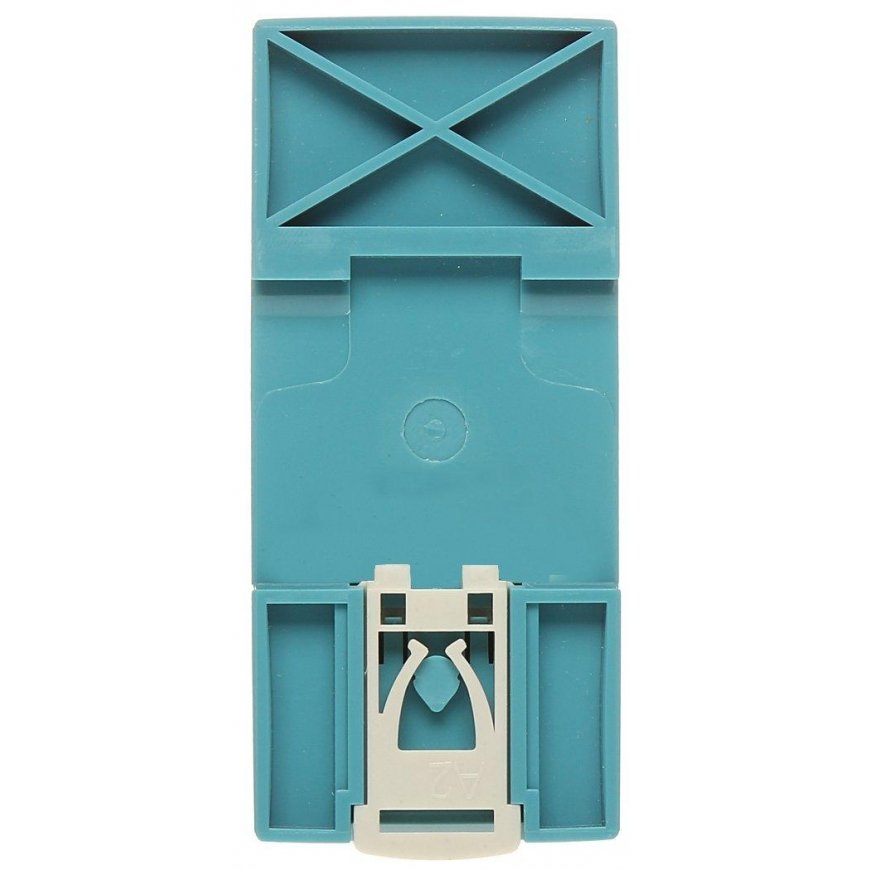

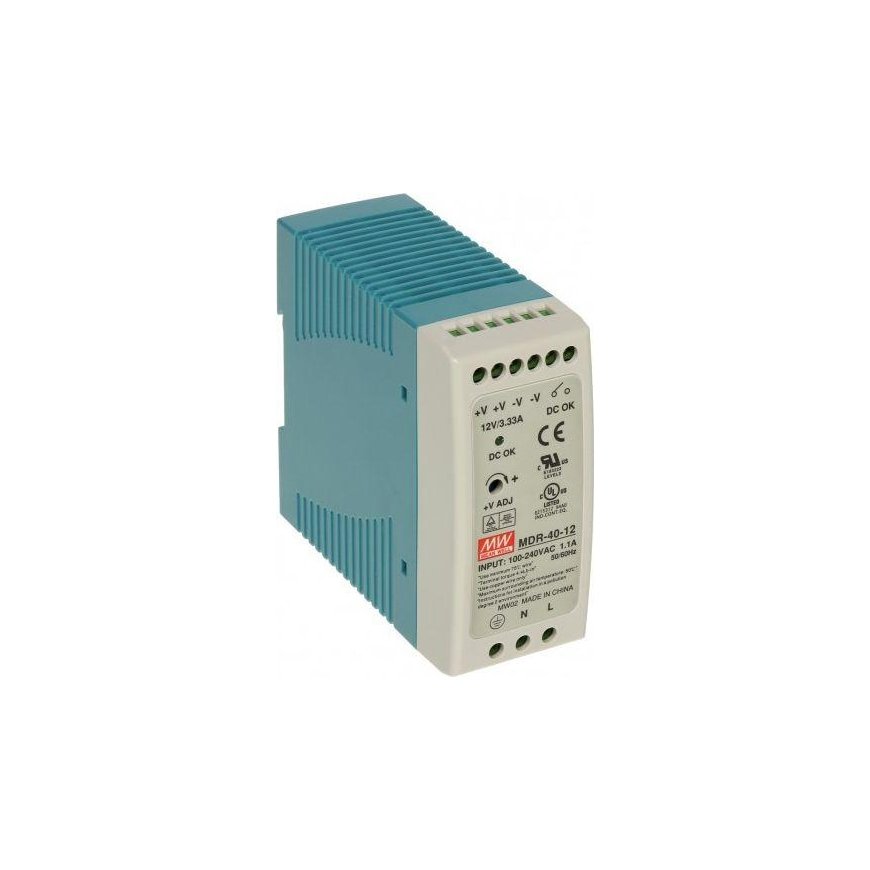

Array Array PULSE POWER SUPPLY MDR-40-12
42,51 €
Ikm. maksa no 1.99 €
2283501 5901643192143
Šī prece nav vairs pieejama
Šī prece Jūs ieinteresēja
Impulse power supply, installed on TS35/7.5 or 15 DIN rail, resistant to high working temperatures (up to 70°C).
| Power supply type : | Impulsive |
| Supply voltage : | 100 ... 240 V AC |
| Output voltage : | 12V DC |
| Output voltage regulation : | 12 ... 15 V |
| Voltage tolerance : | ± 1% |
| Power supply current capacity : | 3.33 A |
| Power supply : | 40 W |
| Number of outputs : | 2 pcs. |
| Efficiency : | 86% |
| Body Type : | DIN |
| MTBF (mean time between failures) : | 301700 hours |
| Vibration resistance : | IEC60068-2-6, 10 ... 500 Hz max. 2G for 90 minutes |
| Protective measures : | |
| Operating temperature / relative humidity : | -20 °C ... 70 °C / < 90 % |
| Weight : | 0.26 kg |
| Dimensions : | 40 x 90 x 100 mm |
| Warranty : | 2 years |
