Pagrindinis puslapis > Kompiuteriai ir periferija>Kabeliai ir adapteriai>ELECTRIC ENERGY MONITOR MEW-01/1F SUPLA ONE-PHASE ZAMEL
-3%

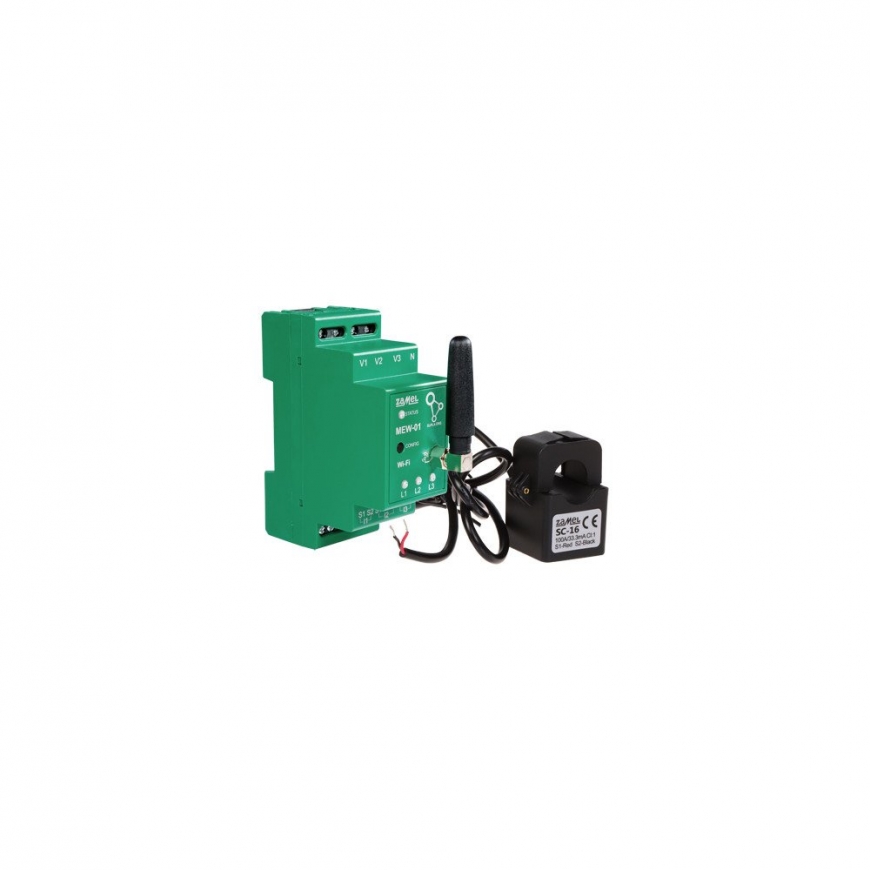

ELECTRIC ENERGY MONITOR MEW-01/1F SUPLA ONE-PHASE ZAMEL
ELECTRIC ENERGY MONITOR MEW-01/1F SUPLA ONE-PHASE ZAMEL
ELECTRIC ENERGY MONITOR MEW-01/1F SUPLA ONE-PHASE ZAMEL

 Prekės atspalvis ir tikroji spalva gali skirtis nuo to, kas parodyta nuotraukoje, nes nuotraukos yra iliustracinės. Prekės aprašymas yra bendro pobūdžio ir gali nepateikti visų prekės savybių.

ELECTRIC ENERGY MONITOR MEW-01/1F SUPLA ONE-PHASE ZAMEL

349,00 €
339,00 €
Mėn. mokestis nuo 9.63 €
4229186

5903669460756

Pristatymas 1-14 d.d.

Kiekis

Ar jus domina šis produktas?
(Perskaitykite paslaugų teikimo sąlygas)
Support:SLENDER
Device type:Electric Energy Monitor, One-phase / Three-phase
Wireless:Wi-Fi, 2.4 GHz - IEEE 802.11 b/g/n
Rated voltage:230V / 400VAC, 50  / 60 Hz
Voltage tolerance:-20 % ... 15 %
Measurement unit:kWh
Measurement method:Semi-indirect measurement using an current transformer - 1 pcs included
Current:100 A - Max. current
LCD display:
RS-485 ports:
Connectors type:screw terminals max. 2.5 mm²
Mobile phones support:The
Measured parameters:
  • frequency
  • Voltage
  • Current
  • Nominal power
  • Reactive power
  • Apparent Power
  • Power factor
  • Phase angle
  • Active power consumed
  • Active power returned
  • Reactive power consumed
  • Reactive power returned
    • Main features:
  • Control from a Web browser
  • Data export in "*.csv", "*.ods", "*.xlsx", "*.html" formats
  • Working with Home Assistant, Grafana, Zabbix, Power BI
  • Compliance with the MQTT protocol
  • Two-way monitor
  • Monitoring of voltage spikes
  • LED indication
  • Possibility to manually program scenarios from the built-in API
  • Possibility of integration with external software
  • The external SMA RP connector allows to move the antenna outside the distribution board
    • Housing:Plastic, DIN, TS-35 rail mounting
    "Index of Protection":IP20
    Operation temp:-10 °C ... 55 °C
    Width in 17.5 mm modules:2
    Weight:0.1 kg
    Dimensions:90  x 84  x 35 mm
    Manufacturer / Brand:ZAMEL
    Guarantee:2 years
