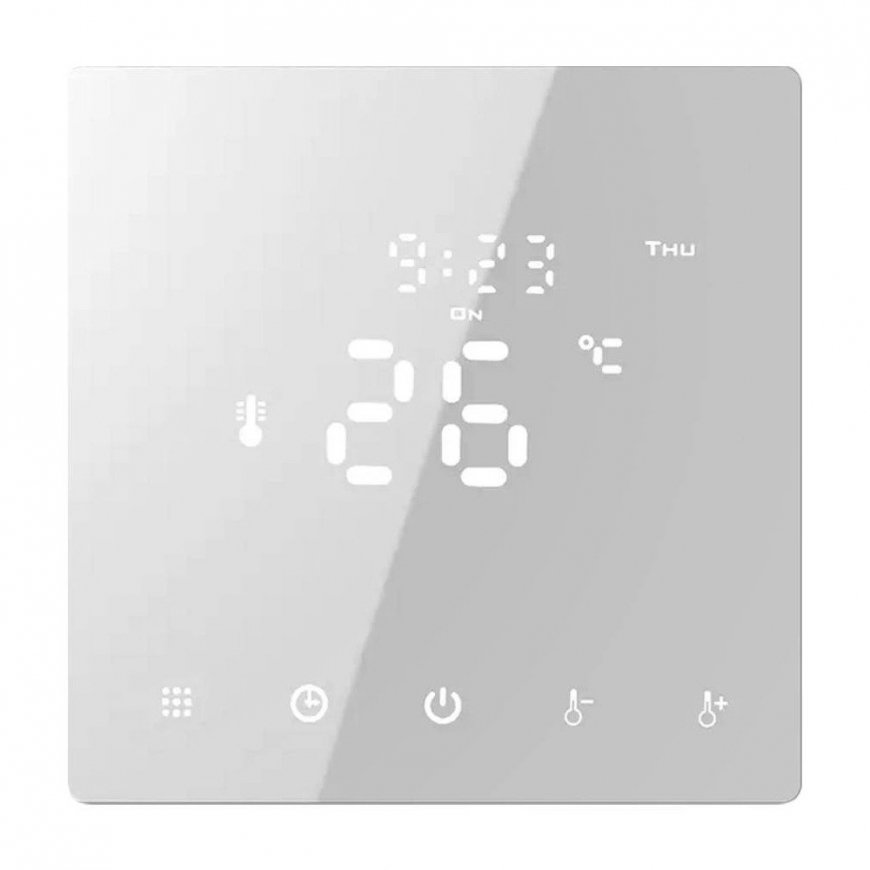

Smart WiFi Thermostat

Gas Boilers | Coal Boilers | TUYA Smart | Relay (Volt-Free) Connections

✅ Precise Temperature Control

Built-in temperature sensor ensures accurate readings and stable operation.

✅ Touch Control & Mobile App

Intuitive touch panel andfree Tuya Smart appfor Android & iOS.

✅ Voice Assistants

Compatible withGoogle HomeandAmazon Alexafor convenient voice control.

✅ Full Configuration in the App

Temperature calibration, child lock, hysteresis, min./max. temperature settings.

✅ Flexible Working Modes

Choose between manual, programmable, and holiday mode.

✅ Modern Design

Elegant design fits any interior and standard flush-mounted wall boxes.

✅ Scheduling

Set7-day schedules(5+2, 6+1 or 7) with up to6 cycles per day.

✅ Remote Control

Connects directly to WiFi – works from anywhere, no additional hub required.

✅ Automation

Integration with other Tuya devices – e.g. activate a relay based on heating mode.

ℹ️ Heating Management

Scheduling and full control in the app.

Set a schedule for7 days a weekand adjust heating cycles to your lifestyle. Lower the temperature at night or when no one is at home. Remote parameter changes are possible anytime via the app.

✔️ Save money – the thermostat automatically reduces energy consumption when the house is empty.

▶️ Automations

Create your own smart scenarios.

Connect other smart devices and configureautomatic reactionsin the Tuya Smart app.

• ✅ Reactions based on user GPS location
• ✅ Weather-based scenarios
• ✅ Integration with sensors and other Smart Home devices

✅ Smart Home in Your Hands

Tuya Smart App – thousands of possibilities.

Integration with over11,000 devicesfrom10,000 manufacturersin 30 categories.

✔️ Free app for iOS and Android ✔️ Voice control with Google Home & Alexa ✔️ Advanced automation scenarios

Example:If a window is opened – the thermostat automatically turns off the heating.

ℹ️ Wiring Diagram

ℹ️ Technical Specifications

▶️ Parameters

• Max. Load:3 A
• Power Supply:230 V AC, 50~60 Hz
• Accuracy:±0.5°C
• Set Temperature Range:5°C – 35°C
• Displayed Temperature Range:0°C – 70°C
• Operating Temperature:0°C ~ 45°C
• Operating Humidity:5% – 95% RH
• Buttons:touch
• Fits wall boxes:60 mm
• Dimensions:85 × 85 × 10 mm
• Protection Class:IP20

▶️ In the Box

• 3A Relay Thermostat TR069
• User Manual
• Mounting Screws

Product Code: TR069
