CONTACTLESS READER MCT12M-DES-IO ROGER
CONTACTLESS READER MCT12M-DES-IO ROGER
CONTACTLESS READER MCT12M-DES-IO ROGER

Toote toon ja tegelik värvus võivad erineda pildil kujutatust, kuna pildid on illustratiivse iseloomuga. Samuti on toote kirjeldus üldine ega pruugi sisaldada kõiki toote omadusi.

CONTACTLESS READER MCT12M-DES-IO ROGER

339,00 €
Kuumakse alates 9.63
3617005

MCT12M-DES-IO

5907608961113

Tarneaeg 1-14 t.p.

Kogus
Kauba vastu huvi?
(Lugege teenusetingimusi)

The external card and tag reader is designed to work in the access control system and building automation RACS 5.

MIFARE DESFire/Plus standard.

Support : RACS 5 (Roger)
Card support : MIFARE Ultralight, MIFARE Classic, MIFARE Plus, MIFARE DESFire
Remote card scanning range : max. 7 cm

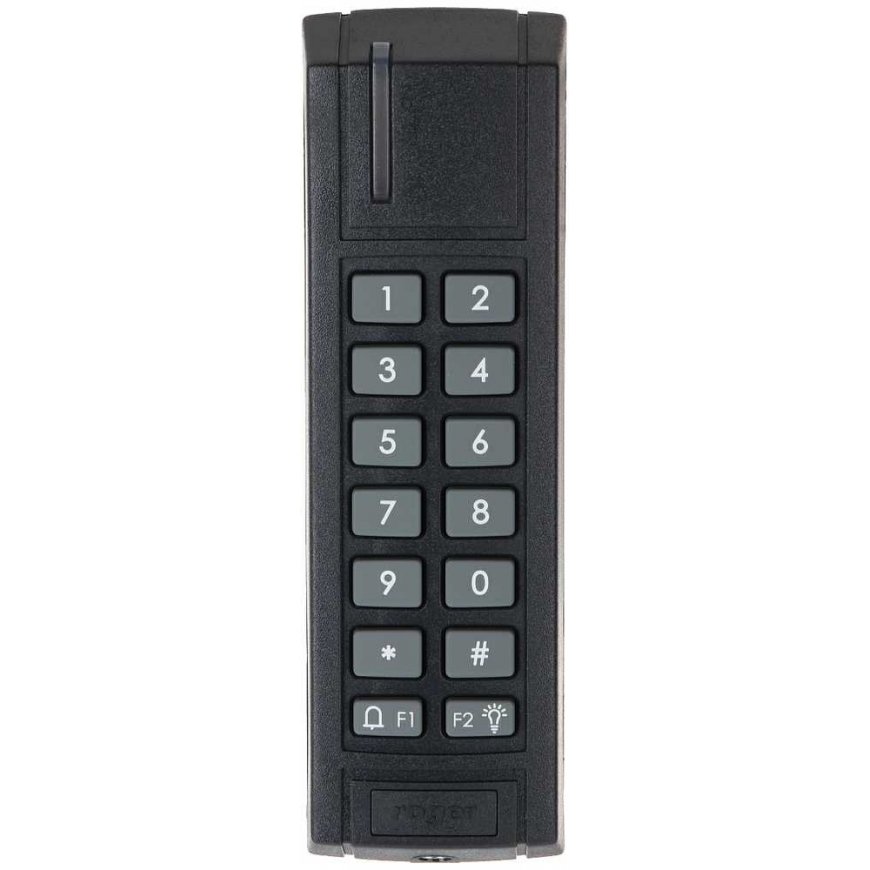

Integrated keyboard :
Call button :
Tamper output :
Connection : RS-485 ,
RACS 5 (Roger)
Main features : Anti-sabotage protection (detection of removal from installation location and opening of housing)
LED indication
Audible signal
Built-in I/O lines
3 inputs
1 Relay output: REL1 - NO/NC, 30 V AC/DC / 1.5 A
Two transistor outputs: IO1, IO2 - Type "open collector" (OC), max. 15 V DC / 1 A
Power supply : 10 ... 15 V DC
Average current consumption : ~ 50 mA
Working temperature : -25°C ... 60°C
Permissible relative ambient humidity : 10 ... 95 % (non-condensing)
Tightness class : IP65
Weight : 0.15 kg
Dimensions : 152 x 46 x 23 mm
Manufacturer / Brand : ROGER
Warranty : 3 years

Data sheet EN

Instruction EN

CE Declaration of Conformity
