CONTACTLESS READER MCT88M-IO ROGER
639,00 €
Kuumakse alates 17.35 €
3612627 MCT88M-IO
5907608961472
Tarneaeg 1-14 t.p.
Kauba vastu huvi?
The internal card and tag reader is designed to work in the access control system and building automation RACS 5.
MIFARE 13.56 MHz standard.
| Support : | RACS 5 (Roger) |
| Card support : | MIFARE 13.56 MHz, MIFARE Ultralight, MIFARE Classic, MIFARE DESFire, MIFARE Plus, NFC |
| Remote card scanning range : | max. 7 cm |
| Integrated keyboard : | ✔ |
| Automatic work : | - |
| Call button : | ✔ |
| Tamper output : | ✔ |
| Connection : | RS-485 |
| Main features : | Anti-sabotage protection (detection of removal from installation location and opening of housing) Built-in Bluetooth module provides user identification via mobile application Normal and long-touch card service Signaling inputs: 3 pcs. - NO, NC, EOL, 2EOL, 3EOL Alarm outputs: 1 pc. Relay output NO/NC 30 V DC / 1.5 A + 2 pcs. OC Illuminated keyboard buttons LED indication Audible signal Reading card numbers: CSN, SSN, MSN Configuration via RS-485 (RogerVDM) Software update via RS-485 (Roger VDM) port |
| Power supply : | 10 ... 15 V DC |
| Average current consumption : | ~ 110 mA |
| Working temperature : | 5°C ... 40°C |
| Permissible relative ambient humidity : | 10 ... 95 % (non-condensing) |
| Tightness class : | IP41 |
| Weight : | 0.23 kg |

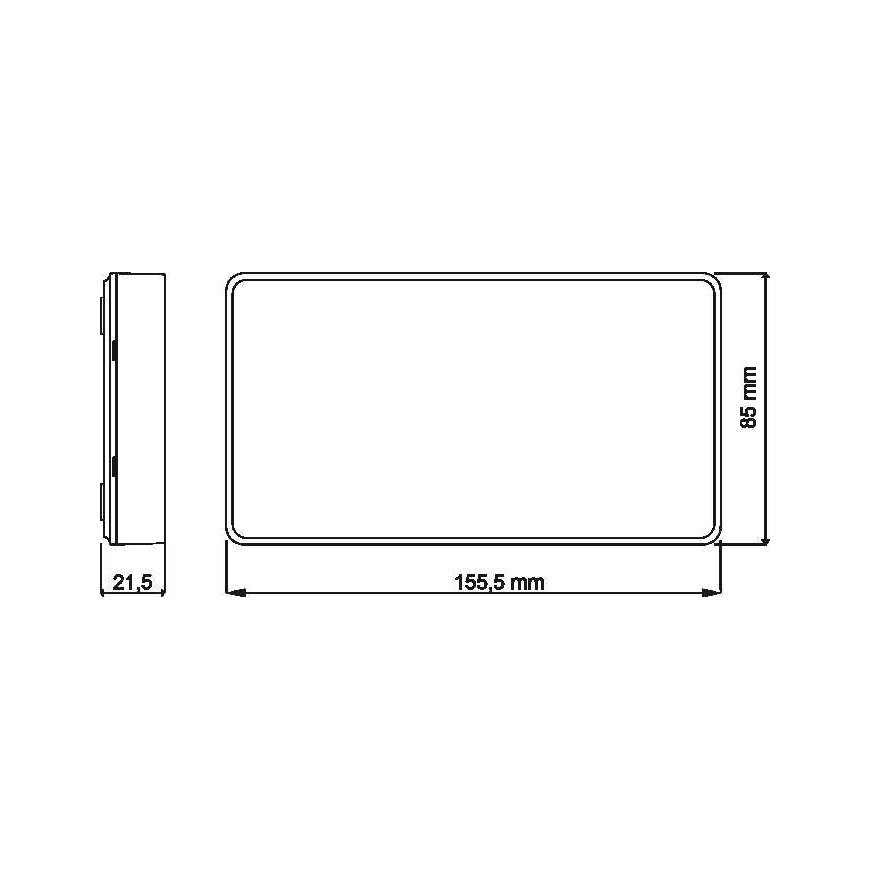

| Dimensions : | 156 x 85 x 22 mm |
| Manufacturer / Brand : | ROGER |
| Warranty : | 3 years |
