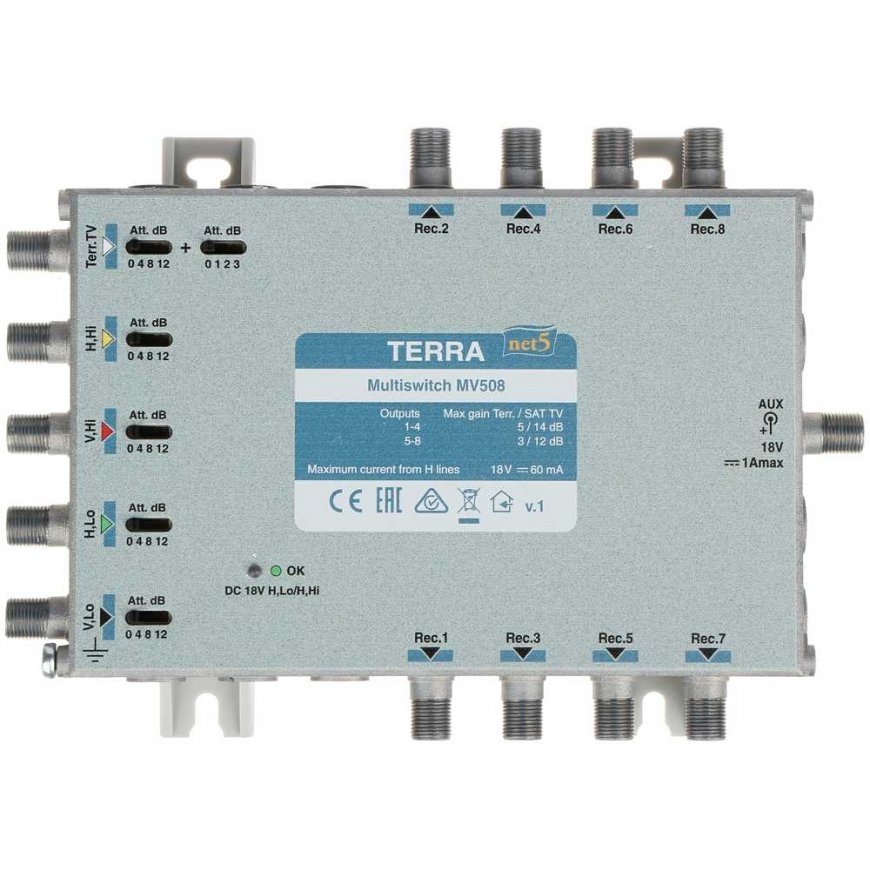

Terra MV- 508 RECORD 5 / OUTER 8
169,00 €
Kuumakse alates 5.25 €
3609732 MV-508
5907634579283
Tarneaeg 1-14 t.p.
Kauba vastu huvi?
| Inputs : | 4x 950MHz ... 2400MHz, 1x 47 MHz ... 862 MHz - Active |
| Outputs : | 8x 47MHz ... 2400MHz |
| Switching signals : | 14V / 18V 0Hz / 22kHz |
| SAT amplification (cable correction) : | 4 ... 14 dB |
| TV amplification (cable pre-correction) : | -2 ... 5 dB |
| Gain adjustment SAT : | 12 dB step every (*4 dB*) |
| Gain adjustment TV : | 15 dB step every (*1 dB*) |
| Separation : | |
| Maximum output level SAT : | 105 dBµV |
| Maximum output level TV : | 86 ... 88 dBµV |
| Preamplifier power supply : |  |
| Power supply : | Inputs HL/HH Power supply 18 V DC / 1 A (not included) |
| Dimensions : | 187 x 135 x 30 mm |
| Weight : | 0.53 kg |
| Manufacturer / Brand : | TERRA |
| Warranty : | 2 years |
