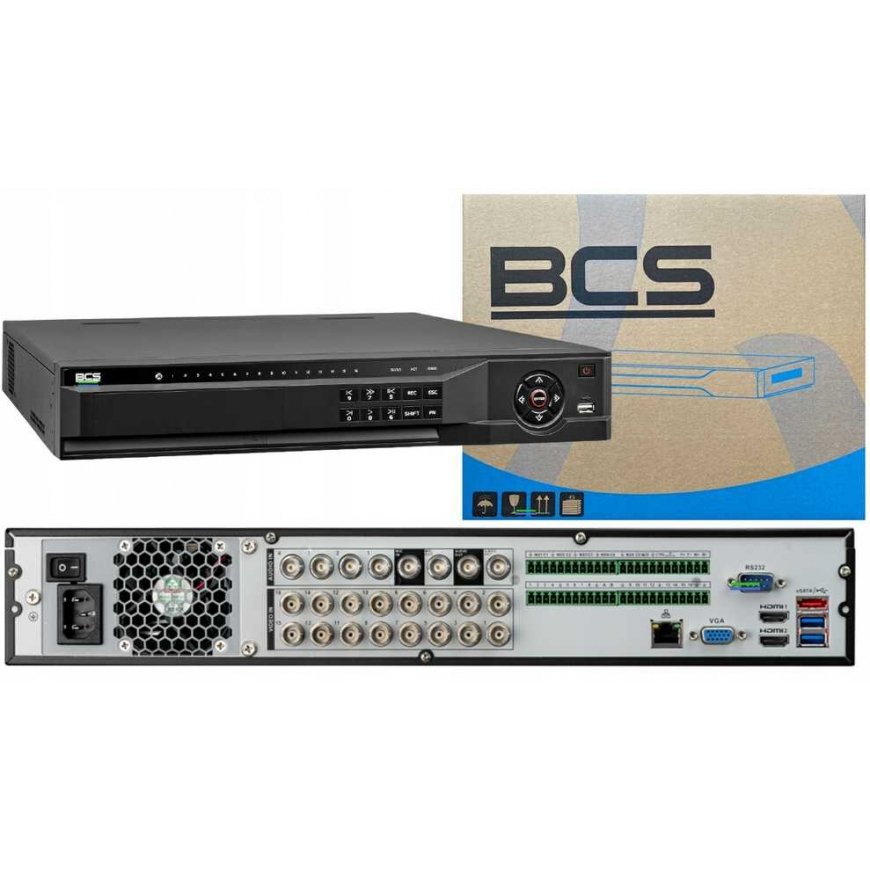

BCS Line BCS-L-XVR1604-4KE-IV
879,00 €
Kuumakse alates 23.53 €
3606319 1765590
5904890700031
2026-07-22
Kauba vastu huvi?
| Standard : | AHD , HD-CVI , HD-TVI , CVBS , TCP/IP |
| Video inputs : | 16 pcs. BNC |
| Video outputs : | 1 pc HDMI 4K 1 pc HDMI 1 pc VGA 1 pc. Composite Video (CVBS) - BNC socket |
| Audio inputs : | 4 pcs. BNC , 1 pc. BNC - Microphone 16 Channels - Audio service over coaxial cable, HD-CVI only |
| Audio outputs : | 1 pc. BNC 1 pc. BNC - Microphone |
| Image compression method : | AI Coding / H.265+ / H.265 / H.264+ / H.264 |
| Recorded video resolutions : | 8 Mpx - 3840 x 2160, 4K-N - 1920 x 2160, 6 Mpx - 2880 x 1920 - only HD-CVI, 5 Mpx - 2592 x 1944, 4 Mpx - 2560 x 1440, 4M-N - 1280 x 1440, 3 Mpx - 2048 x 1536 - only AHD / HD-TVI, 1080p - 1920x1080, 720p - 1280x720 |
| Recording speed adjustment : | 12 Mpx IP @ 1 ... 25 fps 8 Mpx @ 1 ... 7 fps 4K-N @ 1 ... 15 fps 6 Mpx @ 1 ... 10 fps 5 Mpx @ 1 ... 12 fps 4 Mpx @ 1 ... 15 fps 4M-N @ 1 ... 25 fps 3 Mpx @ 1 ... 15 fps 1080p @ 1 ... 25 fps 720p @ 1 ... 25 fps 960H @ 1 ... 25 fps for each channel |
| Working mode : | 16 x AHD / HD-CVI / HD-TVI / CVBS / IP + 16 x IP |
| Recording modes : | Manual, alarm, motion detection, schedule |
| Hard drives serviced : | 4 x 16TB SATA + 1 x eSATA |
| Archiving on external media : | Saving a video frame or recordings from the archive to a USB flash drive |
| Searching and playing back recordings : | Search for recordings by time + timeline with recording type. Playback: forward, fast forward, slow forward, step by step Advanced search (within seconds) Synchronous playback of all channels, Smart Search function Synchronized playback 1/4/9/16 channels |
| Network functions : | Full network support, Remote backup, Integrated web server for max. 128 online users |
| USB : | 1 x USB 2.0 2 x USB 3.0 |
| Access from mobile phone : | Port: 37777 or cloud access |
| Alarm inputs/outputs : | 16 / 6 |
| PTZ control : | IP cameras, Speed Dome Control by coax PTZ HD-CVI RS-485 - PELCO-D/P |
| Motion detection : | Screen division into zones: 22 x 18 detection zones |
| Selected features : | |
| Mouse service : |  |
| IR remote control included : | |
| Power supply : | 100V ... 240V AC |
| Power consumption : | max. 20 W (without HDD) |
| Color : | Black |
| Weight : | 4.86 kg |
| Dimensions : | 440 x 421 x 76 mm, RACK 19", 1.5U |
| Languages supported : | Polish, English |
| Manufacturer / Brand : | BCS Line |
| Warranty : | 3 years |
