IP RECORDER NVR501-08B-P8 8 CHANNELS, 8 PoE UNIVIEW
619,00 €
609,00 €
Kuumakse alates 16.58 €
3605047 NVR501-08B-P8
6937096304672
2026-07-22
Kauba vastu huvi?

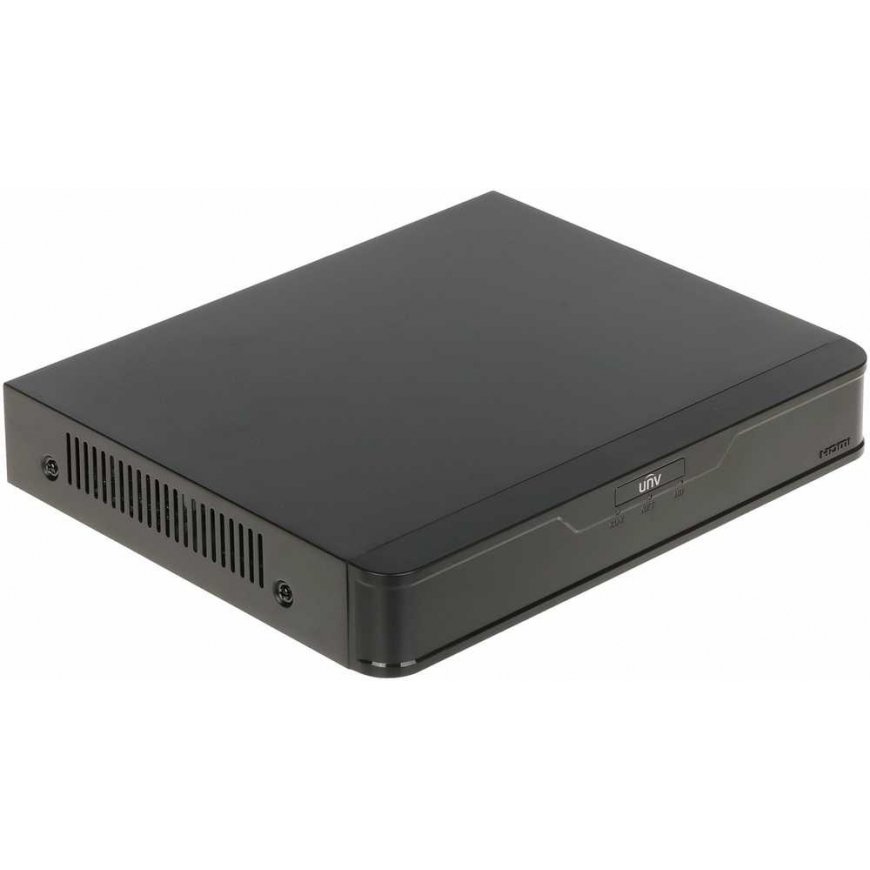

The NVR501-08B-P8 digital recorder is a professional device used in IP surveillance installations.
Integrated 8-port PoE switch.
| Standard : | TCP/IP |
| Supported resolutions : | max. 8.3 Mpx 4K UHD - 3840 x 2160 px |
| Video outputs : | 1 pc HDMI 4K 1 pc VGA |
| Audio service : | 8 Channels - Audio from cameras Bidirectional audio streaming support |
| Audio inputs : | 1 pc. CINCH |
| Audio outputs : | 1 pc. CINCH |
| Image compression method : | Ultra 265 / H.265 / H.264 |
| Bandwidth (bitrate) : | max. 80 Mbps |
| Hard drives serviced : | 1 x 8TB SATA |
| Recording modes : | Manual, motion detection, schedule |
| Archiving on external media : | Archiving to USB storage device (pendrive, external disk) |
| Searching and playing back recordings : | Search for recordings by time and event type. Playback: forward, backward, speed up, slow down Advanced search (within seconds) Synchronized playback for 1/4/6/8/9 channels |
| Network interface : | 1 x RJ-45 10/100 Base-TX |
| Network functions : | Full network support, Remote backup, Integrated web server max. 128 online users |
| Network protocols : | TCP/IP , P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP |
| ONVIF : | ✔ |
| Default IP address : | DHCP or 192.168.1.30 |
| Default user image/admin password : | admin / 123456 |
| Access from mobile phone : | Port: 80 or cloud access Android: Free app EZView iOS (iPhone): Free app |
| Access ports via www : | 80, 554 |
| Access port via program to PC : | Port: 80 or cloud access - PC: Free program |
| Access ports via mobile app : | 80 |
| RTSP URL : | rtsp://192.168.1.30:554/unicast/c1/s0/live - Main stream rtsp://192.168.1.30:554/unicast/c1/s1/live - Auxiliary stream |
| USB : | 1 x USB 2.0 1 x USB 3.0 |
| Serial ports : | - |
| Alarm inputs/outputs : | - |
| PTZ control : | PTZ Uniview cameras |
| Motion detection : | ✔ |
| Advanced video analysis : | ✔ |
| Selected features : | The functions are performed in cooperation between the registrar and the video cameras supporting these functions. Advanced video analytics: crossing lines , intrusion , entering a marked area, leaving a marked area, scene change , rejected/missing object , object tracking , people counting , crowd size estimation Human detection Sound detection ANR feature support Corridor mode - useful for monitoring corridors, entrance gates and narrow spaces |
| Mouse service : | ✔ |
| IR remote control included : | - |
| Switch PoE : | Integrated 8-port PoE switch, 30 W/Channel, PoE (802.3af/at) |
| Maximum total switch load : | 75W |

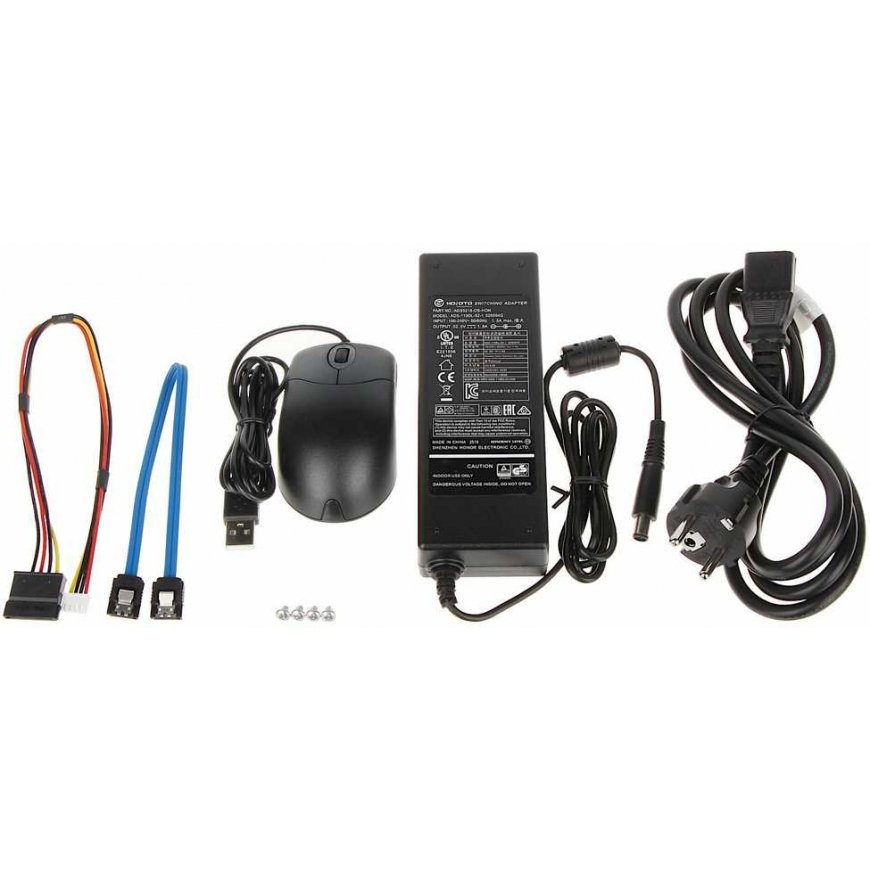

| Power supply : | 52 V DC / 1.8 A (power supply included) |
| Power consumption : | max. 10 W (without HDD) |
| Working temperature : | -10°C ... 55°C |
| Weight : | 0.77 kg |
| Dimensions : | 260 x 222 x 47 mm |
| Languages supported : | Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Slovak, Italian |
| Manufacturer / Brand : | UNIVIEW |
| Warranty : | 3 years |
