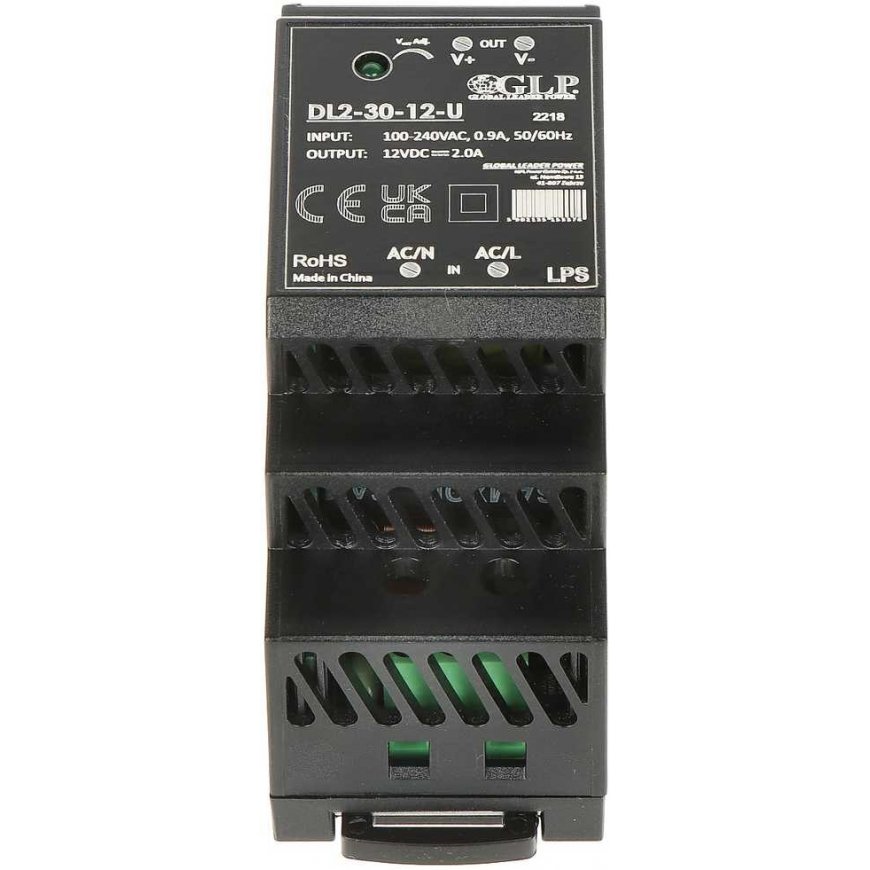

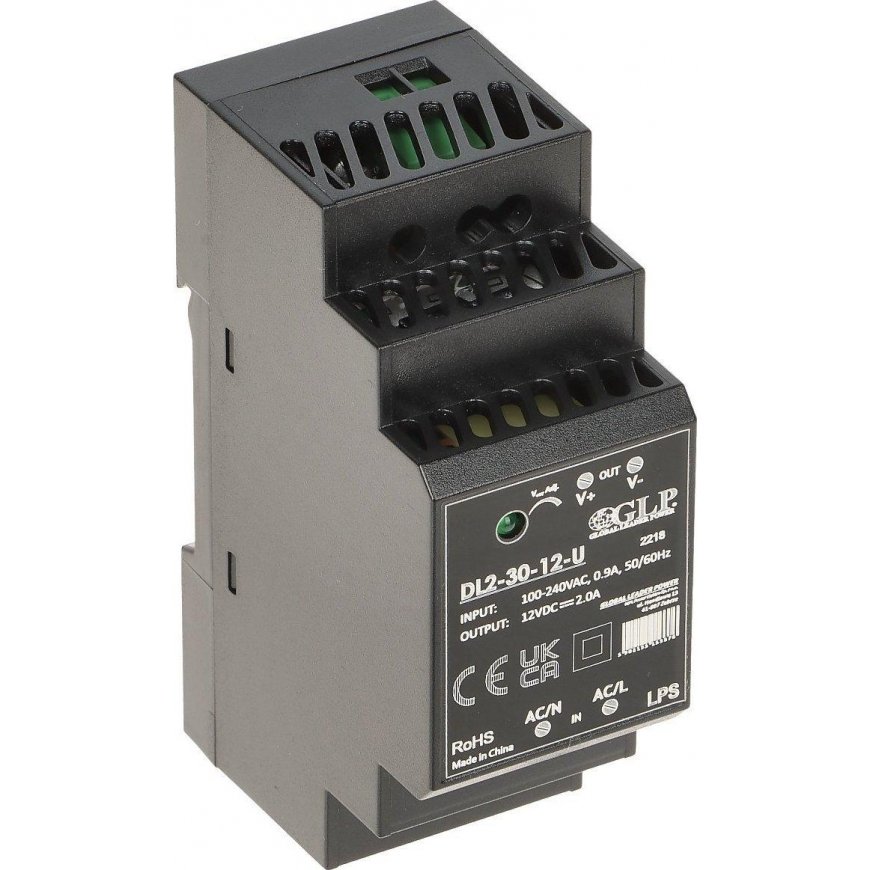

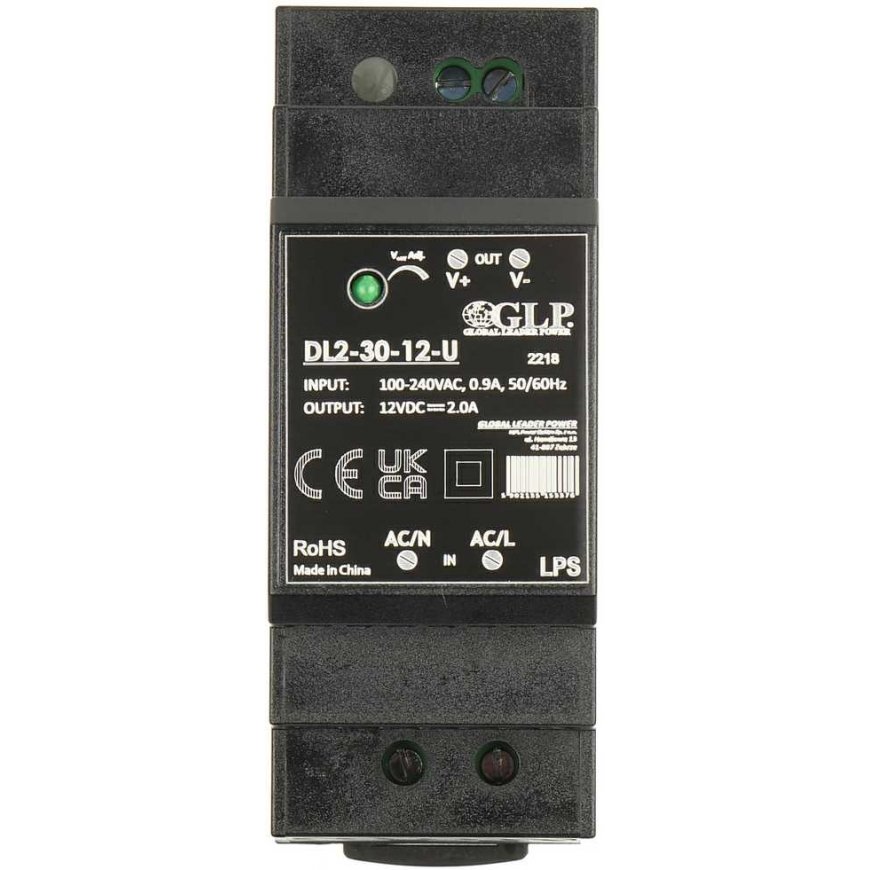

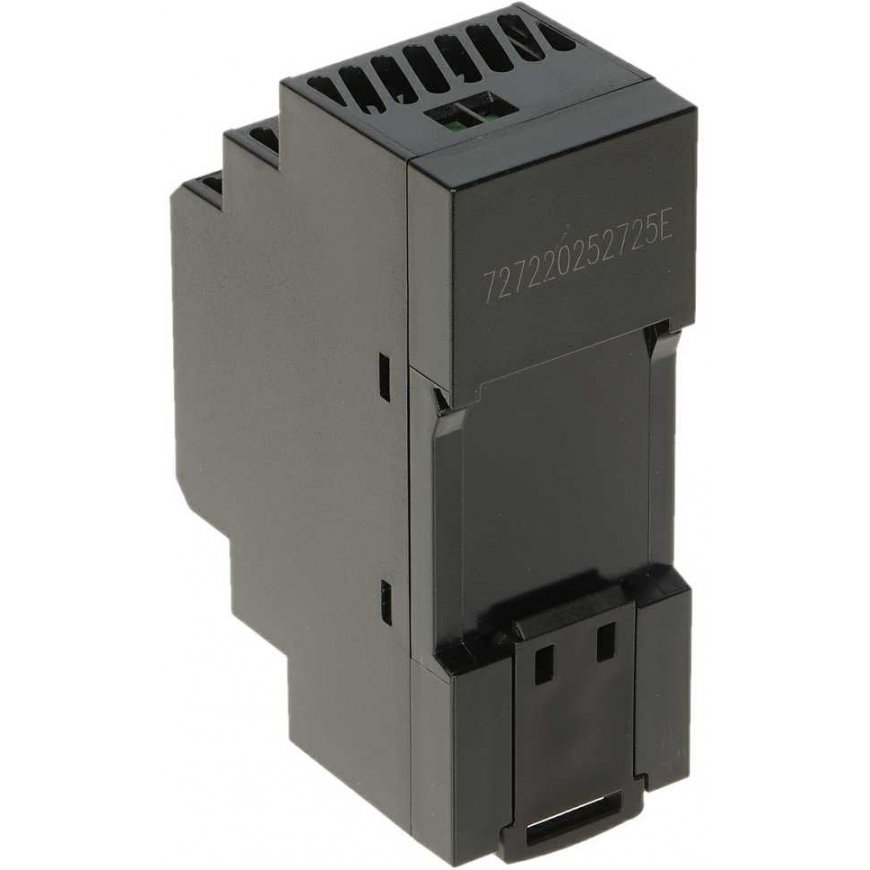

TST SWITCHING POWER SUPPLY DL2-30-12-U
39,00 €
Kuumakse alates 1.90 €
3604853 DL2-30-12-U
5902135153376
Tarneaeg 1-14 t.p.
Kauba vastu huvi?
Switching power supply, mounted on a TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C).
| Power supply type : | Impulse |
| Supply voltage : | 85 ... 264 V AC 120 ... 370 V DC |
| Output voltage : | 12V DC |
| Output voltage regulation : | 10.8 ... 13.8 V DC |
| Power supply current capacity : | 2 A |
| Power supply power : | 24W |
| Number of outputs : | 2 pcs. |
| Efficiency : | 88% |
| Body type : | DIN |
| Protective measures : | From short circuit From overloads From overvoltages |
| Operating temperature/relative humidity : | -40 °C ... 70 °C / 10 ... 95 % |
| Weight : | 0.12 kg |
| Dimensions : | 92.7 x 35 x 58 mm |
| Warranty : | 3 years |
