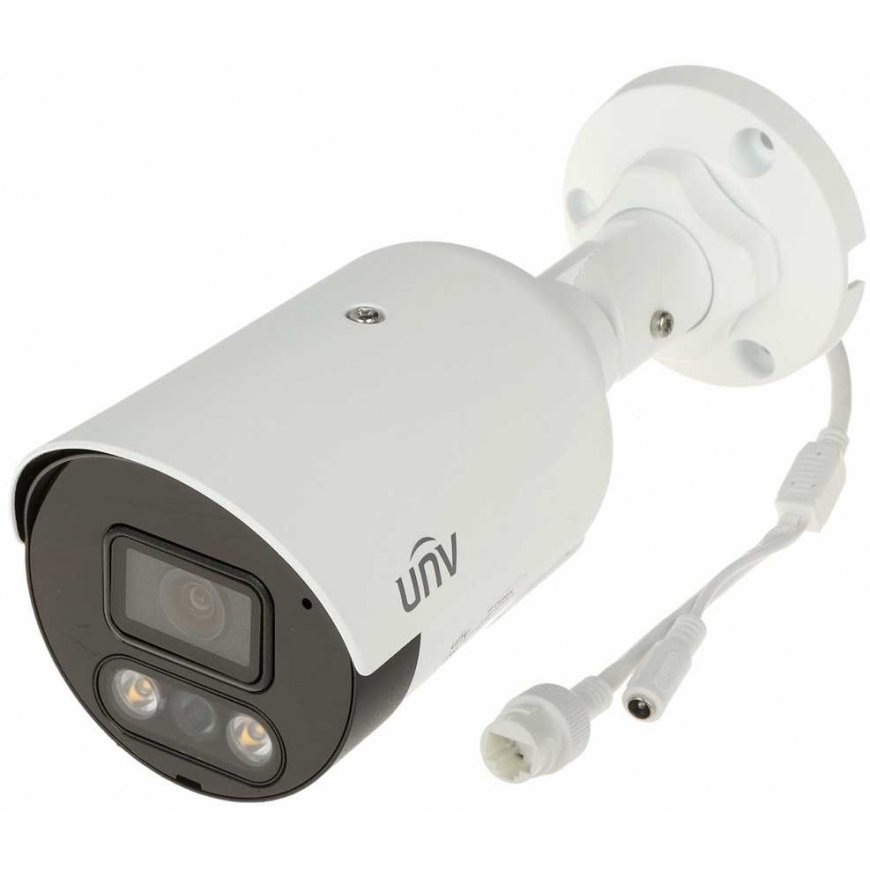

IP CAMERA IPC2124SB-ADF28KMC-I0 Tri-Guard - 4 Mpx 2.8 mm UNIVIEW
3602263 IPC2124SB-ADF28KMC-I0
6970333408511
2026-07-23
IP camera with efficient Ultra 265 video compression algorithm, ensuring clean and smoother video transmission with a maximum resolution of 4 Mpx.
Thanks to the PoE power supply capability according to the 802.3af standard, the device is even more versatile and easier to install.
The coverage of the illuminator specified by the manufacturer depends on environmental conditions (air transparency, environment, wall color, i.e., the so-called scene reflectance coefficient).
In addition, the camera has an active intruder deterrent function using a motion-activated white LED spotlight and siren sound.
| Standard : | TCP/IP |
| Sensor : | 1/2.7 " Progressive Scan CMOS |
| Matrix size : | 4 Mpx |
| Resolution : | 2688 x 1520 - 4 Mpx , 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920x1080 - 1080p |
| Lens : | 2.8 mm |
| Viewing angle : | 101 ° |
| White LED illuminator coverage : | 30 years |
| Signal/noise ratio (S/N) : | > 56 dB |

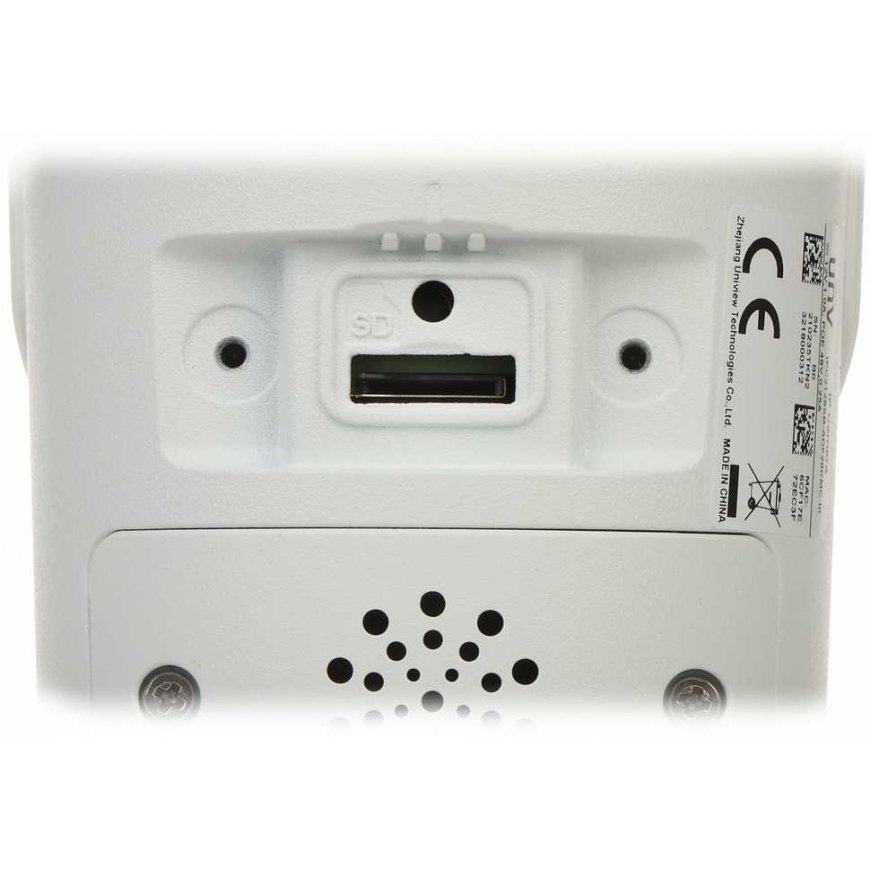

| Memory card slot : | Support for Micro SD cards up to 256GB (local recording possible) |
| Image compression method : | Ultra 265 / H.265 / H.264 / MJPEG |
| Alarm inputs/outputs : | - |
| Audio : | Integrated microphone, Built-in speaker Sound detection Bidirectional audio streaming support |
| Main stream transmission speed : | 25 fps @ 4 Mpx |
| Network interface : | 10/100 Base-T (RJ-45) |
| WEB Server : | Integrated |
| Max. number of online users : | 32 |
| ONVIF : | ✔ |
| Access from mobile phone : | Cloud access (P2P) Android: Free app EZView iOS (iPhone): Free app |
| Default IP address : | DHCP or 192.168.1.13 |
| Default user image/admin password : | admin / 123456 |
| Access ports via www : | 80, 554 |
| Access port via program to PC : | Port: 80 or cloud access - PC: Free program |
| Access ports via mobile app : | 80 |
| ONVIF port : | 80 |
| RTSP URL : | rtsp://192.168.1.13:554/unicast/c1/s0/live - Main stream rtsp://192.168.1.13:554/unicast/c1/s1/live - Auxiliary stream |
| Selected features : | Active Repellent Function - Smart alarm associated with the activation of white light and speaker WDR - 120 dB - Wide Dynamic Range 2D-DNR, 3D-DNR - Digital image noise reduction F-DNR (Defog) - Reduction of noise associated with atmospheric precipitation ROI – improving the quality of selected fragments of the image ANR - saving video to the card when there is no connection to the player (network crash) and later synchronization NAS - Network Attached Storage Service Corridor mode - useful for monitoring corridors, entrance gates and narrow spaces BLC/HLC - Backlight/Highlight Compensation Ability to change resolution, quality and bandwidth Image flipping and mirroring Privacy zones - max. 4 Motion detection with human silhouette/vehicle recognition Sharpness - sharpening image contours Overcurrent protection: 4 kV Advanced video analytics: intrusion , line crossing , area entry/exit detection, face detection , people counting , crowd size estimation |
| Power supply : | PoE (802.3af) , 12V DC / 960mA |
| Power consumption : | ≤ 11.5W |
| Body : | Compact, Metal + Plastic |
| Color : | White |
| Tightness class : | IP67 |
| Anti-vandal : | - |
| Working temperature : | -30°C ... 60°C |
| Weight : | 0.42 kg |
| Dimensions : | 191 75 x 74 mm |
| Languages supported : | Polish, English, Czech, Spanish, Dutch, French, German, Portuguese, Slovak, Hungarian, Italian |
| Manufacturer / Brand : | UNIVIEW |
| Warranty : | 3 years |
