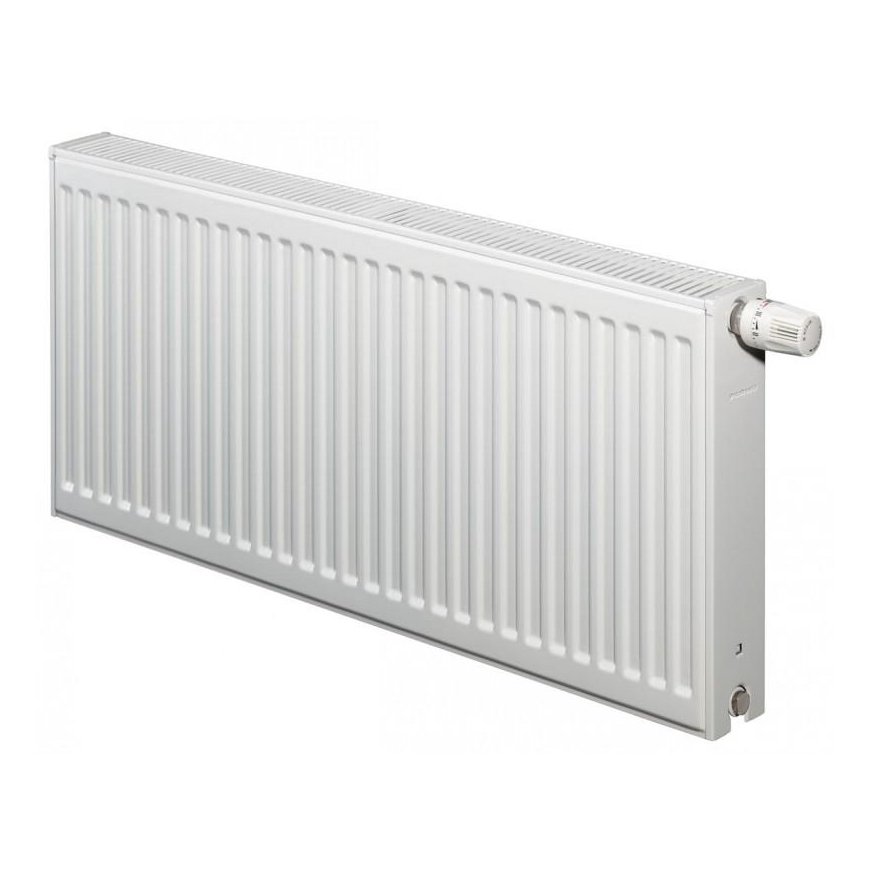

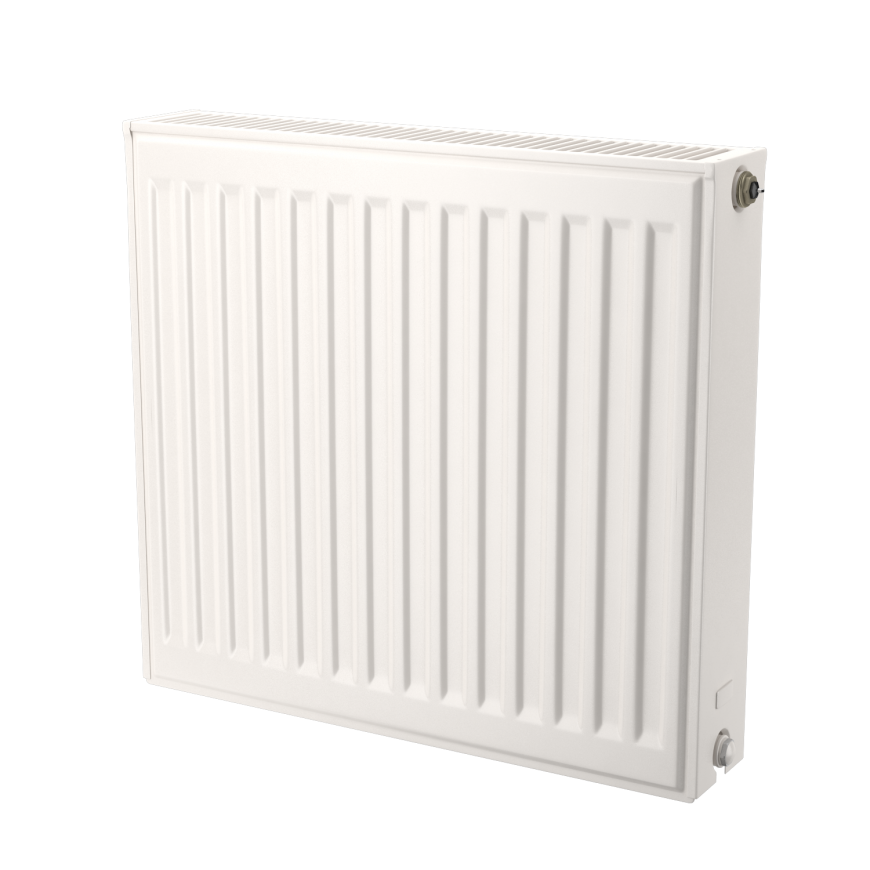

Bottom connection radiator Purmo CV 11, 600-1200
Bottom connection radiator Purmo CV 11, 600-1200
Bottom connection radiator Purmo CV 11, 600-1200
Bottom connection radiator Purmo CV 11, 600-1200

Toote toon ja tegelik värvus võivad erineda pildil kujutatust, kuna pildid on illustratiivse iseloomuga. Samuti on toote kirjeldus üldine ega pruugi sisaldada kõiki toote omadusi.

Bottom connection radiator Purmo CV 11, 600-1200

149,00 €
Kuumakse alates 4.74
3589934

F071106012010300

5907814705877

2026-07-24

Kogus
Kauba vastu huvi?
(Lugege teenusetingimusi)
Bottom connection radiator with thermostatic element
Top quality product
One profiled panel, one convector
Height from 300 mm to 900 mm
Length from 400 mm to 3000 mm
Power from 218W to 4281W (75º/65 º /20 º )
Connection at the bottom, standard from the right
Thermostatic element installed
Includes wall brackets, blind and vent

bottom-mount-radiator-purmo-cv

Purmo Ventil Compact

A compact radiator is a classic panel radiator that meets the highest quality and efficiency requirements. While traditional radiators have all the pipes visible, compact radiators have top and side covers that give them a pleasant and attractive appearance. And the choice of models is as wide as that of all our panel radiators.

Compact radiators come in several different types, which you can adapt perfectly to your room. The Ventil model is a variation of the classic compact radiator. In this radiator, all the pipes and valves are hidden inside the radiator, making it look subtle and uncluttered.

Technical data

Universal PURMO "Ventil Compact" radiators with profiled panels and convection elements, with side covers and top grilles. Two bottom and four side connection ports, internally threaded G ½", allow connection from below and, if necessary, from the side. Radiator with Oventrop pre-regulation thermostatic valve.

  • Material: high-quality stamped mild steel sheet FePO 1 according to EN 10130
  • Vertical water channel pitch: 33.3 mm
  • Connections: 2 x G ½ " bottom connection right (left - on request), 4 x G ½ " side connection
  • Working pressure: 10 bar
  • Maximum temperature: 110 °C
  • Test pressure: 13 bar
  • Color: white RAL 9016, other RAL colors - on request
  • Accessories: fasteners, blind, air valve (included)
