Digital multimeter LCDTRMS. NCV (6000)VDC:0.1÷600mV,6V,60V,600V,1kV, UNI-T
39,00 €
Kuumakse alates 1.90 €
3550150 UT890C
6935750589113
Tarneaeg 1-14 t.p.
Kauba vastu huvi?

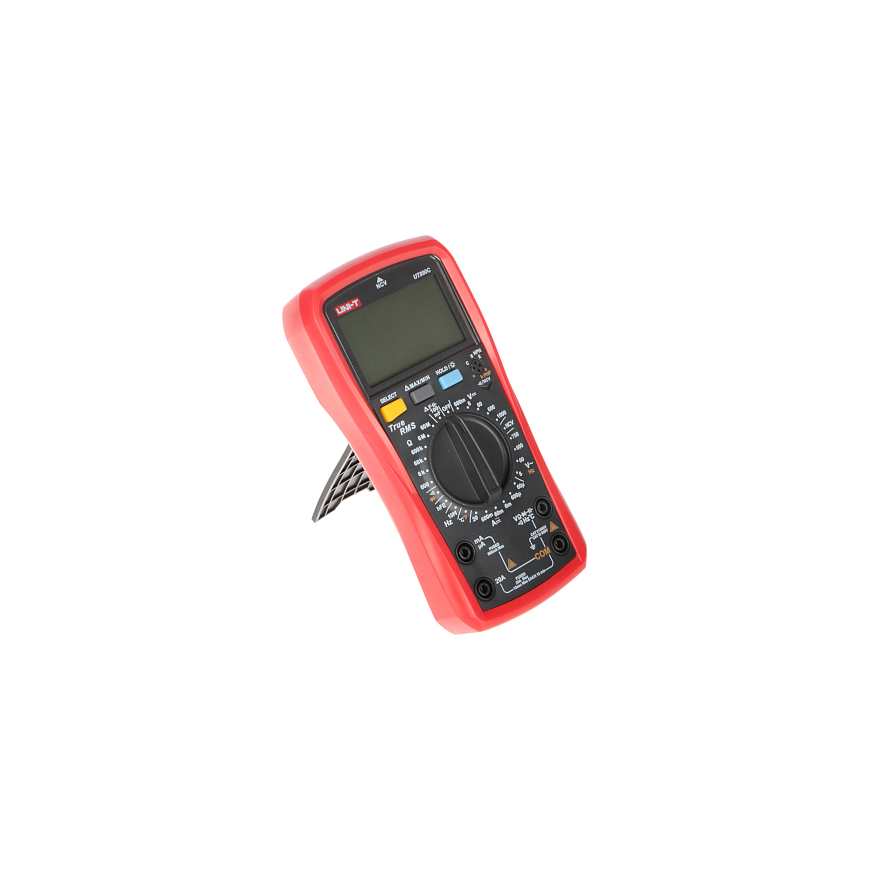

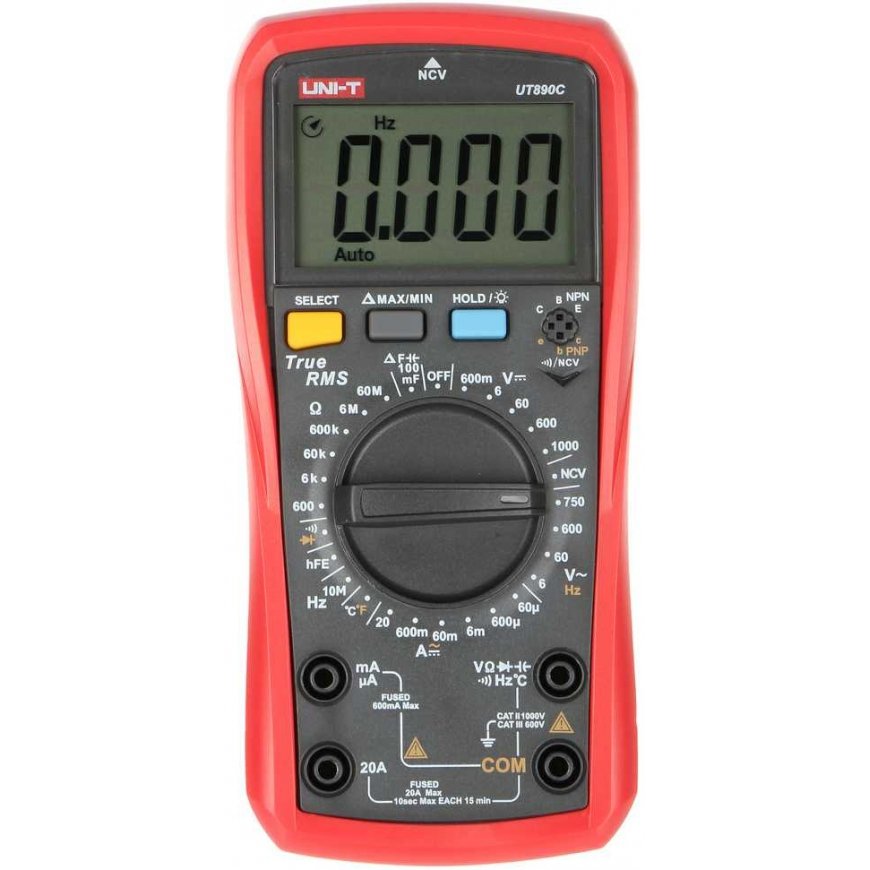

The UT-890C is a universal digital meter designed to measure voltage, current, resistance, inductance, frequency, temperature, and diode function.
In addition, the UT-890C has an electric field detection function (NCV).
The meter has a True RMS converter, thanks to which accurate measurement of the efficiency value of electric current and voltage, sinusoidal as well as shapeless flows is possible.
| DC voltage measurement : | 600 mV ± (0.5% + 5) @ 0.1 mV , 6V ± (0.5% + 5) @ 0.01V, 60V ± (0.5% + 5) @ 0.01V, 600V ± (0.5% + 5) @ 0.1V, 1000V ± (0.7% + 5) @ 1V |
| AC voltage measurement : | 6V ± (1% + 3) @ 1mV, 60V ± (0.8% + 3) @ 10mV, 600V ± (0.8% + 3) @ 0.1V, 750V ± (1% + 10) @ 1V |
| DC current measurement : | 60 µA ± (0.8% + 8) @ 0.01 µA , 600 µA ± (0.8% + 8) @ 0.1 µA , 6 mA ± (0.8% + 8) @ 0.001 mA , 60 mA ± (0.8% + 8) @ 0.01 mA , 600 mA ± (1.2% + 5) @ 0.1 mA , 20A ± (2% + 5) @ 0.01A |
| AC current measurement : | 60 µA ± (1% + 12) @ 0.01 µA , 600 µA ± (1% + 12) @ 0.1 µA , 6 mA ± (1% + 12) @ 0.001 mA , 60 mA ± (1% + 12) @ 0.01 mA , 600mA ± (2% + 3) @ 0.1mA, 20A ± (2% + 3) @ 0.01A |
| Resistance measurement : | 600 Ω ± (0.8% + 5) @ 0.1 Ω , 6 kΩ ± (0.8% + 3) @ 1 Ω, 60 kΩ ± (0.8% + 3) @ 10 Ω , 600 kΩ ± (0.8% + 3) @ 100 Ω , 6 MΩ ± (0.8% + 3) @ 1 kΩ , 60 MΩ ± (3% + 10) @ 10 kΩ |
| Capacity measurement : | 6 nF ± (4% + 10) @ 0.001 nF , 60 nF ± (4% + 10) @ 0.01 nF , 600 nF ± (4% + 10) @ 0.1 nF , 6 µF ± (3% + 10) @ 0.001 µF , 60 µF ± (3% + 10) @ 0.01 µF , 600 µF ± (3% + 10) @ 0.1 µF , 6 mF ± (5% + 10) @ 0.001 mF , 60 mF ± 10 % @ 0.01 mF , 100mF ± 10% @ 0.1mF |
| Inductance measurement : | - |
| Frequency measurement : | 9.999 Hz ... 9.999 MHz ± (0.1% + 5) @ 0.001 Hz ... 0.001 MHz |
| Temperature measurement : | °C -40 ... 40 °C ± 3 °C @ 1 °C >40 ... 500 °C ± (1% + 3) @ 1 °C >500 ... 1000 °C ± (2% + 3) @ 1 °C, °F -40 ... 104 °F ± 5 °F @ 1 °F >104 ... 932 °F ± (1.5% + 5) @ 1 °F >932 ... 1832 °F ± (2.5% + 5) @ 1 °F |
| Automatic change of measurement scale : | - |
| hFE : | ✔ |
| Diode test : | ✔ |
| Audible circuit integrity alarm : | ✔ |
| Checking logical TTL states : | - |
| RS-232 : | - |
| USB : | - |
| Main features : | True RMS - accurate measurement of the real value of any form of electric current and voltage flow, NCV - electric field detection function, Saving the last reading, Freezing the highest or lowest reading, Automatic shutdown after 15 minutes of inactivity, Large, legible LCD display with backlight, Low battery signal, Aesthetic and solid construction |

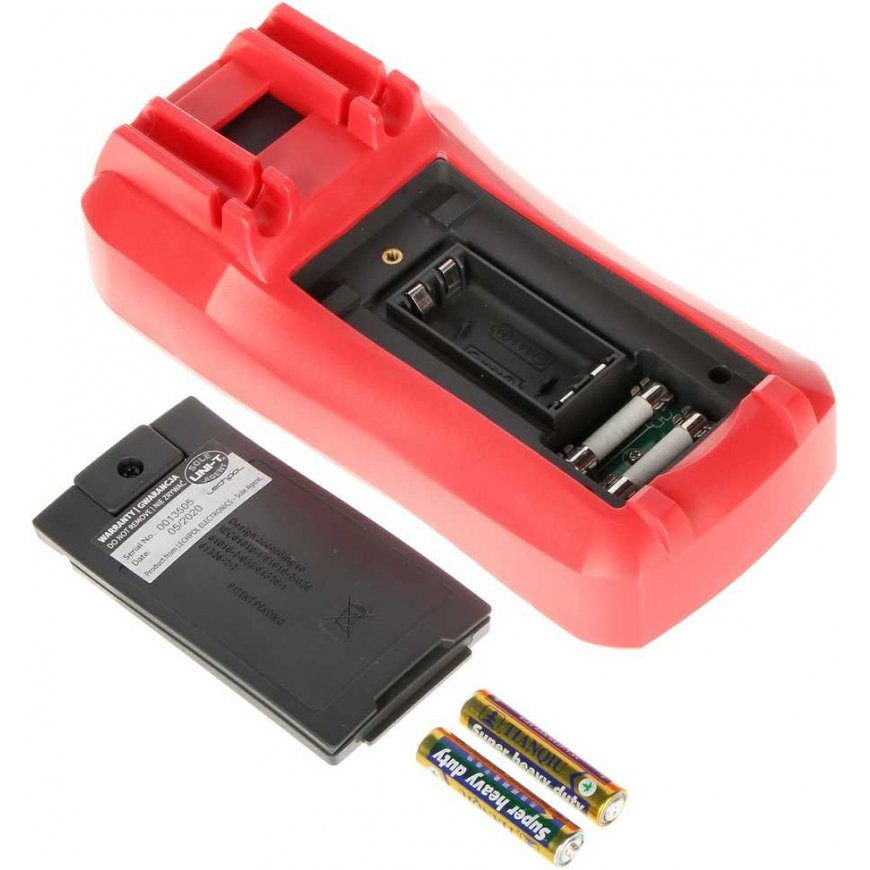

| Power supply : | 2 x 1.5V battery, AAA/LR03 type |
| Weight : | 0.34 kg |
| Dimensions : | 183 x 88 x 56 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
