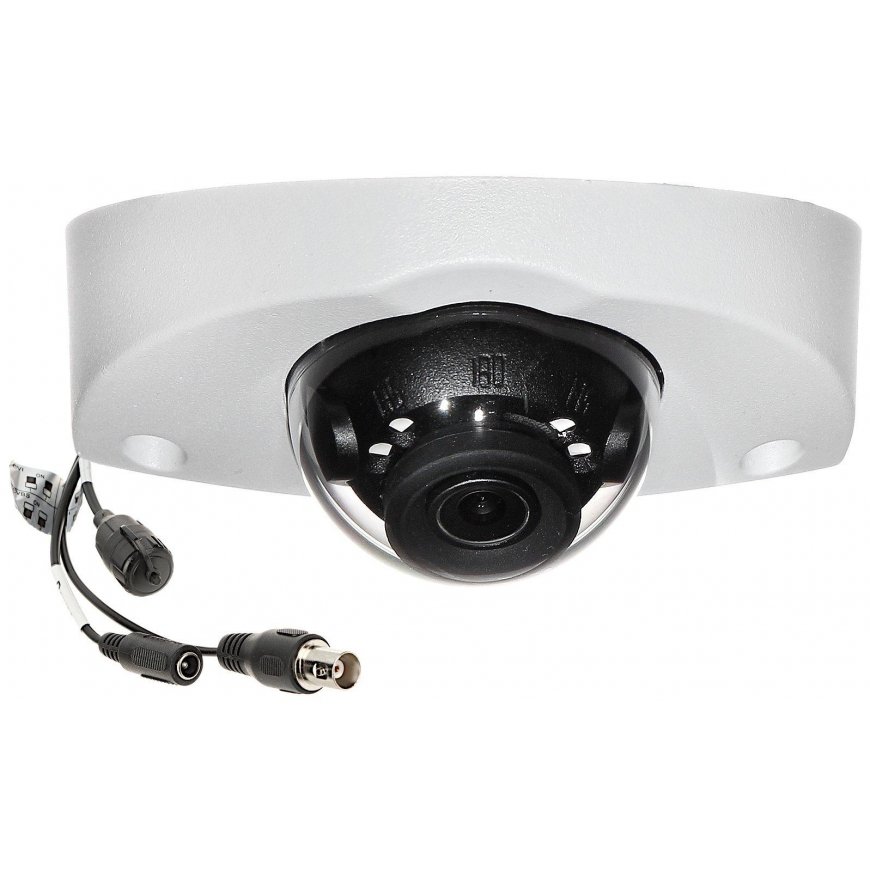

ANTI-VANDAL AHD, HD-CVI, HD-TVI, PAL CAMERA HAC-HDBW2241F-A-0280B-S2-DIP - 1080p 2.8mm DAHUA
3507000 HAC-HDBW2241F-A-0280B-S2-DIP
6923172523310
Toodet pole enam laos
2 Megapixel camera with Progressive scan CMOS transmitter and AHD / HD-CVI / HD-TVI / PAL interface.
Thanks to the Starlight technology used, the camera requires very low lighting to achieve a bright, colorful image.
The AHD / HD-CVI / HD-TVI interface provides analog video signal transmission with a coaxial cable up to 8 Mpx (4K UHD).
Thanks to this, image transmission with HD resolution is possible, with a distance of 500 m with low installation costs.
There are no delays during transmission and the original, high image quality is maintained.
The camera profile is very flat, so its distance from the ceiling is only 51 mm.
If video is transmitted using twisted pair cable and appropriate transformers (baluns), be aware of the possibility of signal interference.
The camera meets the IP67 sealing class.
Note! The camera is set to the HD-CVI standard.

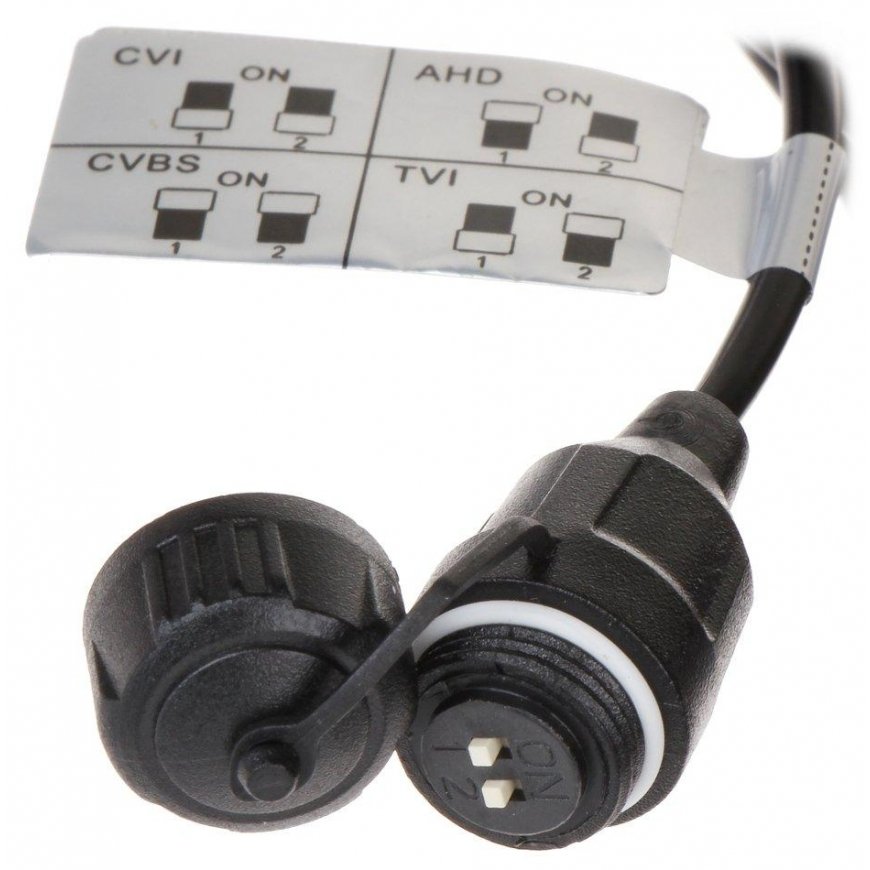

Changes to standards can be made with configuration switches.
| Standard : | AHD , HD-CVI , HD-TVI , PAL |
| Sensor : | Progressive Scan CMOS |
| Matrix size : | 2.1 Mpx |
| Resolution : | 1920x1080 - 1080p , 960 x 576 - 960H , PAL |
| IR illuminator coverage : | 30 years |
| IR illuminator power adjustment : | Automatic |
| Lens : | 2.8 mm |
| Viewing angle : | 109 ° (manufacturer's data) 101° (our tests) |
| Signal/noise ratio (S/N) : | > 65 dB |
| Video output : | AHD / HD-CVI / HD-TVI / PAL , 1 Vpp / 75 Ω - selectable by switch |
| Audio : | Built-in microphone - HD-CVI only |
| Selected features : | WDR - 130 dB - Wide Dynamic Range 3D-DNR - Digital Image Noise Reduction BLC/HLC - Backlight/Highlight Compensation ICR - mechanical IR filter Day/night mode Automatic white balance AGC - Automatic Gain Control Sharpness - sharpening image contours Mirror - mirror image Privacy zones - max. 8 |
| OSD screen menu : | OSD menu available on DAHUA recorder |
| Power supply : | 12V DC / 225mA |
| Power consumption : | ≤ 2.7W |
| Body : | Dome, Metal |
| Color : | White |
| Anti-vandal : | IK10 |
| Tightness class : | IP67 |
| Working temperature : | -40°C ... 60°C |
| Weight : | 0.33 kg |

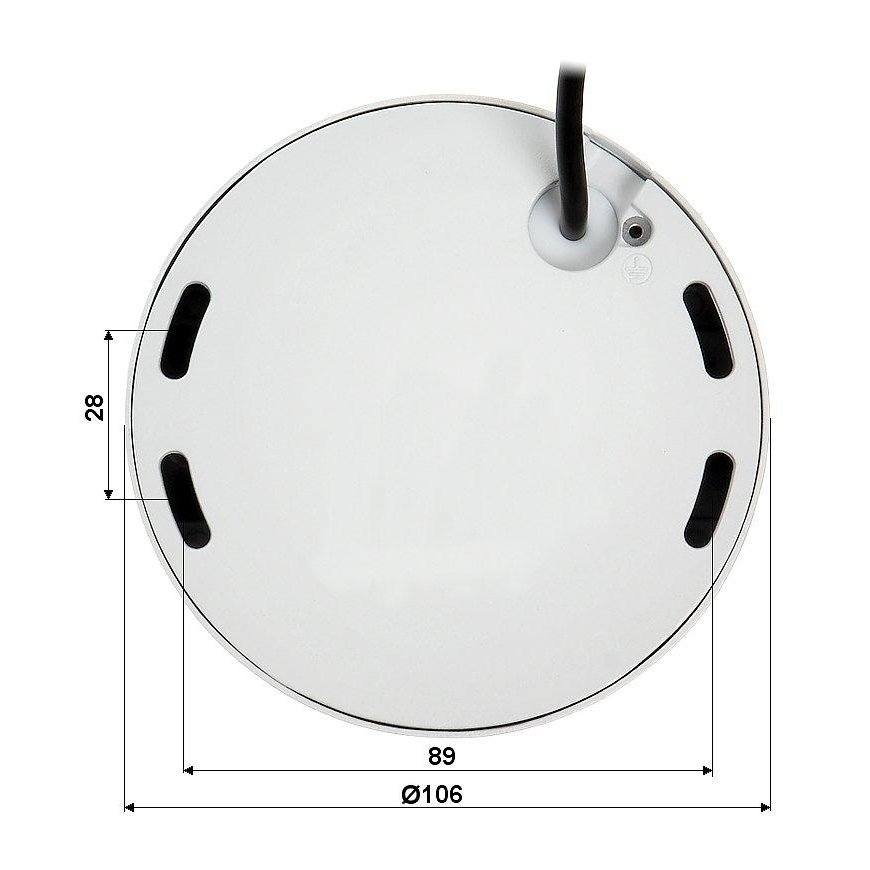

| Dimensions : | Ø 106 x 51 mm |
| Manufacturer / Brand : | DAHUA |
| Warranty : | 3 years |
AHD
Camera image under artificial lighting (approx. 30 Lux)
Camera image at night with integrated IR illuminator
Image from the camera with strong light shining directly at it
HD-CVI
Camera image under artificial lighting (approx. 30 Lux)
Camera image at night with integrated IR illuminator
Image from the camera with strong light shining directly at it
HD-TVI
Camera image under artificial lighting (approx. 30 Lux)
Camera image at night with integrated IR illuminator
Image from the camera with strong light shining directly on it
