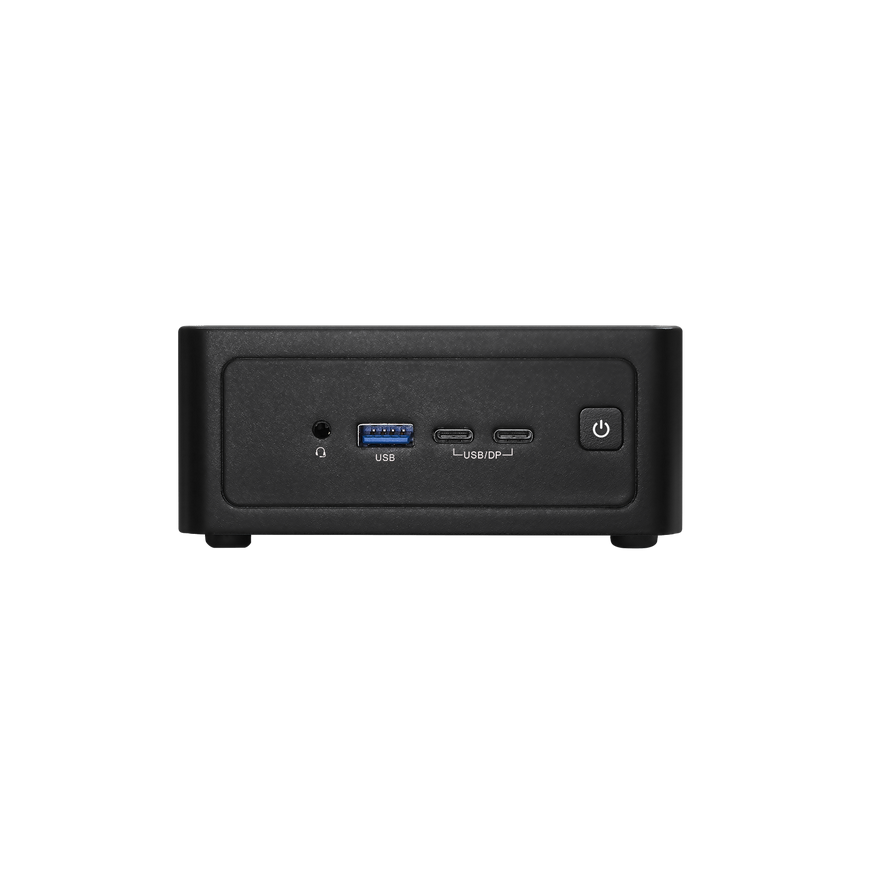

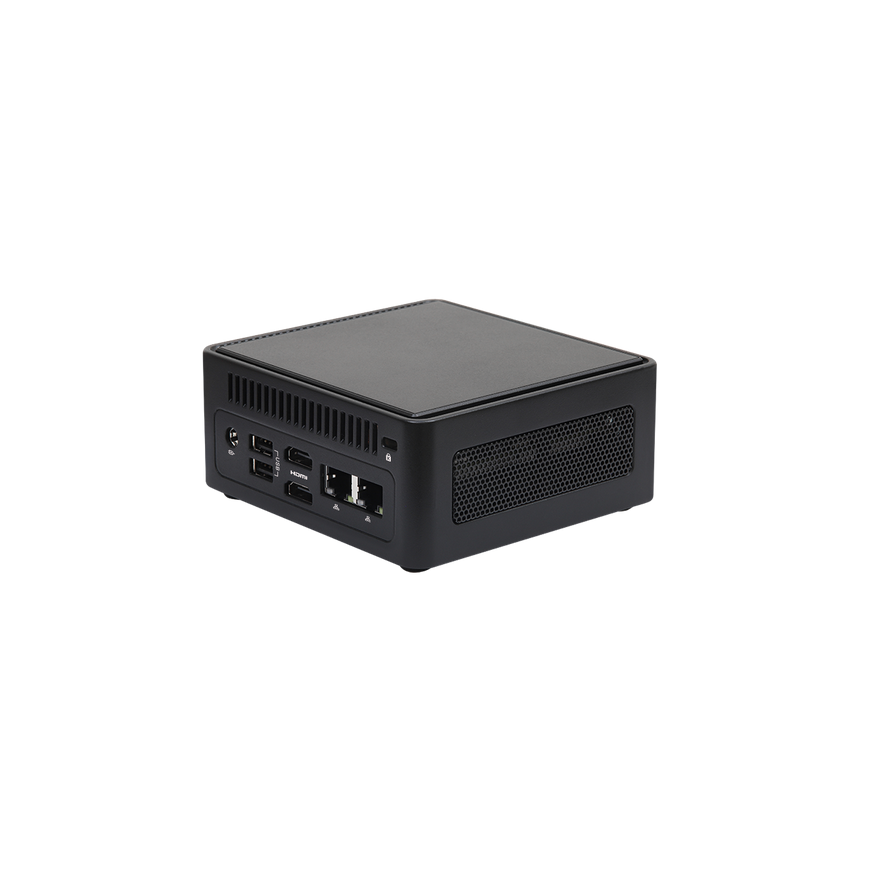

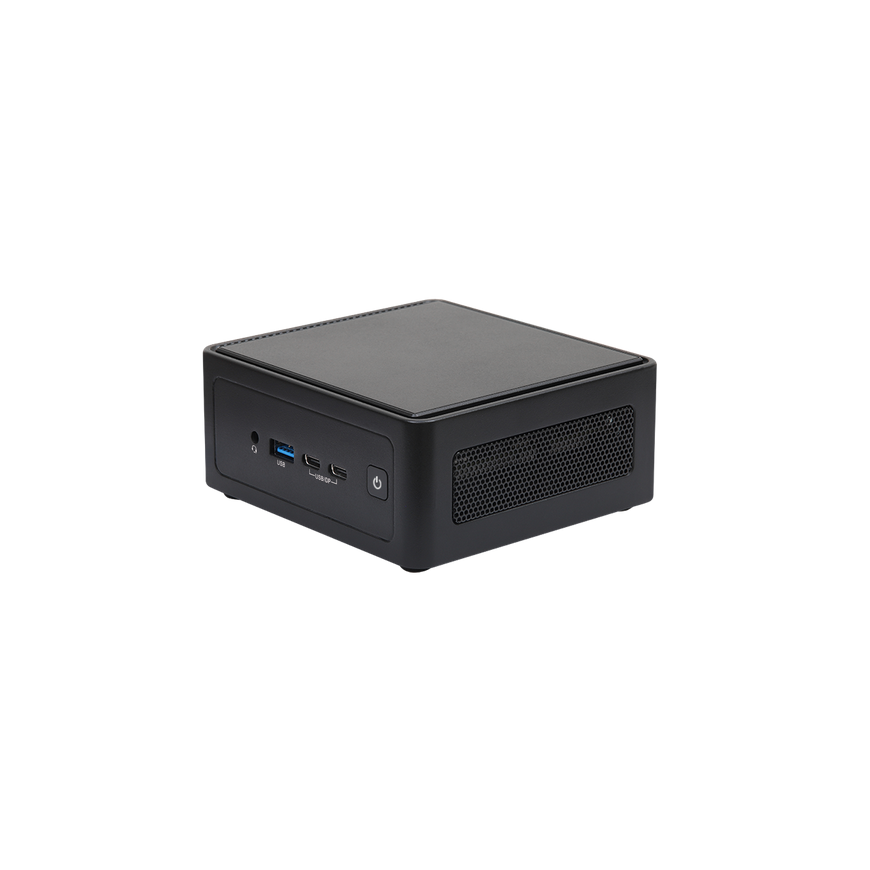

Mini computer ASRock Barebone 4x4 Box 8840U
689,01 €
Kuumakse alates 18.64 €
3464133 90PXGC80-P0EAY101
4711420963269
2026-07-28
Kauba vastu huvi?
Technical specifications:
| Processor system | |
| CPU | AMD Ryzen™ 8040U Series 4X4 BOX-8840U (AMD Ryzen™ 7 8840U, 8 cores, max speed up to 5.1 GHz) |
| BIOS | AMI SPI 256 Mbit |
| Memory | |
| Technology | Dual Channel DDR5 5600 MHz |
| Capacity | 96 GB (48 GB per DIMM) |
| Connection | 2 x 262-pin SO-DIMM |
| Graphics | |
| Controller | AMD Radeon™ Graphics |
| HDMI | HDMI 2.1 Maximum resolution support up to 7680x4320@60Hz |
| DisplayPort | DisplayPort 1.4a Maximum resolution support up to 4096x2160@60Hz |
| MultiDisplay | Max. 4 displays (including 2 outputs via Type-C) |
| Expansion slot | |
| M.2/WLAN | 1 x Wi-Fi 6E 802.11ax + BT 5.2 |
| Sound system | |
| Interface | Realtek ALC256, High Definition Audio |
| Ethernet | |
| Controller / Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps; LAN2: Realtek RTL8111H with 10/100/1000 Mbps |
| Connection | 2 x RJ-45 |
| Front I/O | |
| USB | 1 x USB 3.2 Gen2 (Type-A), 2 x USB4 (supports DP1.4a video output) |
| Audio | 1 (headphone and microphone jack) |

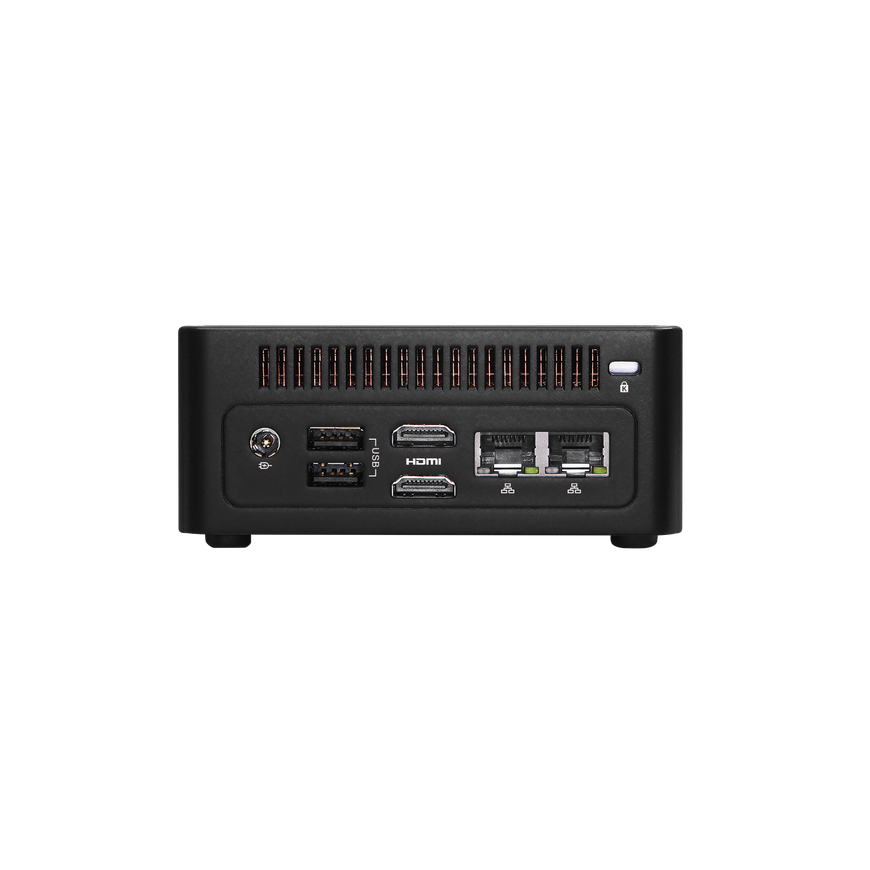

| Rear I/O | |
| HDMI | 2 x HDMI 2.1 |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 2.0 |
| DC Jack | 1 |
| Storage | |
| M.2 | 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4x4 SSD, 1 x M.2 (KEY M, 2242) with PCIe Gen4x4 SSD |
| Watchdog timer | |
| Output | From Super I/O for RESETCON# |
| Interval | 256 segments, 0,1,2....255 sec |
| Energy requirements | |
| Input power | 12V~24V DC-In Jack |
| Activation | AT/ATX supported |
| Environmental conditions | |
| Operating temperature | 0ºC ~ 40ºC |
| Storage temperature | -40°C ~ 85°C |
| Operating humidity | 5% ~ 90% |
| Storage humidity | 5% ~ 90% |
| Mechanical parameters | |
| Confirmation | VESA mount |
| Dimensions (Length x Width x Height) | 117.5 x 110.0 x 49 mm (4.63" x 4.33" x 1.93") |
| Weight | Net weight: 1 kg |
| Others | |
| OS support | Windows 10/11 |
| TPM | AMD FW TPM |
| Certificates | CE, FCC |
| Package: | 1 x 19V/120W power adapter (Ryzen 7), 1 x 19V/90W power adapter (Ryzen 5), 1 x VESA mounting bracket |
