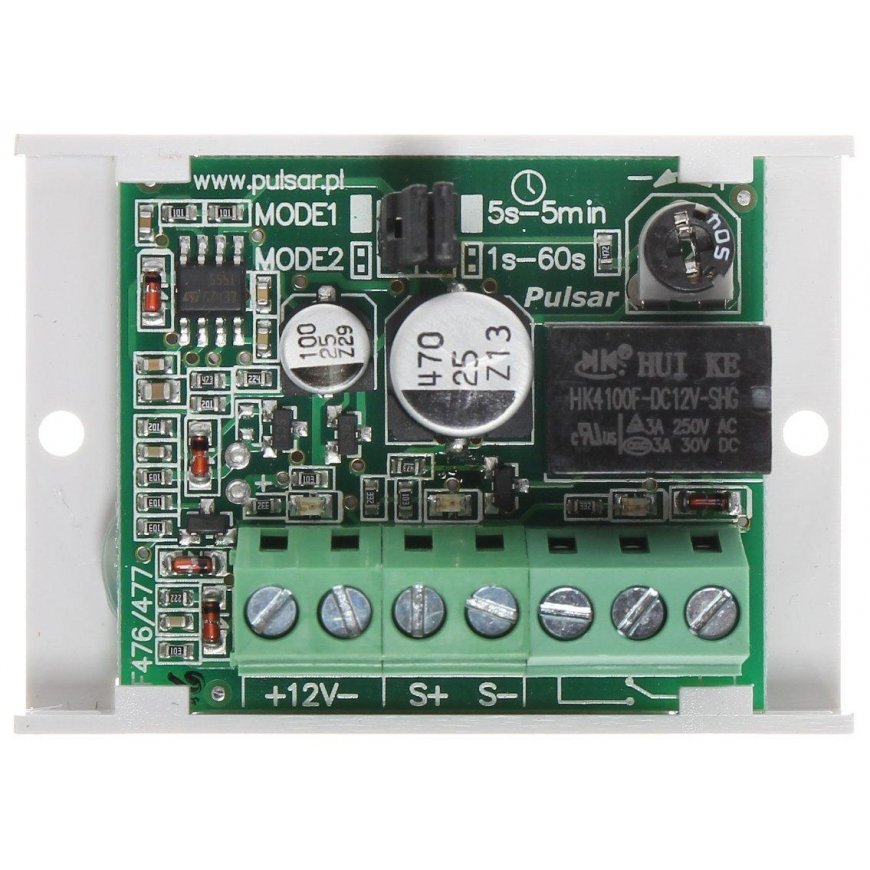

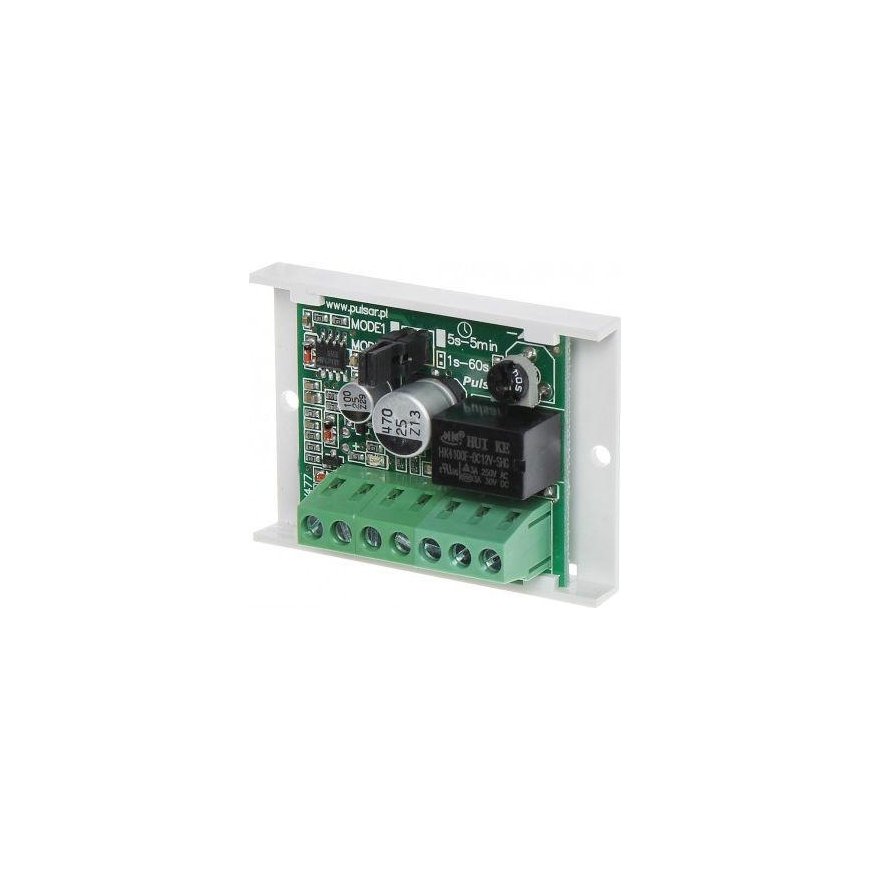

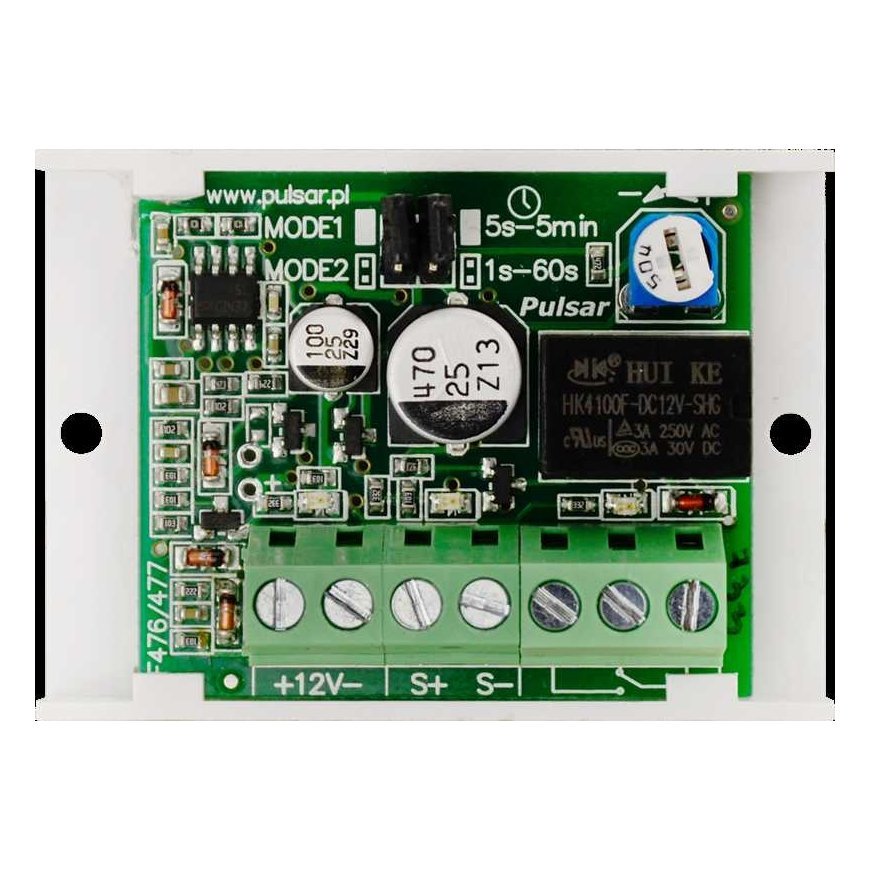

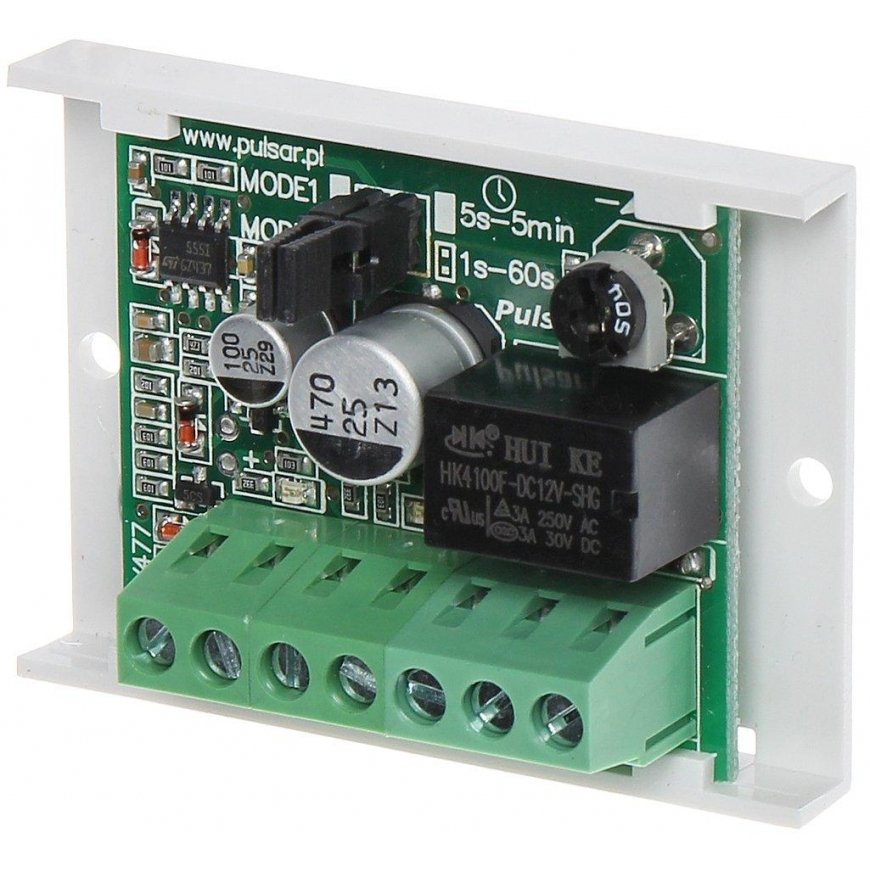

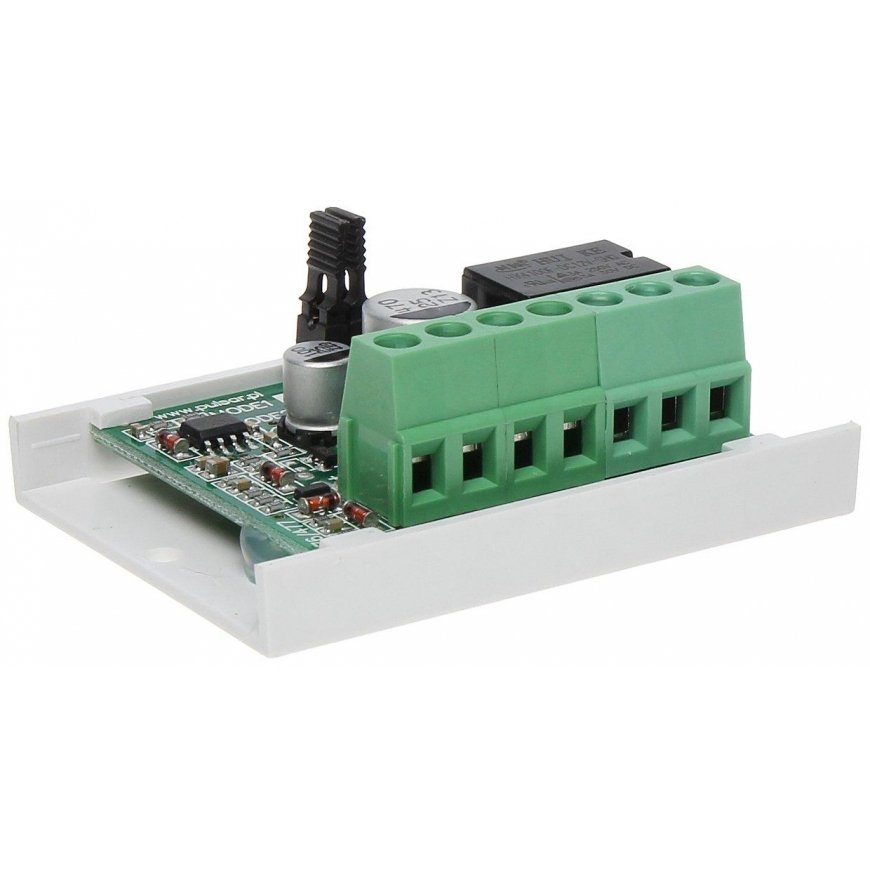

Pulsar TIME RELAY MODULE AWZ-525
21.81 €
3057122 AWZ-525
5902135302163
Tarneaeg 8-12 t.p.
Kauba vastu huvi?
Kõik toote kohta
AWZ-525 sends the possibility of extending the short pulse, timed thanks to the potentiometer.
The device can work in 2 modes: extending the time from the onset of the pulse or extending the time from the time the sent signal disappears.
The device can be used to extend control short pulses e.g. for the work of screws, electromagnetic nuts, bistable control, as well as in transition access control projects, with logical dependencies on the state of: controller, door opening sensor (contactor), entry button, etc.
| Number of relay outputs : | 1 |
| Meals : | 10 ... 14 V DC |
| Current consumption : | 25mA (max) |
| Maximum contact load : | 1 A (max) @ 30 V DC / 50 V AC (max) |
| Output : | 1 x NO/NC |
| Main features : | Time adjustment range 1. Range: 1 s ... 60 s, 2. Range: 5 s ... 5 minutes LED indication |
| Working temperature : | -10 °C ... 40 °C |
| Weight : | 0.03 kg |
| Dimensions : | 59 x 43 x 22 mm |
| Manufacturer / Brand : | PULSAR |
| Warranty : | 2 years |
