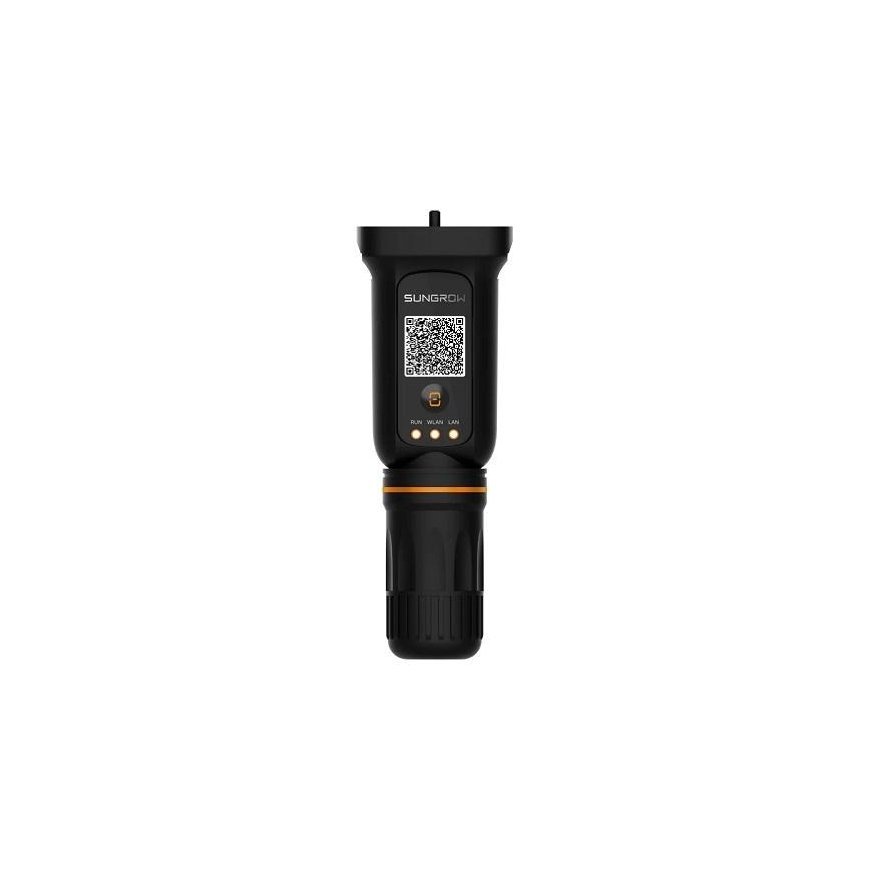

SUNGROW Internet interface WiNet-S
99,00 €
Kuumakse alates 3.45 €
2728759 NV821303
9990000821303
Tarneaeg 2-4 t.p.
Kauba vastu huvi?
Features:
Sungrow LAN/WiFi Internet Interface WiNet-S Dongle is designed to link Sungrow inverter parameters with iSolarCloud server using WLAN or LAN Internet access and monitor solar power plant operation and generated energy.
A LAN connection is recommended for wiring in a suitable environment. The RJ-45 plug is connected to the solar inverter and the network cable is connected to the router, then the connection between the inverter and the server will be established automatically.
Supports smart IV curve diagnostics, local and remote parameter setting, software update.
The device has a control button and 3 LED indicators.
Suitable for Sungrow SG-RS / SG-RT / SH-RS / SH-RT / SG-CX series inverters.
Technical data:
Supported inverters: SG2.0RS / SG3.0RS / SG3.6RS / SG4.0RS / SG5.0RS / SG5.0RS / SG3.0RT / SG4.0RT / SG5.0RT / SG6.0RT / SG7.0RT / SG8.0RT / SG10RT / SG12RT / SG15RT / SG17RT / SG20RT / SH3.0RS / SH3.6RS / SH4.0RS / SH5.0RS / SH6.0RS /SG33CX / SG40CX / SG50CX / SG110CX.
Supported network: LAN/ WLAN.
Data transfer speed: 10/100Mbps.
Wi-Fi wireless standard: IEEE802.11 b/g/n.
Max. communication range: 100 m.
Wi-Fi transmission power: IEEE802.11b <20dBm; IEEE802.11n HT20 <14dBm.
Wi-Fi frequency: 2.412 GHz-2.472 GHz.
Input: DC 5V / 2.1A.
Power consumption: <5W.
Interface with inverter: RJ-45.
Number of supported devices: 1.
Operating temperature: -30°C ~ +60°C.
Safety class: IP66.
Dimensions: 132x48x36 mm.
Weight: 73g.
Warranty: 24 months
