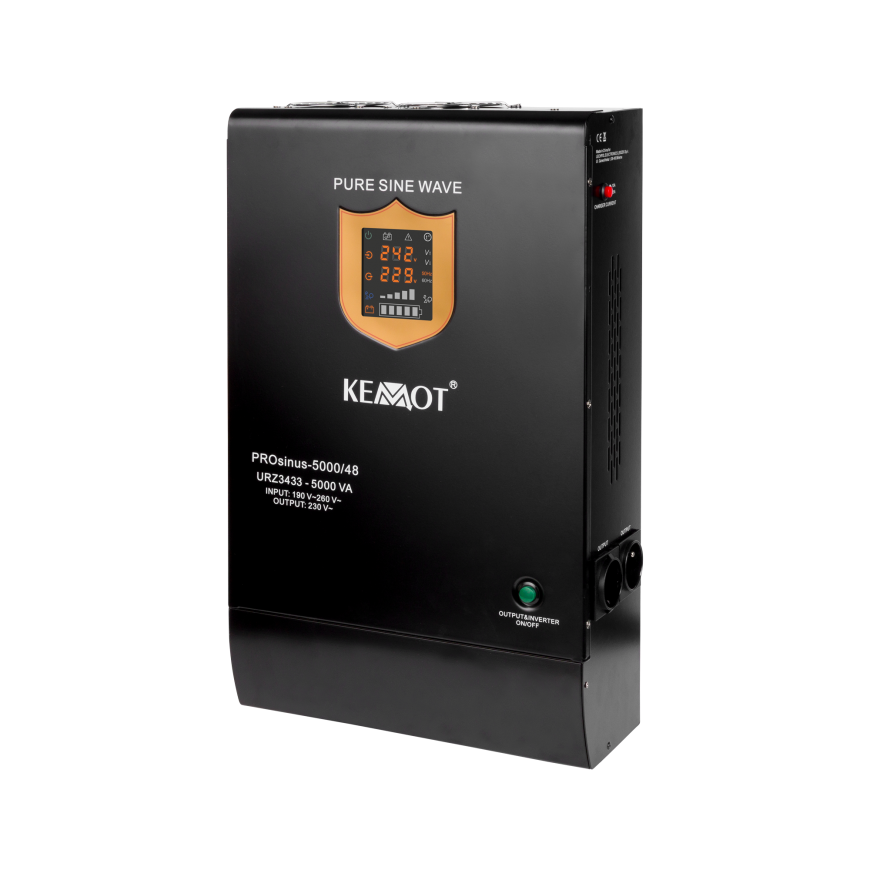

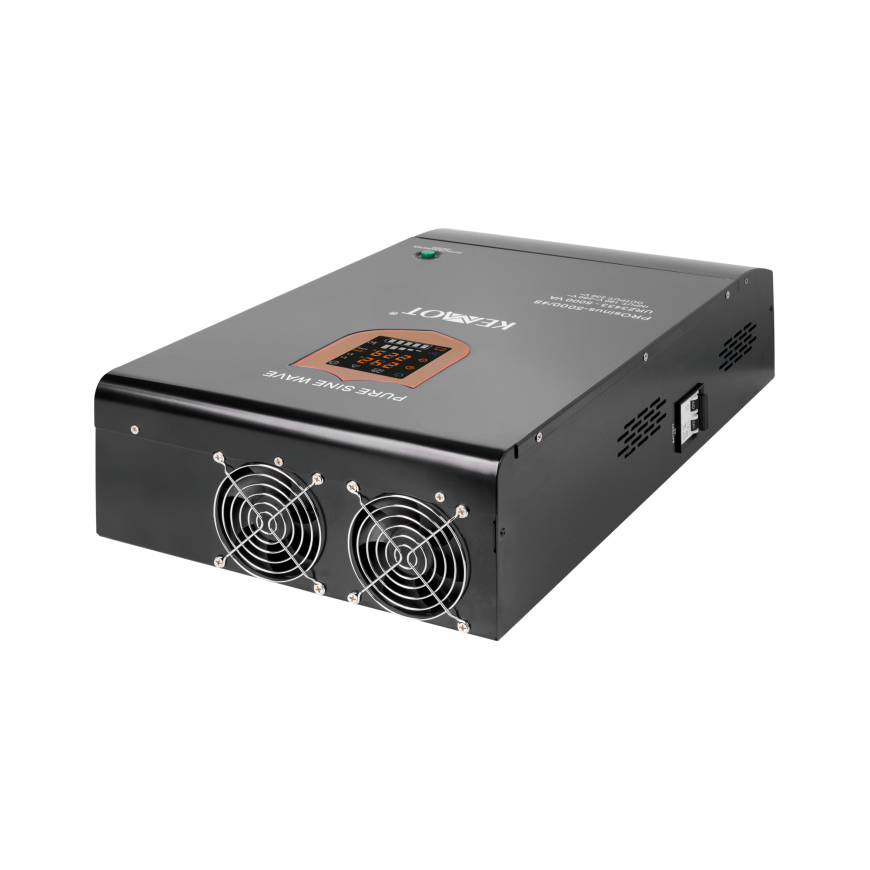

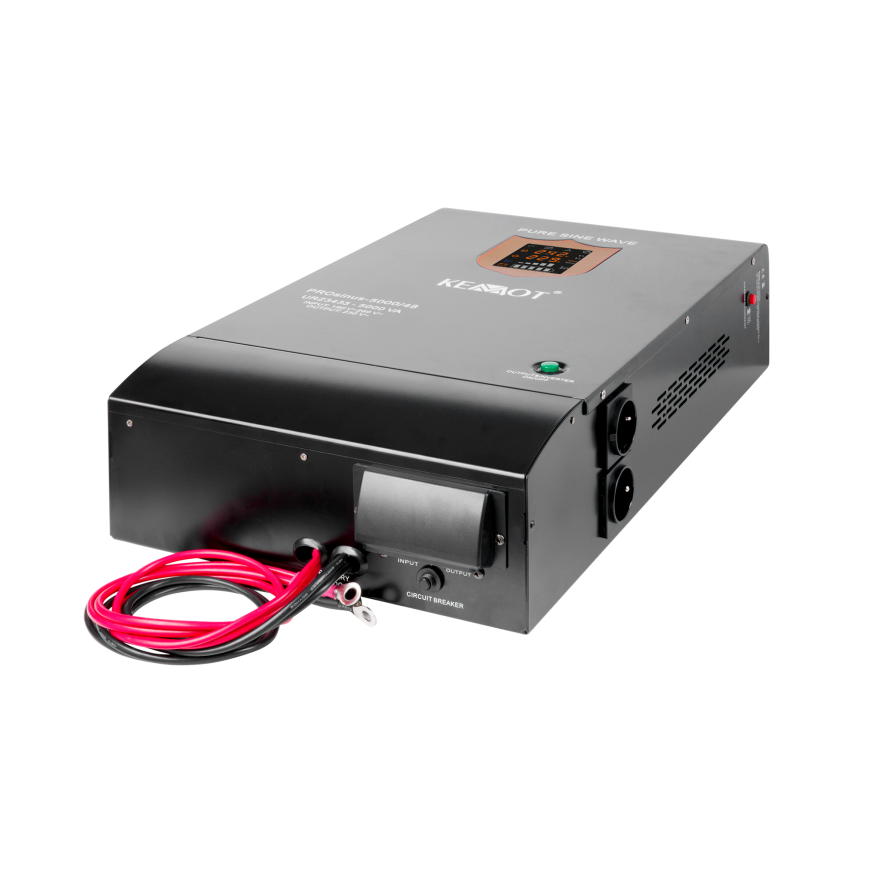

Uninterruptible power supply 48V 230V 5000VA/3500W KEMOT PROsinus 5000

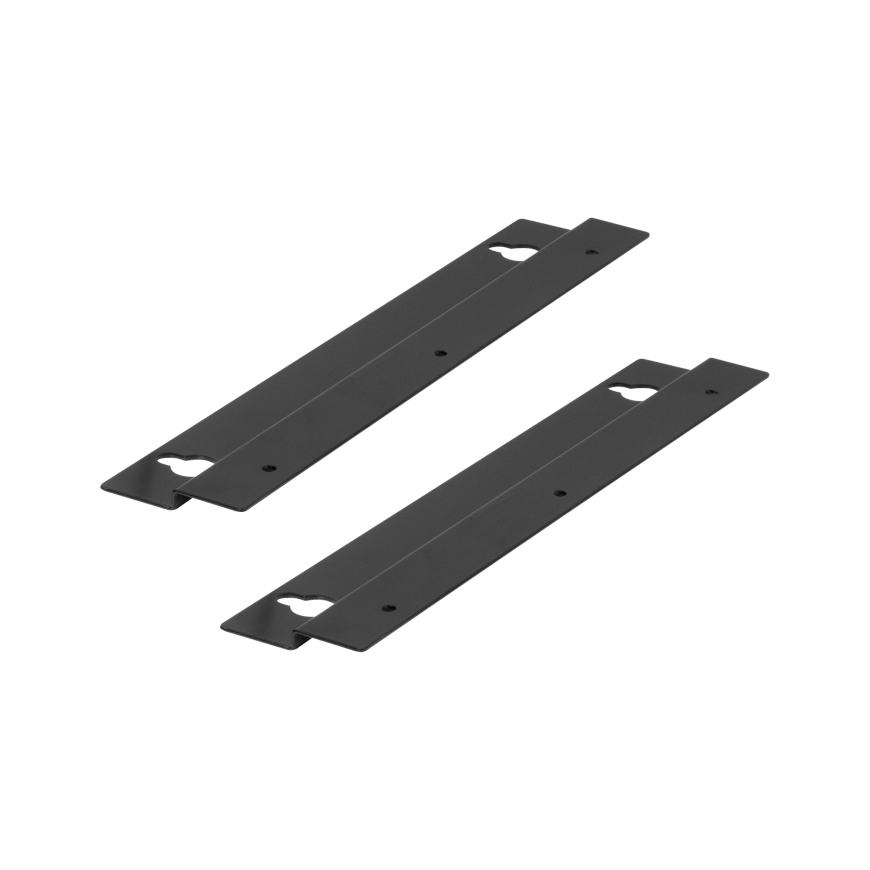

Uninterruptible power supply 48V 230V 5000VA/3500W KEMOT PROsinus 5000, wall mounted

Specifications:

• Nominal power: 3500W
• Battery type: 48V DC
• Maximum battery voltage: 60V DC
• Input voltage range: 190 ~ 260V AC
• Input frequency: 45 ~ 60 Hz
• Output voltage range: AC: 230V +/- 5% / Inv: 230VAC +/- 3%
• Output frequency: 50/60 Hz +/- 0.5 Hz
• Output voltage shape: pure sine wave
• Output efficiency>=85% (DC to AC)
• Battery charging current: 10A / 15A
• Battery capacity: 50-300 Ah (recommended: 200 Ah)
• Estimated charging time: 4-14 hours (depending on battery capacity)
• Switching time: <= 4 ms
• Protection: against overload, short circuit, over voltage or under voltage
• Allowed working temperature: 0-40°C
• Permissible air humidity 10 - 90%
