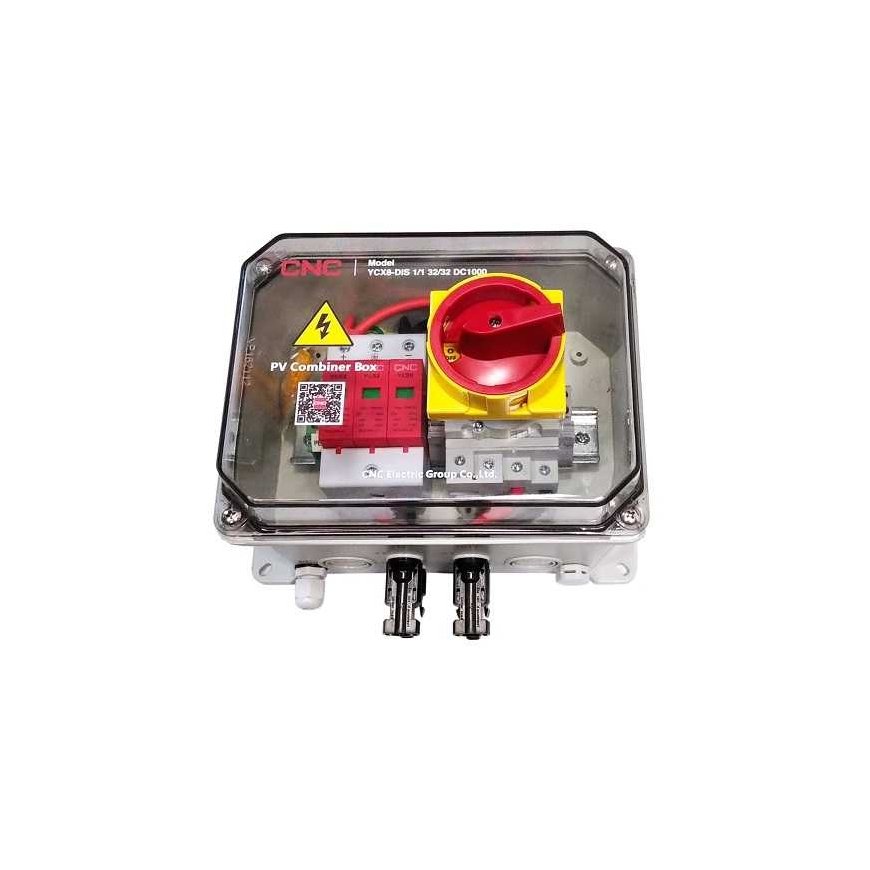

CNC PV disconnect panel, DC 1in-1out, IP67
79,00 €
Kuumakse alates 2.93 €
2592531 NV822287
6942367528732
Tarneaeg 2-4 t.p.
Kauba vastu huvi?
Features:
1 input 1 output 1000V DC.
DC junction box for 1-in/1-out PV system.
Designed for surge protection and isolation of the DC side of solar power.
Resistant to UV rays, water and dust IP67, shockproof, non-flammable V0.
With MC4 connectors. Box size 215x165x154mm, standards EN60529.
DC switch:
1000V DC, 25A. (1 pc.)
The DC switch locks the box lid.
Patented DC extinguishing chamber.
Standards: UL508i, IEC60947-3 Pv2.
Direct current surge arrester SPD:
Model: YCS8.
1000V DC, 40kA. (1 pc.)
Intended for the protection of photovoltaic cells.
Response time: <25ns.
Standards: IEC 61643-31, EN 50539-11+ A1.
Technical data:
Entrance: 1.
Exit: 1.
Maximum voltage: 1000V.
DC switch: 1000V, 25A. (1 pc.)
DC SPD: 1000V, 40kA. (1 pc.)
Short circuit current per input (Isc): 15A-30A (changeable).
Maximum output current: 25A.
Maximum discharge current (Imax): 40 kA.
Nominal surge discharge current (In): 20 kA.
Trigger voltage (Up): 3.6 kV.
Body material: 100% PC (polycarbonate).
Safety class: IP67 (waterproof and dustproof), V0 UL94 (flammproof).
Dimensions: 215 x 165 x 154 mm.
Input cable thicknesses: PG09, 2.5-16 mm.
Output cable thicknesses: PG21, 2.5-16 mm.
Operating temperature: -25°C to 60°C.
Warranty: 24 months
