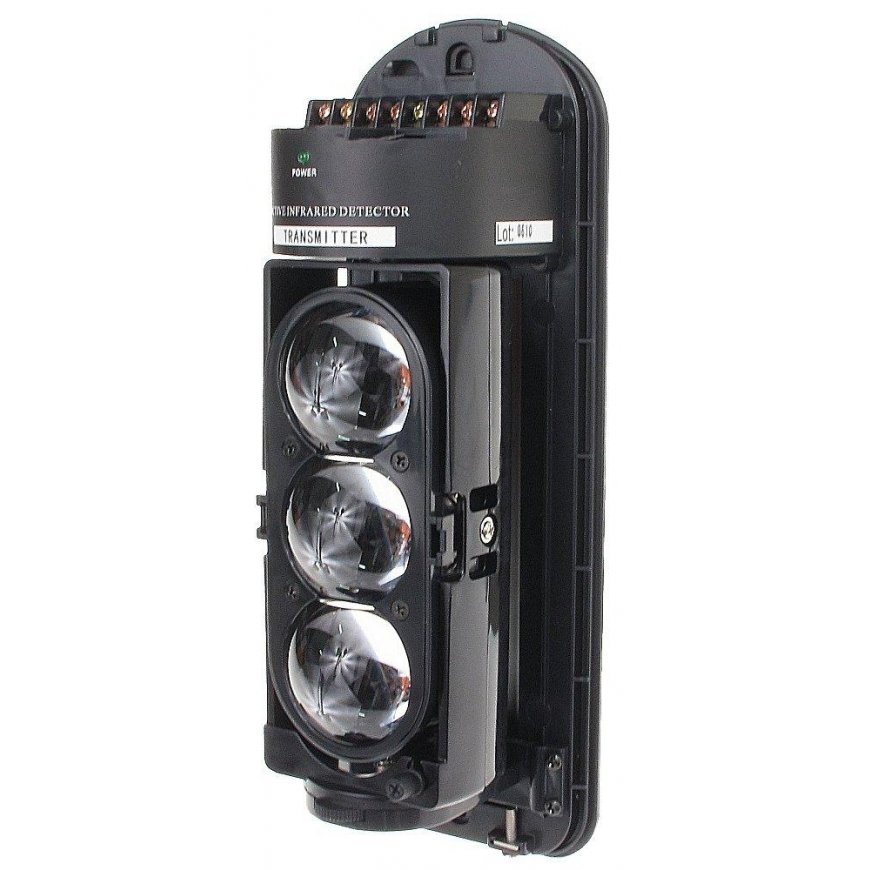

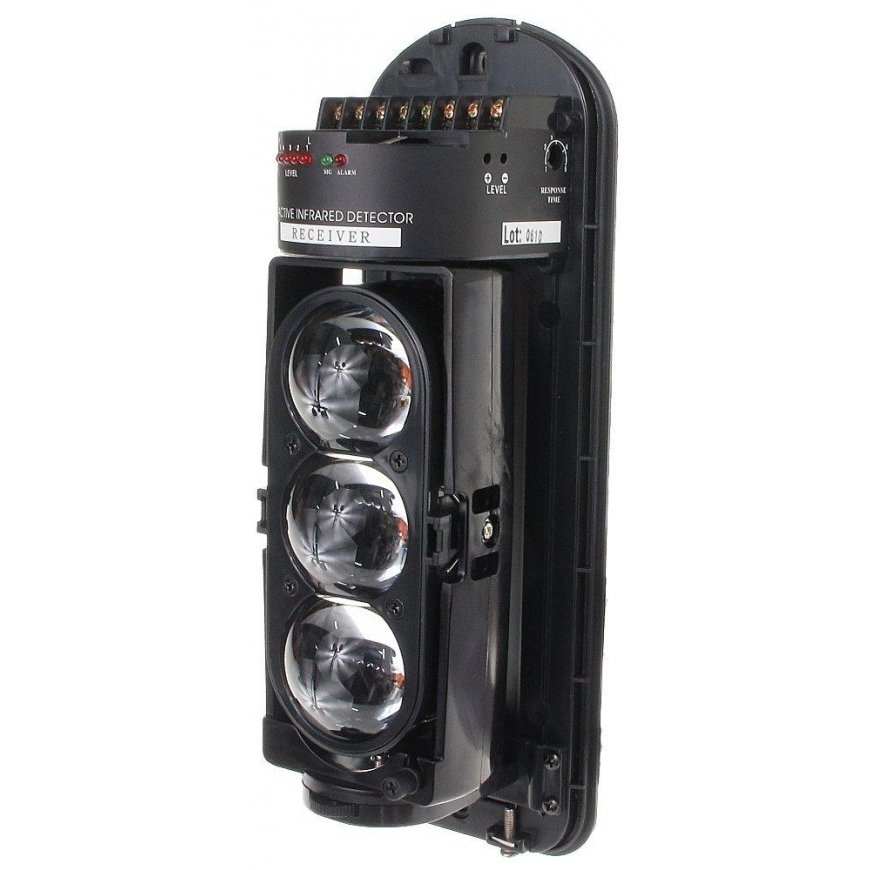

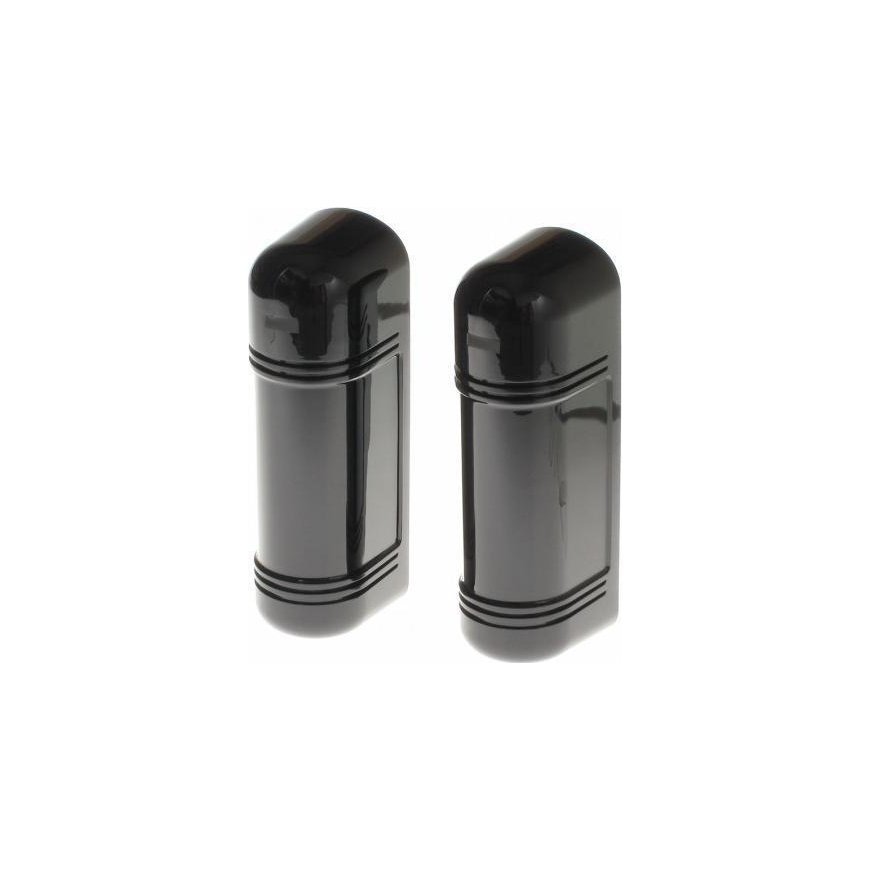

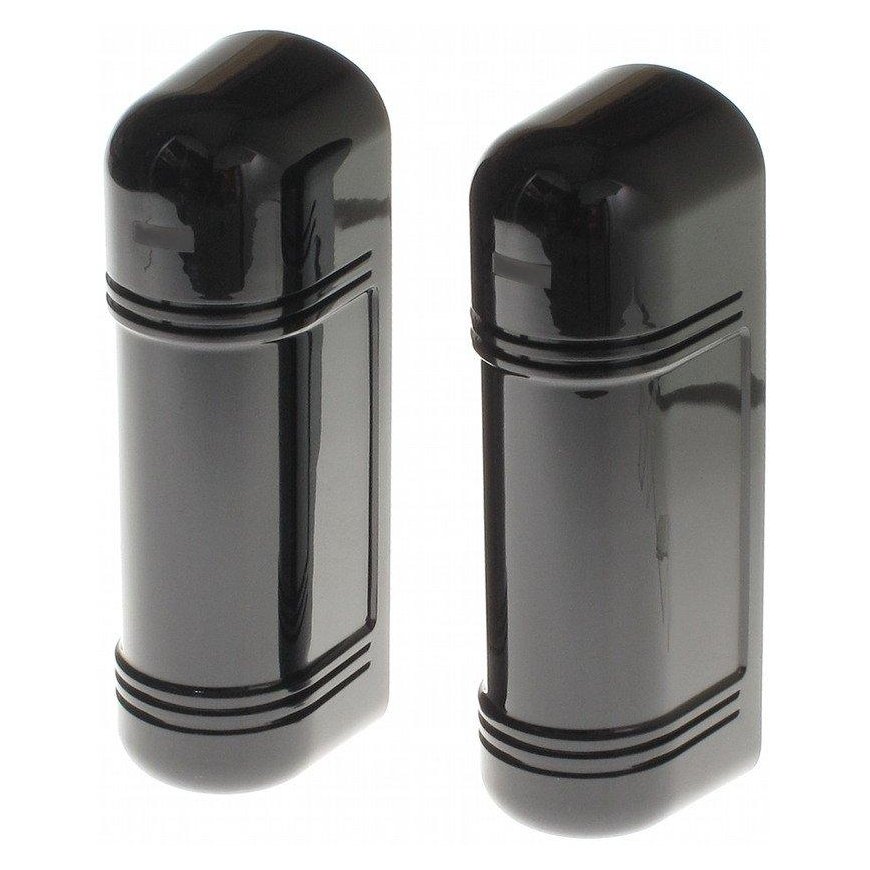

INFRARED BARRIER AN900-B250 3 BEAMS
2425267 AN900-B250
5902887027659
Tarneaeg 1-14 t.p.
Alarm systems based on passive IR sensors detect an intruder who has already entered the room.
The purpose of a system based on IR barriers is to trigger an alarm when an intruder is about to enter the premises while still outside the facility.
The curtain consists of several active IR barriers that create an invisible "grill" in the window or door niche.
Attempting to breach these "bars" immediately triggers an alarm.
IR curtains are also used to protect controlled passages, gates, fences, valuable objects in open areas, etc. In museums, IR curtains play the role of a non-confrontational, discreet barrier between viewers and valuable exhibits.
In the event of a permanent interruption of the beam (in the presence of an obstacle between the transmitter and the receiver), the barrier does not return to its original state.
This barrier behavior is very important in controlling entry gates, entrance barriers, etc.
| Number of beams : | 3 |
| Detection method : | Blocking 3 beams at once |
| Operating range in outdoor conditions : | 250 years |
| Operating range indoors : | 750 |
| Beam characteristic : | Modulated pulsed triple IR beam |
| Duration of interruption (radius damage) : | 50 ... 700 ms (selectable) |
| Alarm duration : | 2 s ± 1 (nominal) |
| Alarm output : | Relay (AC/DC 30V max. 0.3A) |

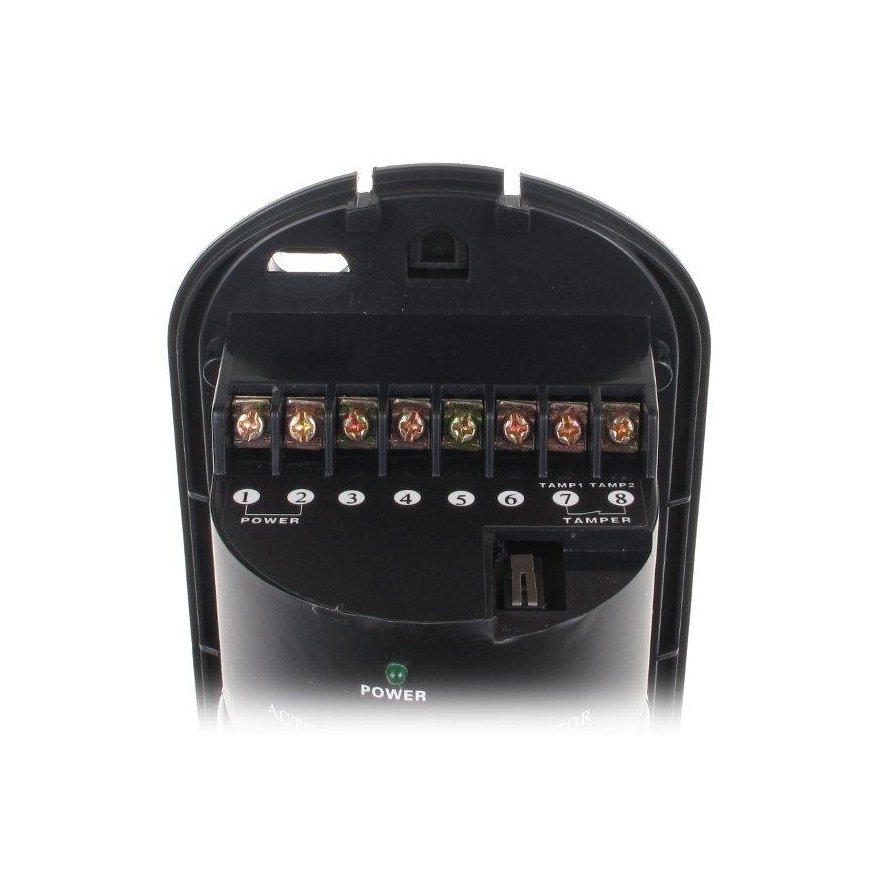

| Anti-sabotage contact : | NC opens during trim removal (transmitter and receiver) |
| Angle adjustment limits : | ± 10 ° vertical ± 90 ° horizontal |
| Installation : | to a wall or post |
| Feed : | 12 ... 24 V DC |
| Current consumption : | max. 100mA |
| Sealing class : | IP65 |
| Operating temperature / relative humidity : | -25 °C ... 55 °C / max. 95% |
| Selected features : | high-quality aspherical lenses adjustable beam blocking duration automatic gain control responding to changes in weather conditions support for stable operation after loss of up to 99.5% of beam energy due to intense rain, dust, snow, fog |
| Transmitter or receiver dimensions : | 285 x 90 x 110 mm |
| Transmitter and receiver weight : | 1.25 kg |
| Warranty : | 2 years |
