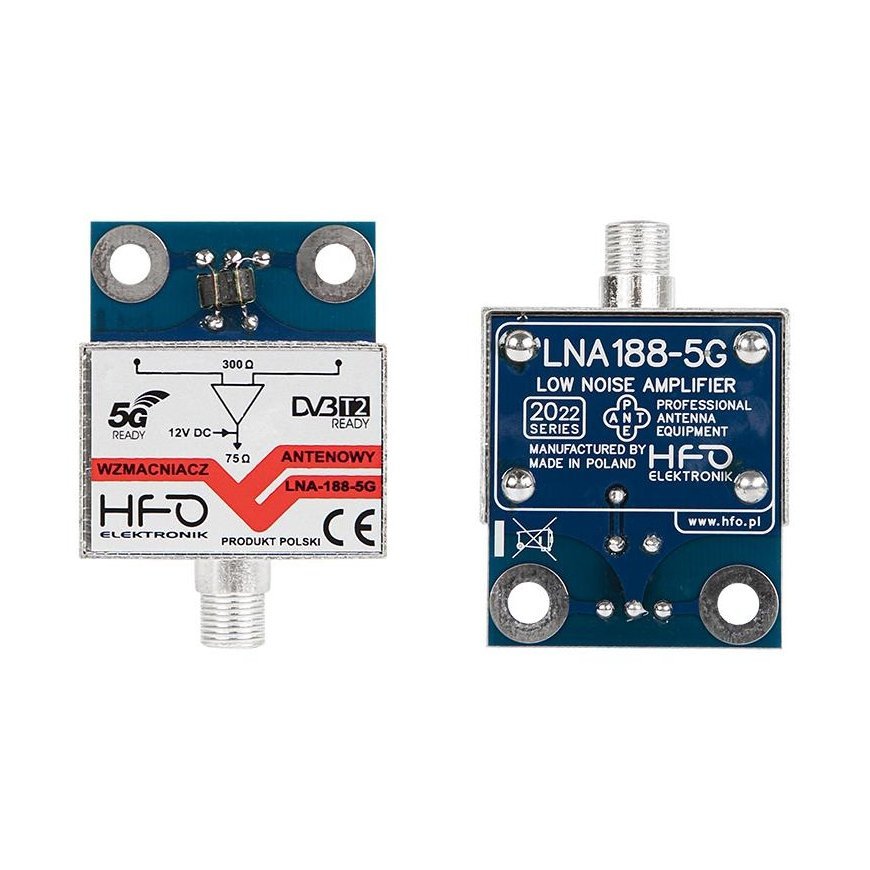

Blow 2608 Antenna amplifier lna-188-5g 32db hfo original

Key Features:

• Light metal alloy body for high resistance to interference and weather conditions
• High-quality F socket - ensures good connection and convenient and easy installation
• LNA series amplifiers are suitable for mesh antennas and can be installed in place of a traditional plate amplifier
• Amplification band corresponding to the TV signal broadcast in Poland
• High resistance to signals interfering with the DVB-T2 digital TV signal: CB, FM, LTE700 (5G), LTE800 (4G), GSM900, Wi-Fi, Bluetooth
• Low noise figure
• Gain characteristics to compensate for coaxial cable attenuation
• The LNA-188-5G model is recommended for use at a distance of 20-100 km from the transmitter, depending on the terrain and the power of the transmitter.

Specification:

• Gain: 32dB

• Gain range: UHF and VHF

• Supply voltage: 12V DC, 55 mA, power supply via coaxial cable

• Connections: F-type connector for connecting the cable, connectors for connecting the amplifier to the antenna terminals

• Includes transmission band: MUX 1, MUX 2, MUX 3, MUX 8 and local multiplexes

• Dimensions: 14mm x 40mm x 44mm (without F connector) - 54mm (with F connector)
