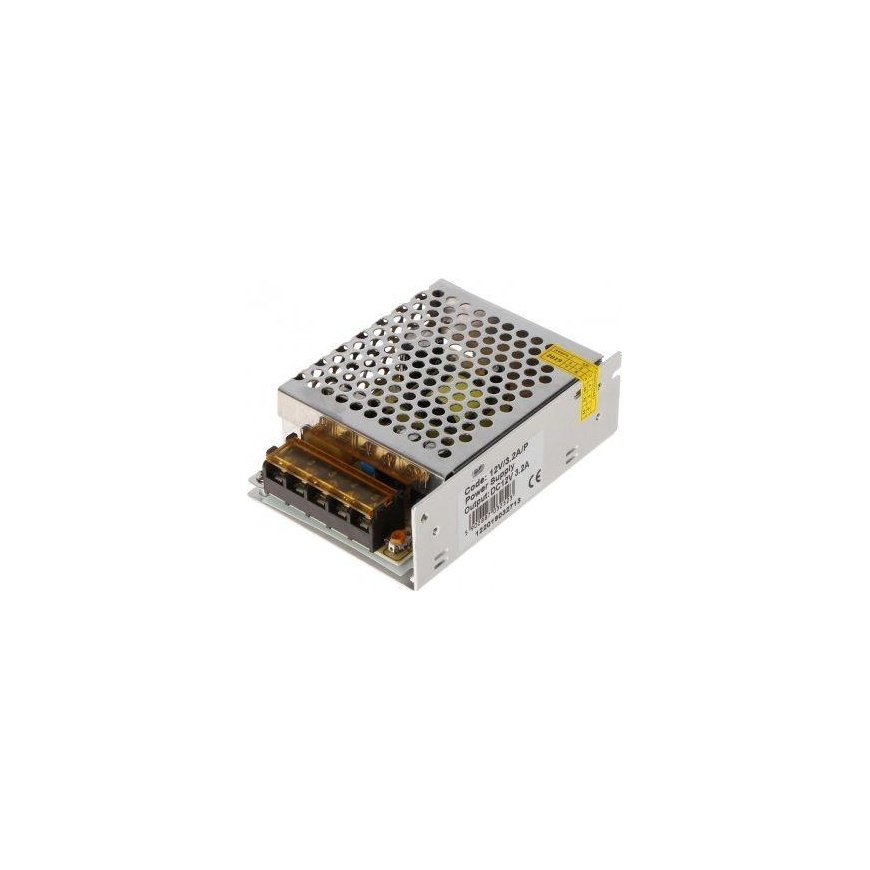

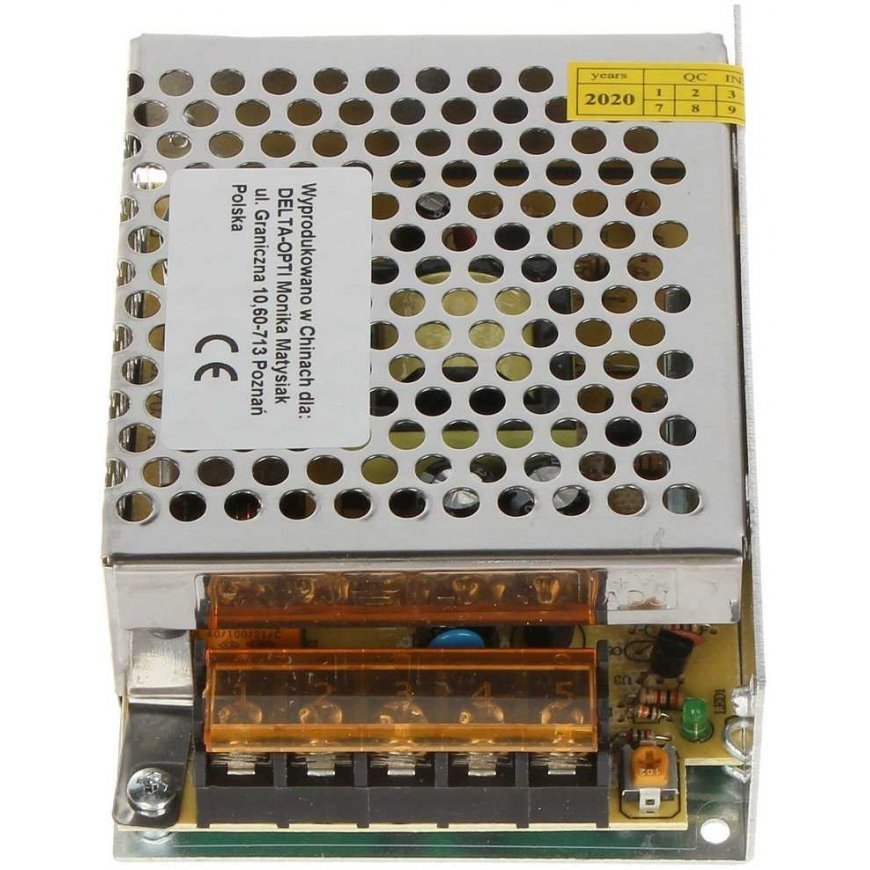

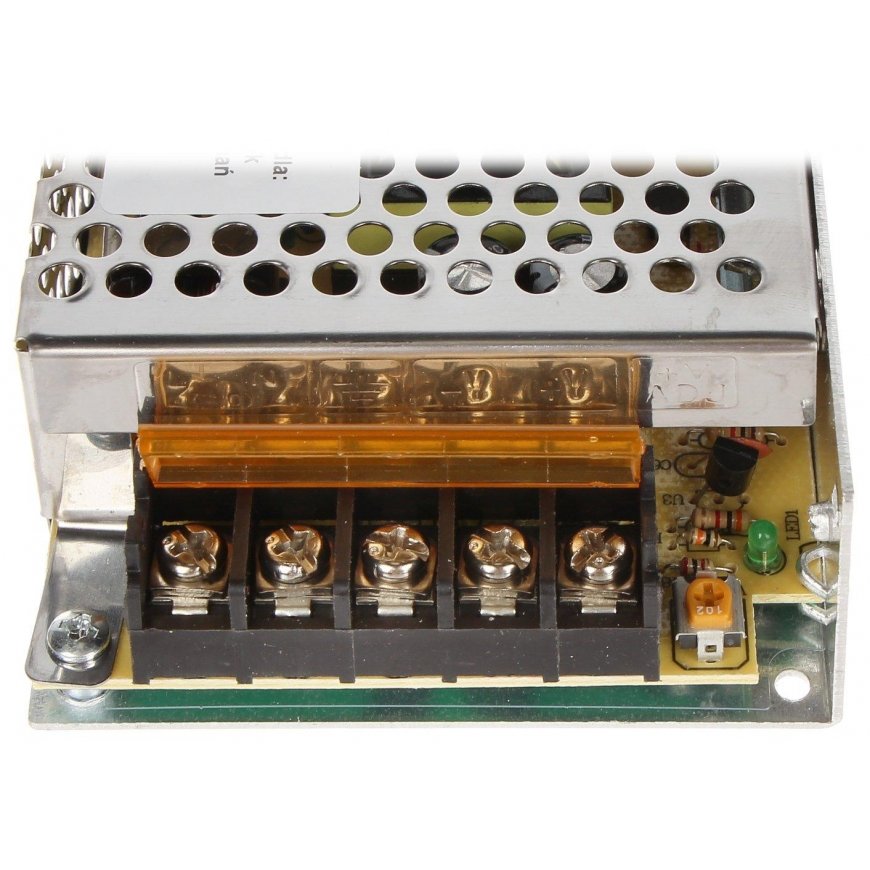

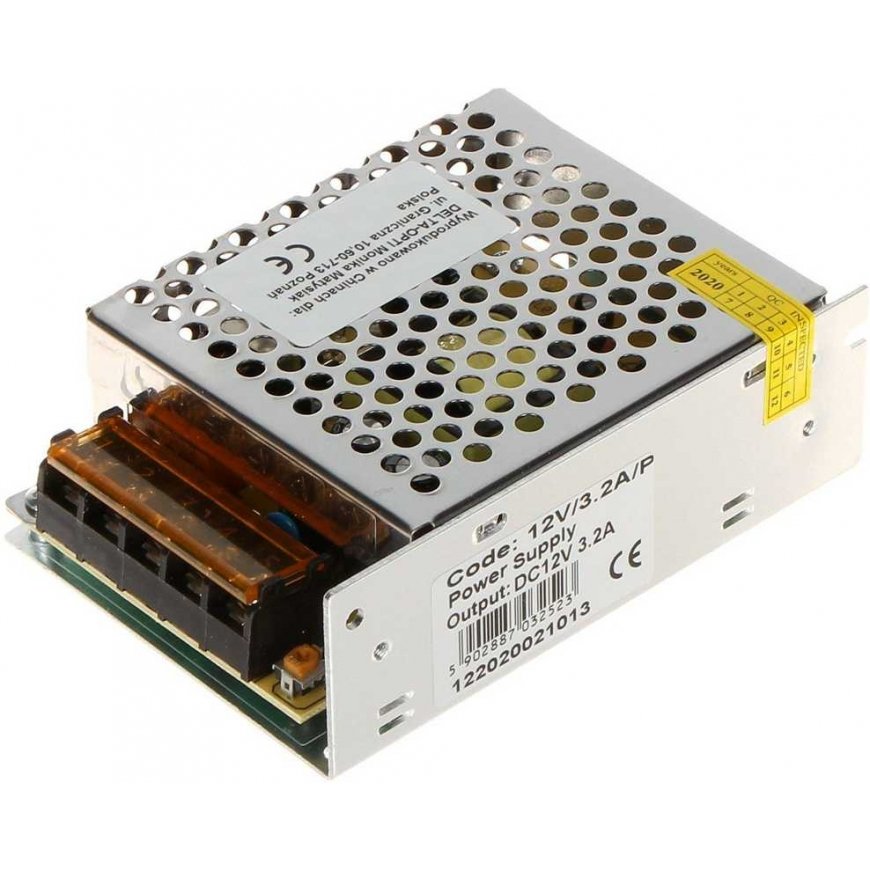

Array Array PULSE POWER SUPPLY 12V/3.2A/P
19,00 €
15,24 €
2370709 5902887032523
Tarneaeg 1-14 t.p.
Kauba vastu huvi?
Single-output switching power supply with small dimensions.
Attention! If the power supply is intended for continuous operation (24H), its nominal current must not exceed 80% of the maximum current.
It is necessary to pay attention to the proper cooling of the power supply during operation! In rack cabinets and poorly ventilated areas, it is recommended to use the following elements with the power supply: fan A19-W12 and speed regulator FR-1.
| Power supply type : | Impulsive |
| Supply voltage : | 230 V AC |
| Output voltage : | 12V DC |
| Output voltage regulation : | 11 ... 13.8 V |
| Power supply current capacity : | 3.2 A |
| Power supply : | 38 W |
| Number of outputs : | 1 pc. |
| Protective measures : | |
| Operating temperature / relative humidity : | -10 °C ... 50 °C / 20 % ... 90 % |
| Weight : | 0.18 kg |
| Dimensions : | 101 x 78 x 37 mm |
| Warranty : | 2 years |
