Autone AHD MOBILE CAMERA ATE-CAM-AHD620HD – 1080p 2.8mm AUTOMATIC
2360207 ATE-CAM-AHD620HD
5902887054389
2026-07-22

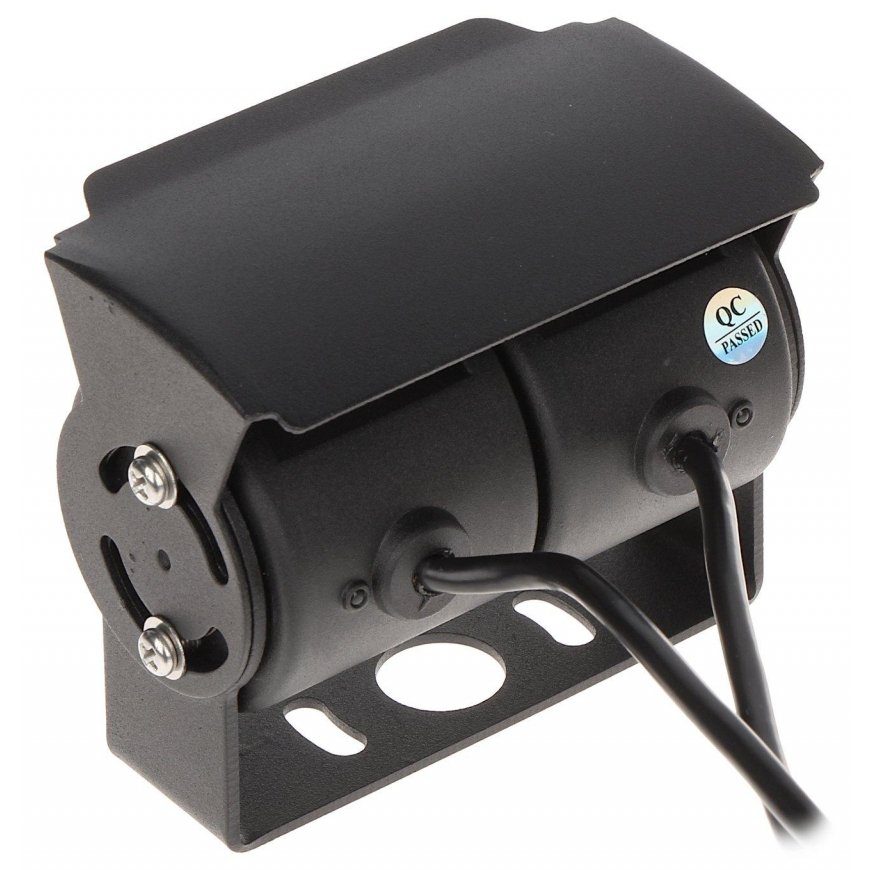

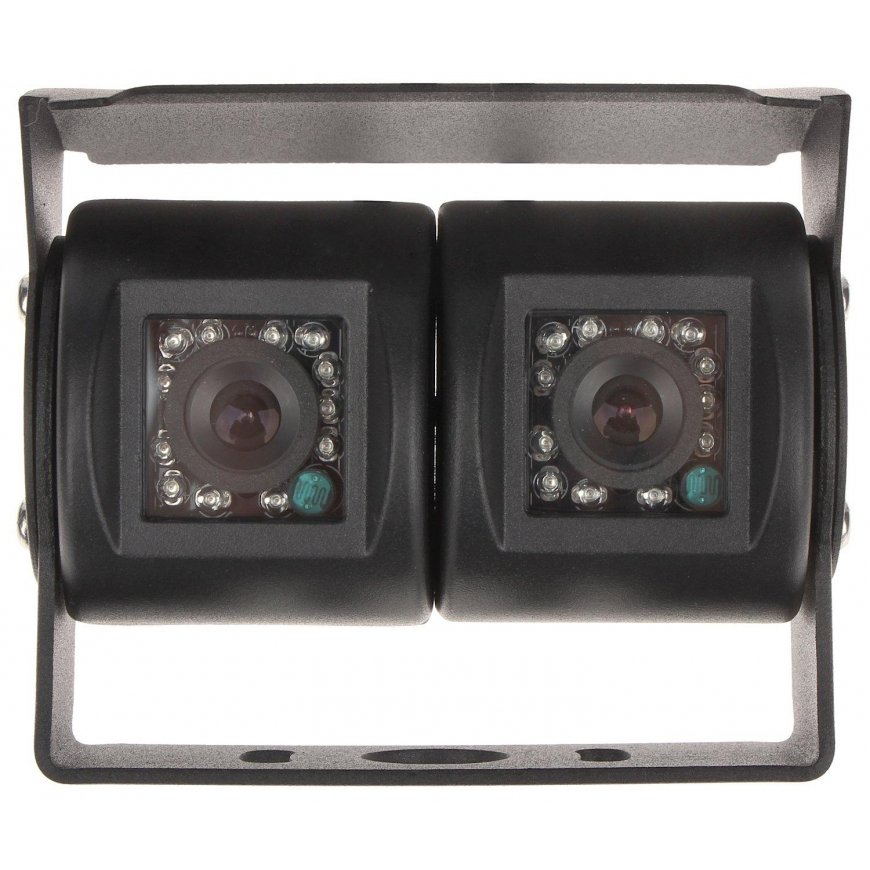

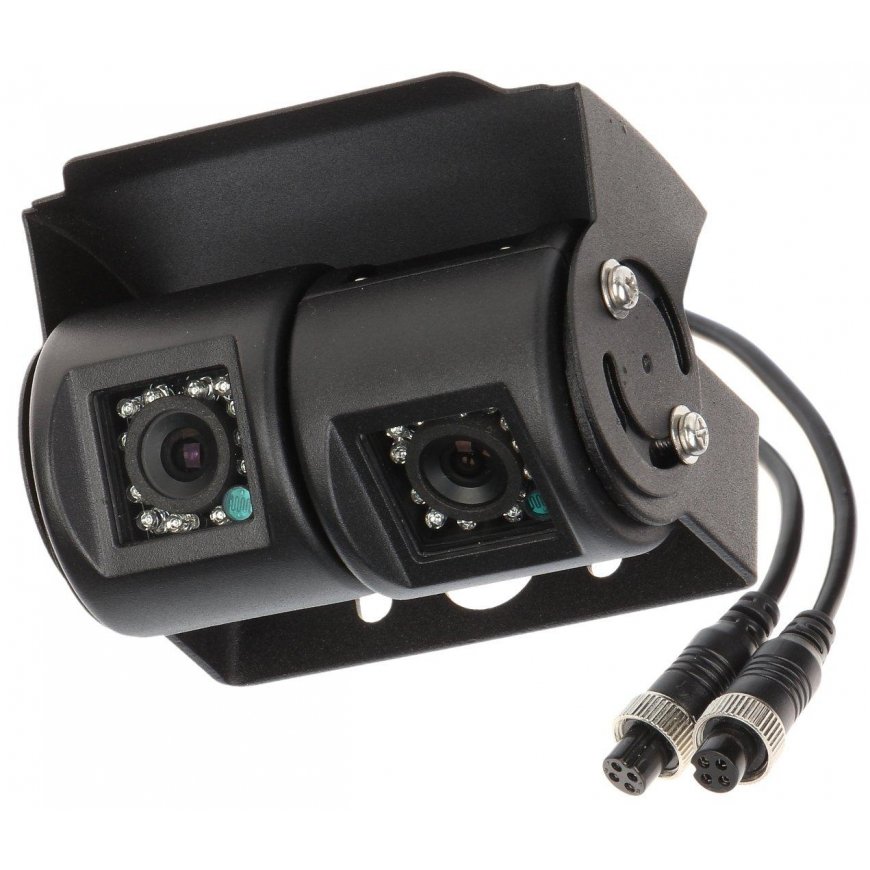

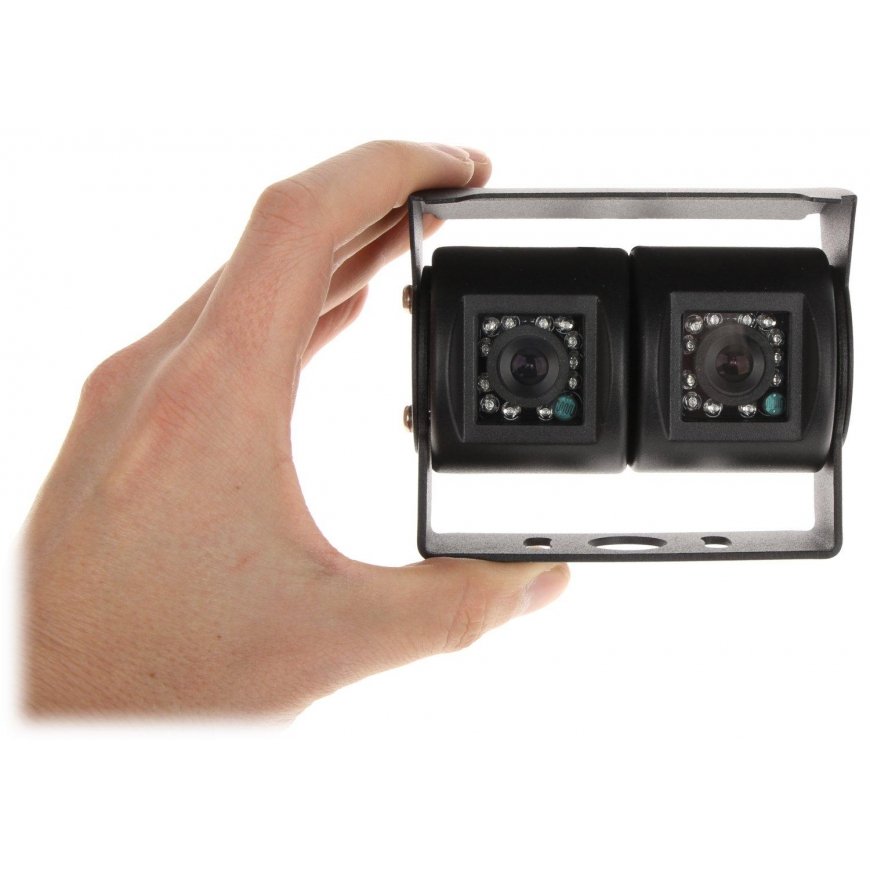

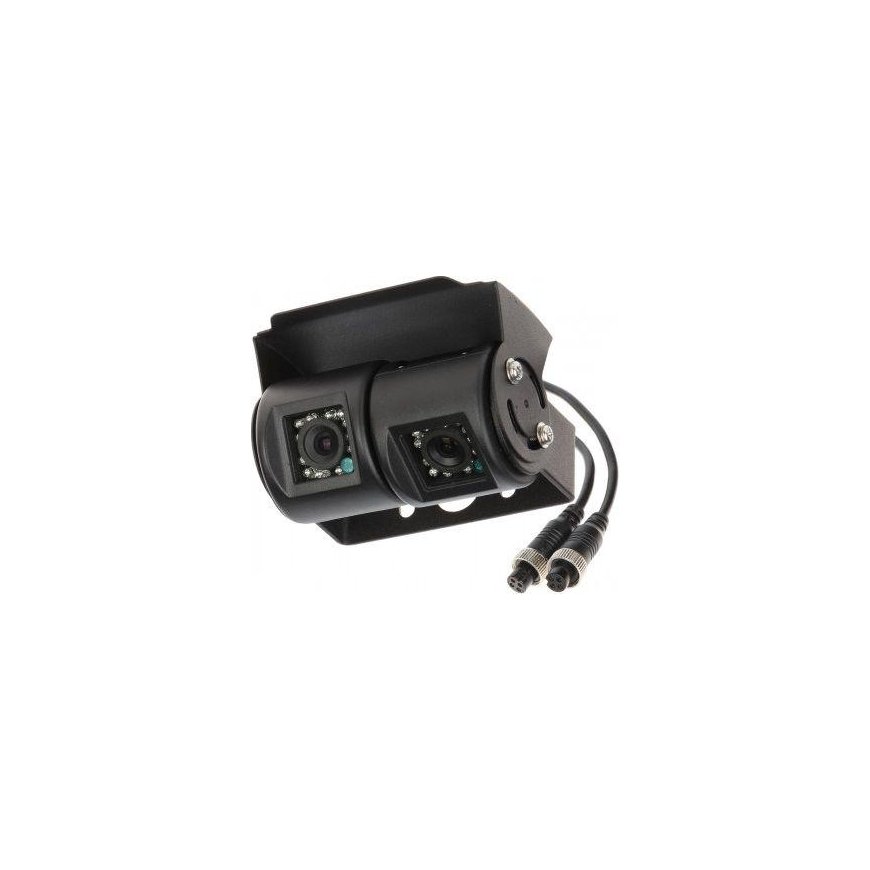

The ATE-CAM-AHD620HD Dual Reversing Camera is designed for installation on the exterior of a vehicle.
Two cameras with individually adjustable tilt angle allow for accurate monitoring of the vehicle's surroundings.
This design provides good visibility for reversing both low and significantly higher obstacles.
Independent adjustment of the vertical tilt of each camera allows two vertical images to be combined, which is especially useful for tall vehicles such as e.g. trucks, buses, etc.
The camera complies with the IP67 sealing class.
| Standard : | AHD |
| Sensor : | 1/3" Sony CMOS IMX323 |
| Matrix size : | 2.1 Mpx |
| Resolution : | 1920 x 1080 - 1080p |
| Lens : | 2.8 mm |
| Viewing angle : | 89 ° (manufacturer's data) 85 ° (our tests) |
| IR illuminator coverage : | 10 years |
| Signal-to-noise ratio (S/N) : | ≥ 58 dB |
| Video output : | 2 x 1 Vpp / 75 Ω - M12, 4-pin socket, Code A |
| Audio : | - |
| Selected features : | AGC - Automatic gain control BLC - backlight (background) compensation Automatic white balance Sharpness - sharpening of image contours |
| OSD menu : | - |
| Body : | Mini, Metal |
| Color : | Black |
| Usage : | The camera is intended for installation on the exterior of vehicles |
| Meals : | 2 x 12 V DC / 420 mA - Camera power supply voltage 12 V DC directly from the recorder |
| Power consumption : | < 10 W (total) |
| Working temperature : | -10 °C ... 50 °C |
| Weight : | 0.46 kg |
| Dimensions : | 101 x 82 x 60 mm |
| Manufacturer / Brand : | IN THE CAR |
| Warranty : | 2 years |
Camera 1
Image from the camera under artificial lighting (about 30 Lux)
Image from the camera at night with the built-in IR illuminator
View from the camera with strong light shining directly on it
Camera 2
Image from the camera under artificial lighting (about 30 Lux)
Image from the camera at night with the built-in IR illuminator
View from the camera with strong light shining directly on it
