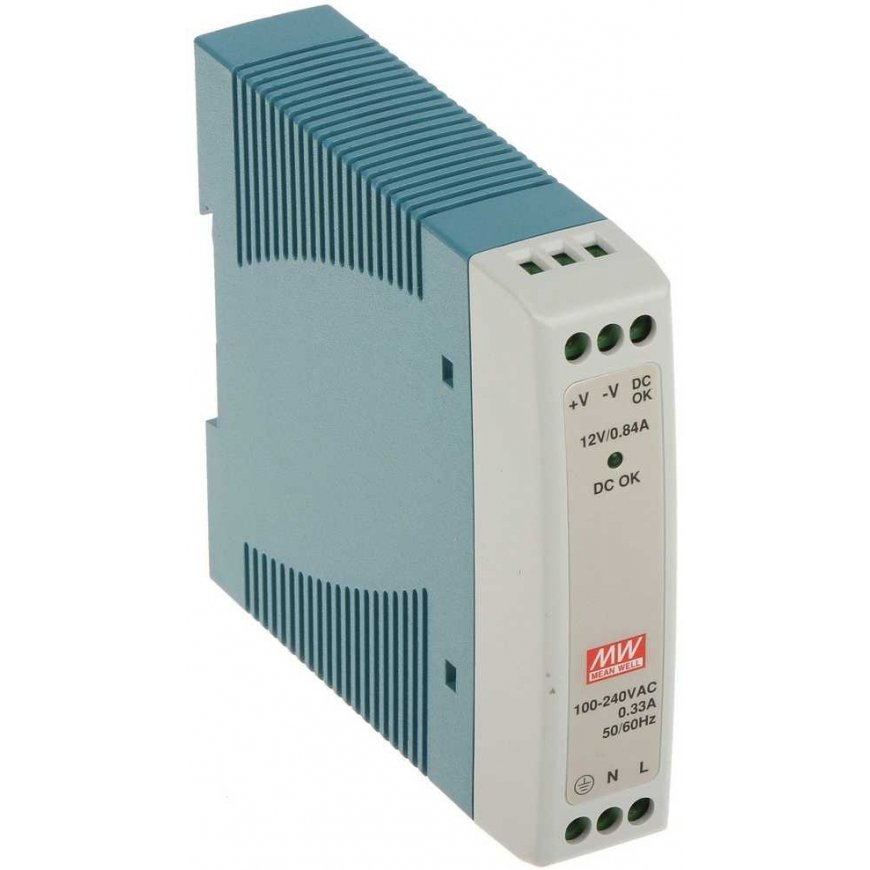

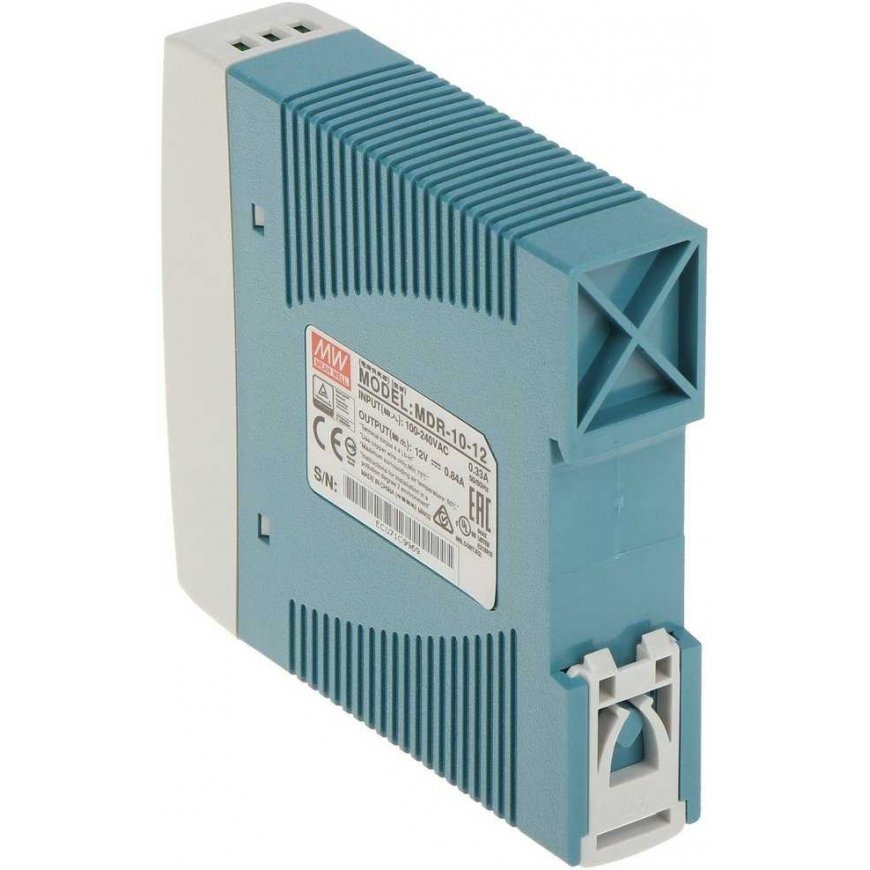

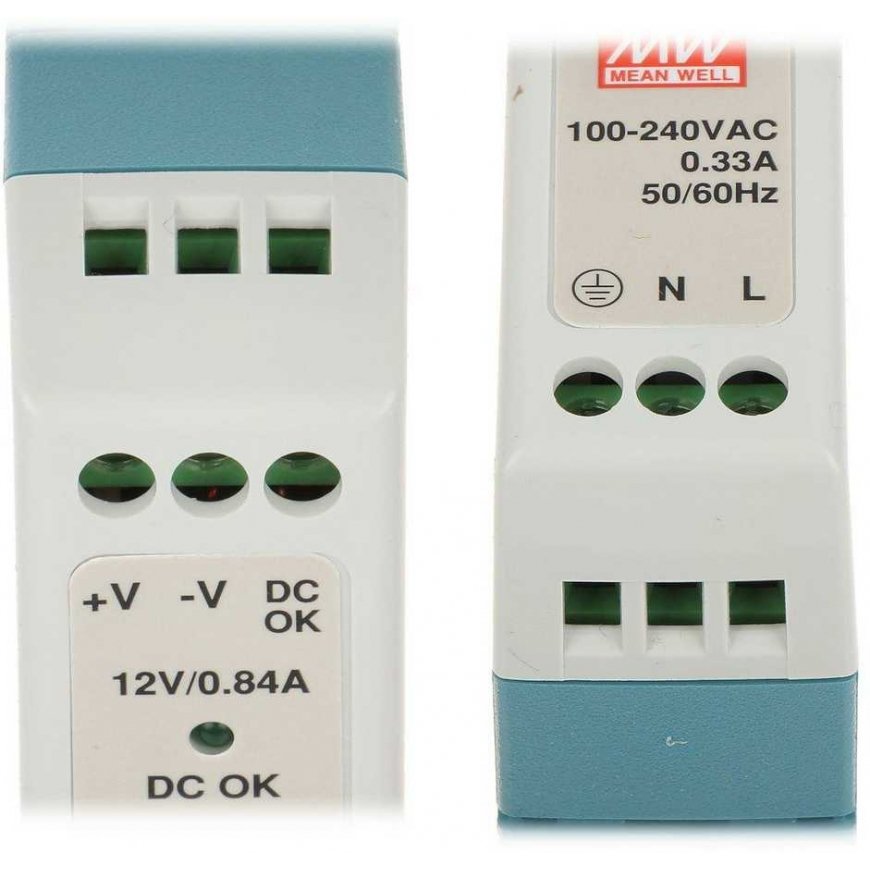

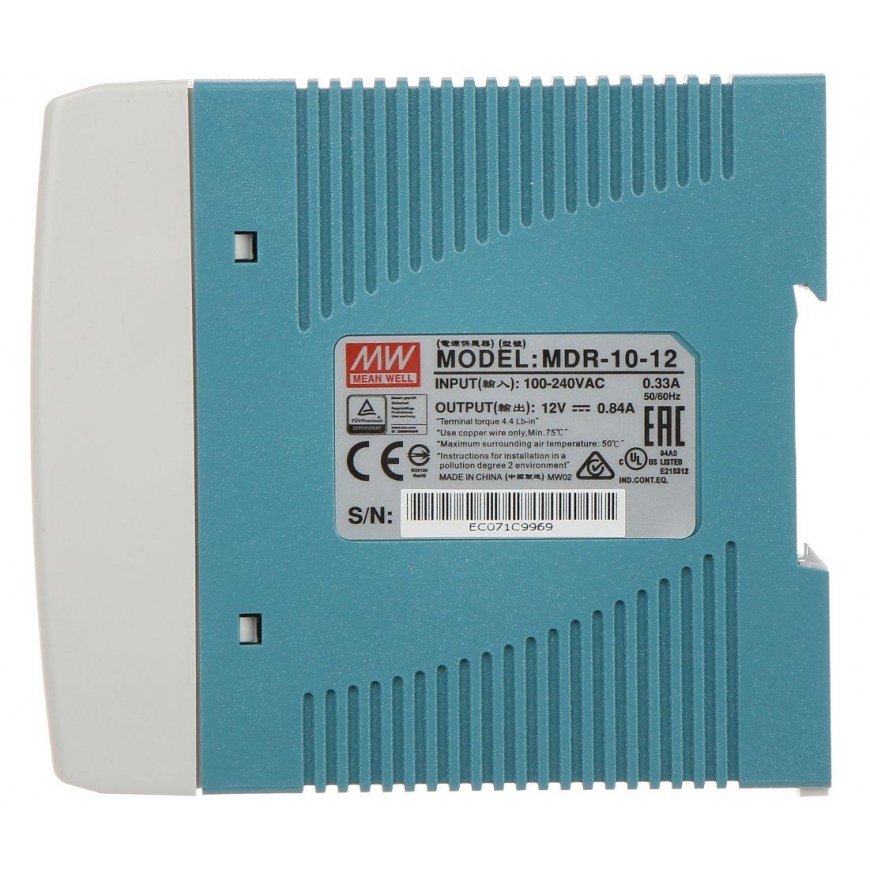

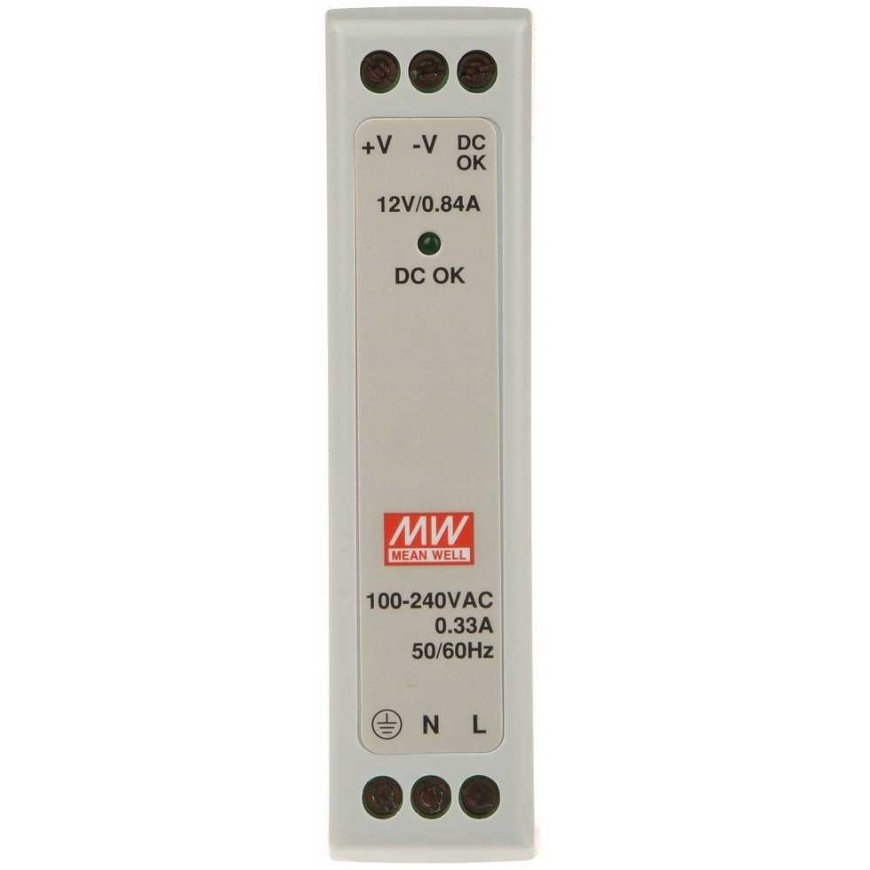

IMPULSE POWER SUPPLY MDR-10-12
49,00 €
30,83 €
2356694 5901643191603
Tarneaeg 1-14 t.p.
Kauba vastu huvi?
Impulse power supply, installed on TS35/7.5 or 15 DIN rail, resistant to high working temperatures (up to 70°C)
| Power supply type : | Impulsive |
| Supply voltage : | 100 ... 240 V AC |
| Output voltage : | 12V DC |
| Output voltage regulation : | 10.8 ... 13.2 V |
| Voltage tolerance : | ± 1% |
| Power supply current capacity : | 0.84 A |
| Power supply : | 10W |
| Number of outputs : | 1 pc. |
| Efficiency : | 81% |
| Body Type : | DIN |
| MTBF (mean time between failures) : | 584000 hours |
| Vibration resistance : | IEC60068-2-6, 10 ... 500 Hz max. 2G for 90 minutes |
| Protective measures : | |
| Operating temperature / relative humidity : | -20 °C ... 70 °C / < 95 % |
| Weight : | 0.14 kg |
| Dimensions : | 22.5 x 100 x 90 mm |
| Warranty : | 2 years |
