Delta POWER DISTRIBUTOR WITH FILTER LZ-1/FDC
19,00 €
2339540 LZ-1/FDC
5902887044717
Toodet pole enam laos
Kauba vastu huvi?

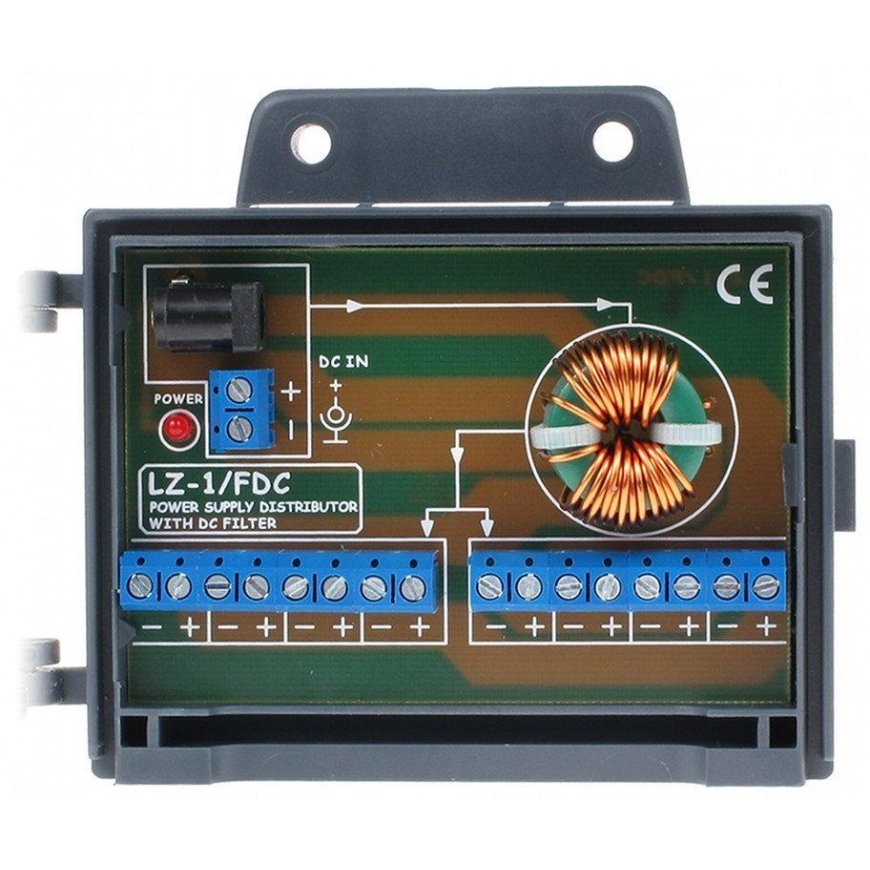

LZ-1/FDC is a passive element and serves for power distribution.
In addition, it uses a filter that eliminates disturbances caused by impulse power supplies.
The fixture allows the LZ-1/FDC to be mounted with screws to the wall or with a clamp to the mast (clamp and screws not included).
For more than 8 receivers, the receivers can be connected in parallel to the same terminal.
Due to the integrated filter, the maximum current that can be used to power devices cannot exceed 6A.
| Number of power inputs : | 2 |
| Number of power outputs : | 8 |
| Maximum supply voltage : | 0 ... 24 V DC (typically 12V) |
| Maximum supply current : | 6 A terminal strip 4 A 5.5/2.1 socket |
| Single output max. output current : | 6 A |
| Protection type : | - |
| Type of power connections : | Input: socket 2.1/5.5 mm / cable terminal Output : Cable terminals |
| Working temperature : | -50 °C ... 55 °C |
| Permissible relative humidity of the environment : | < 95% |
| Built-in filter : | ✔ Interference filter |
| Dimensions : | 116 x 90 x 36 mm |
| Weight : | 0.086 kg |
| Manufacturer / Brand : | DELTA |
| Warranty : | 3 years |
